SKU:

BMXAMM0600H

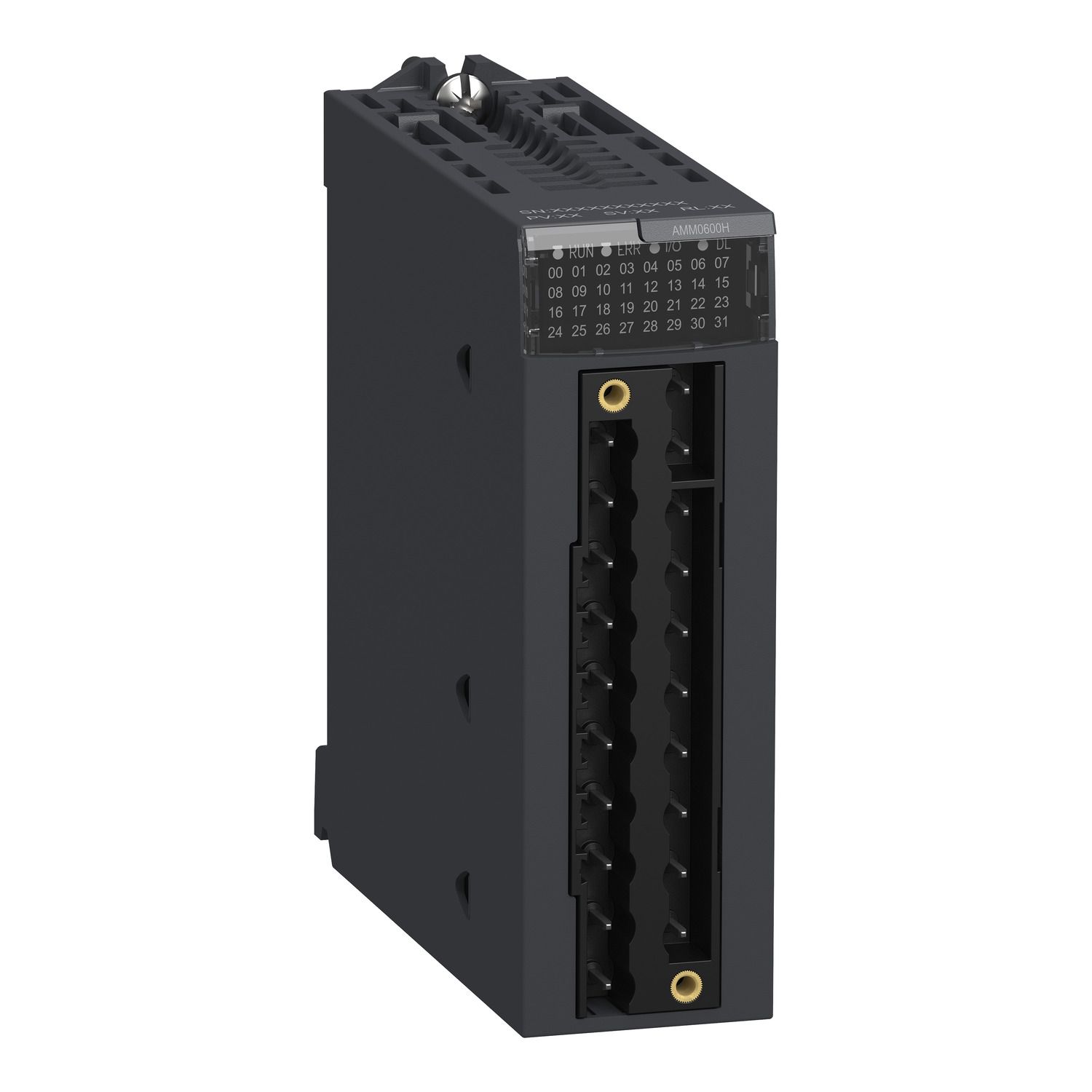

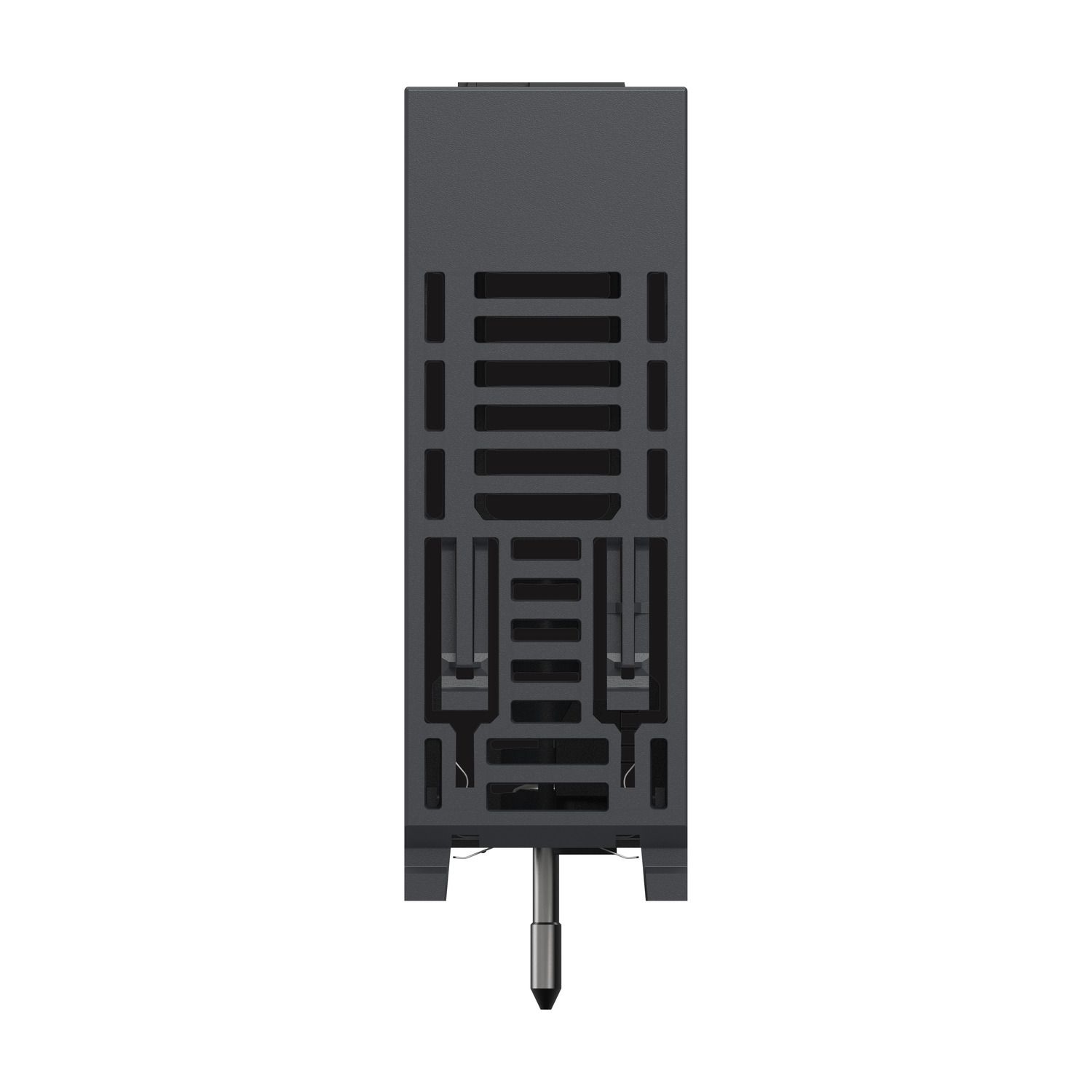

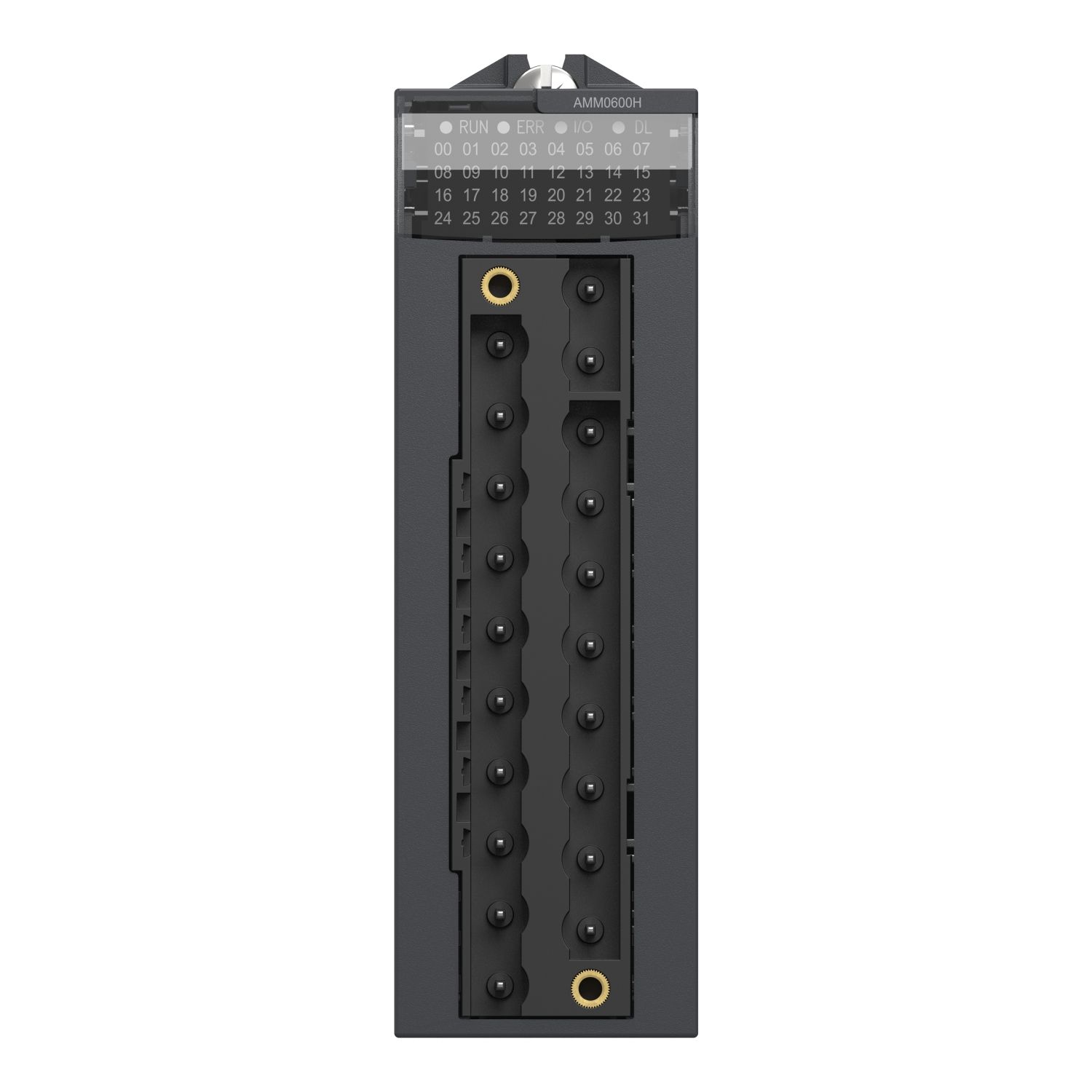

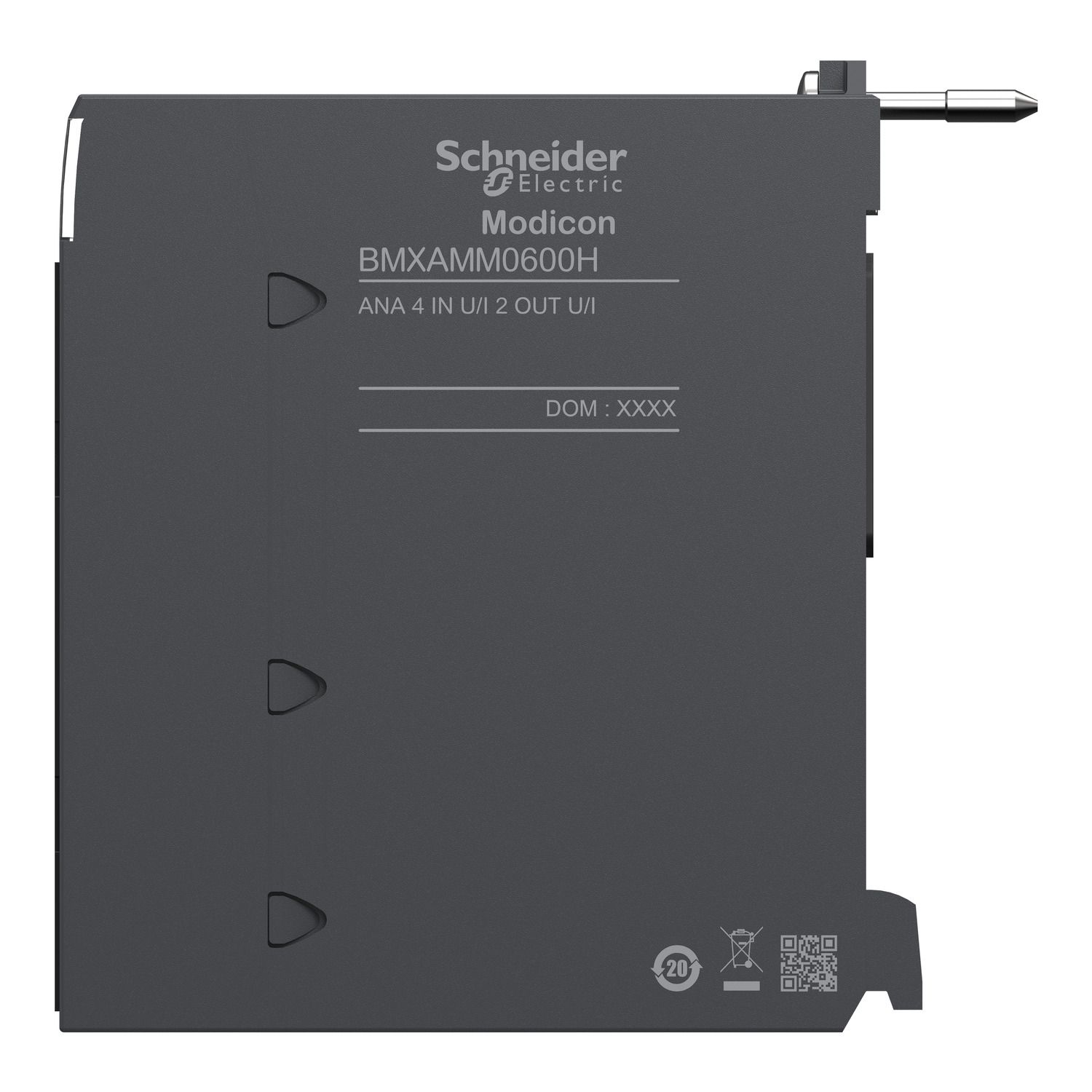

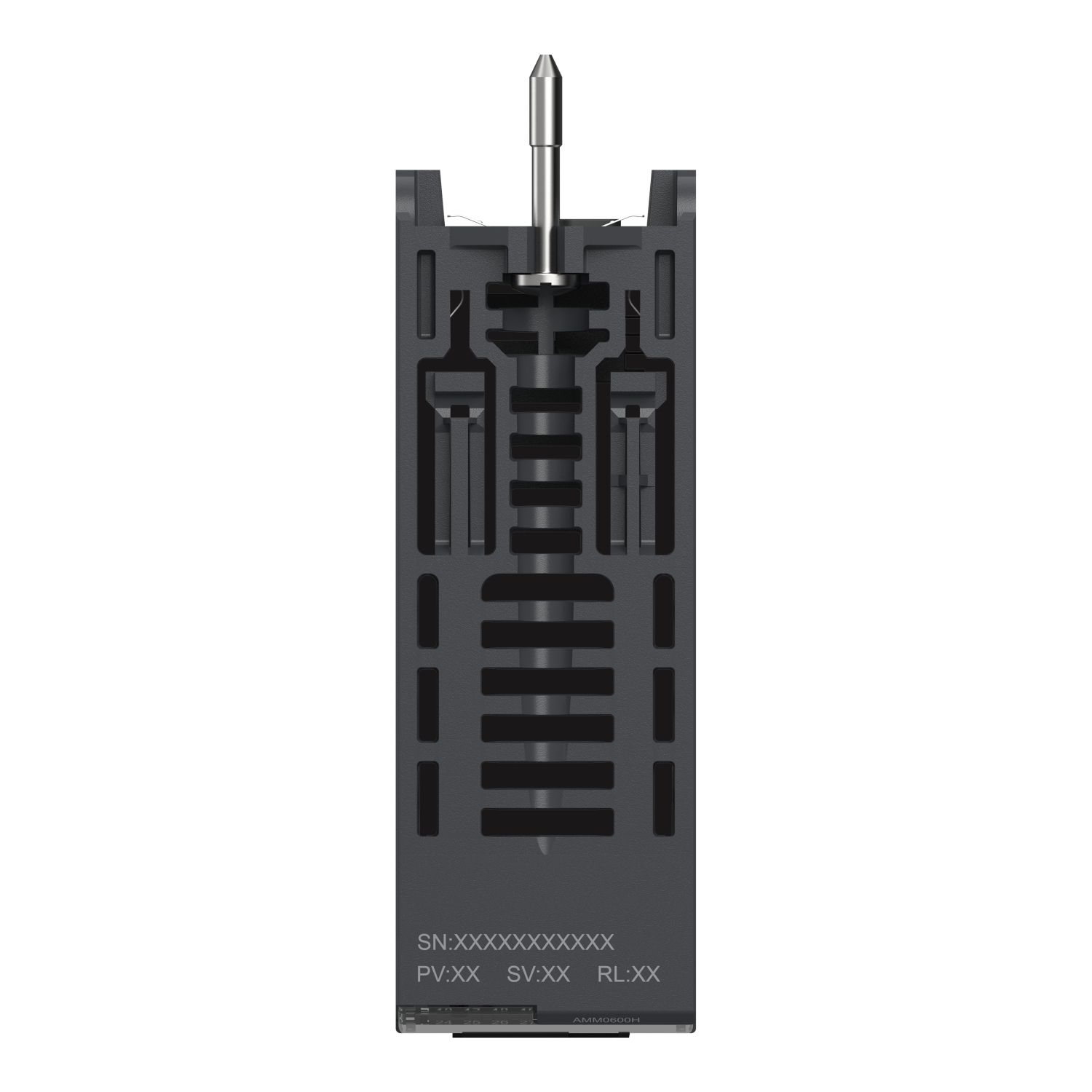

analog non isolated high level IO module, Modicon X80, 4 I, 2 O, 0 to 20mA, 4 to 20mA, 10V positive or negative, severe environment

$2,912.03 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
analog non isolated high level IO module, Modicon X80, 4 I, 2 O, 0 to 20mA, 4 to 20mA, 10V positive or negative, severe environment
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
CAD
Catalog
User guide
Declaration of conformity
Circularity Profile
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This mixed analogue I/O module has 4 input channels, 2 output channels with 12bit, 13bit, 14bit resolution. It is an analogue I/O module with a power consumption of 2.8W at 24V DC. There is no isolation channels between channels and ground at 1400V DC, channels and bus at 1400V DC and group of I/O channels at 750V DC. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with 20-way connector for electrical connection. There is no isolation channels between channels and ground at 1400V DC, channels and bus at 1400V DC and group of I/O channels at 750V DC. It is an IP20 rated product. It weighs 0.155kg. It is suitable for severe environments, medium to large process applications. This product is certified by IEC-Ex, ATEX, Merchant Navy, RCM, CSA, EAC, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name Attribute value
Main
Analogue input type voltage 1...5 V, voltage 0...5 V, voltage 0...10 V, voltage +/- 10 V, current 4...20 mA, current 0...20 mA
Product specific application for severe environments
Analogue input number 4
Input output isolation non isolated
Electrical connection 20 ways 1 connector
Input level high level
Product or component type mixed analog I/O module
Range of product Modicon X80
Complementary
Permitted overload on inputs +/- 30 V 1...5 V, +/- 30 V 0...5 V, +/- 30 V 0...10 V, +/- 30 V +/- 10 V, +/- 30 mA 4...20 mA, +/- 30 mA 0...20 mA
Conversion time <= 2 ms
Analogue output resolution 12 bits, +/- 10 V, 11 bits, 4...20 mA, 11 bits, 0...20 mA
Operating altitude 2000...5000 m with derating factor, 0...2000 m
Nominal read cycle time 5 ms for 4 channels
Power consumption in W 0.48 W 3.3 V DC maximum, 0.35 W 3.3 V DC typical, 3.2 W 24 V DC maximum, 2.6 W 24 V DC typical
Analogue output number 2
Fast read cycle time 1 ms + 1 ms x number of channels used
Isolation voltage 750 V DC between group of I/O channels, 1400 V DC between channels and bus, 1400 V DC between channels and ground
Input impedance 250 Ohm
Net weight 0.155 kg
Minimum crosstalk attenuation 70 dB
Analogue input resolution 14 bits +/- 10 V, 13 bits 0...10 V, 12 bits 4...20 mA, 12 bits 1...5 V, 12 bits 0...5 V, 12 bits 0...20 mA
Current consumption 240 mA at 3.3 V DC
Output level high level
Common mode rejection 80 dB
Analogue output type voltage: +/- 10 V, current: 4...20 mA, current: 0...20 mA
Recalibration factory calibrated on outputs, internal on inputs
Temperature drift 50 ppm/°C 4...20 mA input, 50 ppm/°C 0...20 mA input, 30 ppm/°C 1...5 V input, 30 ppm/°C 0...5 V input, 30 ppm/°C 0...10 V input, 30 ppm/°C +/- 10 V input, 100 ppm/°C 4...20 mA output, 100 ppm/°C 0...20 mA output, 100 ppm/°C +/- 10 V output
Precision of internal conversion resistor 0.1 % - 15 ppm/°C
Status LED 1 LED (red) I/O, 1 LED (red) ERR, 1 LED per channel (green) channel diagnostic, 1 LED (green) RUN
Type of filter first order digital filtering by firmware
Maximum conversion value 0...24 mA 4...20 mA output, 0...24 mA 0...20 mA output, +/- 11.25 V 1...5 V input, +/- 11.25 V 0...5 V input, +/- 11.25 V 0...10 V input, 0...30 mA 4...20 mA input, 0...30 mA 0...20 mA input, +/- 11.25 V +/- 10 V input, +/- 11.25 V +/- 10 V output
Measurement error <= 0.8 % of full scale 4...20 mA - 25...70 °C output, <= 0.8 % of full scale 0...20 mA - 25...70 °C output, <= 0.8 % of full scale +/- 10 V - 25...70 °C output, <= 0.6 % of full scale 4...20 mA - 25...70 °C input, <= 0.6 % of full scale 0...20 mA - 25...70 °C input, <= 0.4 % of full scale 1...5 V - 25...70 °C input, <= 0.4 % of full scale 0...5 V - 25...70 °C input, <= 0.4 % of full scale 0...10 V - 25...70 °C input, <= 0.4 % of full scale +/- 10 V - 25...70 °C input, 0.35 % of full scale 4...20 mA 25 °C input, 0.35 % of full scale 0...20 mA 25 °C input, 0.25 % of full scale 1...5 V 25 °C input, 0.25 % of full scale 0...5 V 25 °C input, 0.25 % of full scale 0...10 V 25 °C input, 0.25 % of full scale +/- 10 V 25 °C input, 0.25 % of full scale +/- 10 V 25 °C output, 0.25 % of full scale 4...20 mA 25 °C output, 0.25 % of full scale 0...20 mA 25 °C output
Fallback mode configurable, predefined
MTBF reliability 1400000 H
Environment
IP degree of protection IP20
Protective treatment conformal coating
Relative humidity 5-95 % at 55-55 °C without condensation
Ambient air temperature for storage -40-85 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Vibration resistance 3 gn
Environmental characteristic hazardous location, fungal spore resistant class 3B2, mold growth resistant class 3B2, salt resistant level 2, sand resistant class 3S4, dust resistant class 3S4, gas resistant class 3C4, gas resistant class Gx
Shock resistance 30 gn
Standards CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61131-2, EN/IEC 61010-2-201
Ambient air temperature for operation -25-70 °C
Product certifications IEC-Ex, ATEX, UL, Merchant Navy, EAC, CSA, RCM, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 11.000 cm
Package 1 Length 12.000 cm
Package 1 Weight 176.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.001 kg
