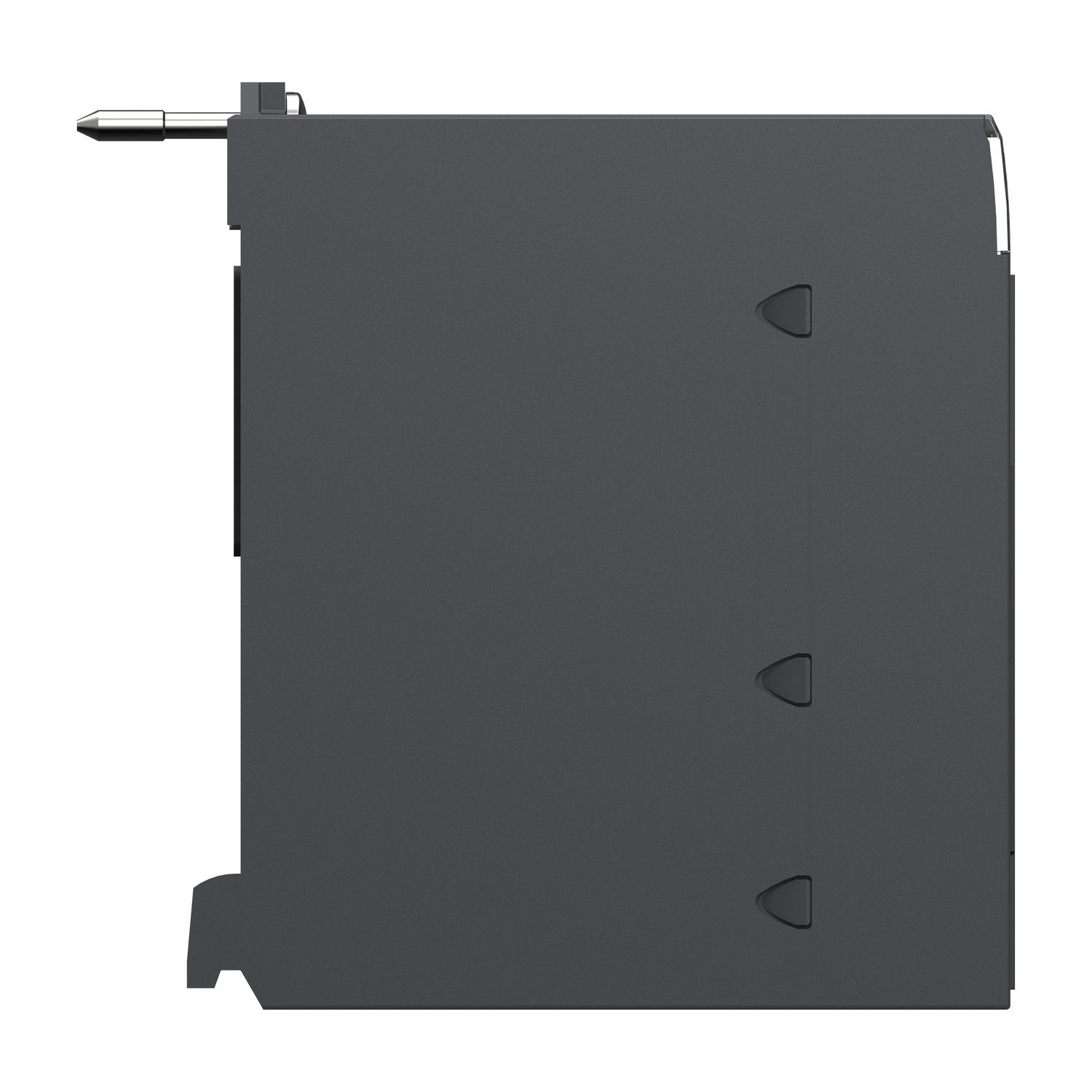

Picture of analog isolated high level input module, Modicon X80, 8 I, 0 to 20mA, 4 to 20mA, 10V positive or negative, severe environment

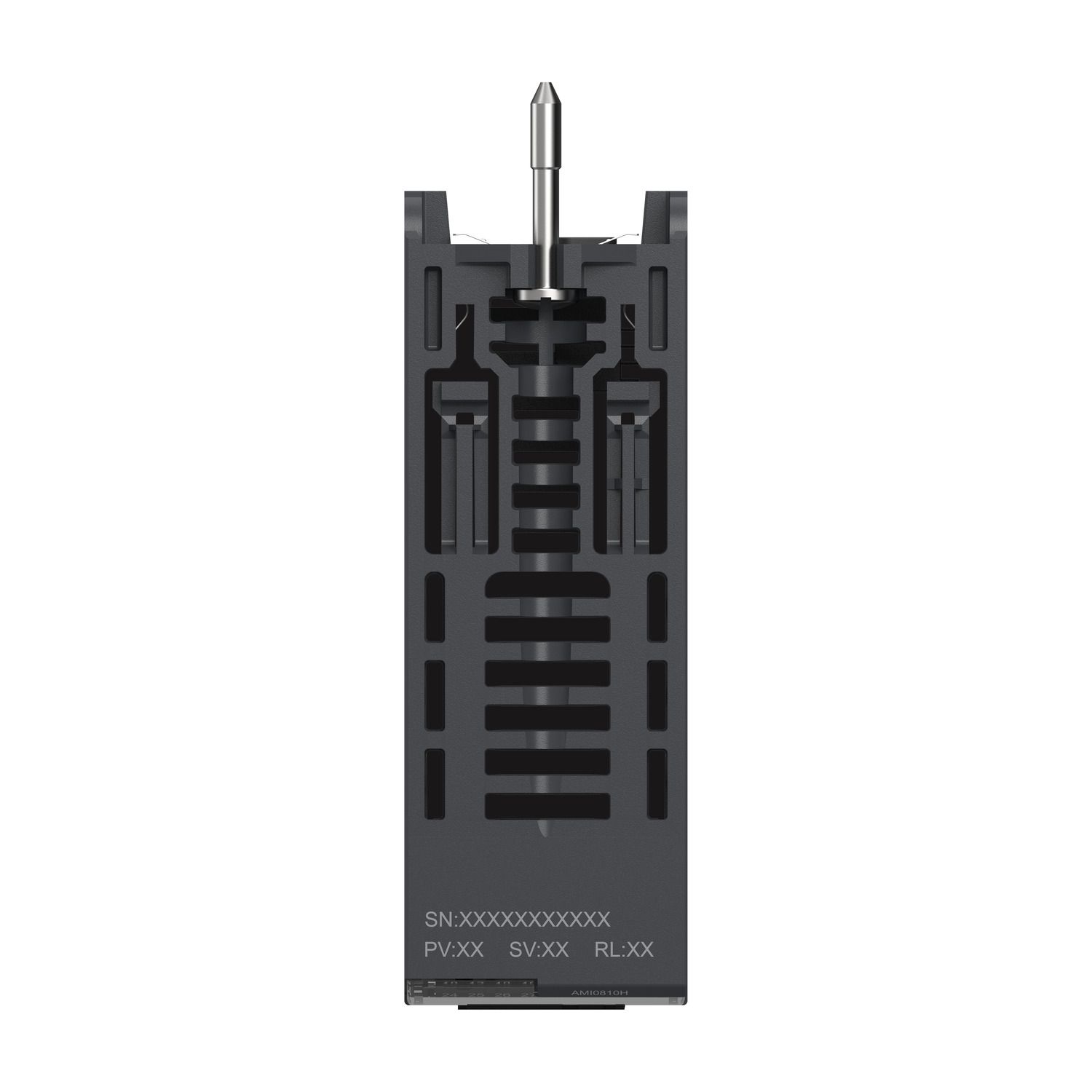

Picture of analog isolated high level input module, Modicon X80, 8 I, 0 to 20mA, 4 to 20mA, 10V positive or negative, severe environment
Picture of analog isolated high level input module, Modicon X80, 8 I, 0 to 20mA, 4 to 20mA, 10V positive or negative, severe environment
Picture of analog isolated high level input module, Modicon X80, 8 I, 0 to 20mA, 4 to 20mA, 10V positive or negative, severe environment
Picture of analog isolated high level input module, Modicon X80, 8 I, 0 to 20mA, 4 to 20mA, 10V positive or negative, severe environment
Picture of analog isolated high level input module, Modicon X80, 8 I, 0 to 20mA, 4 to 20mA, 10V positive or negative, severe environment
Picture of analog isolated high level input module, Modicon X80, 8 I, 0 to 20mA, 4 to 20mA, 10V positive or negative, severe environment
Picture of analog isolated high level input module, Modicon X80, 8 I, 0 to 20mA, 4 to 20mA, 10V positive or negative, severe environment
SKU:

BMXAMI0810H

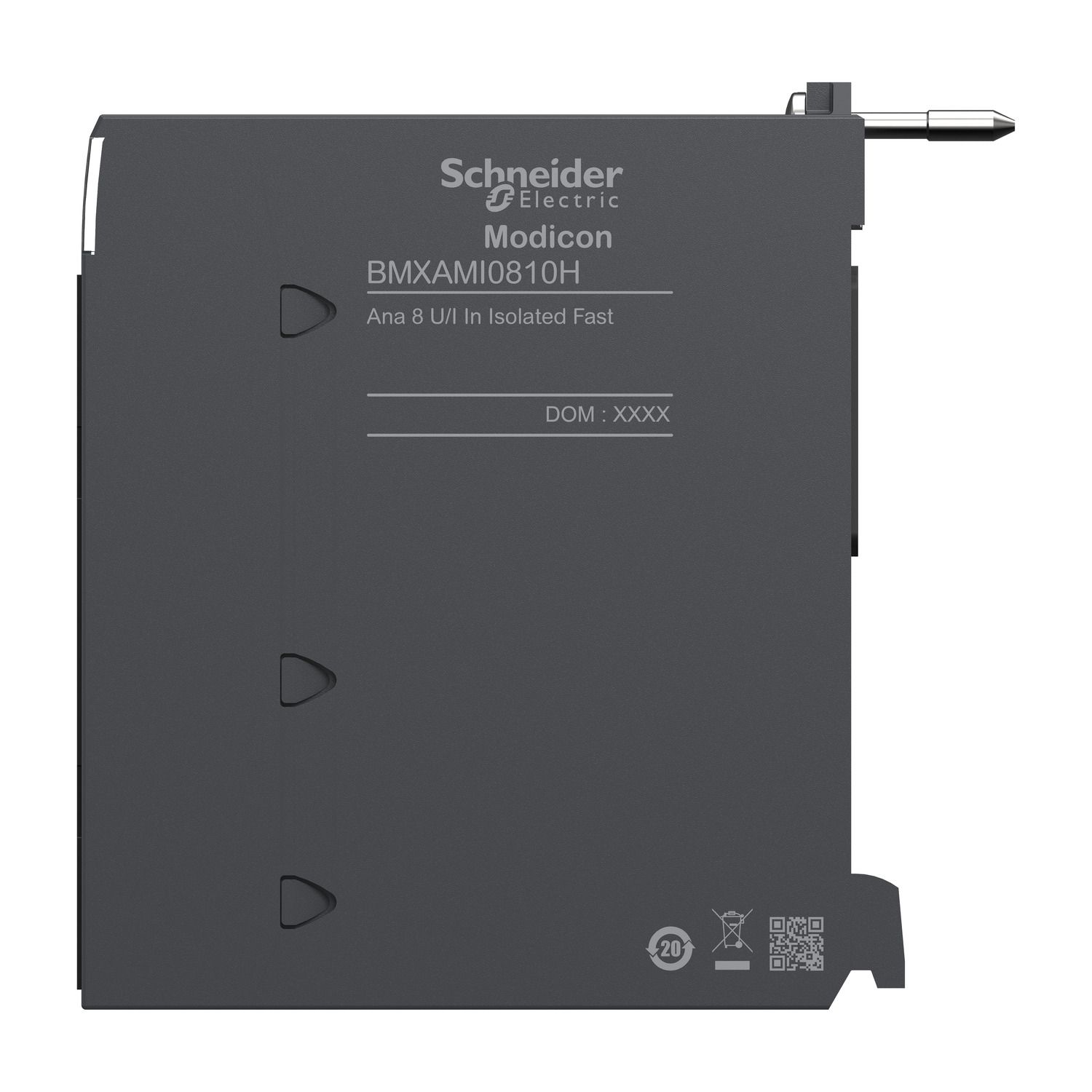

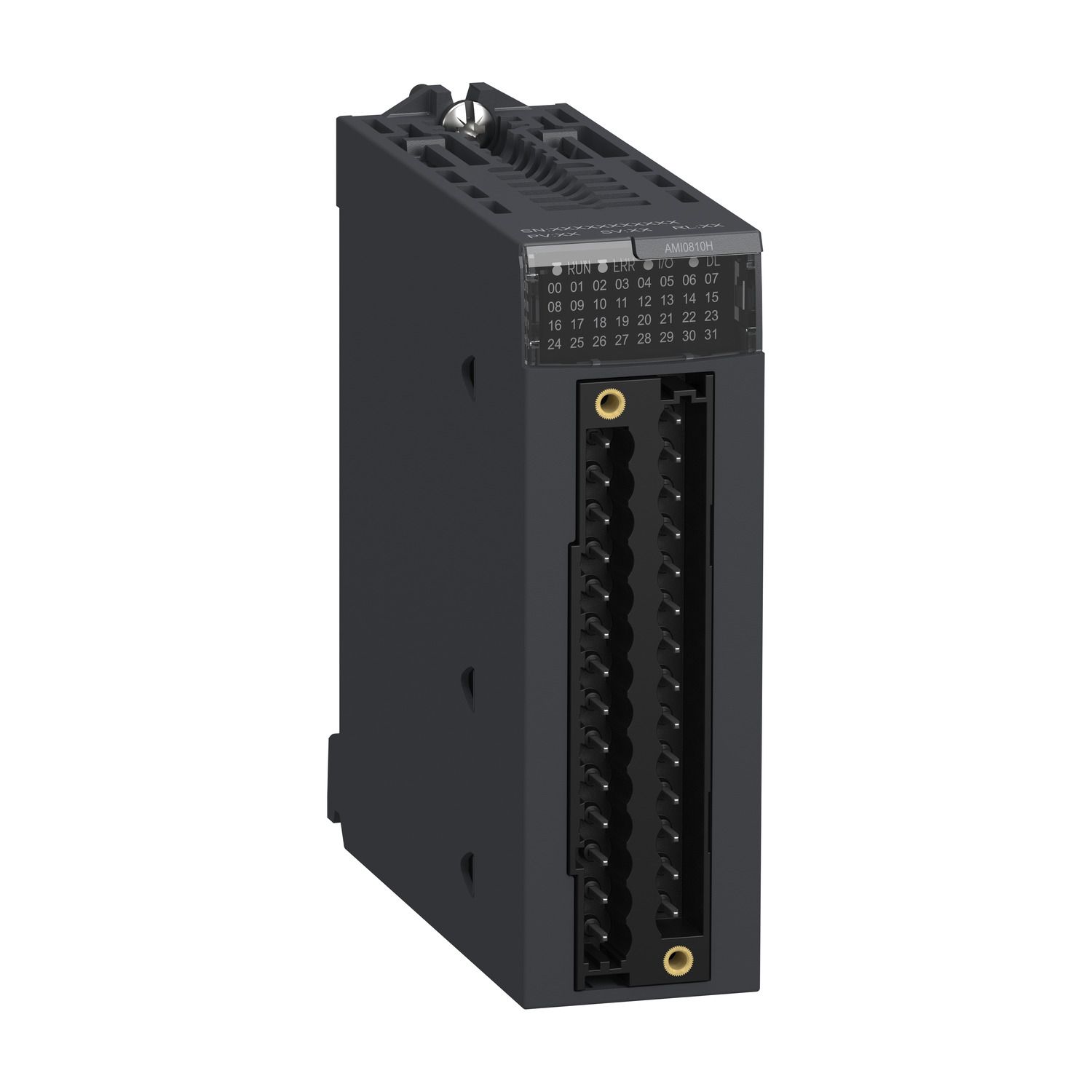

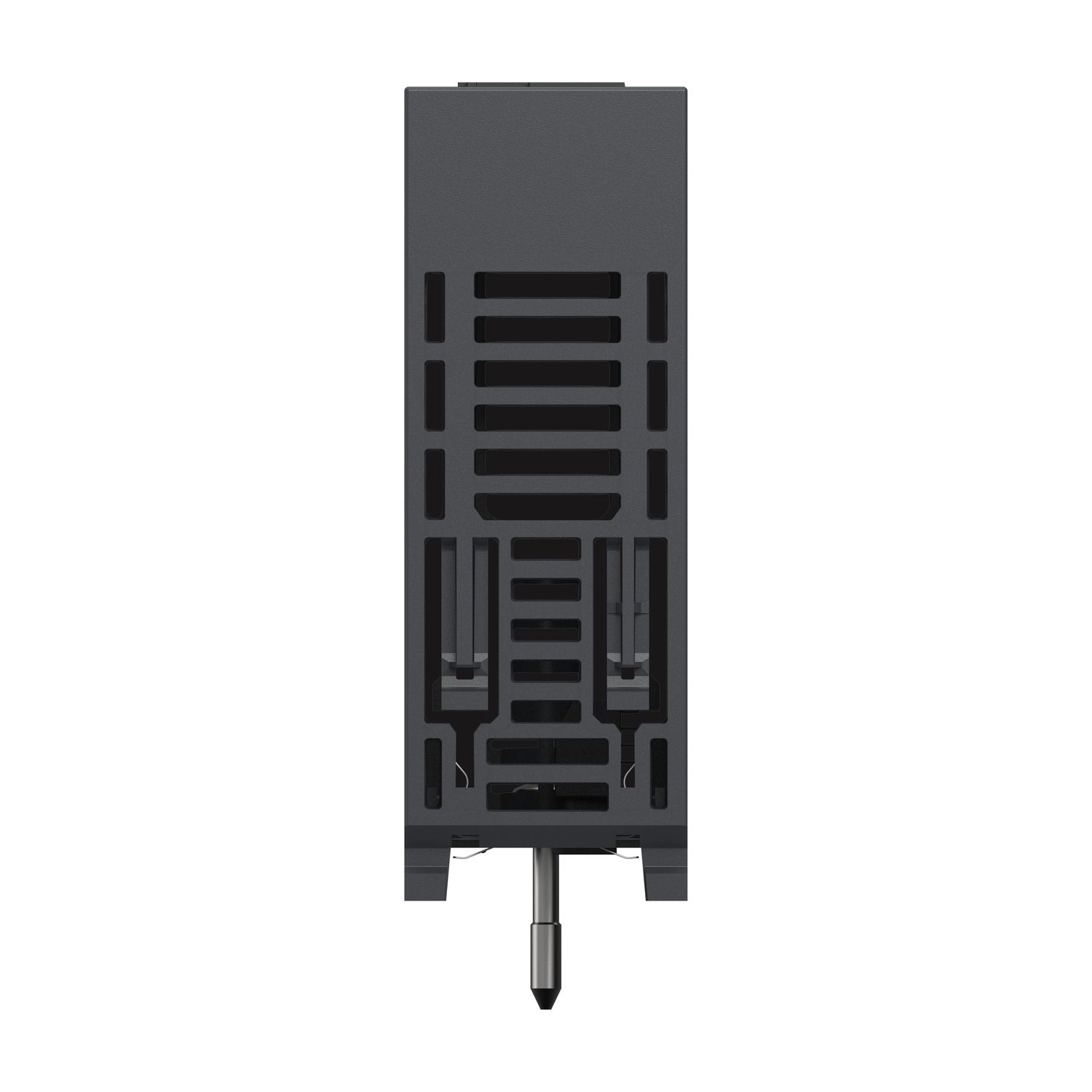

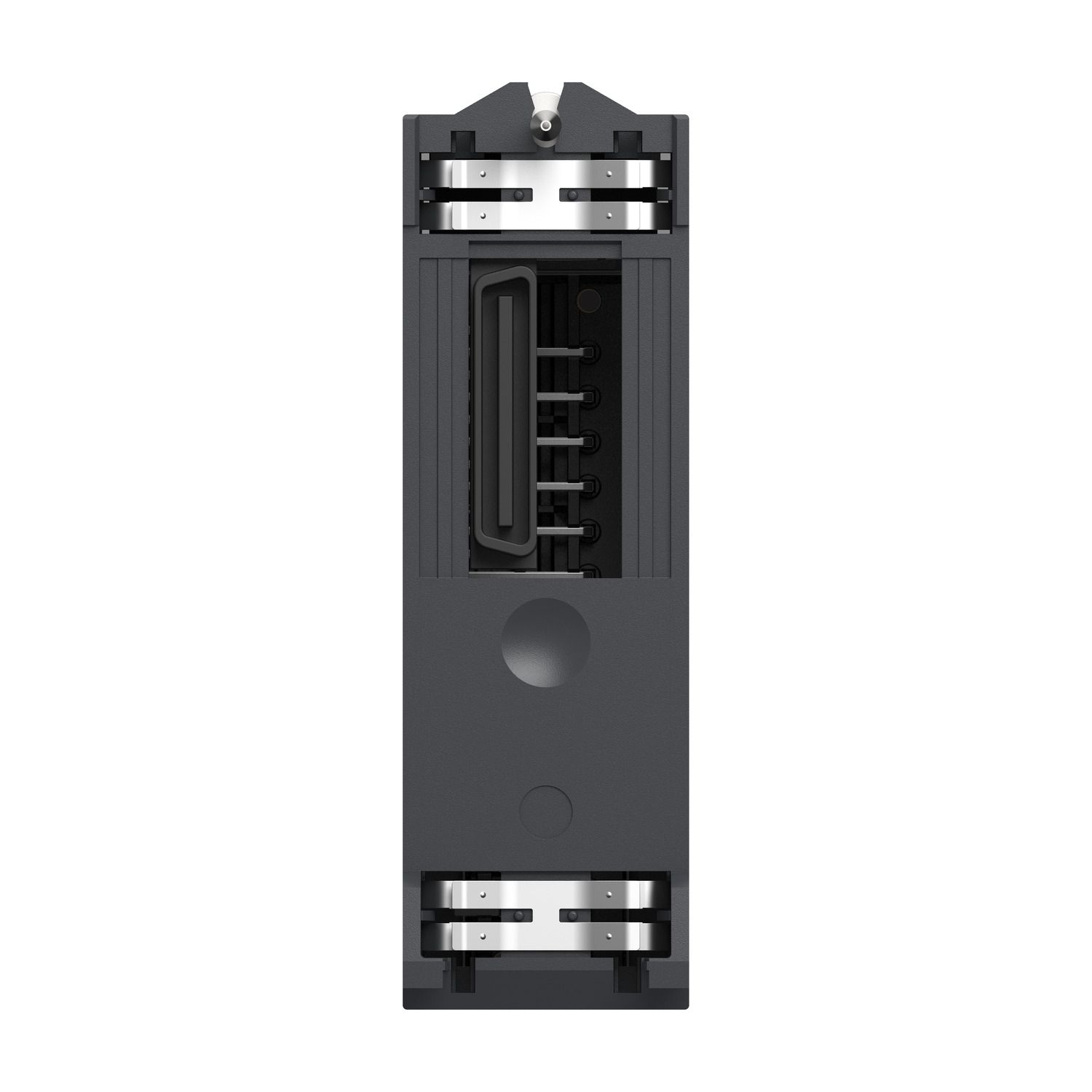

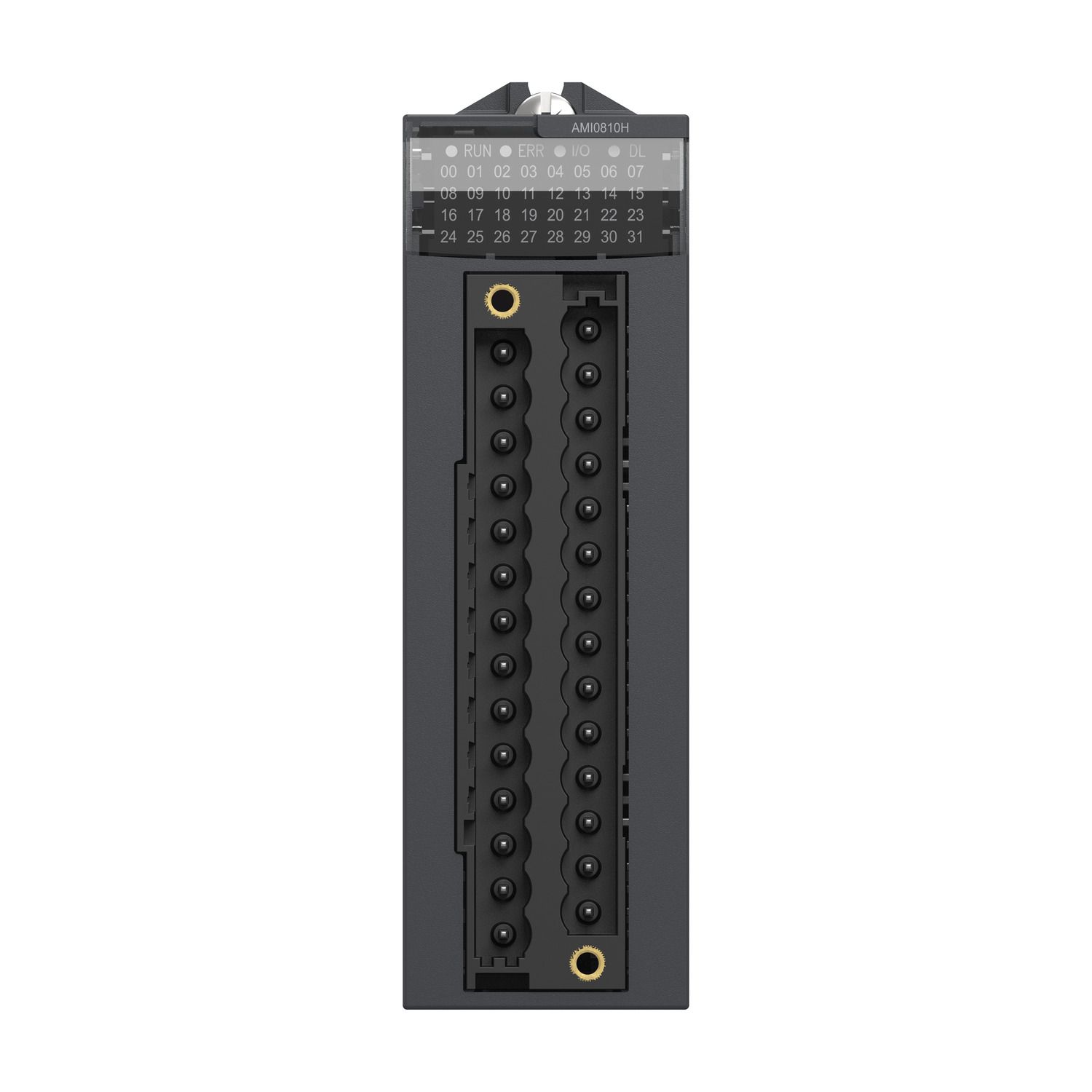

analog isolated high level input module, Modicon X80, 8 I, 0 to 20mA, 4 to 20mA, 10V positive or negative, severe environment

$3,382.61 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
analog isolated high level input module, Modicon X80, 8 I, 0 to 20mA, 4 to 20mA, 10V positive or negative, severe environment
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
User guide
Declaration of conformity
Circularity Profile
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This analogue input module has 8 inputs with 15bit + sign input resolution. It is an input module with a power consumption of 1.54W at 24V DC. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with 28-way connector for electrical connection. It is an IP20 rated product. It weighs 0.175kg. It is suitable for medium to large process and severe environments applications. This product is certified by EAC, RCM, UL, CSA, IEC-Ex, Merchant Navy, ATEX, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name Attribute value
Main
Analogue input type voltage 1...5 V, voltage 0...5 V, voltage 0...10 V, voltage +/- 5 V, voltage +/- 10 V, current 4...20 mA, current 0...20 mA, current +/- 20 mA
Product specific application for severe environments
Analogue input number 8
Input output isolation isolated
Electrical connection 28 ways 1 connector
Input level high level
Product or component type analog input module
Range of product Modicon X80
Complementary
Permitted overload on inputs +/- 30 mA +/- 20 mA, +/- 30 V 1...5 V, +/- 30 V 0...5 V, +/- 30 V 0...10 V, +/- 30 V +/- 5 V, +/- 30 V +/- 10 V, +/- 30 mA 4...20 mA, +/- 30 mA 0...20 mA
Measurement resolution 1.4 µA 4...20 mA, 1.4 µA 0...20 mA, 1.4 µA +/- 20 mA, 0.36 mV +/- 5 V, 0.36 mV 1...5 V, 0.36 mV 0...5 V, 0.36 mV 0...10 V, 0.36 mV +/- 10 V
Analog/digital conversion 16 bits
Operating altitude 2000...5000 m with derating factor, 0...2000 m
Nominal read cycle time 9 ms for 8 channels
Digital value format +/- 10000 by default, - 32768 to + 32767 in maximum user scale
Power consumption in W 0.48 W 3.3 V DC maximum, 0.32 W 3.3 V DC typical, 1.50 W 24 V DC maximum, 1.06 W 24 V DC typical
Fast read cycle time 1 ms + 1 ms x number of channels used
Isolation voltage 1400 V DC between channels and bus, 1400 V DC between channels and ground, 300 V DC between channels
Input impedance 250 Ohm + 3.6...50 Ohm internal protective resistor in current mode, 10 MOhm in voltage mode
Net weight 0.175 kg
Minimum crosstalk attenuation 80 dB
Analogue input resolution 15 bits + sign
Current consumption 54 mA at 24 V DC, 150 mA at 3.3 V DC
Common mode rejection 80 dB
Temperature drift 50 ppm/°C 4...20 mA, 50 ppm/°C 0...20 mA, 50 ppm/°C +/- 20 mA, 30 ppm/°C 1...5 V, 30 ppm/°C 0...5 V, 30 ppm/°C 0...10 V, 30 ppm/°C +/- 5 V, 30 ppm/°C +/- 10 V
Precision of internal conversion resistor 0.1 % - 15 ppm/°C
Status LED 1 LED (red) I/O, 1 LED (red) ERR, 1 LED per channel (green) channel diagnostic, 1 LED (green) RUN
Type of filter first order digital filtering
Maximum conversion value 0...30 mA +/- 5 V, 0...30 mA 4...20 mA, 0...30 mA 0...20 mA, 0...30 mA +/- 20 mA, +/- 11.4 V 1...5 V, +/- 11.4 V 0...5 V, +/- 11.4 V 0...10 V, +/- 11.4 V +/- 10 V
Measurement error <= 0.55 % of full scale 4...20 mA - 25...70 °C, <= 0.55 % of full scale 0...20 mA - 25...70 °C, <= 0.55 % of full scale +/- 20 mA - 25...70 °C, <= 0.2 % of full scale 1...5 V - 25...70 °C, <= 0.2 % of full scale 0...5 V - 25...70 °C, <= 0.2 % of full scale 0...10 V - 25...70 °C, <= 0.2 % of full scale +/- 5 V - 25...70 °C, <= 0.2 % of full scale +/- 10 V - 25...70 °C, 0.075 % of full scale +/- 5 V 25 °C, 0.075 % of full scale 1...5 V 25 °C, 0.075 % of full scale 0...5 V 25 °C, 0.075 % of full scale 0...10 V 25 °C, 0.075 % of full scale +/- 10 V 25 °C, 0.15 % of full scale 4...20 mA 25 °C, 0.15 % of full scale 0...20 mA 25 °C, 0.15 % of full scale +/- 20 mA 25 °C
MTBF reliability 900000 H
Environment
IP degree of protection IP20
Protective treatment conformal coating
Relative humidity 5-95 % at 55-55 °C without condensation
Ambient air temperature for storage -40-85 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Vibration resistance 3 gn
Environmental characteristic hazardous location, fungal spore resistant class 3B2, mold growth resistant class 3B2, salt resistant level 2, sand resistant class 3S4, dust resistant class 3S4, gas resistant class 3C4, gas resistant class Gx
Shock resistance 30 gn
Standards CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61131-2, EN/IEC 61010-2-201
Ambient air temperature for operation -25-70 °C
Product certifications IEC-Ex, ATEX, UL, Merchant Navy, EAC, CSA, RCM, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 11.000 cm
Package 1 Length 11.600 cm
Package 1 Weight 168.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.855 kg

Related products

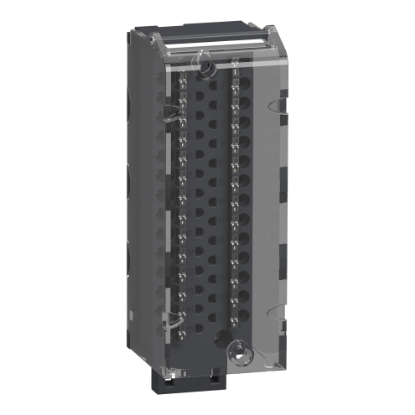

terminal block, Modicon X80, 28-pin removable spring, 1 x 0.34..1mm2

BMXFTB2820
$110.18 INC GST
View Detail

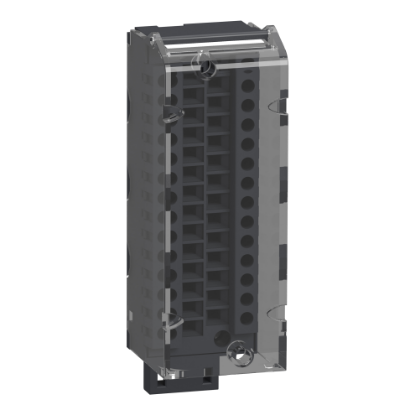

terminal block, Modicon X80, 28-pin removable caged, 1 x 0.34..1mm2

BMXFTB2800
$138.39 INC GST
View Detail
Picture of shielded cord set, Modicon X80, 28-way terminal, one end flying leads, 3m

shielded cord set, Modicon X80, 28-way terminal, one end flying leads, 3m

BMXFTW308S
$277.71 INC GST
View Detail

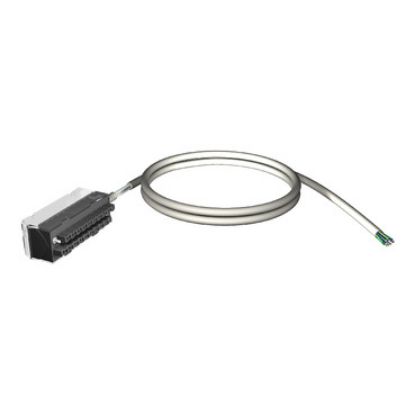

Picture of shielded cord set, Modicon X80, 28-way terminal, one end flying leads, 5m
