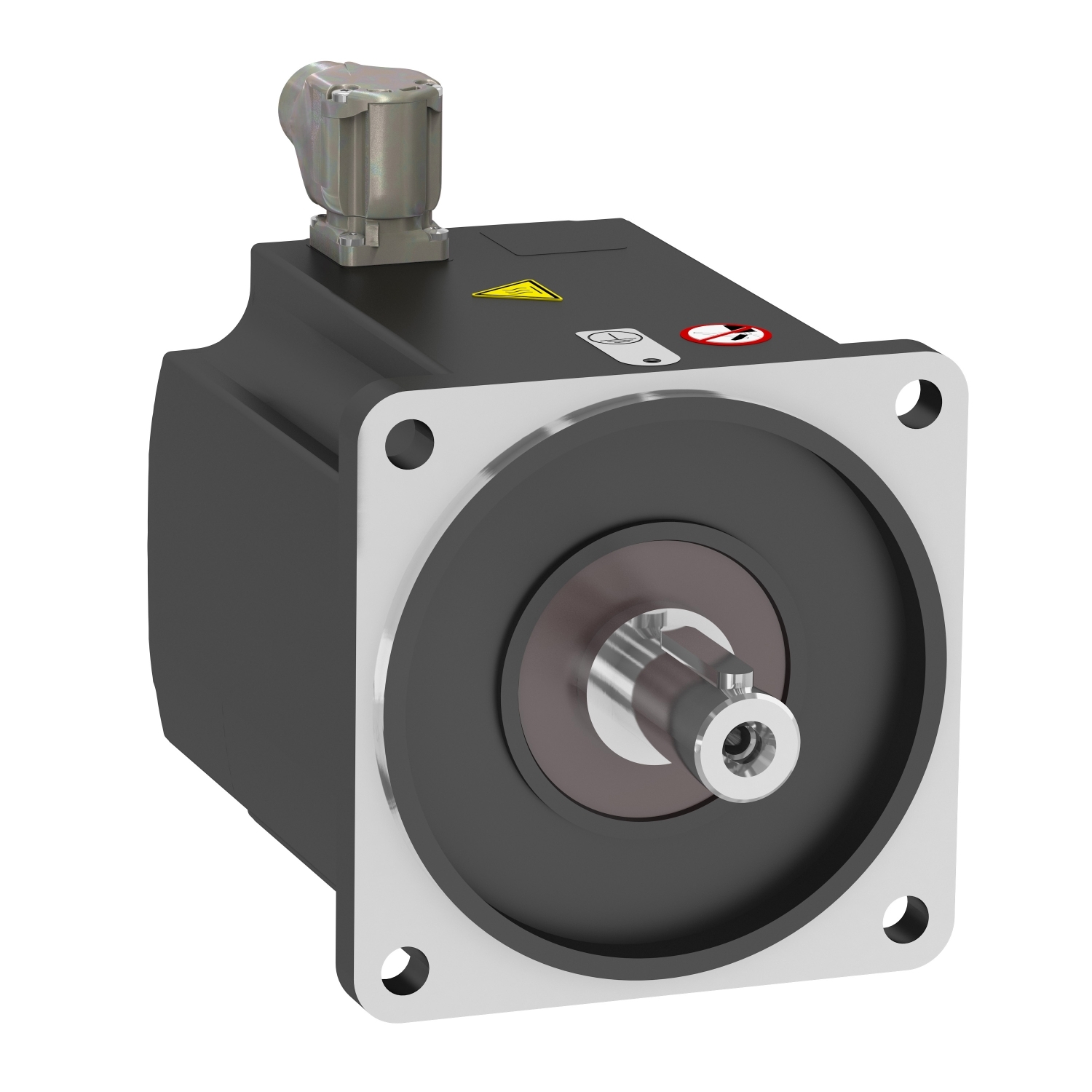

Picture of synchronous motor - BMP - 480 VAC - 2.2 kW - IP65 - IEC
SKU:

BMP1402C3NA2A

synchronous motor - BMP - 480 VAC - 2.2 kW - IP65 - IEC

$2,874.96 INC GST
Available for Shipping : 25-Feb-2026
synchronous motor - BMP - 480 VAC - 2.2 kW - IP65 - IEC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 25-Feb-2026
Declaration of conformity
User guide
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name BMP
Nominal torque 14.01 N.m with drive ATV320 at 2.2 kW 400 V three phase, 14.01 N.m with drive ATV32 at 2.2 kW 400 V three phase
Electrical connection rotatable right-angled connector
Nominal speed 1500 rpm with drive ATV320 at 2.2 kW 400 V three phase, 1500 rpm with drive ATV32 at 2.2 kW 400 V three phase
Shaft end keyed
IP degree of protection IP67 with IP67 kit, IP65 standard
Nominal output power 2200 W with drive ATV320 at 2.2 kW 400 V three phase, 2200 W with drive ATV32 at 2.2 kW 400 V three phase
Product or component type synchronous motor
Holding brake without
Mounting support international standard flange
Maximum mechanical speed 3600 rpm
Product compatibility variable speed drive ATV320 at 2.2 kW 380...500 V three phase, variable speed drive ATV32 at 2.2 kW 400 V three phase
Complementary
Torque constant 2.9 N.m/A at 40 °C
Nominal operating frequency 125 Hz with drive ATV320 at 2.2 kW 400 V three phase, 125 Hz with drive ATV32 at 2.2 kW 400 V three phase
Range compatibility Altivar 32, Altivar Machine ATV320
Stator resistance 1.24 Ohm at 40 °C
Maximum operating frequency 300 Hz with drive ATV320 at 2.2 kW 400 V three phase, 300 Hz with drive ATV32 at 2.2 kW 400 V three phase
Type of cooling natural convection
Mounting holes diameter 11 mm
Minimum operating frequency 13 Hz with drive ATV320 at 2.2 kW 400 V three phase, 13 Hz with drive ATV32 at 2.2 kW 400 V three phase
Shaft diameter 24 mm
Key width 8 mm
Number of mounting holes 4
[Us] rated supply voltage 480 V
Motor flange size 140 mm
Stator inductance 13.86 mH for d-axis winding at 40 °C, 15.52 mH for q-axis winding at 40 °C
Centring collar diameter 130 mm
Net weight 12 kg
Maximum current Irms 8.3 A with drive ATV320 at 2.2 kW 400 V three phase, 8.3 A with drive ATV32 at 2.2 kW 400 V three phase
Length 192 mm
Network number of phases three phase
Shaft length 50 mm
Centring collar depth 3.5 mm
Maximum axial force Fa 0.2 x Fr
Number of motor poles 5
Rotor inertia 32 kg.cm²
Number of motor stacks 2
Maximum radial force Fr 1550 N at 3000 rpm, 1780 N at 2000 rpm, 2240 N at 1000 rpm
Circle diameter of the mounting holes 165-165 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 26.0 cm
Package 1 Width 20.0 cm
Package 1 Length 59.0 cm
Package 1 Weight 13.582 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 77.0 cm
Package 2 Width 80.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 62.828 kg
