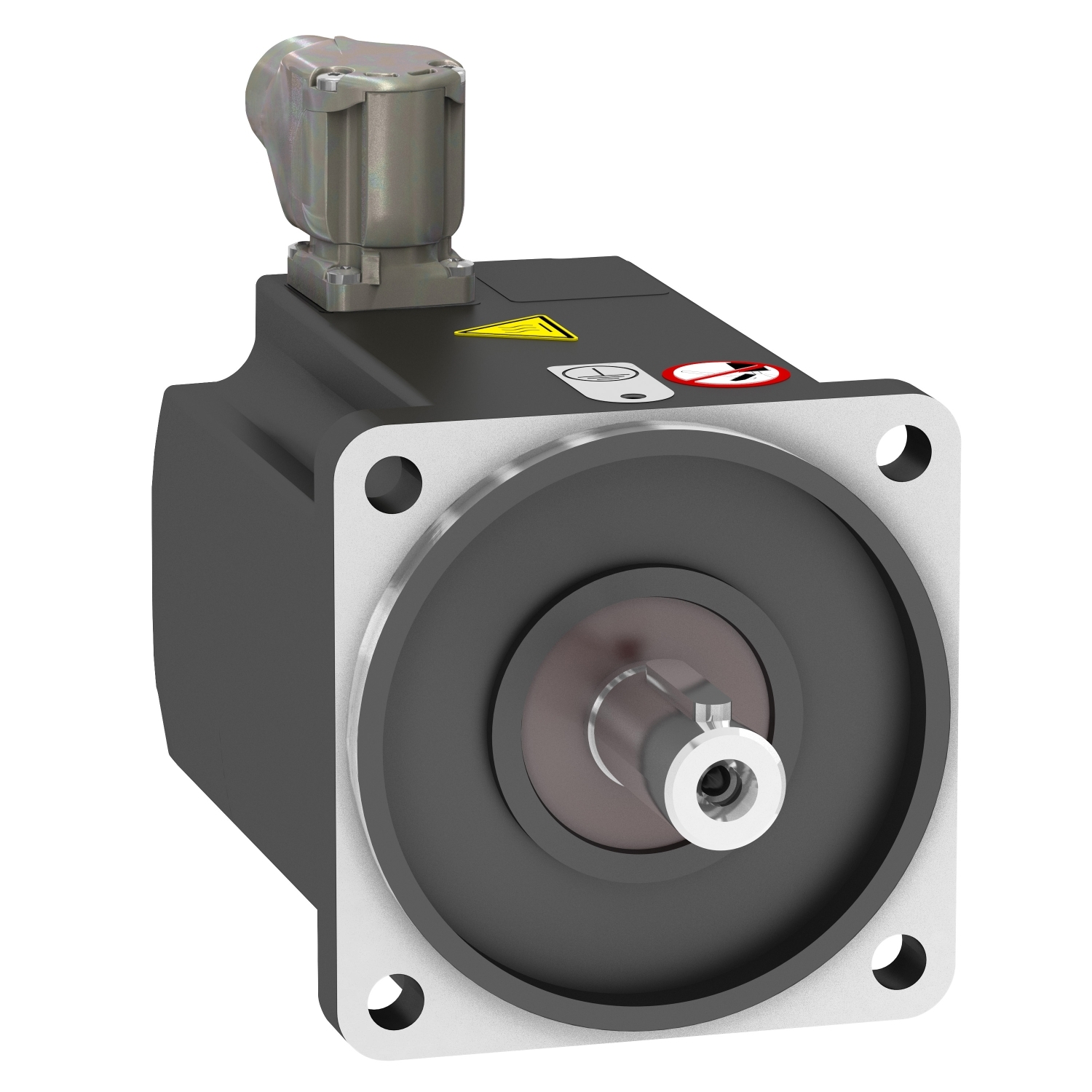

Picture of synchronous motor - BMP - 480 VAC - 0.95 kW - IP65 - IEC
SKU:

BMP1001F3NA2A

synchronous motor - BMP - 480 VAC - 0.95 kW - IP65 - IEC

$1,582.68 INC GST
Available for Shipping : 28-Jan-2026
synchronous motor - BMP - 480 VAC - 0.95 kW - IP65 - IEC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 28-Jan-2026
Declaration of conformity
User guide
Product Page Link
Product Data Sheet
This product belongs to Altivar 32, a range of variable speed drives. This BMP synchronous motor has a power rating of 0.95kW and works at a rated supply voltage 480V. Its nominal speed is 3000rpm. Its shaft end is keyed. It is equipped with a rotatable right-angled connector. It has no holding brake. This AC synchronous motor features High power density, and High energy efficiencys. It is a synchronous motor with a medium moment of inertia. Its shaft end is IP65 standard rating and IP67 rating with a kit. This motor has a 100mm flange, with a 19mm shaft diameter, and 40mm shaft length. It weighs 3.34kg. BMP motor/Altivar 32 speed drive combination is made for hoisting machines, material handling machines, textile machines, wood-working machines. BMP motors are certified by UL, cUL, DESINA, and have CE declaration of conformity. This BMP motor with single cable connectivity is compatible with Altivar 32 and Altivar Machine 320 variable speed drives. All mounting positions are permitted, horizontal mounting (IMB5), vertical mounting (IMV1 and IMV3) in accordance with IEC 60034-7. Altivar 32 are drives for complex machines 0.18 to 15 kW. With its extra-slim format, Altivar 32 offers numerous advantages in the control of asynchronous and synchronous motors operating in open loop mode.

Products specifications

Attribute name Attribute value
Main
Device short name BMP
Nominal torque 2.39 N.m with drive ATV320 at 1.1 kW 400 V three phase, 2.39 N.m with drive ATV320 at 0.75 kW 400 V three phase, 2.39 N.m with drive ATV32 at 1.1 kW 400 V three phase, 2.39 N.m with drive ATV32 at 0.75 kW 400 V three phase
Electrical connection rotatable right-angled connector
Nominal speed 3000 rpm with drive ATV320 at 1.1 kW 400 V three phase, 3000 rpm with drive ATV320 at 0.75 kW 400 V three phase, 3000 rpm with drive ATV32 at 1.1 kW 400 V three phase, 3000 rpm with drive ATV32 at 0.75 kW 400 V three phase
Shaft end keyed
IP degree of protection IP67 with IP67 kit, IP65 standard
Nominal output power 750 W with drive ATV320 at 1.1 kW 400 V three phase, 750 W with drive ATV320 at 0.75 kW 400 V three phase, 750 W with drive ATV32 at 1.1 kW 400 V three phase, 750 W with drive ATV32 at 0.75 kW 400 V three phase
Product or component type synchronous motor
Holding brake without
Mounting support international standard flange
Maximum mechanical speed 3600 rpm
Product compatibility variable speed drive ATV320 at 1.1 kW 380...500 V three phase, variable speed drive ATV320 at 0.75 kW 380...500 V three phase, variable speed drive ATV32 at 1.1 kW 400 V three phase, variable speed drive ATV32 at 0.75 kW 400 V three phase
Complementary
Torque constant 1.71 N.m/A at 40 °C
Nominal operating frequency 250 Hz with drive ATV320 at 1.1 kW 400 V three phase, 250 Hz with drive ATV320 at 0.75 kW 400 V three phase, 250 Hz with drive ATV32 at 1.1 kW 400 V three phase, 250 Hz with drive ATV32 at 0.75 kW 400 V three phase
Range compatibility Altivar Machine ATV320, Altivar 32
Stator resistance 4.54 Ohm at 40 °C
Maximum operating frequency 300 Hz with drive ATV320 at 1.1 kW 400 V three phase, 300 Hz with drive ATV320 at 0.75 kW 400 V three phase, 300 Hz with drive ATV32 at 1.1 kW 400 V three phase, 300 Hz with drive ATV32 at 0.75 kW 400 V three phase
Type of cooling natural convection
Mounting holes diameter 9 mm
Minimum operating frequency 25 Hz with drive ATV320 at 1.1 kW 400 V three phase, 25 Hz with drive ATV320 at 0.75 kW 400 V three phase, 25 Hz with drive ATV32 at 1.1 kW 400 V three phase, 25 Hz with drive ATV32 at 0.75 kW 400 V three phase
Shaft diameter 19 mm
Key width 6 mm
Number of mounting holes 4
[Us] rated supply voltage 480 V
Motor flange size 100 mm
Stator inductance 13.28 mH for d-axis winding at 40 °C, 15.3 mH for q-axis winding at 40 °C
Centring collar diameter 95 mm
Net weight 3.34 kg
Maximum current Irms 4.5 A with drive ATV320 at 1.1 kW 400 V three phase, 3.5 A with drive ATV320 at 0.75 kW 400 V three phase, 4.5 A with drive ATV32 at 1.1 kW 400 V three phase, 3.5 A with drive ATV32 at 0.75 kW 400 V three phase
Length 128.6 mm
Network number of phases three phase
Shaft length 40 mm
Centring collar depth 3.5 mm
Maximum axial force Fa 0.2 x Fr
Number of motor poles 5
Rotor inertia 3.19 kg.cm²
Number of motor stacks 1
Maximum radial force Fr 570 N at 4000 rpm, 630 N at 3000 rpm, 720 N at 2000 rpm, 900 N at 1000 rpm
Circle diameter of the mounting holes 115-115 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 22.0 cm
Package 1 Width 20.0 cm
Package 1 Length 44.0 cm
Package 1 Weight 4.492 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 77.0 cm
Package 2 Width 80.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 35.452 kg

Related products

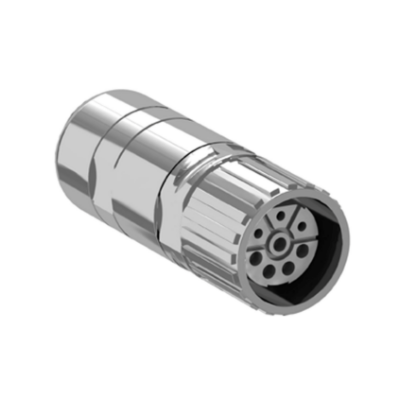

Picture of M23 industrial connector for creating power cordsets - 1.5 or 2 mm² - set of 5
