SKU:

BMEXBP1002H

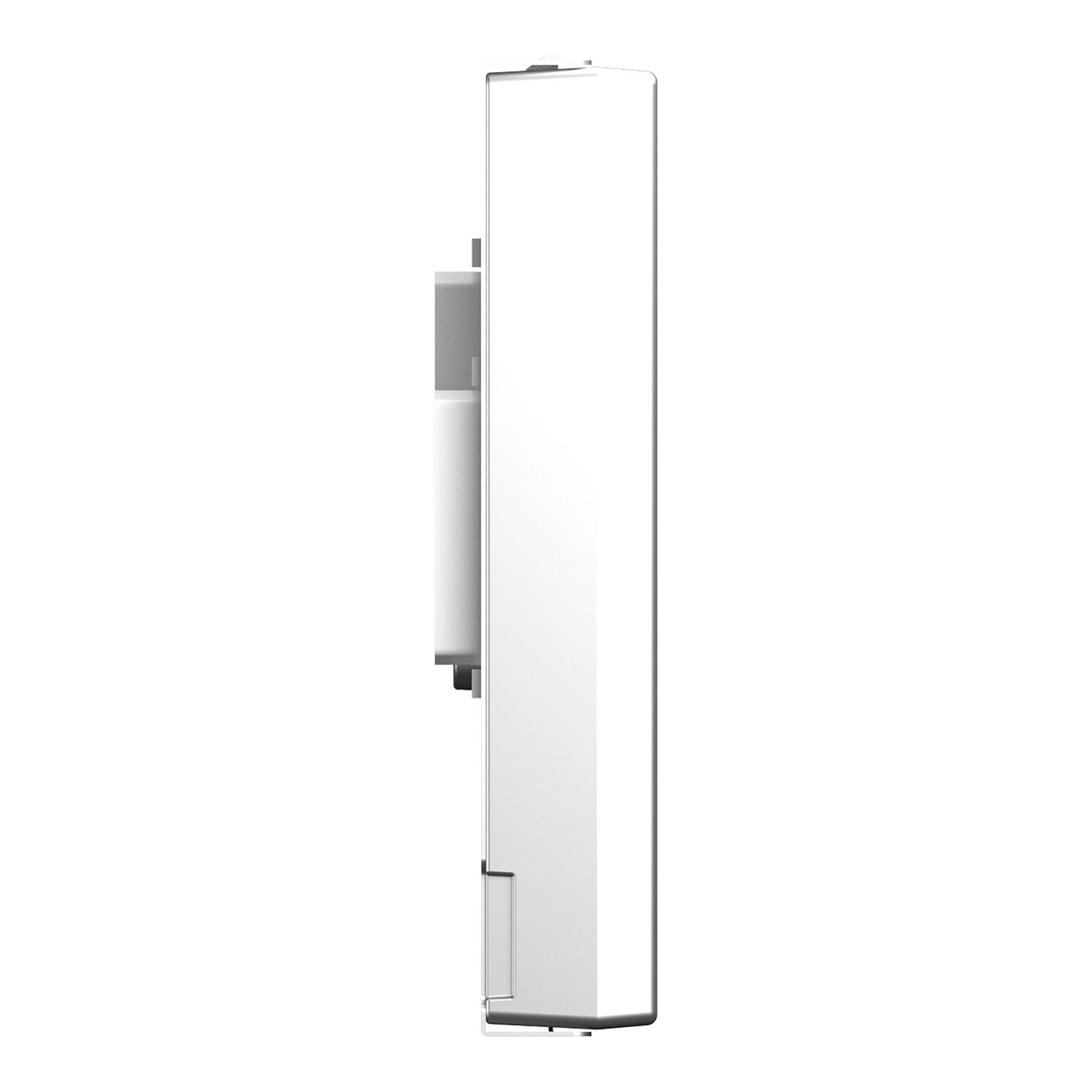

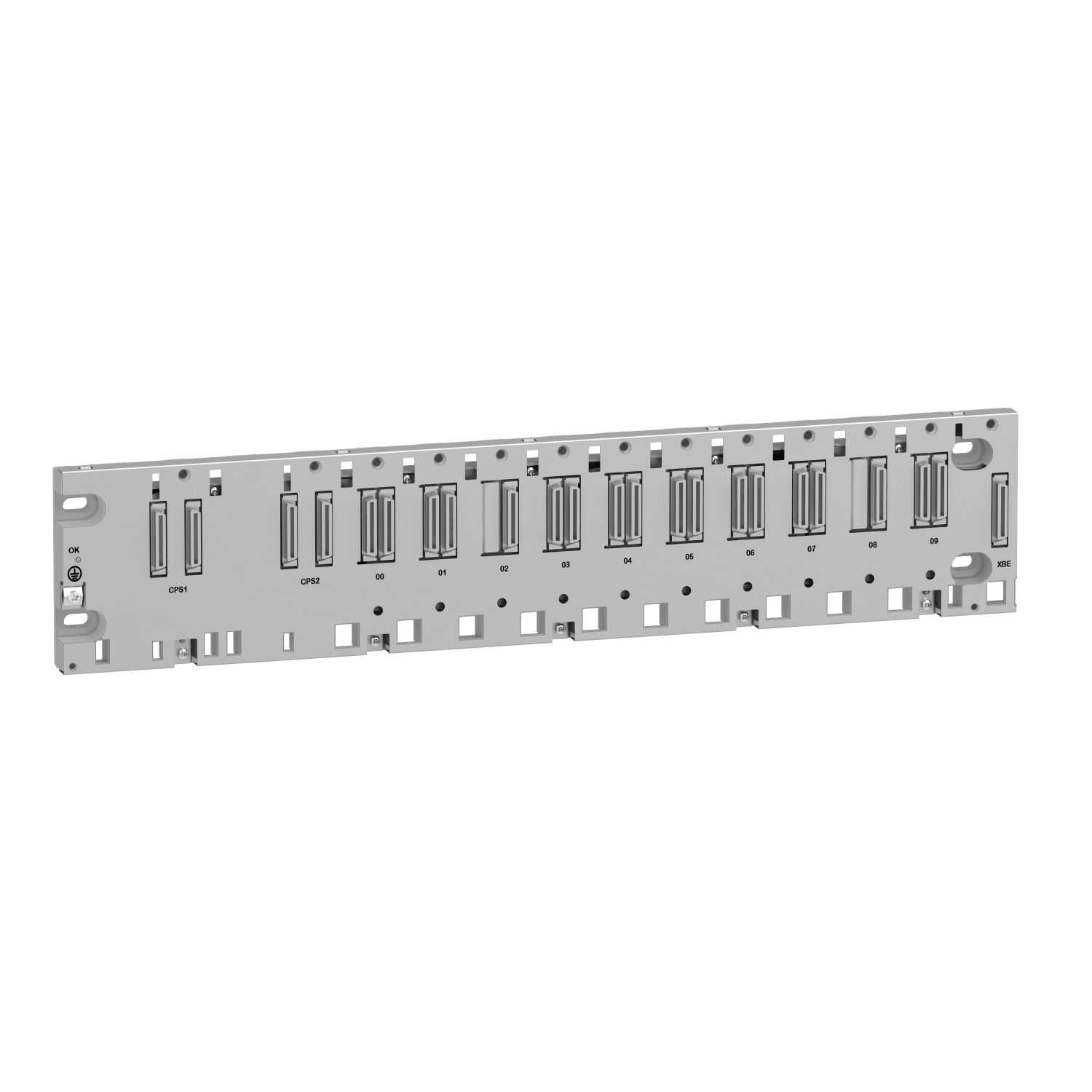

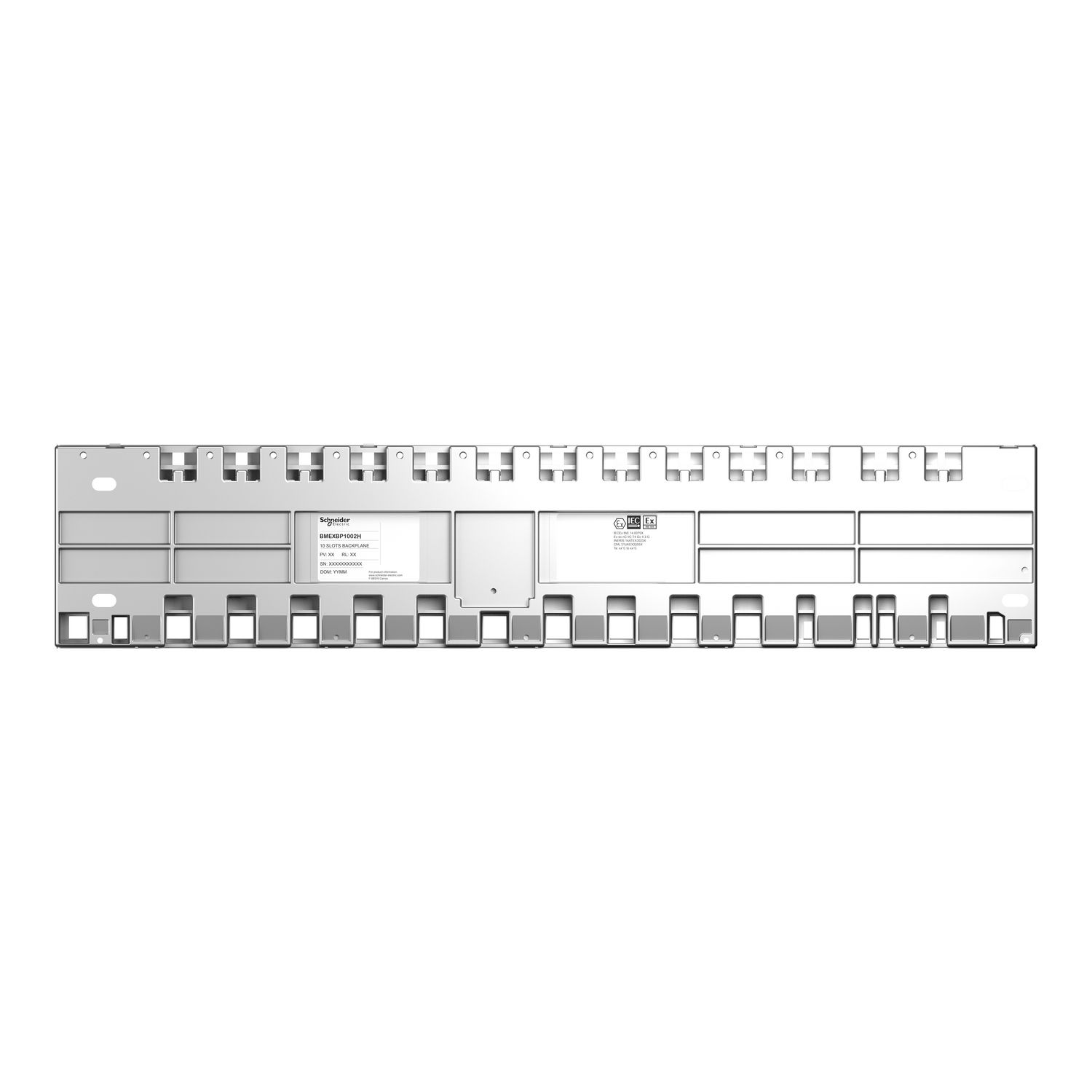

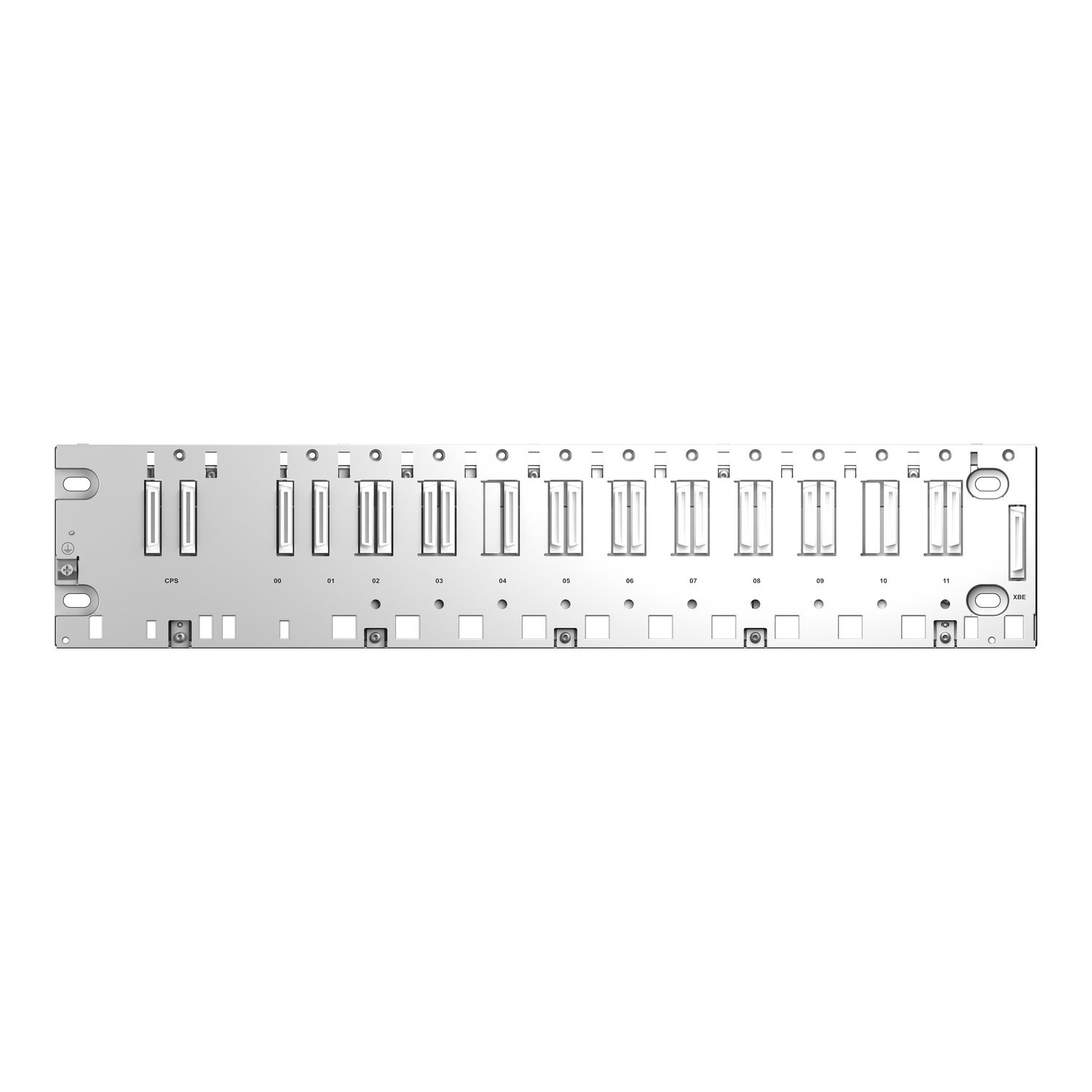

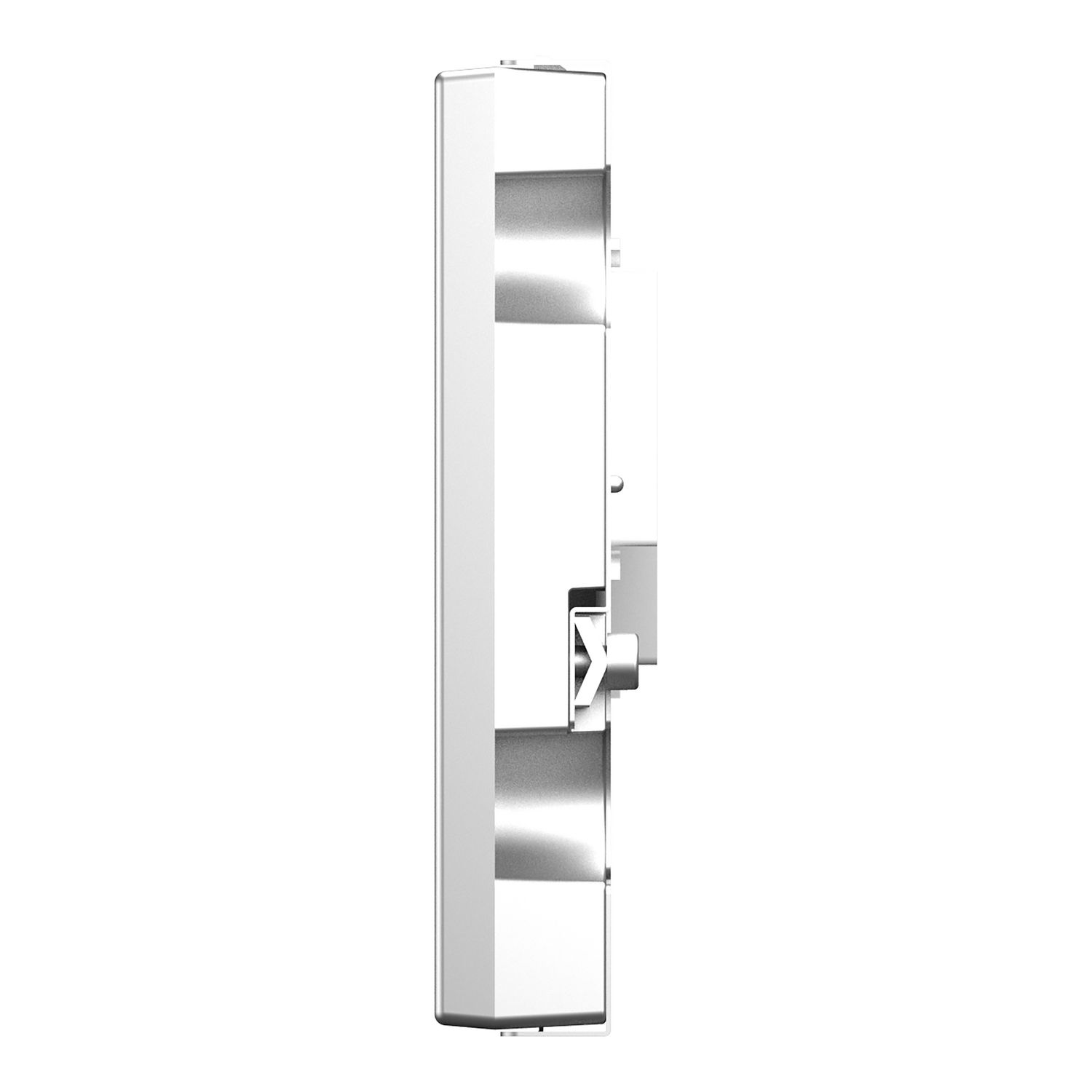

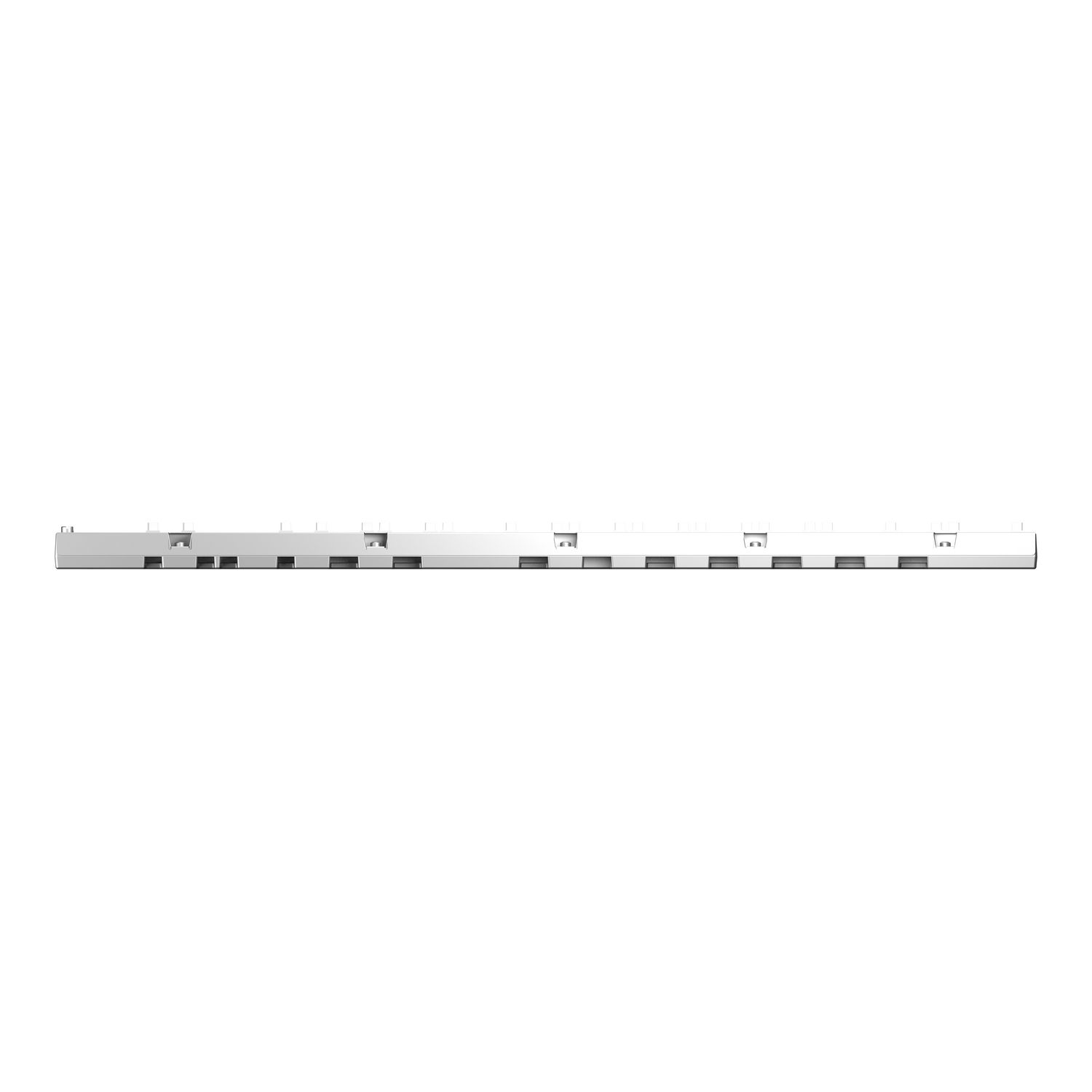

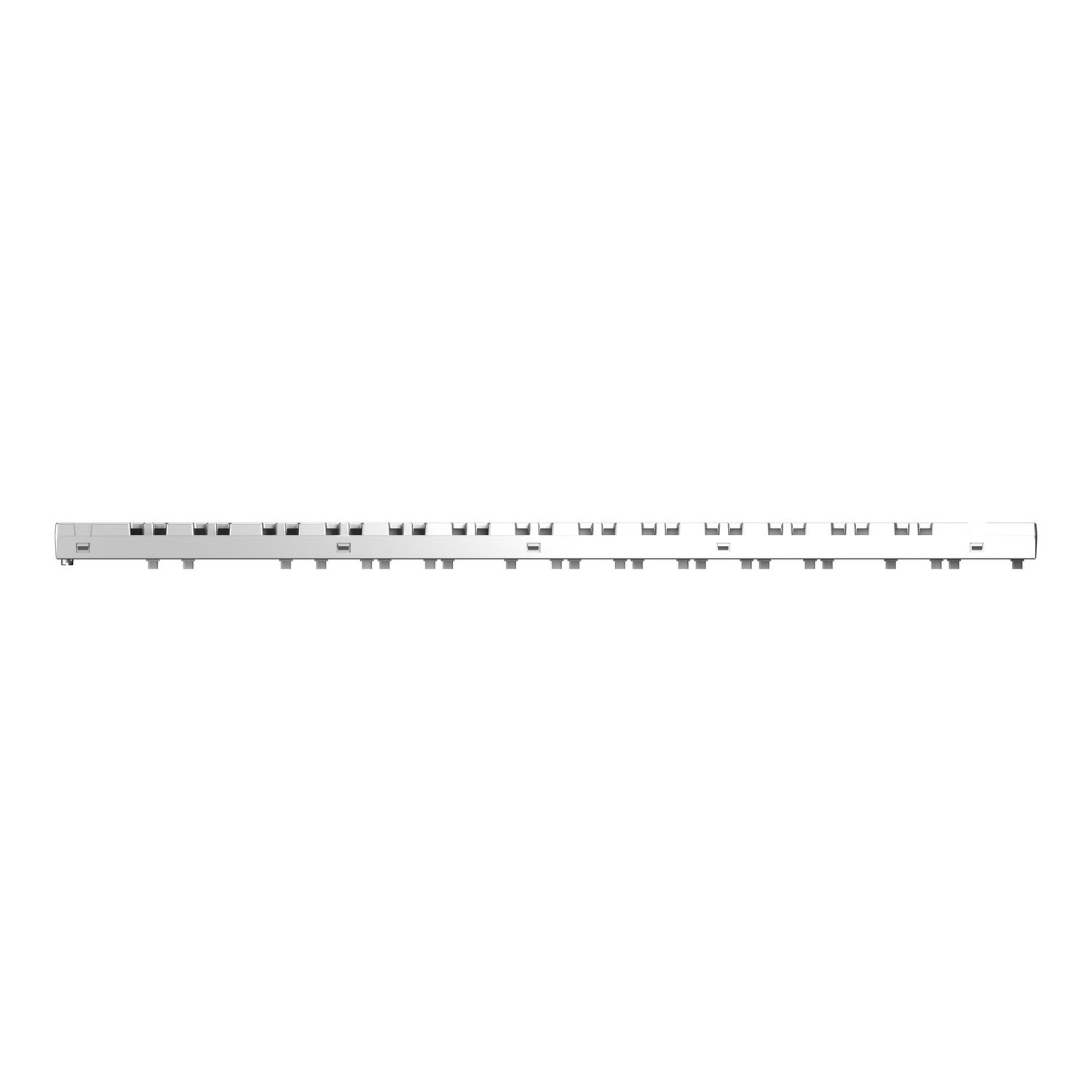

rack, Modicon X80, 10 slots, Redundant PS, Ethernet backplane, ruggedized

$2,127.73 INC GST

Qty:

Available for Shipping : 06-Jan-2026

Product Selector

rack, Modicon X80, 10 slots, Redundant PS, Ethernet backplane, ruggedized

Be the first to review this product

Manufacturer: Schneider Electric

Delivery date: 06-Jan-2026

User guide

Catalog

Environmental Disclosure

Circularity Profile

Declaration of conformity

Instruction sheet

Product Page Link

Product Data Sheet

This backplane is part of the Modicon X80 range, an offer of common input/output for Modicon M340 and Modicon M580. This Ethernet backplane rack is an accessory of programmable automation controllers. This ruggedized Ethernet and Xbus racks is composed of 10 slots and has a power consumption of 3,9W. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. It is an Ethernet backplane rack with a current of 162mA at 24V DC and 76mA at 3.3V DC. It is furnished with 1 connector (XBE) expansion module for electrical connection. It offers 1770000 hours of MTBF. It is an IP20 rated product. The backplane has a weigh of 1.387kg. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This rack is compatible with BMXCPS400 redundant power supply, BMXP58 or BMEH58 processor, and Modicon X80 modules. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC). Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs.

Products specifications

Attribute name	Attribute value
Main
Range of product	Modicon X80
Accessory / separate part type	ruggedized rack
Product specific application	for severe environments
Complementary
Product compatibility	I/O module, BME processor, BMXCPS4002, BMX processor, specific application module
Power consumption in W	3.9 W 24 V DC, 251 mW 3.3 V DC
Fixing mode	by 4 screws - diameter: 4.32-6.35 mm, mounting on panel, by 4 M6 screws, mounting on plate
MTBF reliability	1184170 H
Net weight	1.37 kg
Current consumption	76 mA at 3.3 V DC, 162 mA at 24 V DC
Number of slots	2 bus X, 8 bus X + Ethernet
Electrical connection	1 connector (XBE) expansion module
Environment
IP degree of protection	IP20
Protective treatment	conformal coating
Relative humidity	5-95 % without condensation
Directives	2014/34/EU - ATEX directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Product certifications	IECEx zone 2/22, ATEX zone 2/22, Merchant Navy, EAC, RCM, CSA, UL, CE
Standards	IEC 60079-0, IEC 61850-3, location G, IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, IEC 61010-2-201, IEC 61131-2
Ambient air temperature for operation	-25-70 °C
Environmental characteristic	hazardous location class I division 2, fungal spore resistant class 3B2 conforming to IEC 60721-3-3, mold growth resistant class 3B2 conforming to IEC 60721-3-3, salt resistant level 2 conforming to IEC 68252, sand resistant class 3S4 conforming to IEC 60721-3-3, dust resistant class 3S4 conforming to IEC 60721-3-3, gas resistant class 3C4 conforming to IEC 60721-3-3, gas resistant class Gx conforming to ISA S71.04
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	6.500 cm
Package 1 Width	15.000 cm
Package 1 Length	58.500 cm
Package 1 Weight	1.369 kg
Unit Type of Package 2	2
Number of Units in Package 2	8
Package 2 Height	30.000 cm
Package 2 Width	40.000 cm
Package 2 Length	60.000 cm
Package 2 Weight	11.520 kg
