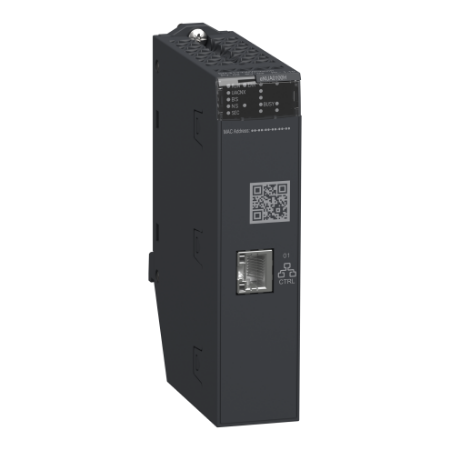

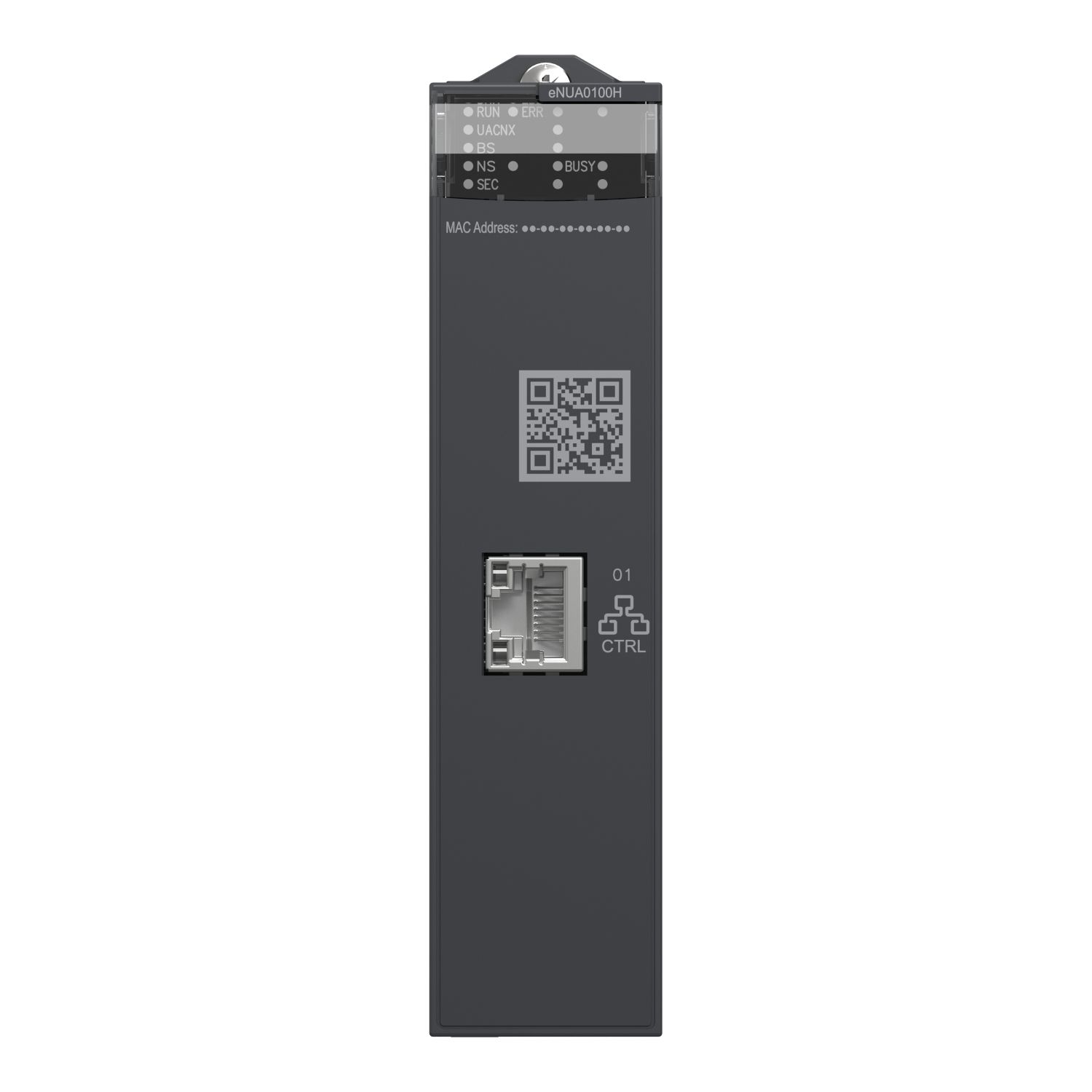

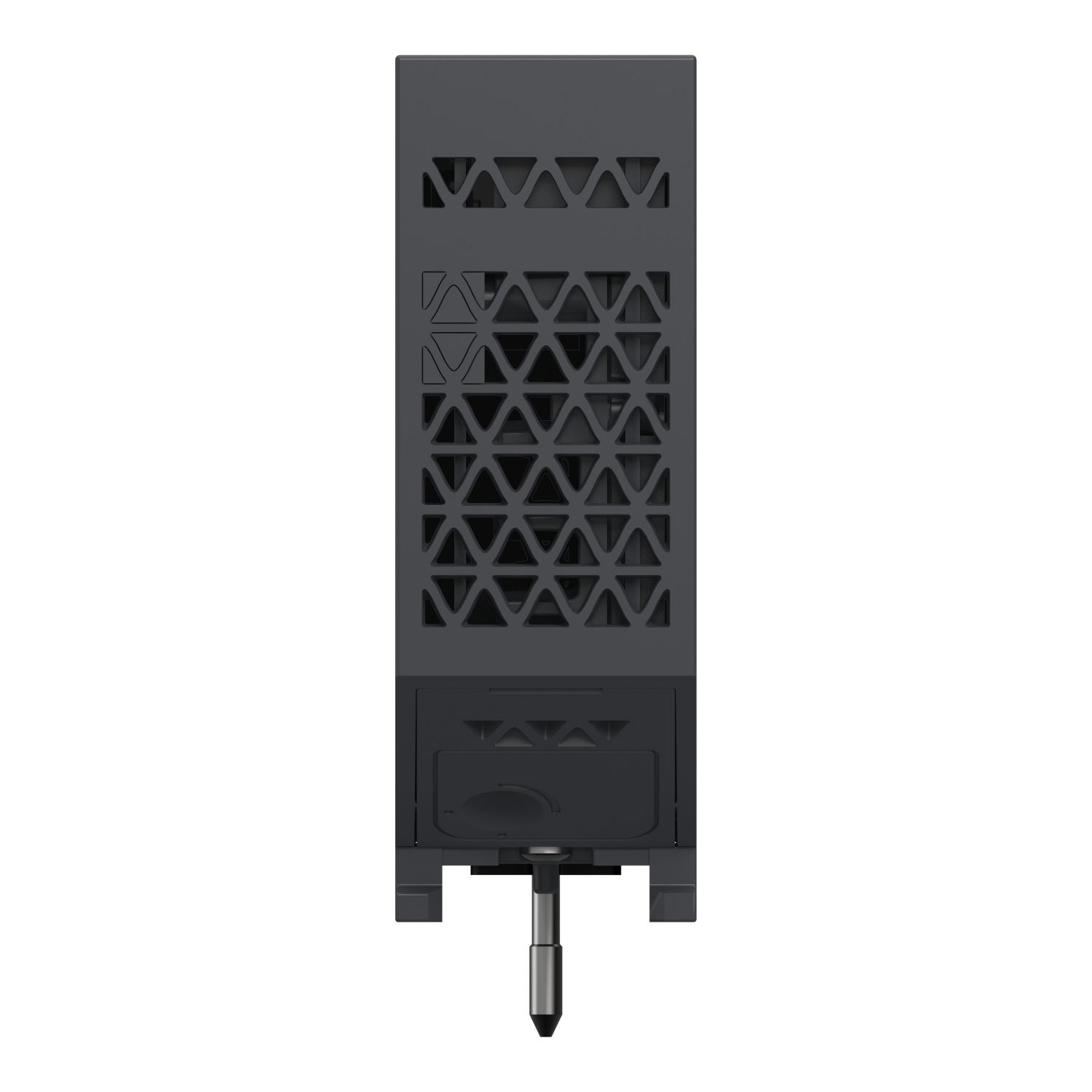

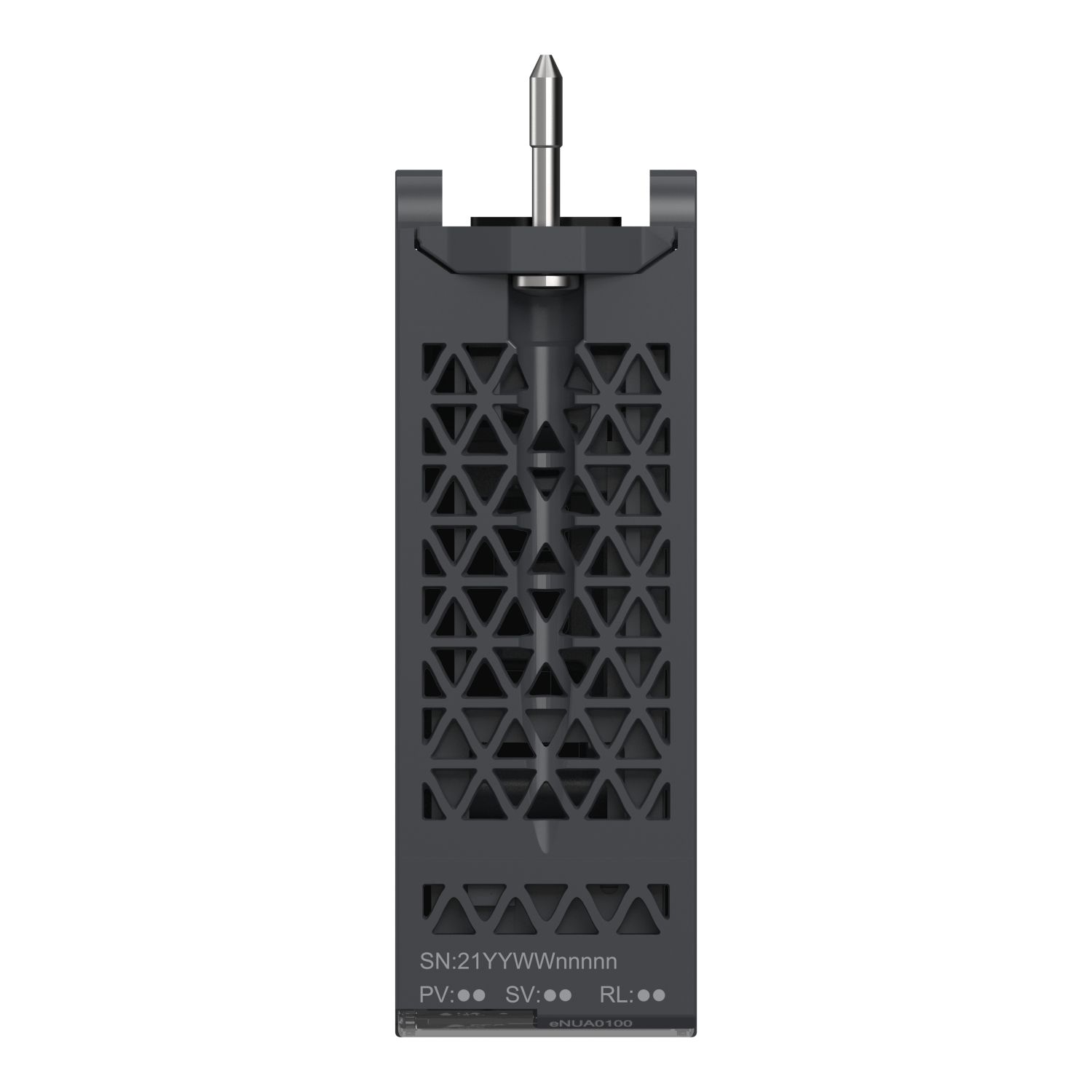

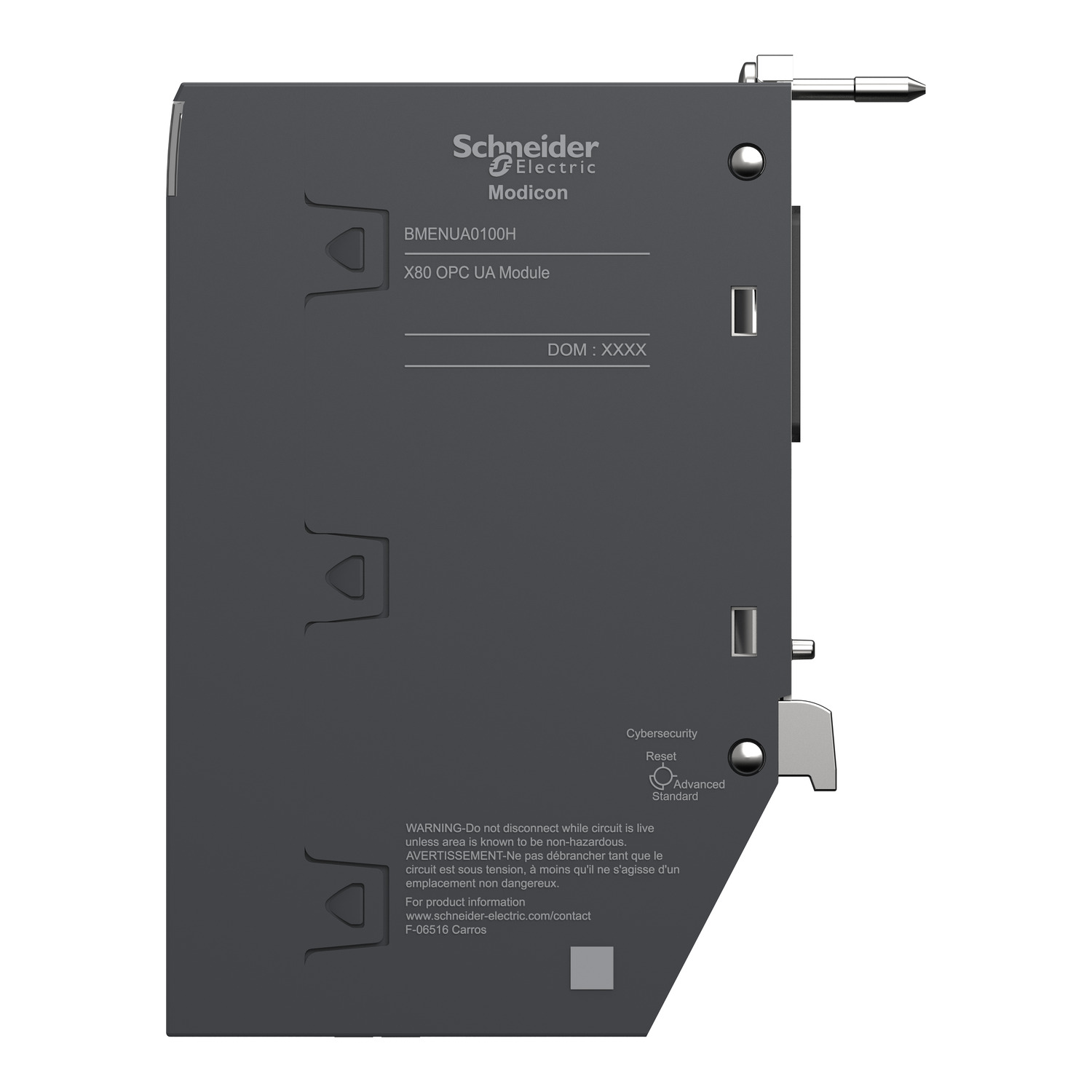

Picture of communication module, Modicon M580, OPC UA, for severe environments
Picture of communication module, Modicon M580, OPC UA, for severe environments
Picture of communication module, Modicon M580, OPC UA, for severe environments
Picture of communication module, Modicon M580, OPC UA, for severe environments
Picture of communication module, Modicon M580, OPC UA, for severe environments
Picture of communication module, Modicon M580, OPC UA, for severe environments
Picture of communication module, Modicon M580, OPC UA, for severe environments
SKU:

BMENUA0100H

communication module, Modicon M580, OPC UA, for severe environments

$4,931.48 INC GST
Available for Shipping : 26-Jan-2026
communication module, Modicon M580, OPC UA, for severe environments
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 26-Jan-2026
Circularity Profile
Catalog
Declaration of conformity
Environmental Disclosure
Instruction sheet
User guide
Product Page Link
Product Data Sheet
This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This module is an Ethernet communications module with an embedded OPC UA server for communication with OPC UA clients, including SCADA. It can be used in severe environments. Thanks to a protective coating on its circuit board, this product can be used in harsh environments. It supports HTTPS protocol. It offers cybersecurity setting service. It weighs 0.383kg. It brings high-performance OPC UA capabilities to Modicon M580 ePAC systems. This product conforms to the OPC UA V1.03 and K3/C3, K3/C2 standards. It can be installed either on an Ethernet or a X-bus rack. The module is delivered in 1 packing unit. It occupies one slot on the rack. Modicon X80 is a platform of modules common to Modicon M580 and M340 automation platforms that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC). Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name Attribute value
Main
Product compatibility Ethernet + X-bus rack
Range of product Modicon M580
Product or component type communication module
Complementary
Web server for configuration
Protective treatment conformal coating
Module format standard
Marking CSA, CE
Height 131 mm
Cybersecurity certificate based authentication, SNMP logging, IPSec, transport layer security, Syslog protocol support, Achilles certified, secure communiction (HTTPS), system hardening, role-based access control
Width 32 mm
Port Ethernet 10/100/1000 BASE-TX
Integrated connection type 1 Ethernet, transmission rate: 100 Mbit/s, 1 Ethernet, connector type: RJ45, transmission rate: 1 Gbit/s, transmission mode: double shielded twisted pair
Communication service OPC UA client, embedded router, NTP time synchronization, SNMP network management, Modbus TCP messaging, OPC UA server
Net weight 0.4 kg
Transmission support medium Ethernet backplane
Current consumption <= 140 mA at 24 V DC
Length 86.05 mm
Supply internal power supply via rack
Environment
IP degree of protection IP20
Relative humidity 5-95 % at 55 °C
Directives 2014/34/EU - ATEX directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Product certifications IECEx zone 2/22, ATEX zone 2/22, Merchant Navy, EAC, RCM, CSA, UL, CE
Standards IEC 60079-0, IEC 61850-3, location G, IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, IEC 61010-2-201, IEC 61131-2
Ambient air temperature for operation -25-70 °C
Local signalling 1 LED (yellow) for communication data bus, 1 LED (green/red) for status (STS), 1 LED (green/red) for Eth NS (Ethernet network status), 1 LED (green/red) for ETH MS (Ethernet port configuration status), 1 LED (red) for processor or system fault (ERR), 1 LED (green) for processor running (RUN)
Environmental characteristic hazardous location class I division 2, fungal spore resistant class 3B2 conforming to IEC 60721-3-3, mold growth resistant class 3B2 conforming to IEC 60721-3-3, salt resistant level 2 conforming to IEC 68252, sand resistant class 3S4 conforming to IEC 60721-3-3, dust resistant class 3S4 conforming to IEC 60721-3-3, gas resistant class 3C4 conforming to IEC 60721-3-3, gas resistant class Gx conforming to ISA S71.04
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.400 cm
Package 1 Width 17.300 cm
Package 1 Length 21.700 cm
Package 1 Weight 270.000 g
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 2.434 kg
Unit Type of Package 3 3
Number of Units in Package 3 64
Package 3 Height 45.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 50.944 kg
