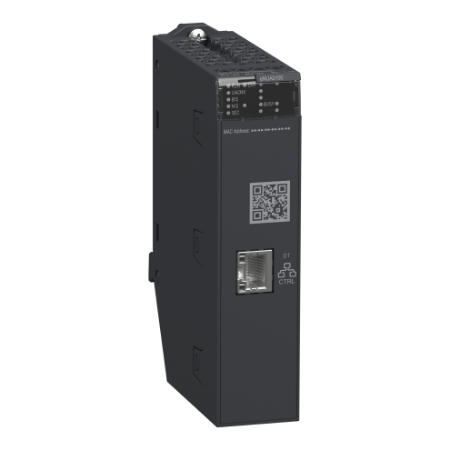

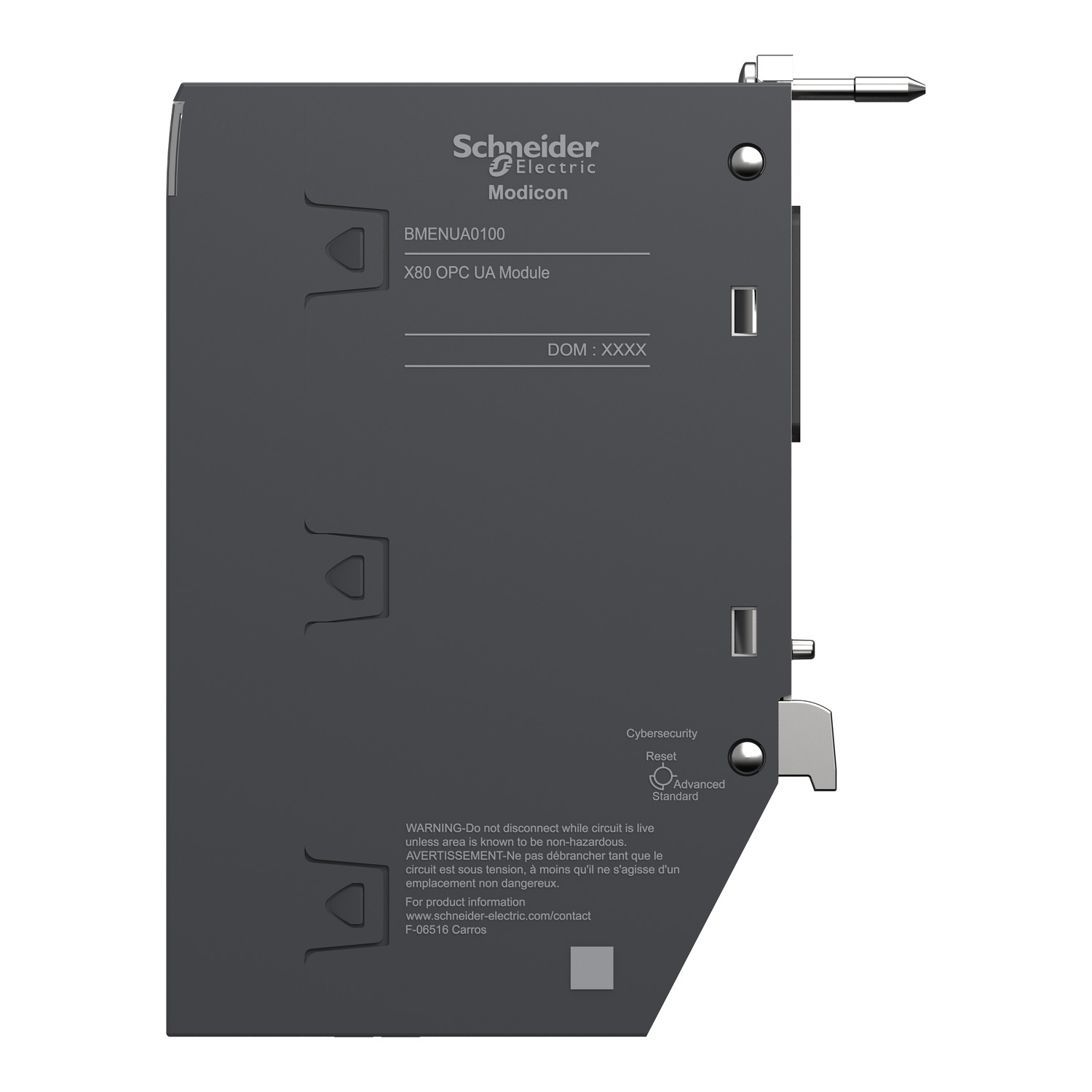

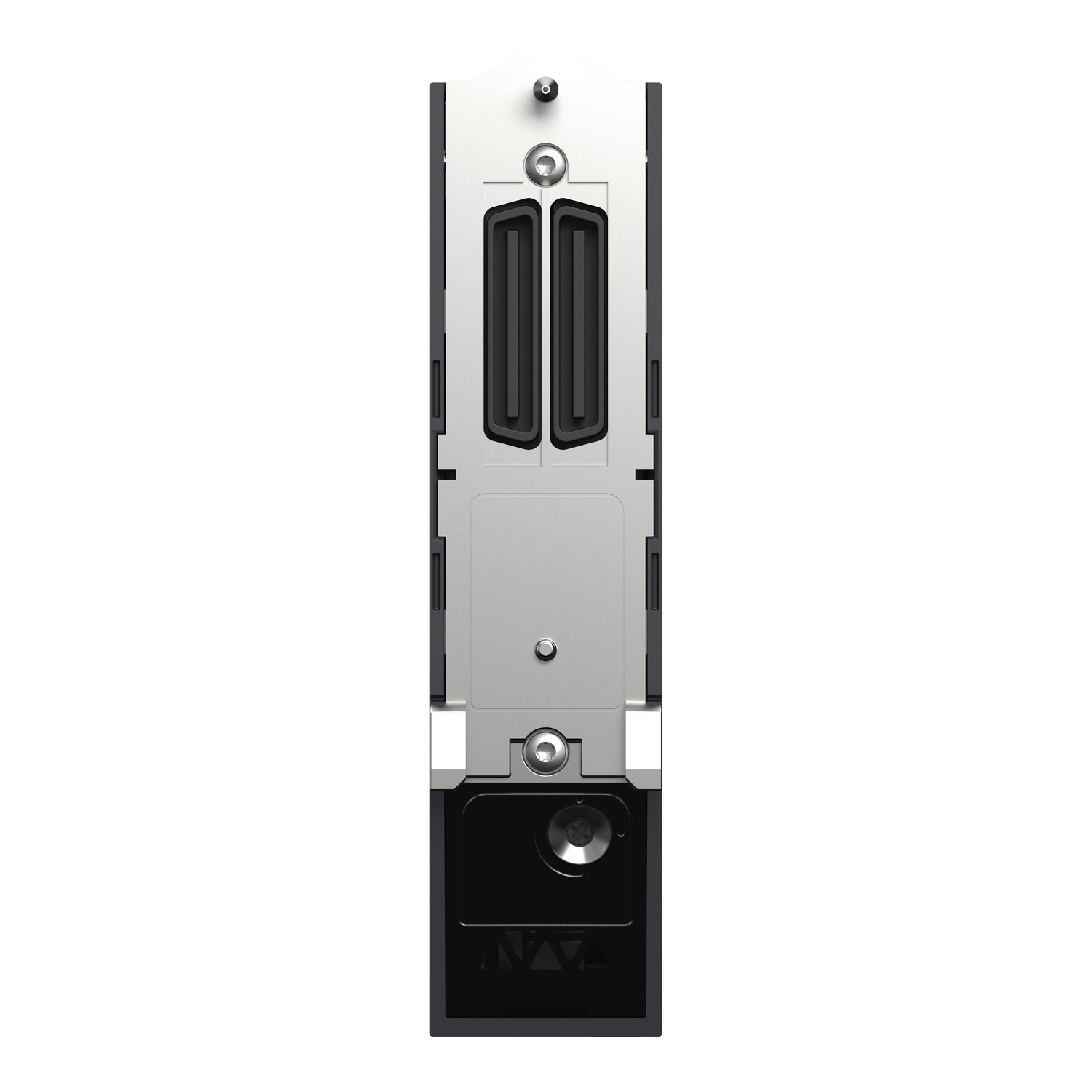

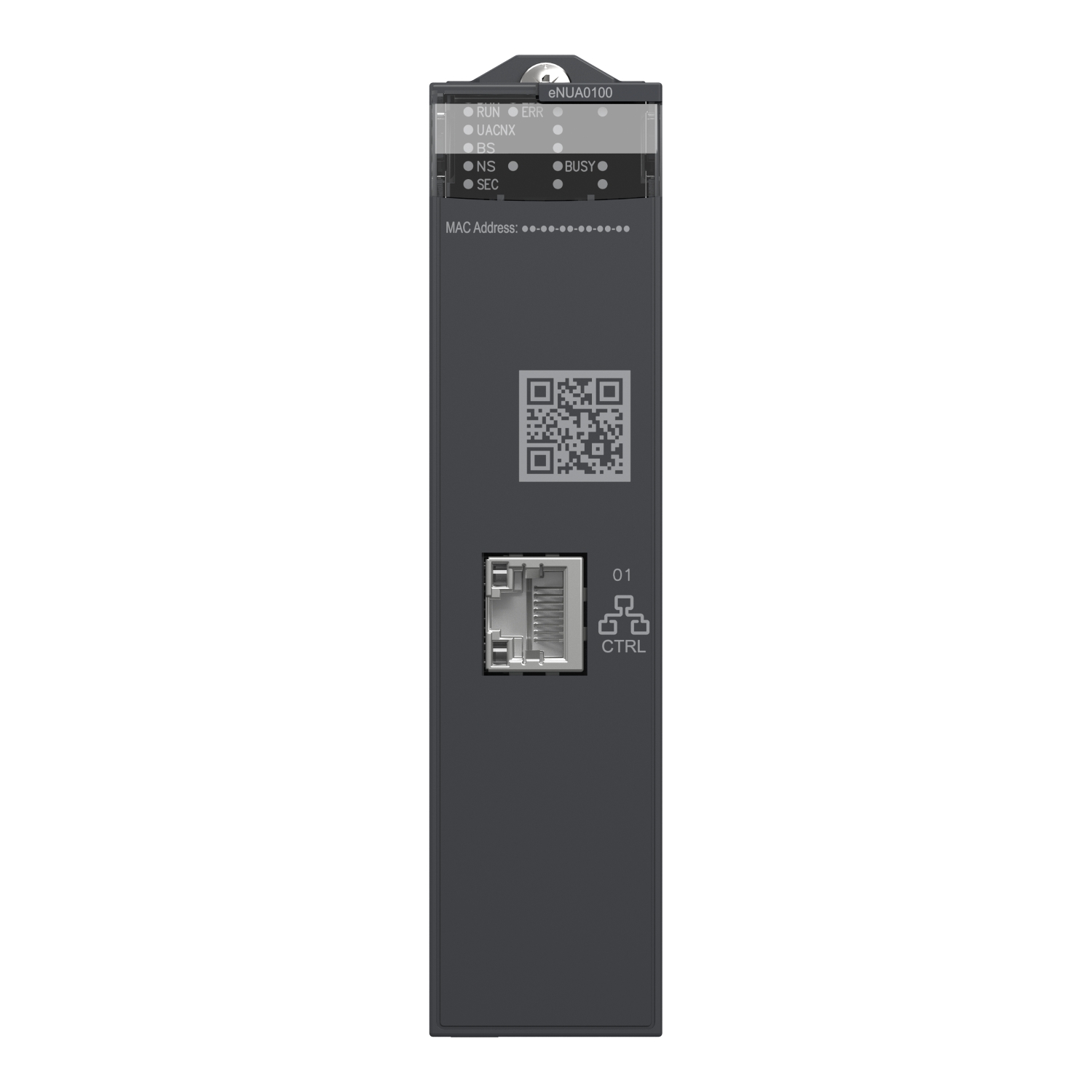

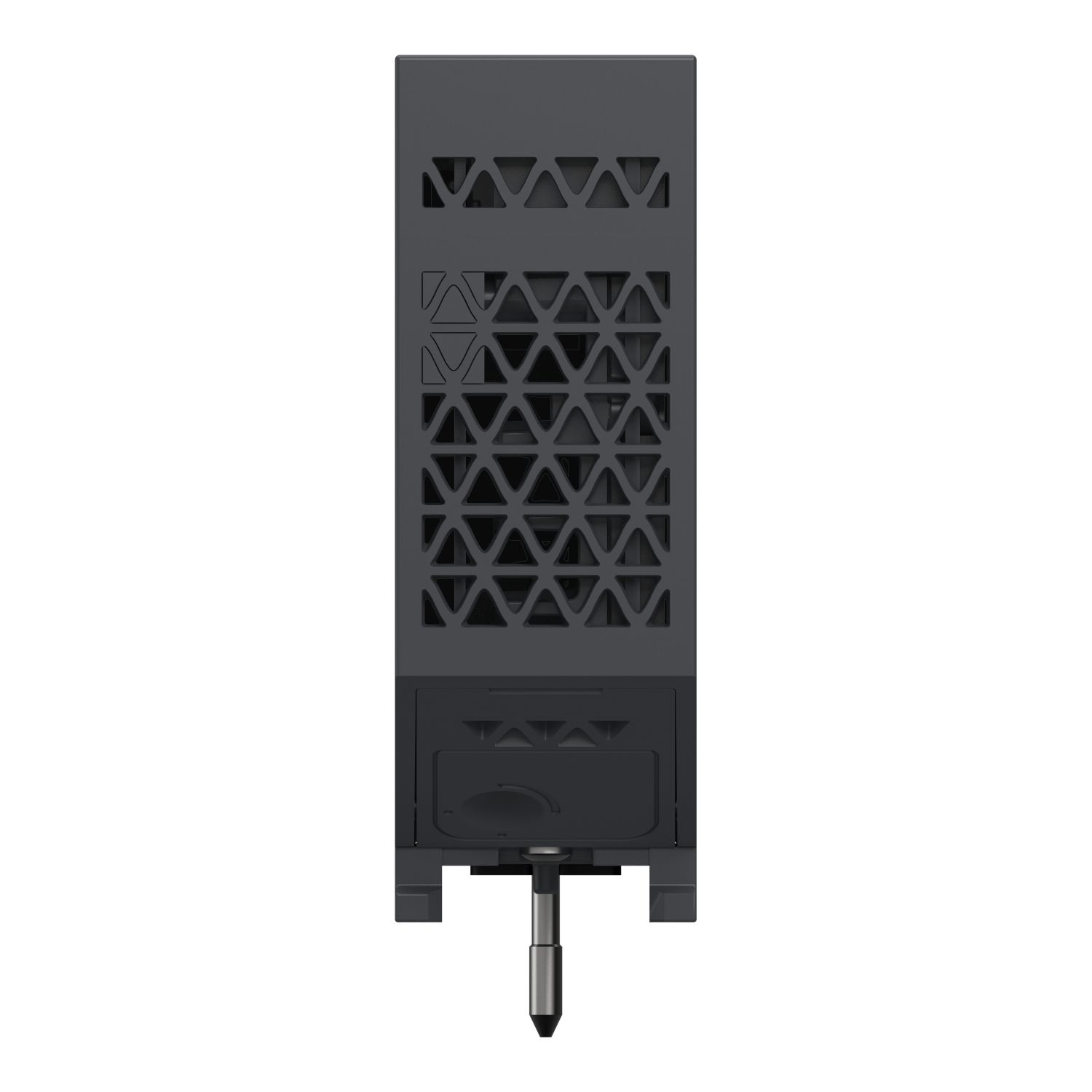

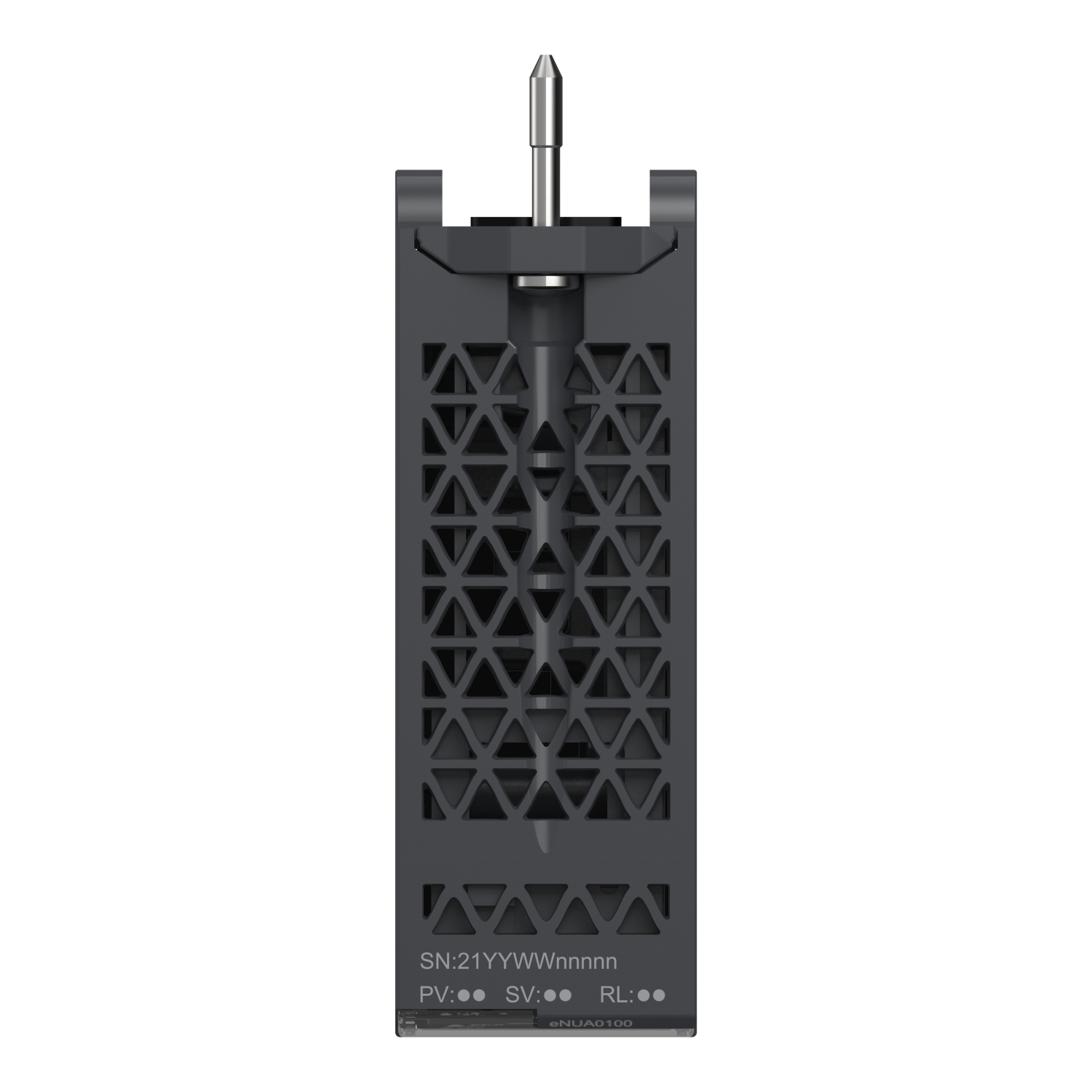

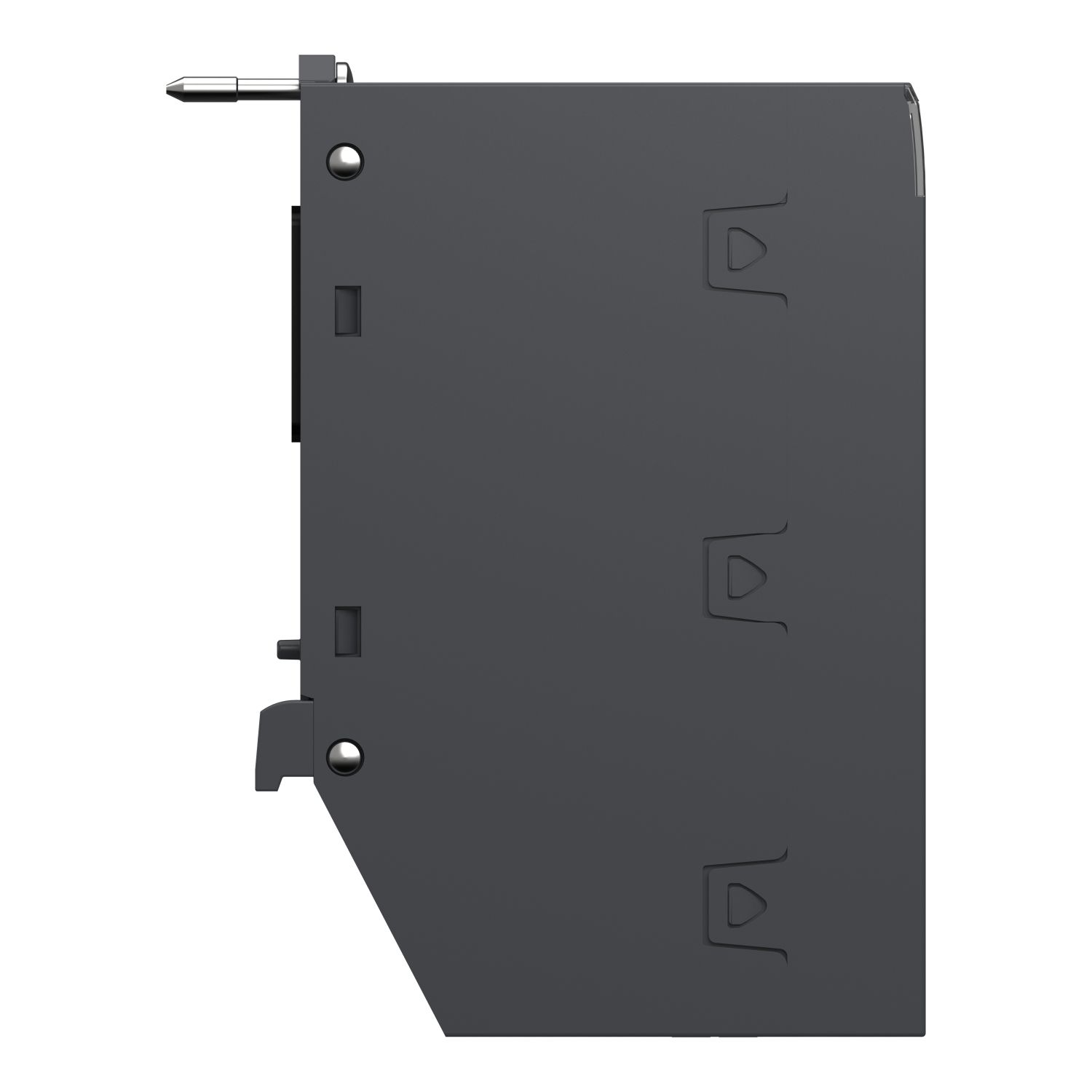

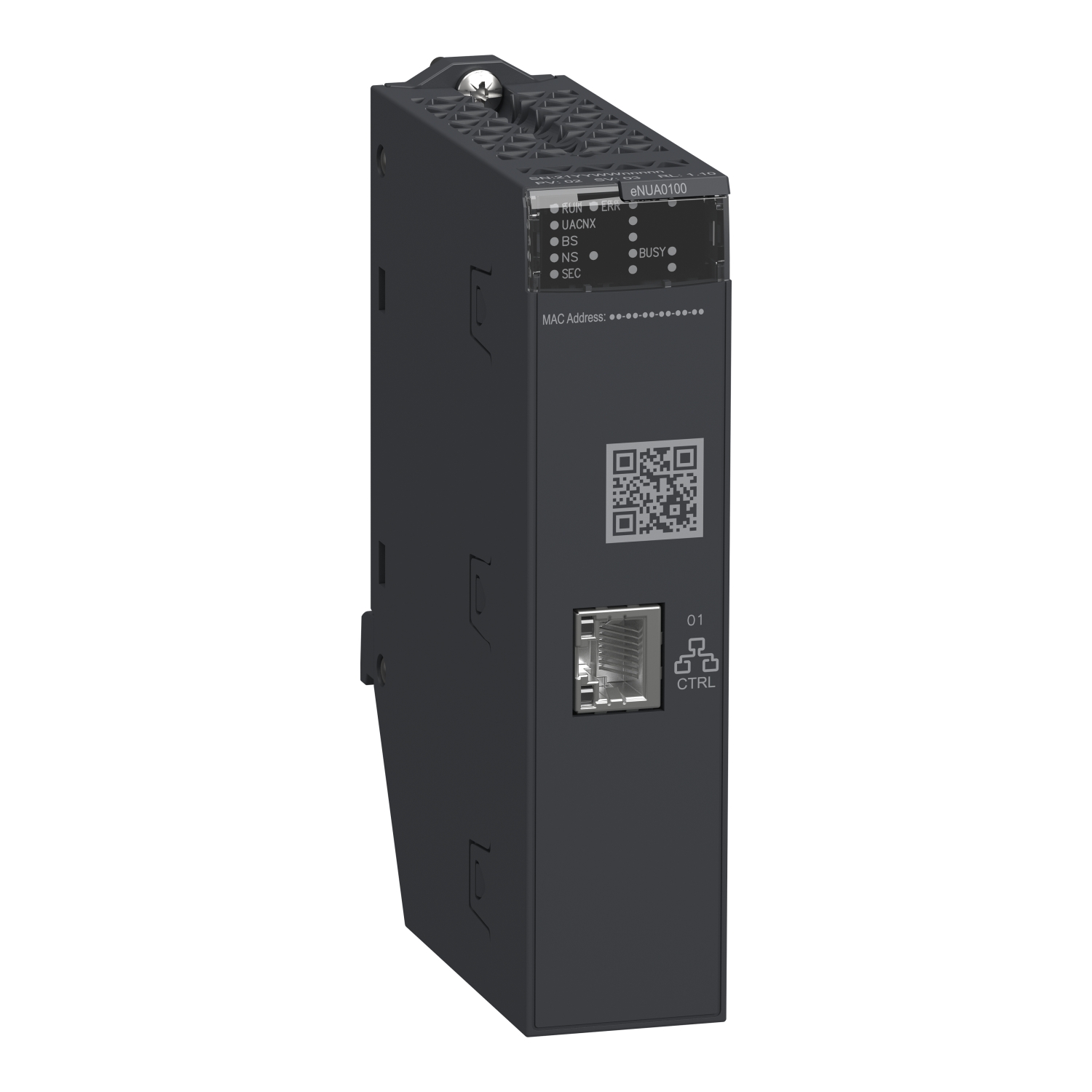

Picture of communication module, Modicon M580, OPC UA
Picture of communication module, Modicon M580, OPC UA
Picture of communication module, Modicon M580, OPC UA
Picture of communication module, Modicon M580, OPC UA
Picture of communication module, Modicon M580, OPC UA
Picture of communication module, Modicon M580, OPC UA
Picture of communication module, Modicon M580, OPC UA
Picture of communication module, Modicon M580, OPC UA
SKU:

BMENUA0100

communication module, Modicon M580, OPC UA

$4,472.28 INC GST
Available for Shipping : 06-Jan-2026
communication module, Modicon M580, OPC UA
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026
Circularity Profile
Catalog
Declaration of conformity
Environmental Disclosure
User guide
Product Page Link
Product Data Sheet
This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This module is an Ethernet communications module with an embedded OPC UA server for communication with OPC UA clients, including SCADA. It provides complete Ethernet transparency when connected to the Ethernet backplane. OPC UA is a reliable standard for industrial communications. It supports HTTPS protocol. It offers cybersecurity setting service. It weighs 0.383kg. It brings high-performance OPC UA capabilities to Modicon M580 ePAC systems. This product conforms to the OPC UA V1.03 and K3/C3, K3/C2 standards. It can be installed either on an Ethernet or a X-bus rack. The module is delivered in 1 packing unit. It can be installed in any X80 Ethernet backplane slot in the head rack of a Modicon M580 ePAC system. Modicon X80 is a platform of modules common to Modicon M580 and M340 automation platforms that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC). Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name Attribute value
Main
Product compatibility Ethernet + X-bus rack
Range of product Modicon M580
Product or component type communication module
Complementary
Web server for configuration
Module format standard
Height 131 mm
Integrated connection type 1 Ethernet, transmission rate: 100 Mbit/s, 1 Ethernet, connector type: RJ45, transmission rate: 1 Gbit/s, transmission mode: double shielded twisted pair
Communication service OPC UA client, embedded router, NTP time synchronization, SNMP network management, Modbus TCP messaging, OPC UA server
Net weight 0.4 kg
Current consumption <= 140 mA at 24 V DC
Length 86.05 mm
Supply internal power supply via rack
Protective treatment standard version
Marking CSA, CE
Cybersecurity transport layer security, Syslog protocol support, Achilles certified, secure communiction (HTTPS), system hardening, role-based access control
Width 32 mm
Port Ethernet 10/100/1000 BASE-TX
Transmission support medium Ethernet backplane
Environment
Relative humidity 5-95 % at 55 °C
IP degree of protection IP20
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Ambient air temperature for operation 0-60 °C
Local signalling 1 LED (yellow) for communication data bus, 1 LED (green/red) for status (STS), 1 LED (green/red) for Eth NS (Ethernet network status), 1 LED (green/red) for ETH MS (Ethernet port configuration status), 1 LED (red) for processor or system fault (ERR), 1 LED (green) for processor running (RUN)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 18.000 cm
Package 1 Length 26.000 cm
Package 1 Weight 530.000 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.707 kg
