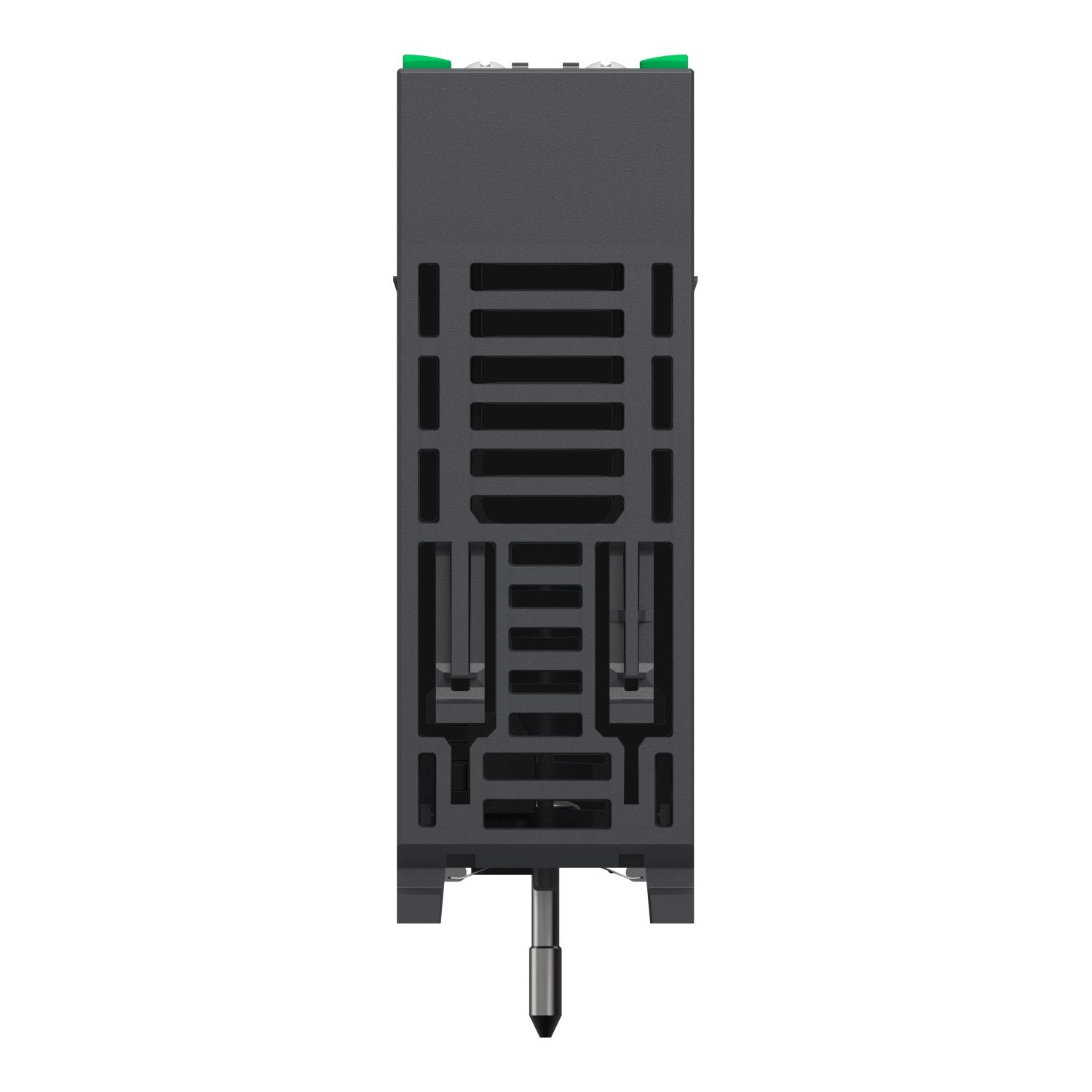

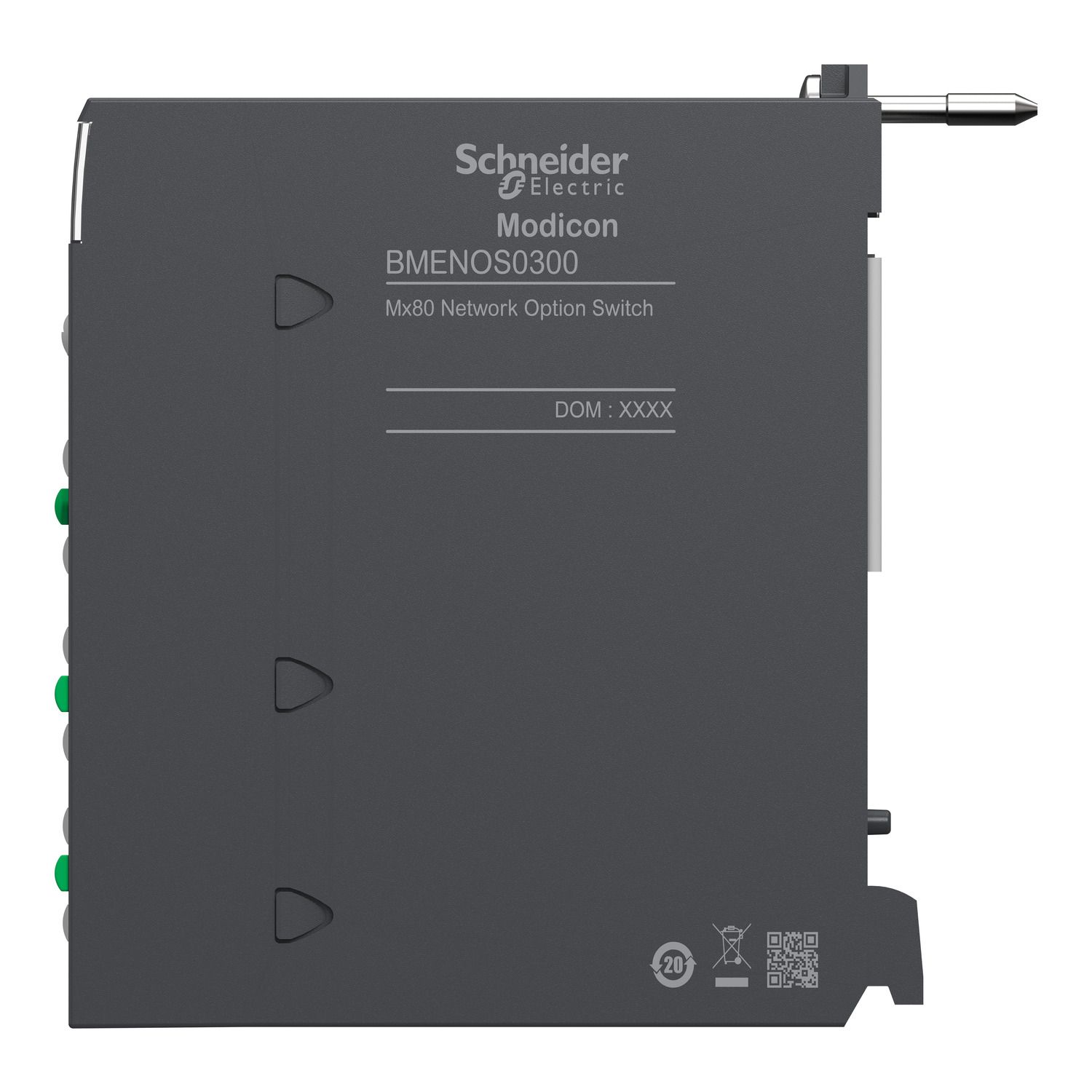

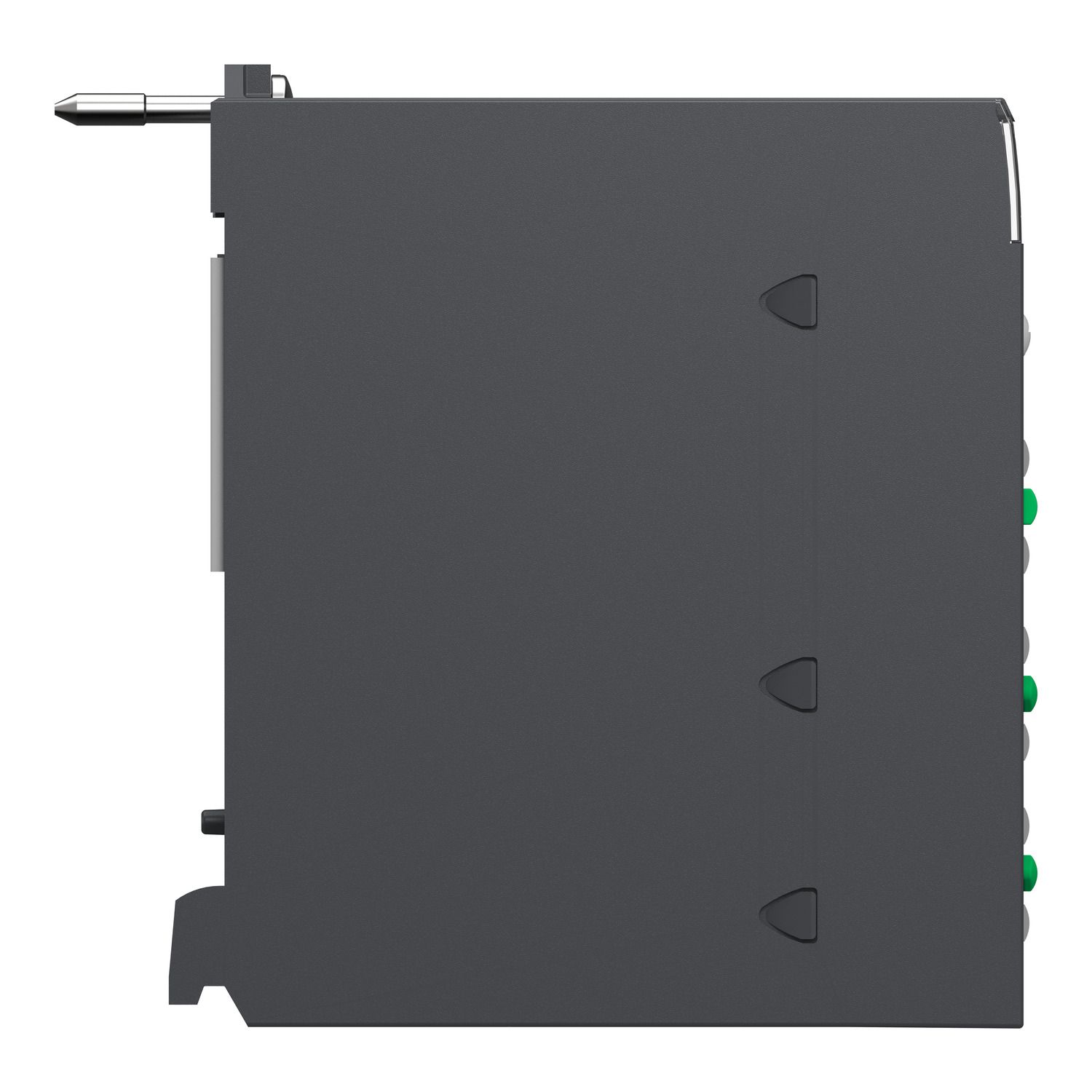

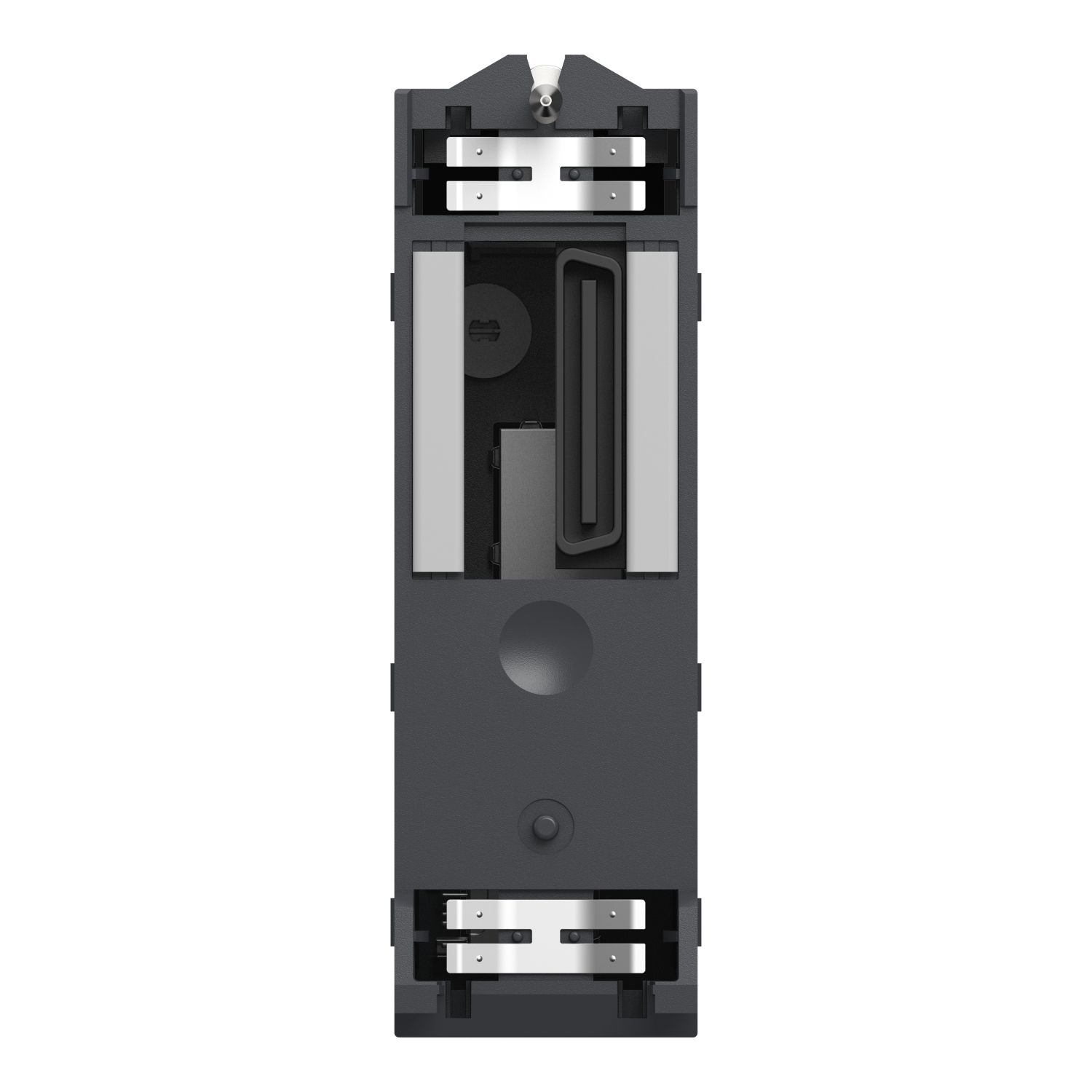

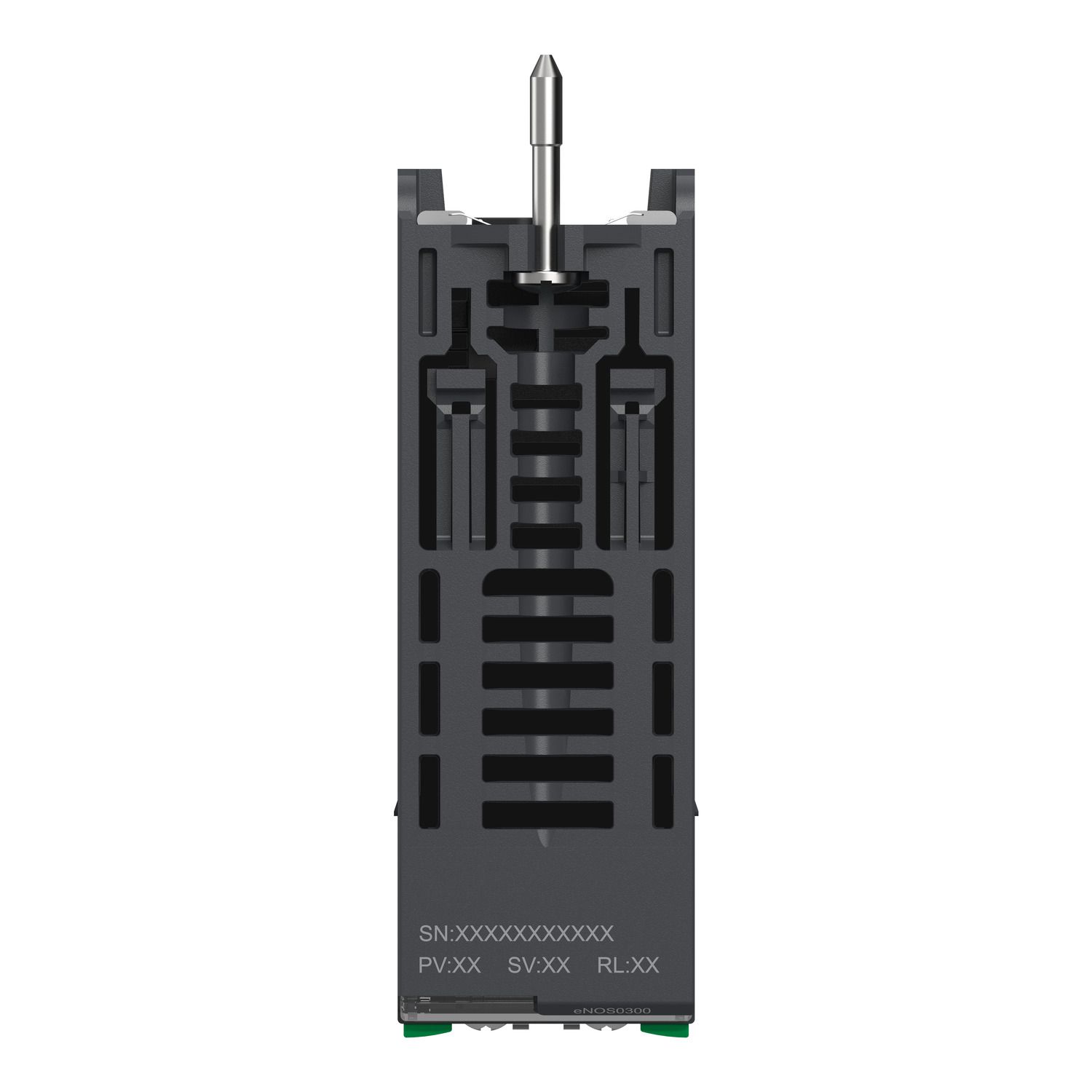

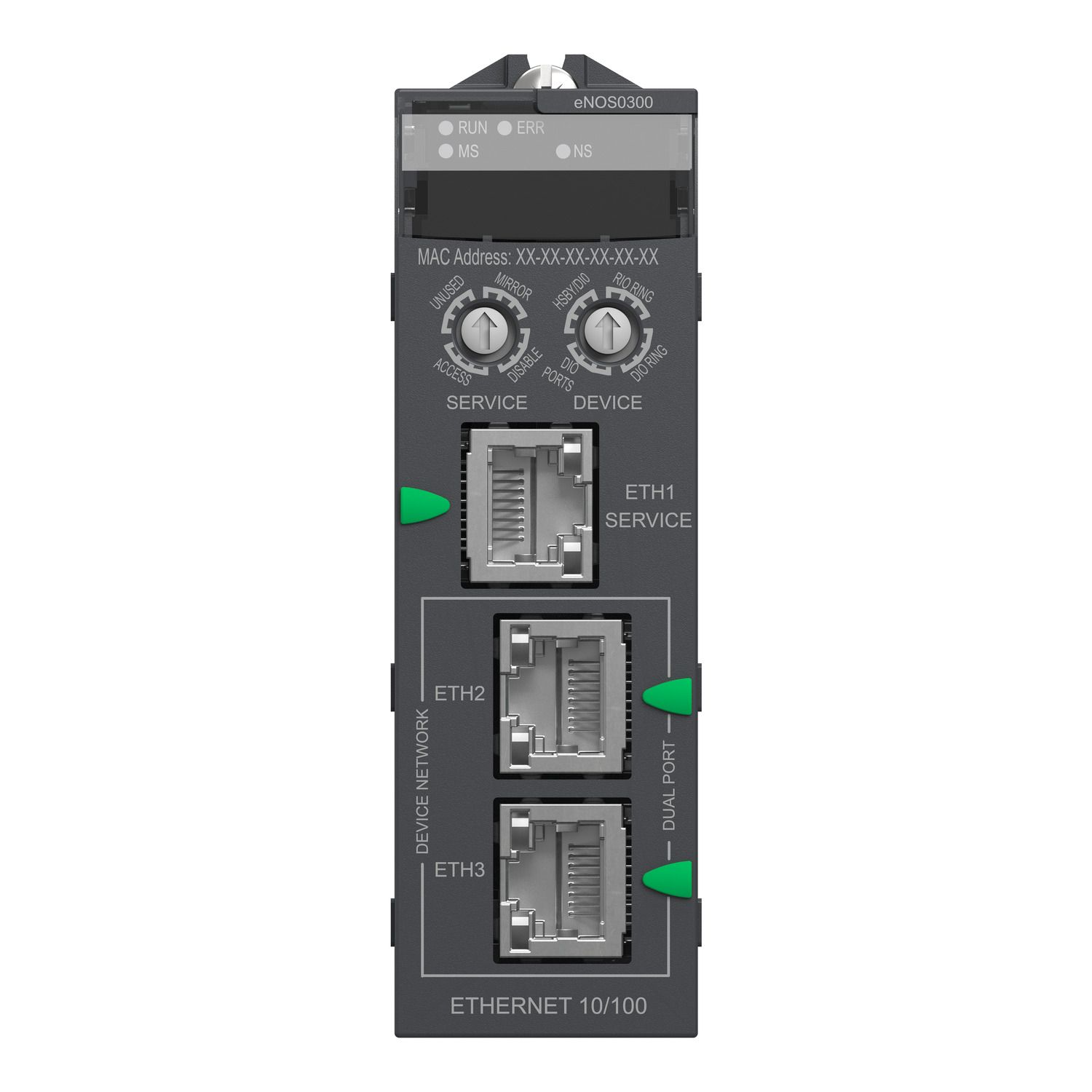

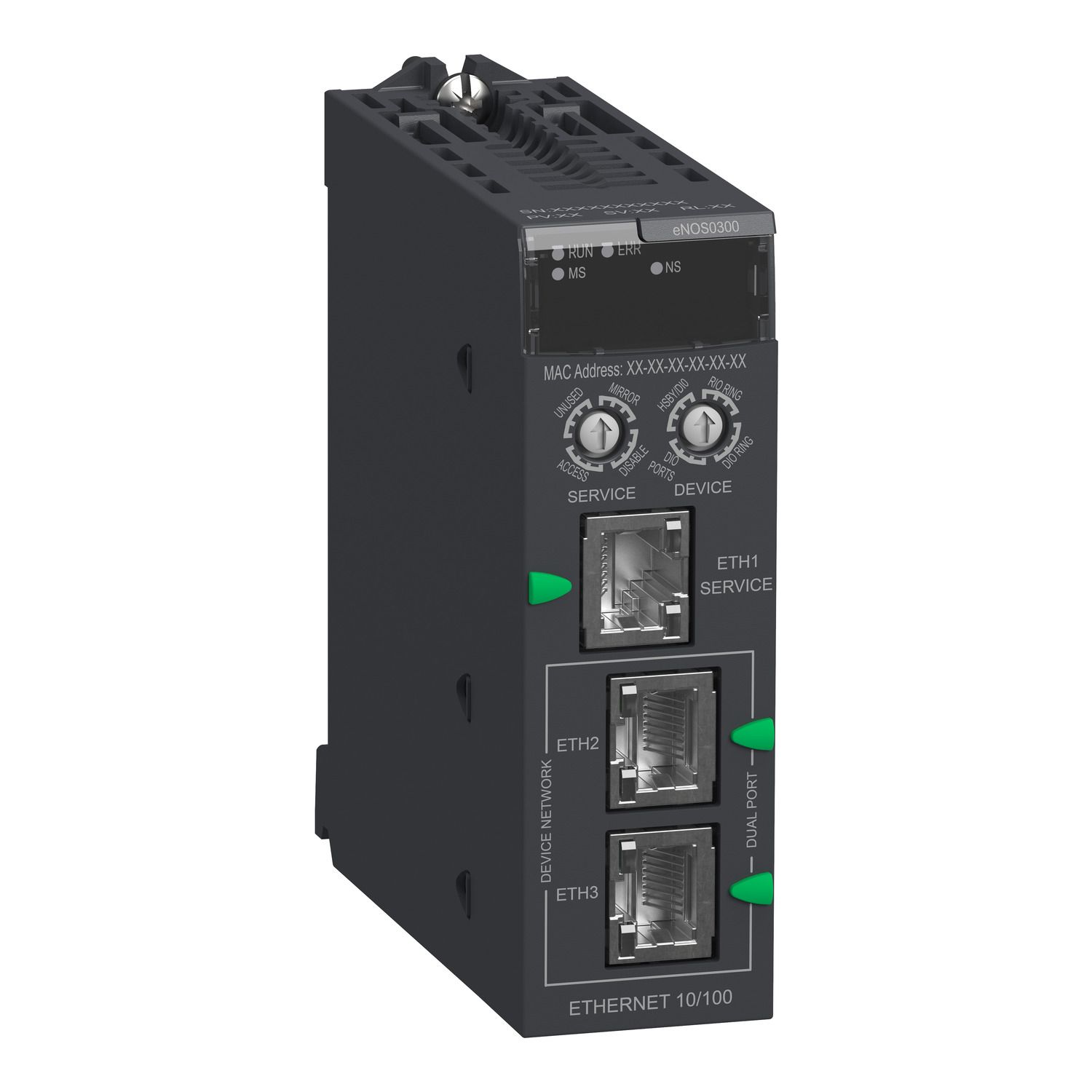

Picture of switch module, Modicon X80, network option switch
Picture of switch module, Modicon X80, network option switch
Picture of switch module, Modicon X80, network option switch
Picture of switch module, Modicon X80, network option switch
Picture of switch module, Modicon X80, network option switch
Picture of switch module, Modicon X80, network option switch
Picture of switch module, Modicon X80, network option switch
Picture of switch module, Modicon X80, network option switch
SKU:

BMENOS0300

switch module, Modicon X80, network option switch

$1,803.89 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
switch module, Modicon X80, network option switch
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
Declaration of conformity
Circularity Profile
User guide
Environmental Disclosure
Product Page Link
Product Data Sheet
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This network option switch has 3 ports. It is a network option switch with a rated supply voltage of 24V and a power consumption of 4.5W. This product is robust, high quality and based on the latest innovative technology. Integrated connections are EtherNet/IP for device network and service port. It is an IP20 rated product. It is suitable for medium to large process applications. This product is certified by CE, ABS, BV, GL, EAC, LR, DNV, RINA. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This switch module is compatible with BMEXBP backplane. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name Attribute value
Main
Product compatibility BMEXBP... backplane
Product or component type switch module
Range of product Modicon X80
Complementary
[Us] rated supply voltage 24 V for back plane
Module format standard
Local signalling 1 LED (green/red) for network communication status (Net Status), 1 LED (green/red) for module status (Mod Status), 1 LED (red) for module error (ERR), 1 LED (green) for module active (RUN)
Integrated connection type Ethernet/IP for service port, Ethernet/IP for device network
Number of port 3
Communication port protocol EtherNet/IP
Power consumption in W 4.5 W at 185 mA 60 °C, 3.3 W at 135 mA 25 °C
Environment
Operating altitude <= 2000 m
IP degree of protection IP20
Maximum altitude transport 3000 m
Overvoltage category II
Relative humidity 95-95 % without condensation
Ambient air temperature for storage -40-85 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Marking CE
Ambient air temperature for operation 0-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 11.000 cm
Package 1 Length 11.500 cm
Package 1 Weight 257.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.137 kg
