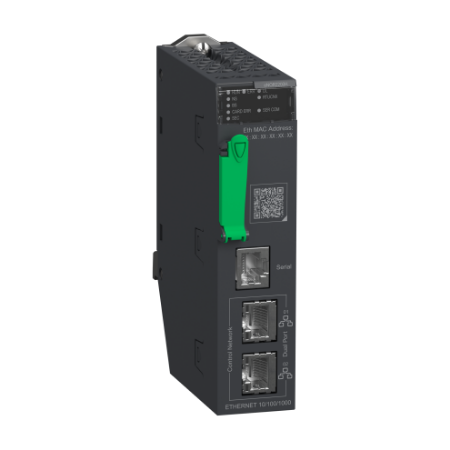

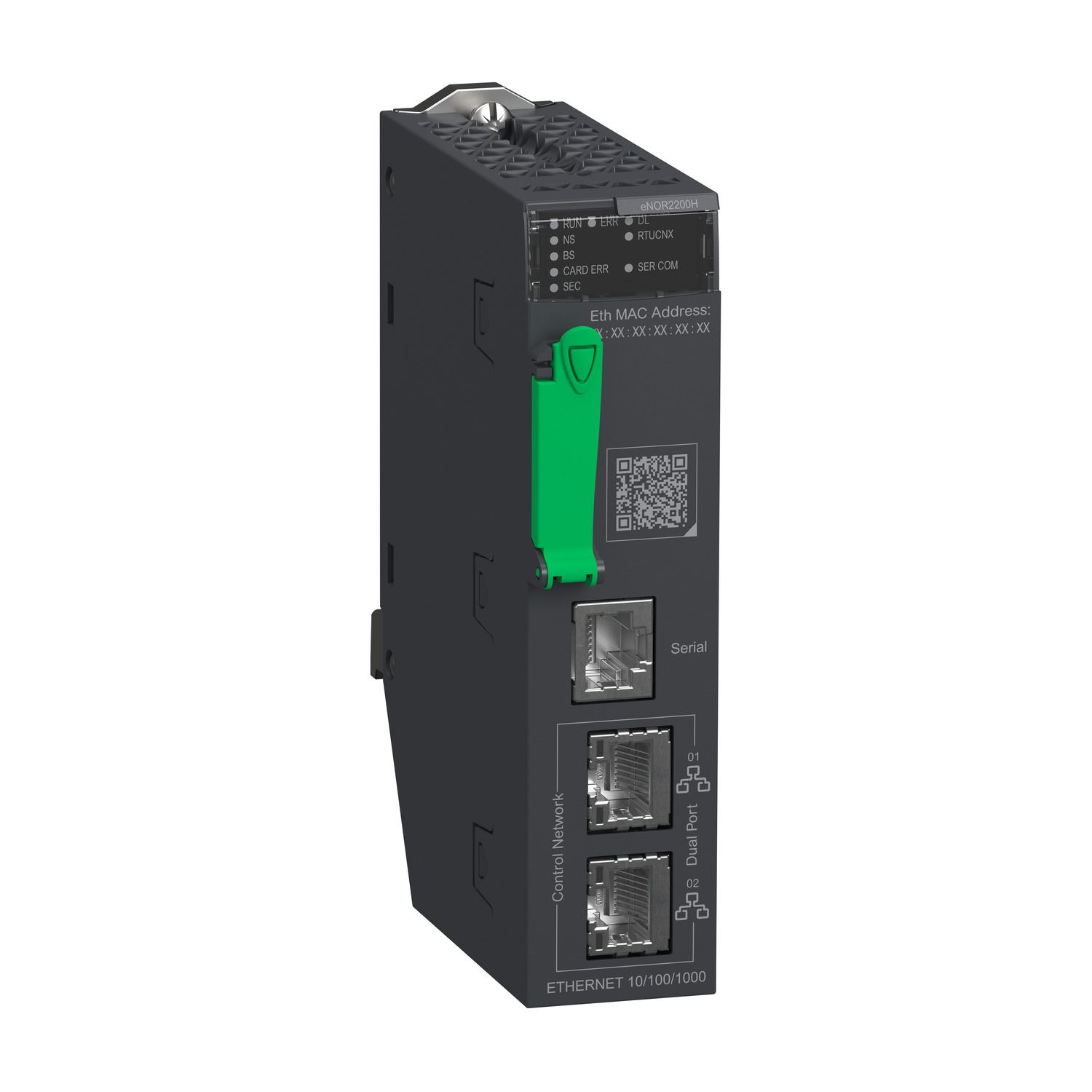

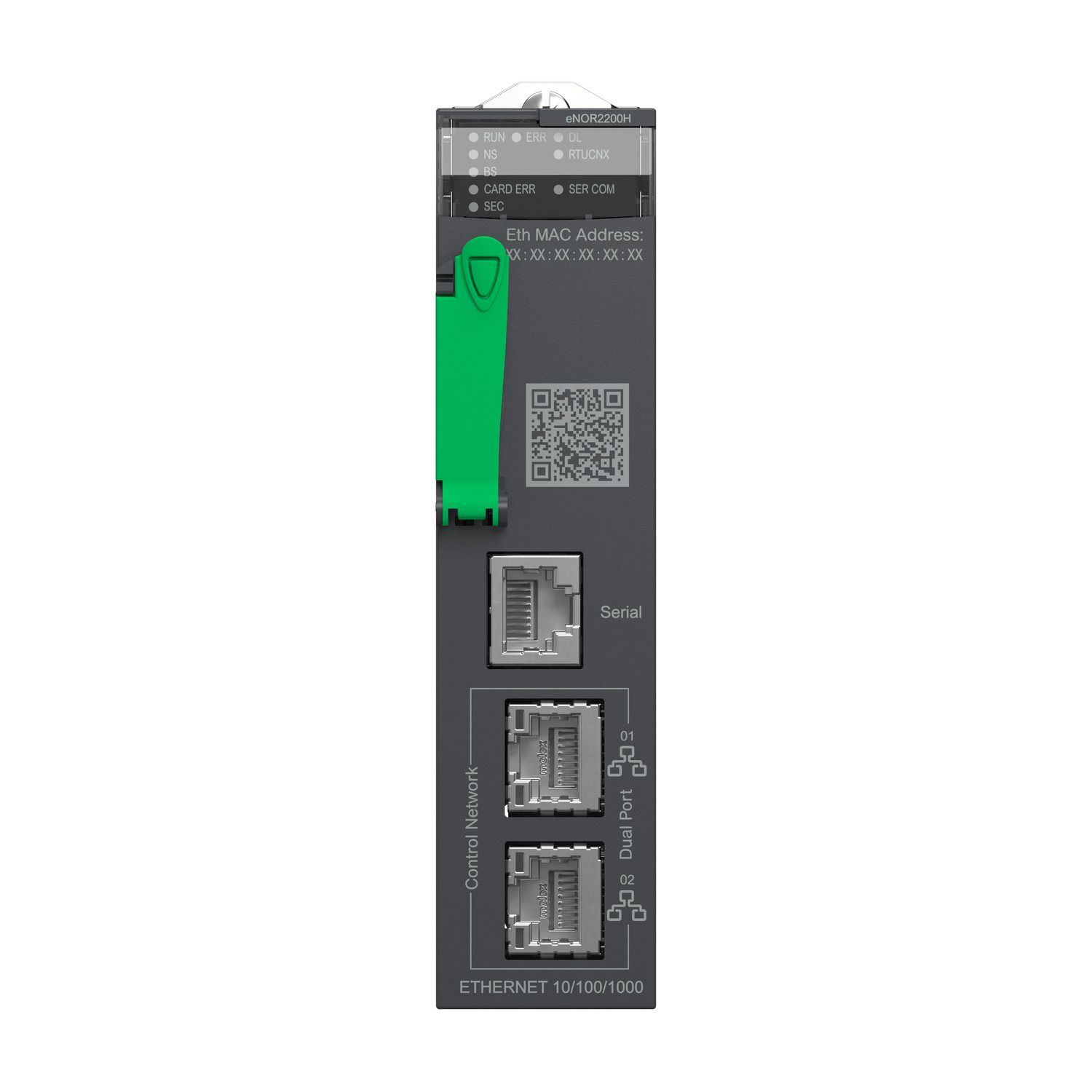

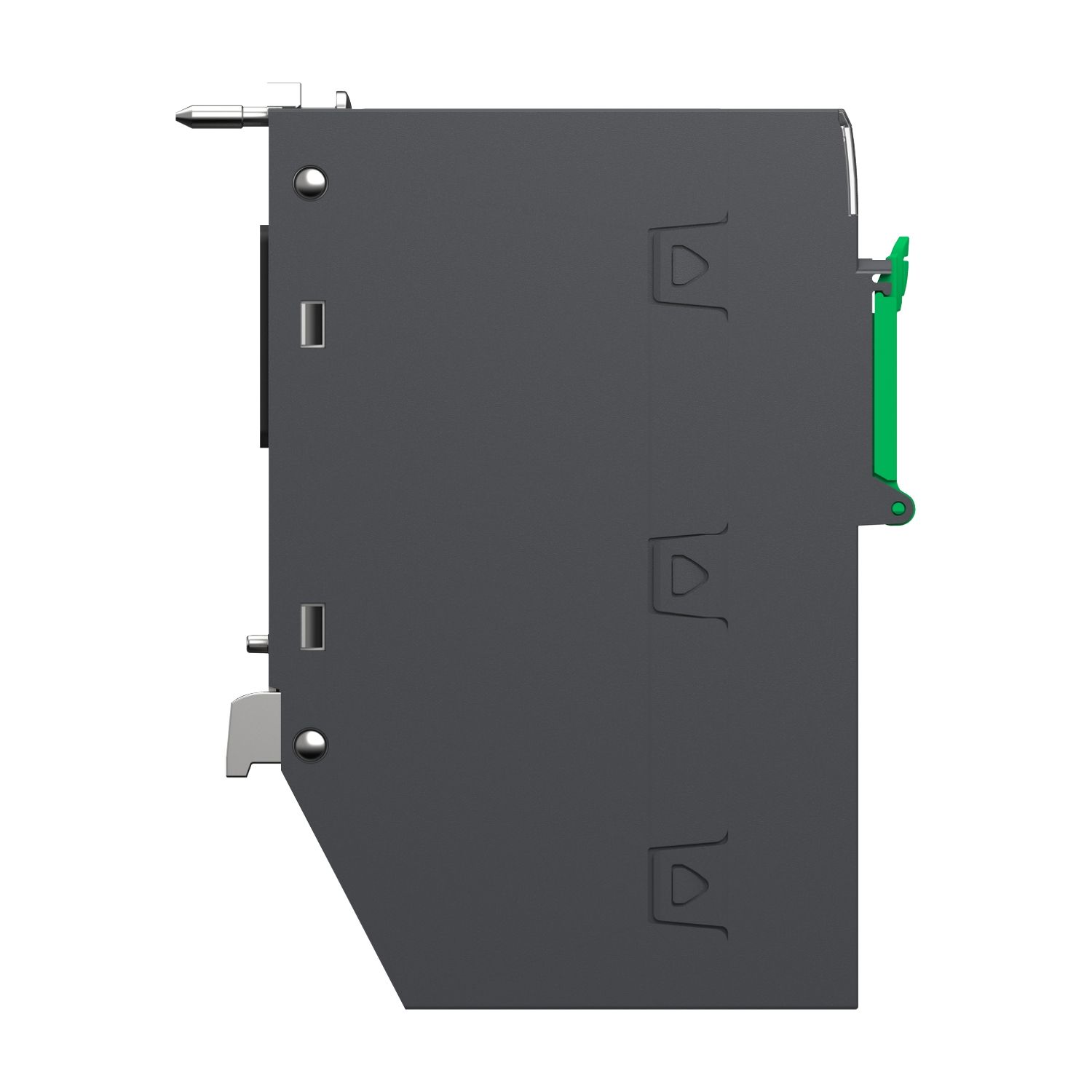

Picture of communication module, Modicon M580, IEC 60870-5-101/104, DNP3, for severe environments
Picture of communication module, Modicon M580, IEC 60870-5-101/104, DNP3, for severe environments
Picture of communication module, Modicon M580, IEC 60870-5-101/104, DNP3, for severe environments
Picture of communication module, Modicon M580, IEC 60870-5-101/104, DNP3, for severe environments
Picture of communication module, Modicon M580, IEC 60870-5-101/104, DNP3, for severe environments
Picture of communication module, Modicon M580, IEC 60870-5-101/104, DNP3, for severe environments
Picture of communication module, Modicon M580, IEC 60870-5-101/104, DNP3, for severe environments
SKU:

BMENOR2200H

communication module, Modicon M580, IEC 60870-5-101/104, DNP3, for severe environments

$4,579.30 INC GST
Available for Shipping : 18-Dec-2025
communication module, Modicon M580, IEC 60870-5-101/104, DNP3, for severe environments
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 18-Dec-2025
Circularity Profile
Catalog
User guide
Declaration of conformity
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet
This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This communication module enables M580 platform to use RTU protocol exchange with RTU stations. It features enhanced cybersecurity. It complies with M580 Hot Standby system. It supports up to 64 devices when module acts as Client/Master. It weighs 0.345kg. It provides enhanced cybersecurity. It complies with DNP3 NET IEC60870-5-104 RTU protocol. The module is delivered in 1 packing unit. It occupies one slot on the rack. Modicon X80 is a platform of modules common to Modicon M580 and M340 automation platforms that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC). Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name Attribute value
Main
Product compatibility BMEXBP... - Ethernet + X-bus rack
Range of product Modicon M580
Product or component type communication module
Complementary
Memory description support flash SD memory card (BMXRMS004GPF) 4 GB
Protective treatment conformal coating
Height 131 mm
Shock resistance 30 gn
Cybersecurity certificate based authentication, SNMP logging, transport layer security for RTU protocols, Syslog protocol support, Achilles certified, secure communiction (HTTPS), system hardening, role-based access control
Width 32 mm
Integrated connection type 2 Ethernet, connector type: RJ45, transmission rate: 10/100/1000 Mbit/s, transmission mode: double shielded twisted pair, 1 RS485, connector type: RJ45, transmission rate: 115200 bit/s, transmission mode: 1 twisted shielded pair, 1 RS232, connector type: RJ45, transmission rate: 115200 bit/s, transmission mode: 8 wires
Communication service DNP3 NET multiple session, IEC60870-5-104 channel redundancy, data logging service, transparent events routing from remote servers to SCADA, automatic events backup on power loss, time stamped events management, SNMP agent, SNTP client, FDR client, web server (HTTPS), HTML5, Modbus TCP messaging, IEC 60870-5-104 server/client, IEC 60870-5-101 server/client, DNP3 NET client SAv2/SAv5 with pre-shared key, DNP3 NET server SAv2/SAv5 with pre-shared key
Net weight 0.41 kg
Current consumption 137 mA at 24 V DC
Length 86 mm
Dielectric strength 1500 V DC for 1 min, between Serial port and bus/earth
Supply internal power supply via rack
Environment
IP degree of protection IP20
Relative humidity 5-95 % at 55 °C
Ambient air temperature for storage -40-85 °C
Directives 2014/34/EU - ATEX directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Vibration resistance 3 gn
Product certifications UKCA, UKCA type 1, IECEx zone 2/22, ATEX zone 2/22, Merchant Navy, EAC, RCM, CSA, UL, CE
Standards IEC 60079-0, IEC 61850-3, location G, IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, IEC 61010-2-201, IEC 61131-2
Ambient air temperature for operation -25-70 °C
Operating altitude 2000 m...5000 m with derating factor, 0...2000 m
Local signalling 1 LED (green/red) for status of backplane ethernet (BS), 1 LED (green) for RTU connection status (RTUCNX), 1 LED (green/red) for status of control ethernet (NS), 1 LED (green) for processor running (RUN), 1 LED (red) for memory card fault (CARD ERR), 1 LED (red) for processor or system fault (ERR), 1 LED (red) for download in progress (DL), 1 LED (yellow) for serial communication (SER COM), 1 LED (green/red) for cyber security (SEC)
Environmental characteristic hazardous location class I division 2, fungal spore resistant class 3B2 conforming to IEC 60721-3-3, mold growth resistant class 3B2 conforming to IEC 60721-3-3, salt resistant level 2 conforming to IEC 68252, sand resistant class 3S4 conforming to IEC 60721-3-3, dust resistant class 3S4 conforming to IEC 60721-3-3, gas resistant class 3C4 conforming to IEC 60721-3-3, gas resistant class Gx conforming to ISA S71.04
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.300 cm
Package 1 Width 17.800 cm
Package 1 Length 26.000 cm
Package 1 Weight 564.000 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.983 kg
