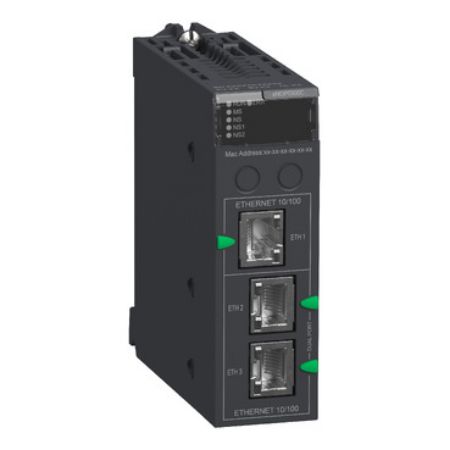

Picture of Communication module, Modicon M580, IEC 61850, coated

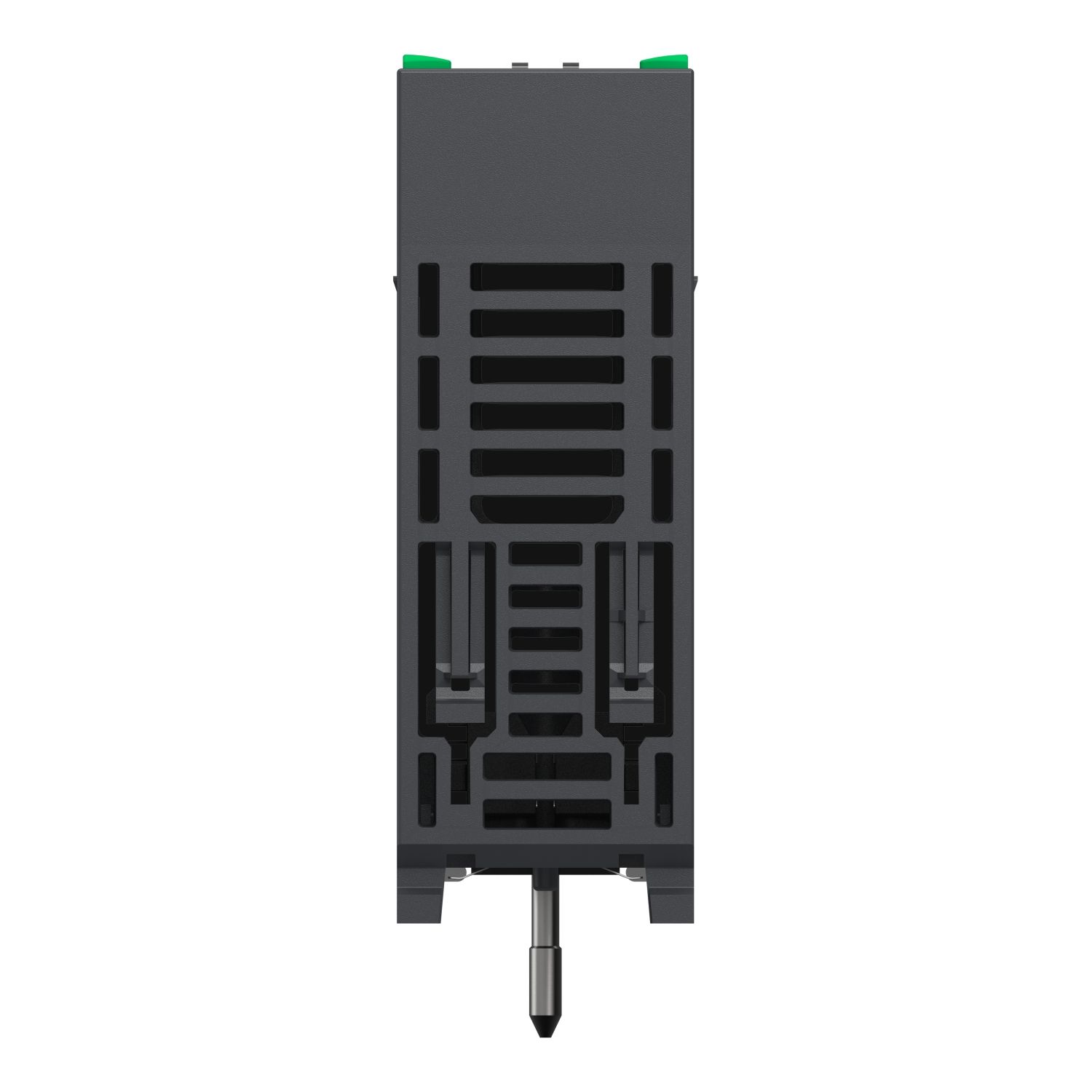

Picture of Communication module, Modicon M580, IEC 61850, coated

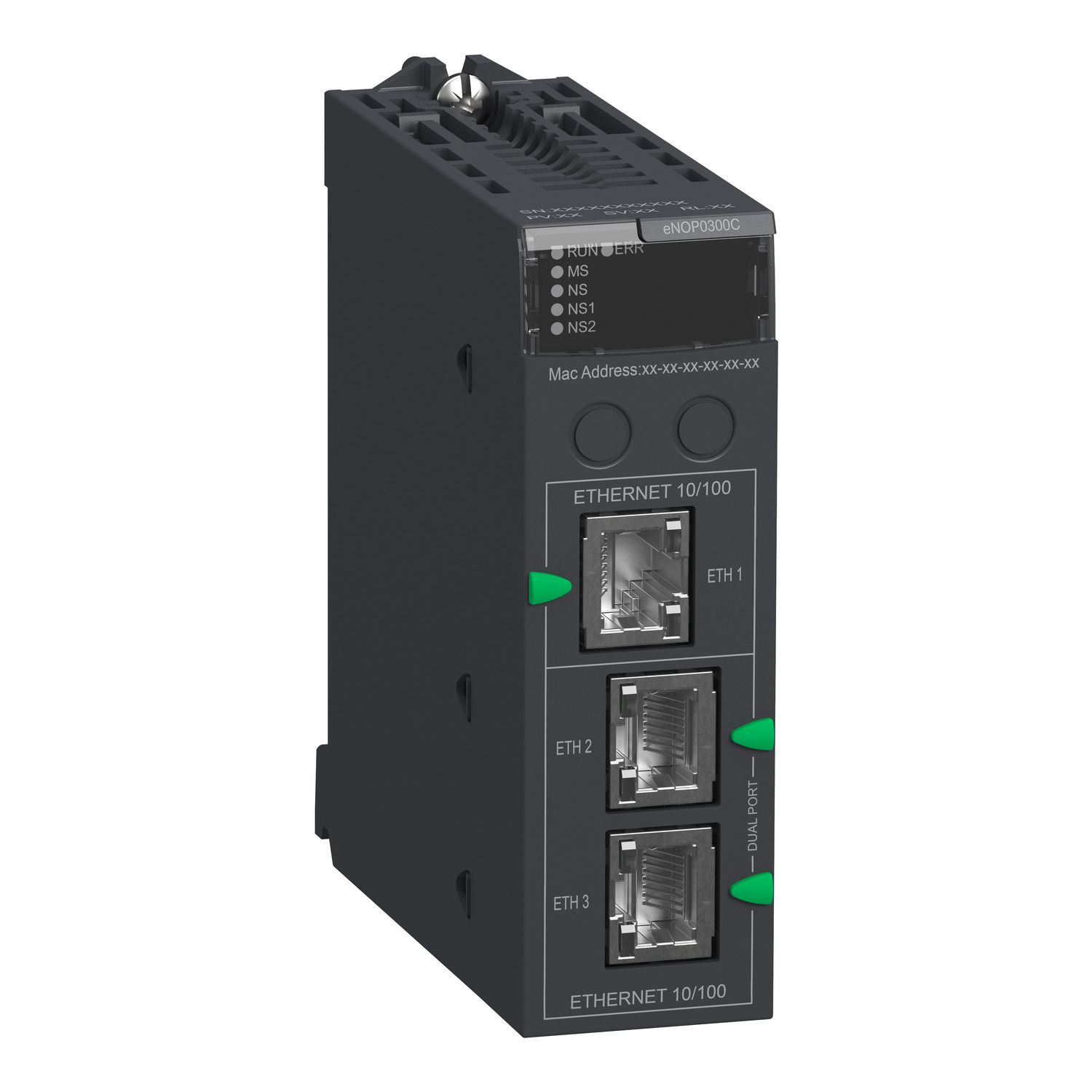

Picture of Communication module, Modicon M580, IEC 61850, coated

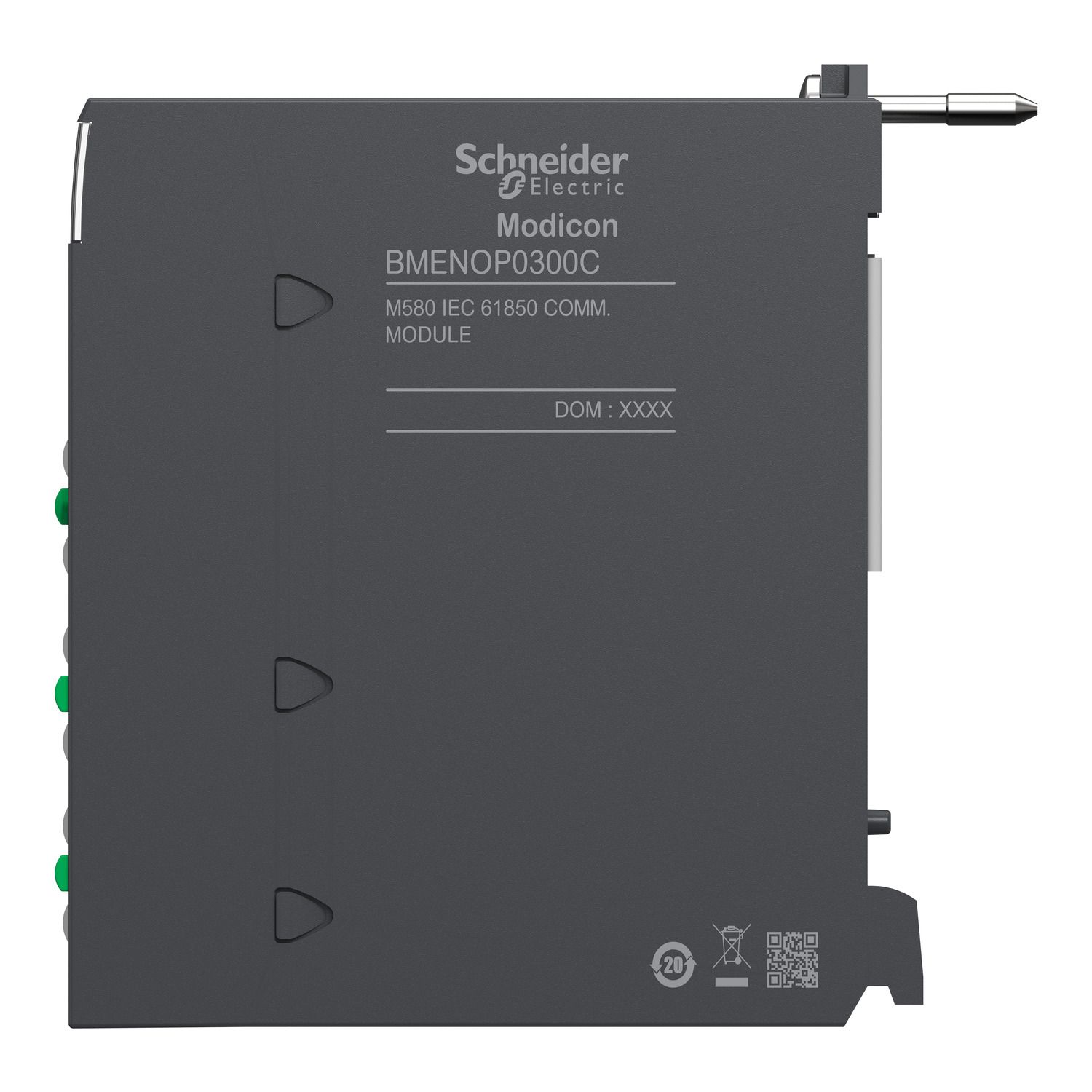

Picture of Communication module, Modicon M580, IEC 61850, coated

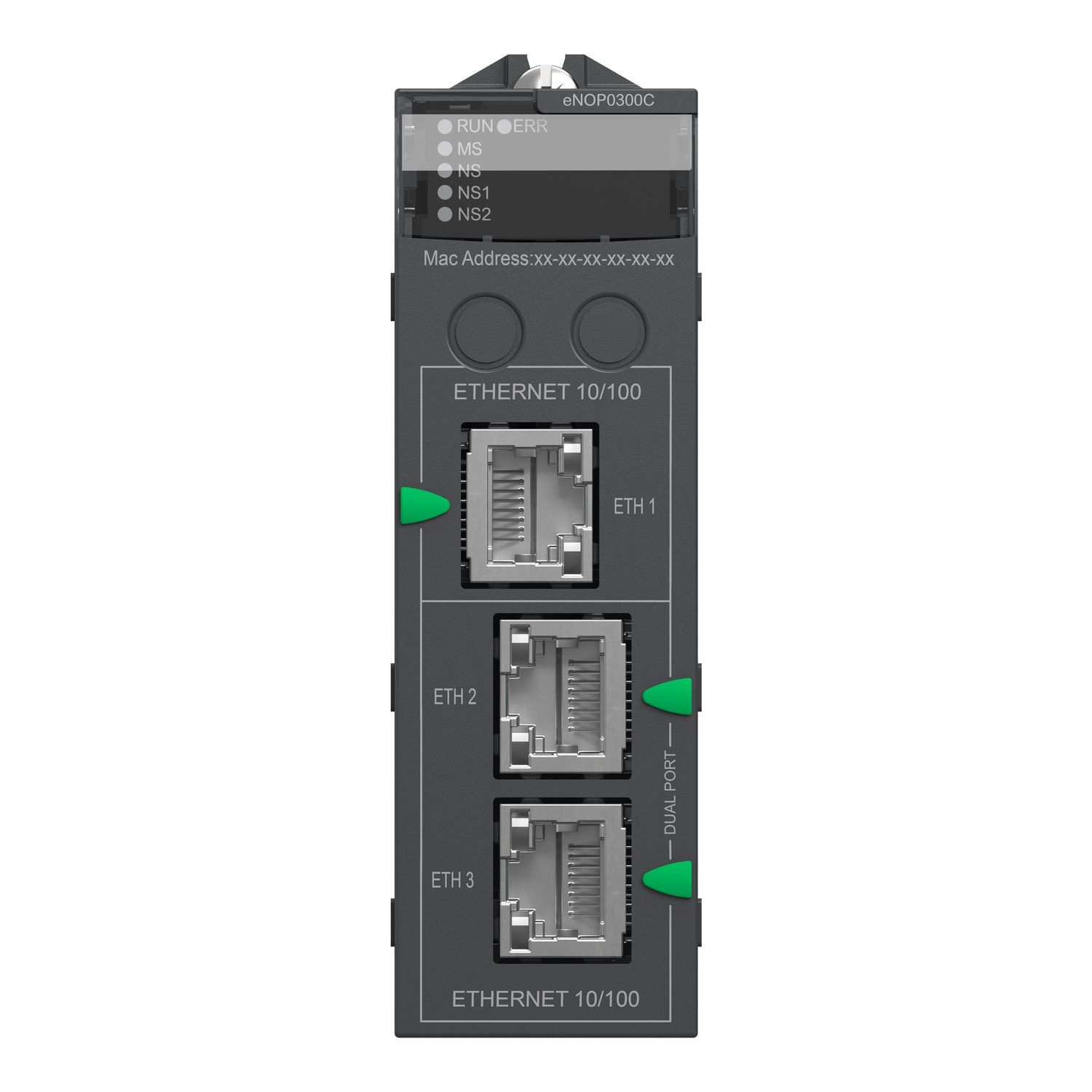

Picture of Communication module, Modicon M580, IEC 61850, coated

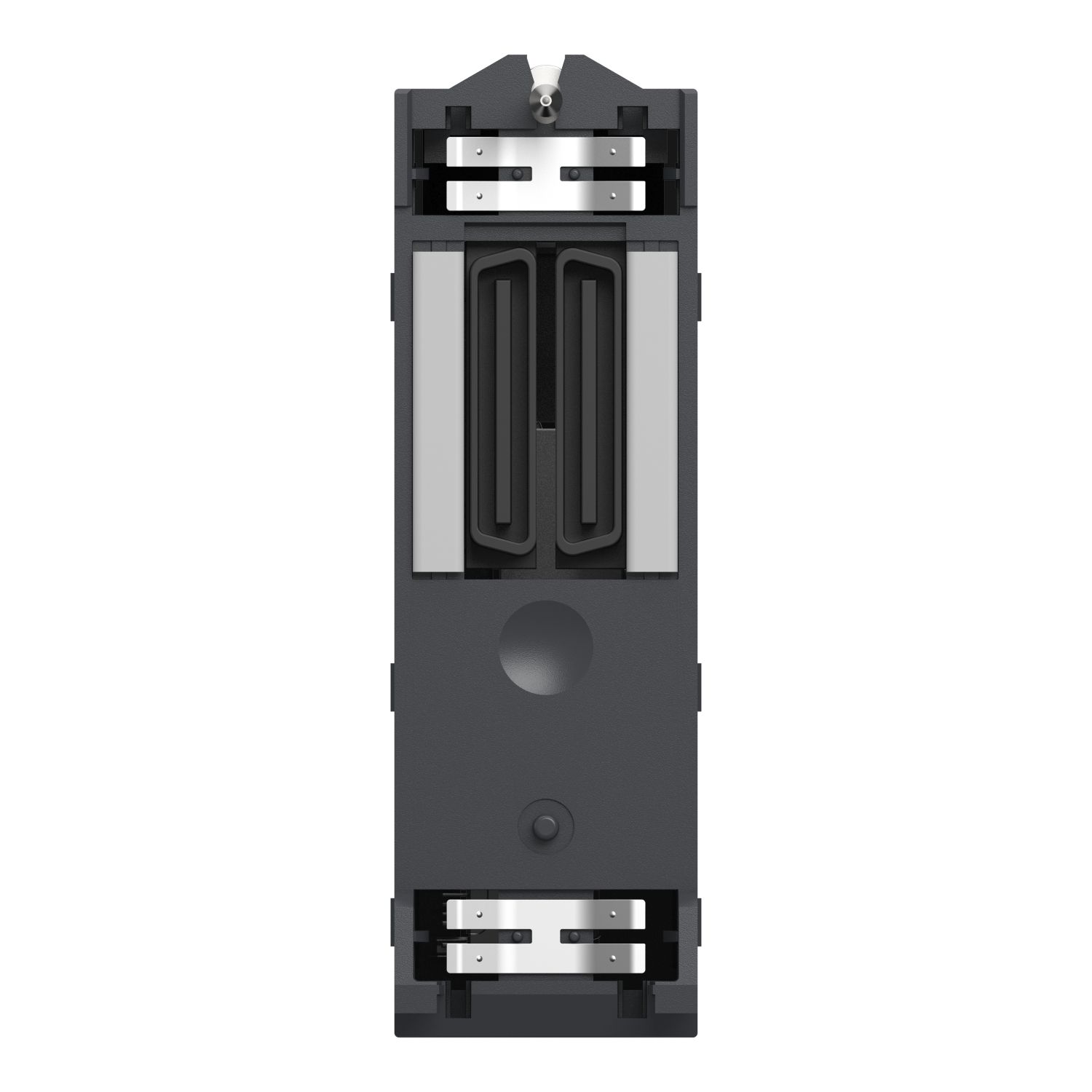

Picture of Communication module, Modicon M580, IEC 61850, coated

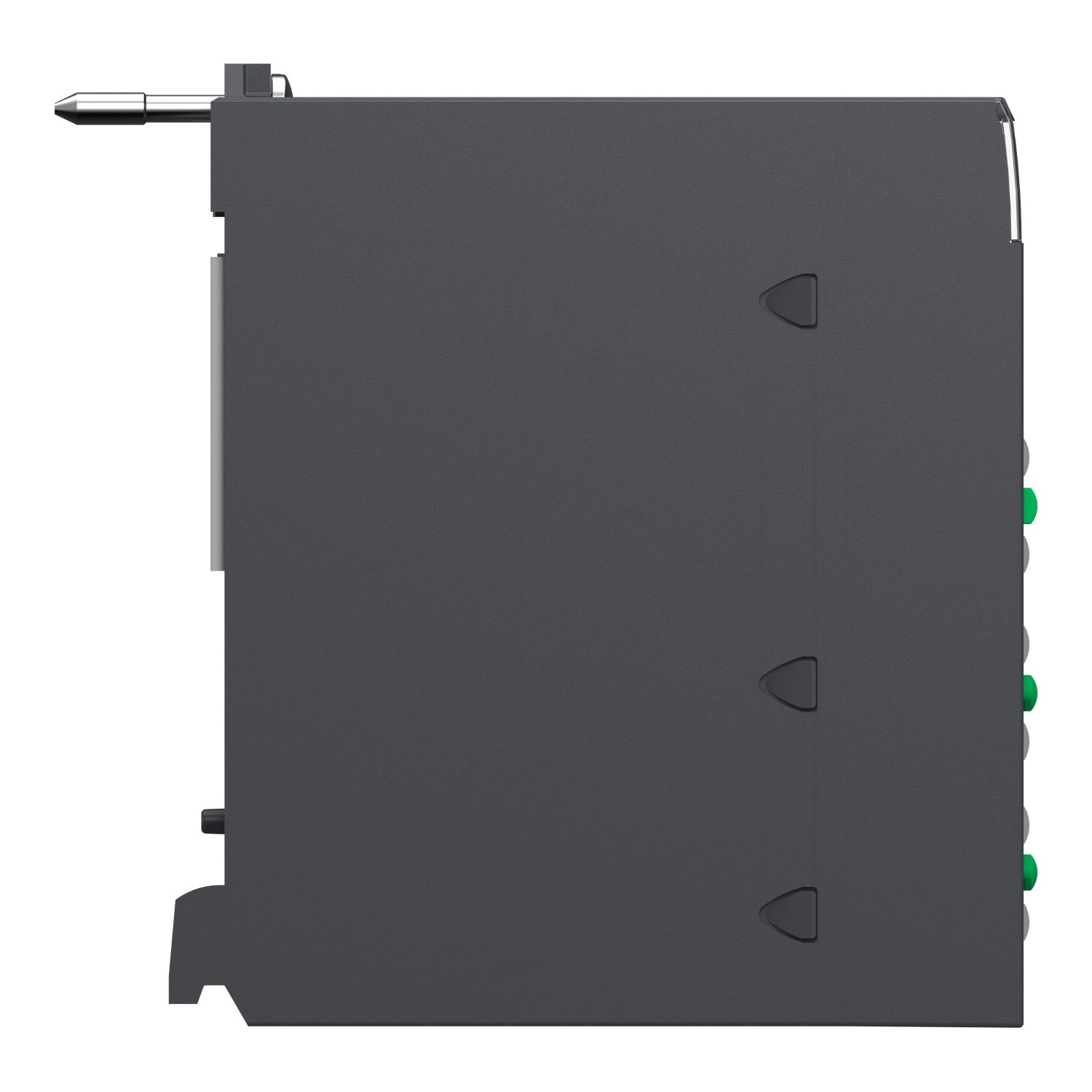

Picture of Communication module, Modicon M580, IEC 61850, coated

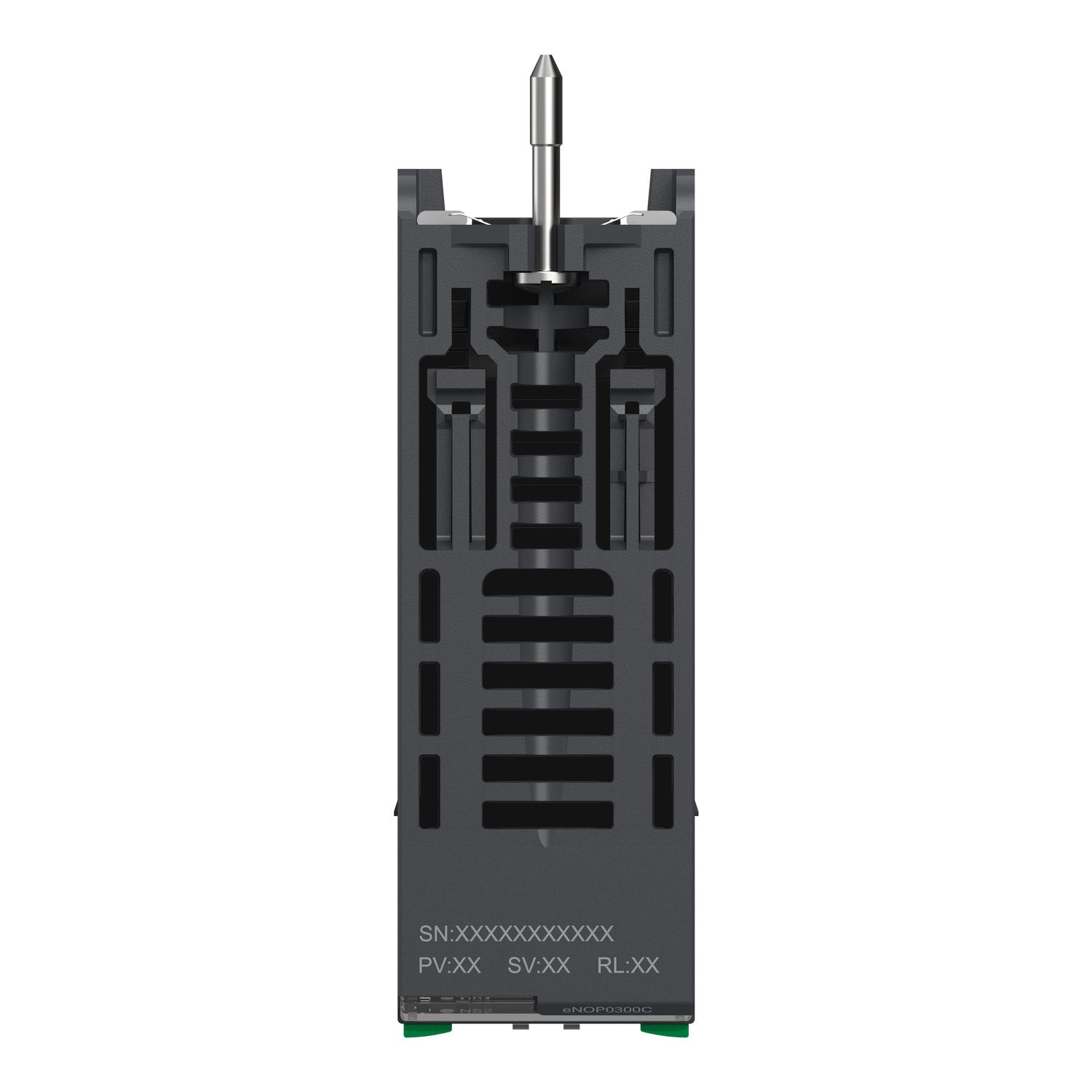

Picture of Communication module, Modicon M580, IEC 61850, coated
SKU:

BMENOP0300C

Communication module, Modicon M580, IEC 61850, coated

$9,920.13 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
Communication module, Modicon M580, IEC 61850, coated
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
Circularity Profile
Declaration of conformity
Environmental Disclosure
Product Page Link
Product Data Sheet
This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This M580 module provides interfaces for IEC 61850 communication It supports communication as IEC 61850 client, IEC 61850 server, GOOSE publisher, GOOSE subscriber, and Modbus TCP server and client. Thanks to a protective coating on its circuit board, this product can be used in harsh environments. The BMENOP0300 module has three external Ethernet ports, whose IP addresses can be configured. The maximum number of BMENOP0300 modules that can be mounted on a local rack is determined by the type of CPU. It weighs 0.345kg. It provides high network availability. This product is certified by CE and UL, and also by ATEX and IECEx for use in explosive atmospheres. it is compatible with the entire range of M580 CPUs, in both standalone and redundant configuration. The module is delivered in 1 packing unit. The BMENOP0300 IEC 61850 module is installed on the local Ethernet backplane of a M580 system. The benefits of Modicon M580 are reduced time to market, improved reliability and sustainability, improved productivity with high performance and increased operating profitability due to efficient access to data. The benefits of Modicon M580 are reduced time to market, improved productivity with high performance and increased operating profitability due to improved access to data.

Products specifications

Attribute name Attribute value
Main
Range of product Modicon M580
Product or component type communication module
Complementary
Product compatibility M580 PAC
Module format standard
Transmission rate 100 Mbit/s, 10 Mbit/s
Communication service IP forwarding, RSTP support, Modbus TCP messaging, goose for IEC 61850, MMS messaging server for IEC 61850, MMS messaging client for IEC 61850
Current consumption 1250 mA at 3.3 V DC internal
Net weight 0.24 kg
Transmission support medium ethernet cable
Physical interface 3 Ethernet 10/100BASE-TX
Environment
Protective treatment conformal coating
Relative humidity 0-95 % without condensation
Ambient air temperature for storage -40-85 °C
Directives 2014/34/EU - ATEX directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Product certifications IECEx zone 2/22, ATEX zone 2/22, Merchant Navy, EAC, RCM, CSA, UL, CE
Standards EN/IEC 60079-0, EN/IEC 61850-3 location G, EN/IEC 61000-6-5 interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61010-2-201, EN/IEC 61131-2
Ambient air temperature for operation 0-60 °C
Operating altitude <= 2000 m
Environmental characteristic hazardous location class I division 2, fungal spore resistant class 3B2 conforming to IEC 60721-3-3, mold growth resistant class 3B2 conforming to IEC 60721-3-3, salt resistant level 2 conforming to IEC 68252, sand resistant class 3S4 conforming to IEC 60721-3-3, dust resistant class 3S4 conforming to IEC 60721-3-3, gas resistant class 3C4 conforming to IEC 60721-3-3, gas resistant class Gx conforming to ISA S71.04
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 11.100 cm
Package 1 Length 11.600 cm
Package 1 Weight 265.000 g
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 1.659 kg
