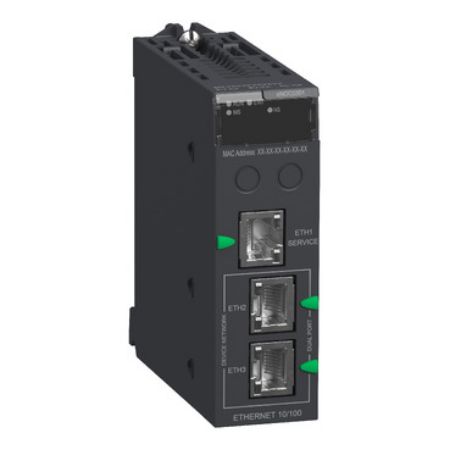

Picture of network module, Modicon M580, Ethernet IP/Modbus TCP

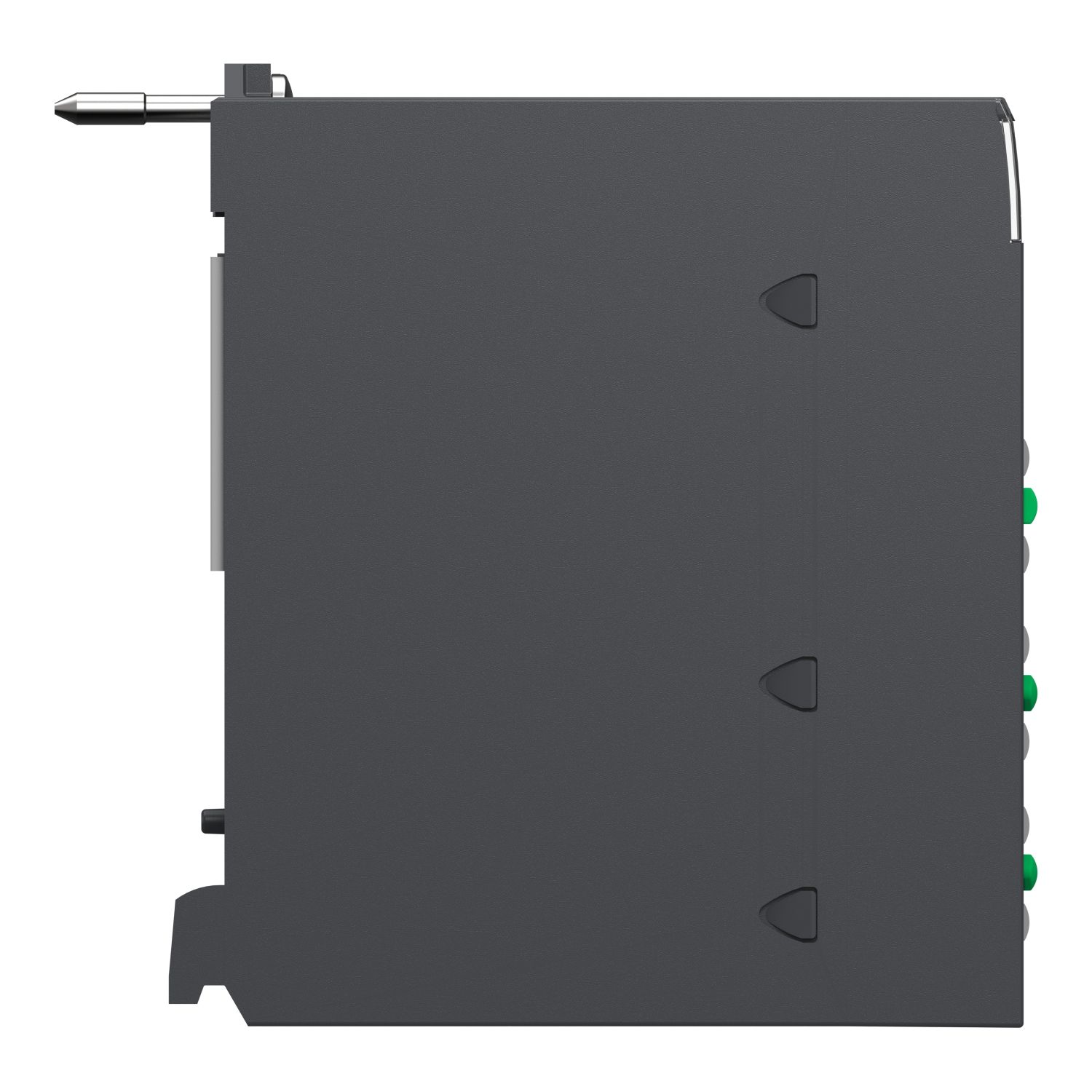

Picture of network module, Modicon M580, Ethernet IP/Modbus TCP

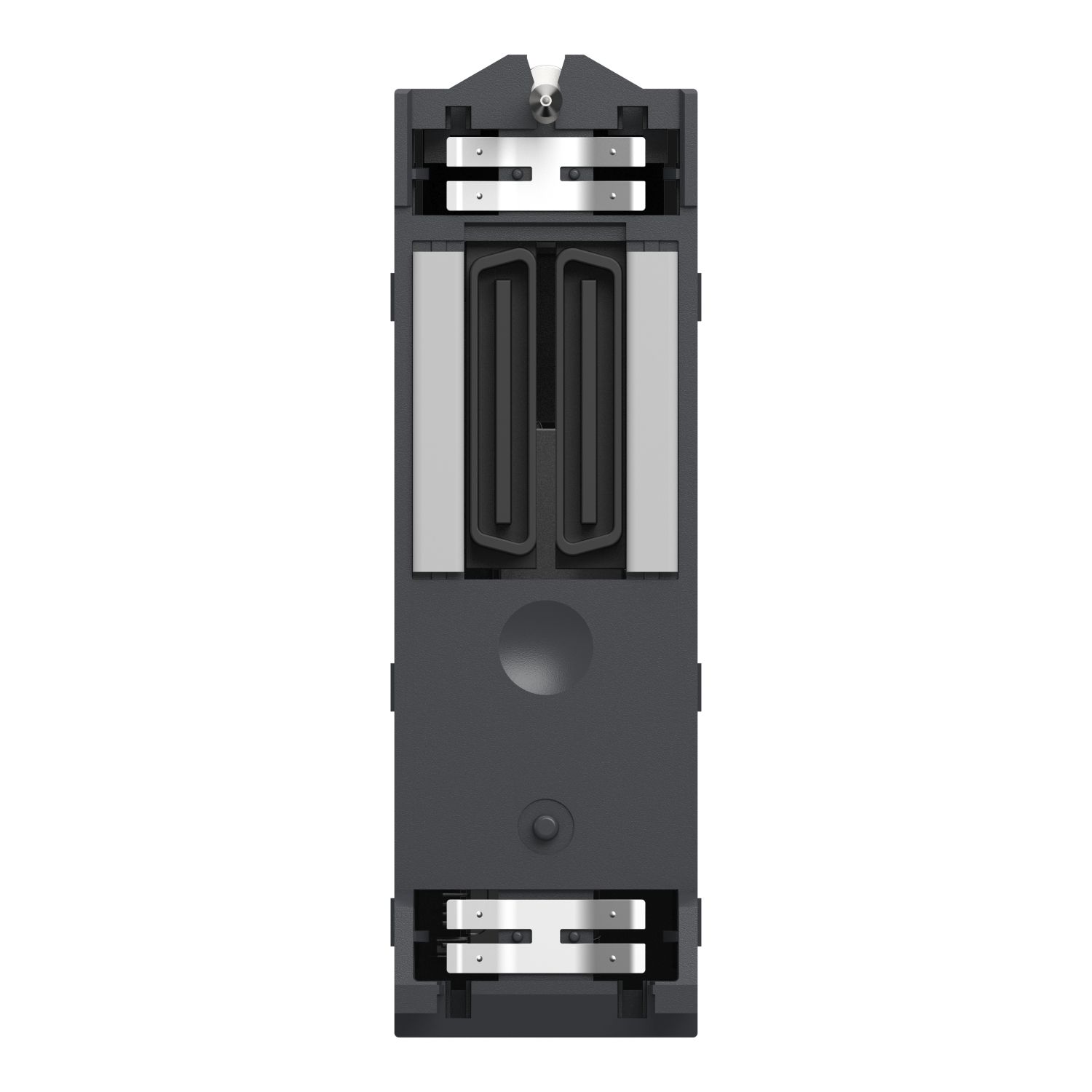

Picture of network module, Modicon M580, Ethernet IP/Modbus TCP

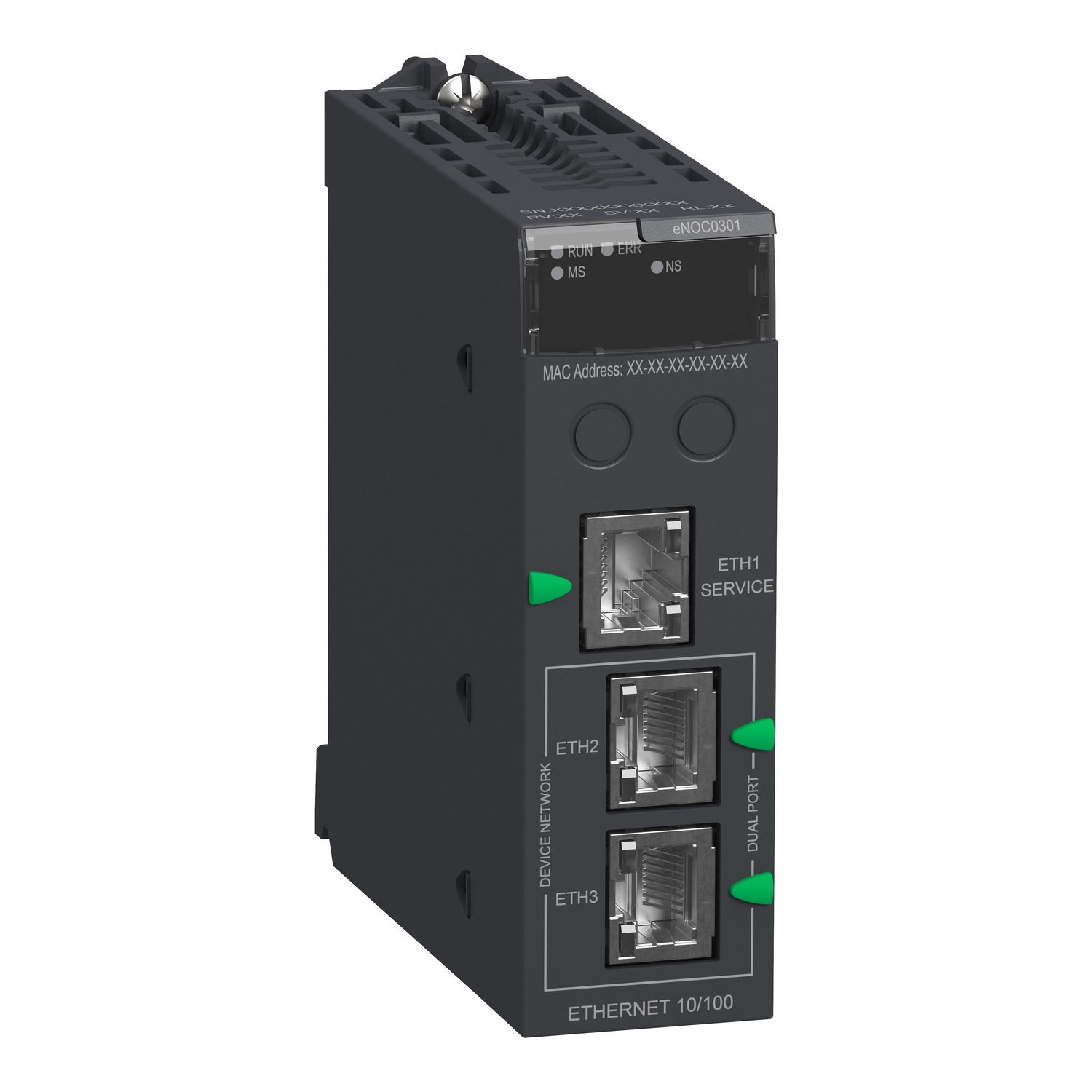

Picture of network module, Modicon M580, Ethernet IP/Modbus TCP

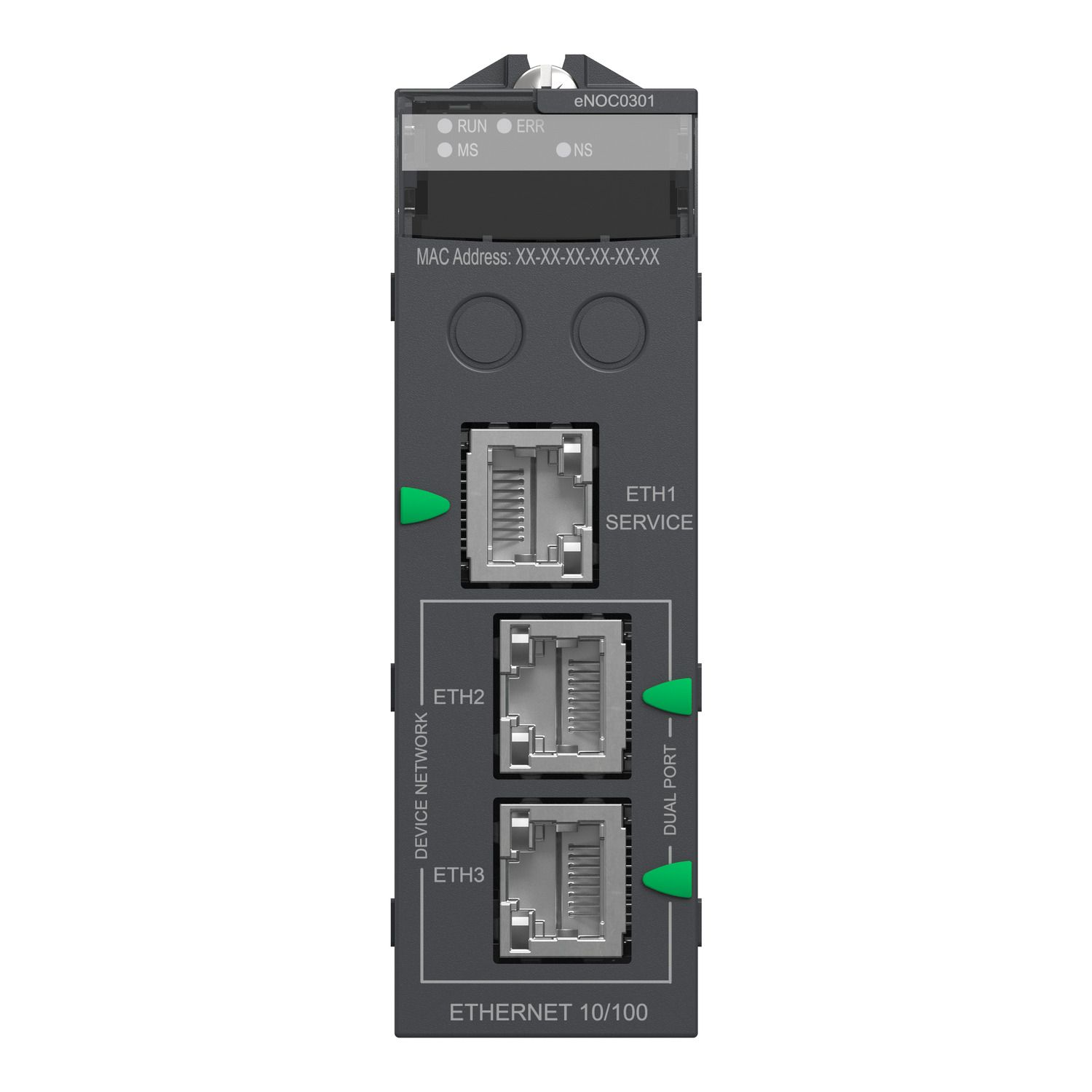

Picture of network module, Modicon M580, Ethernet IP/Modbus TCP

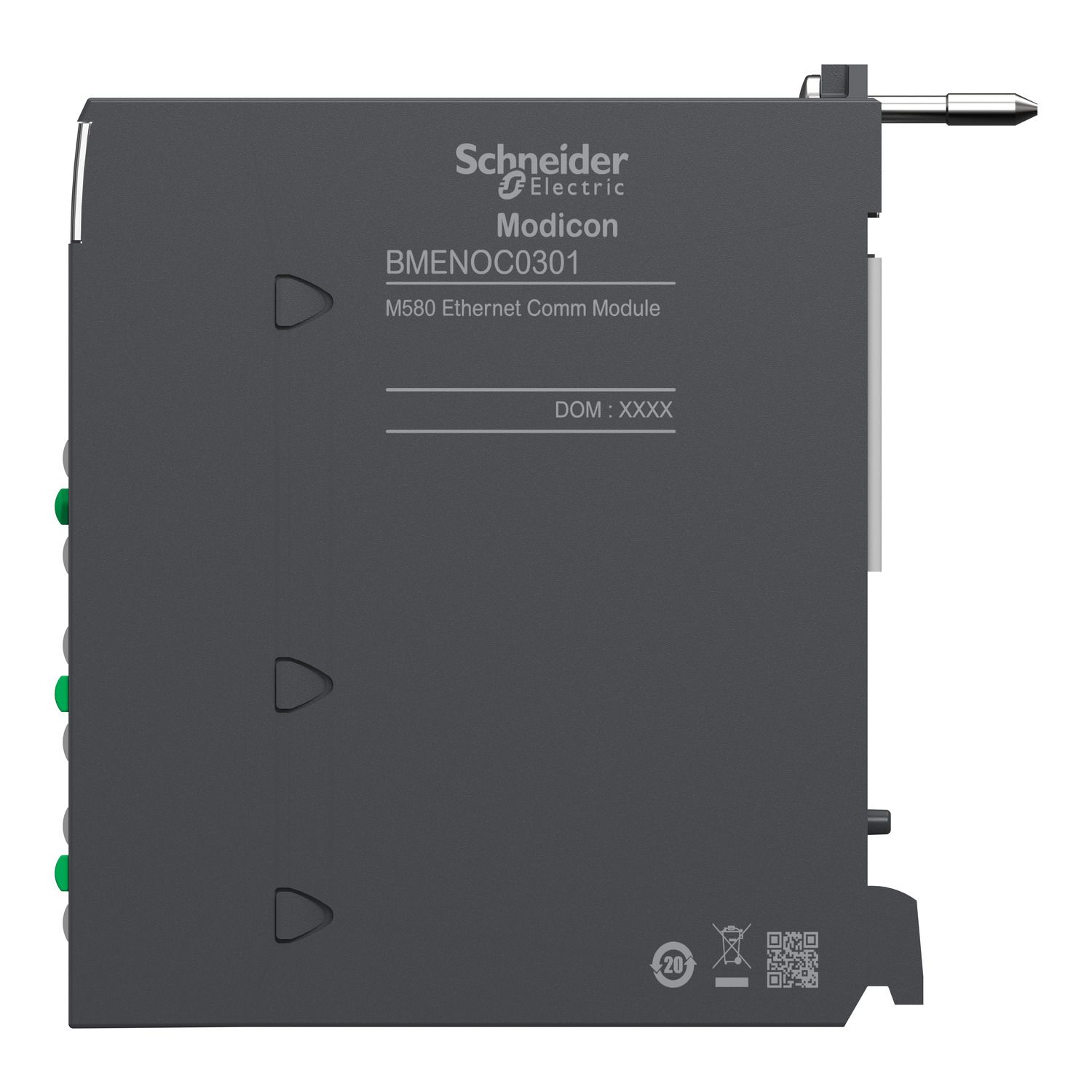

Picture of network module, Modicon M580, Ethernet IP/Modbus TCP

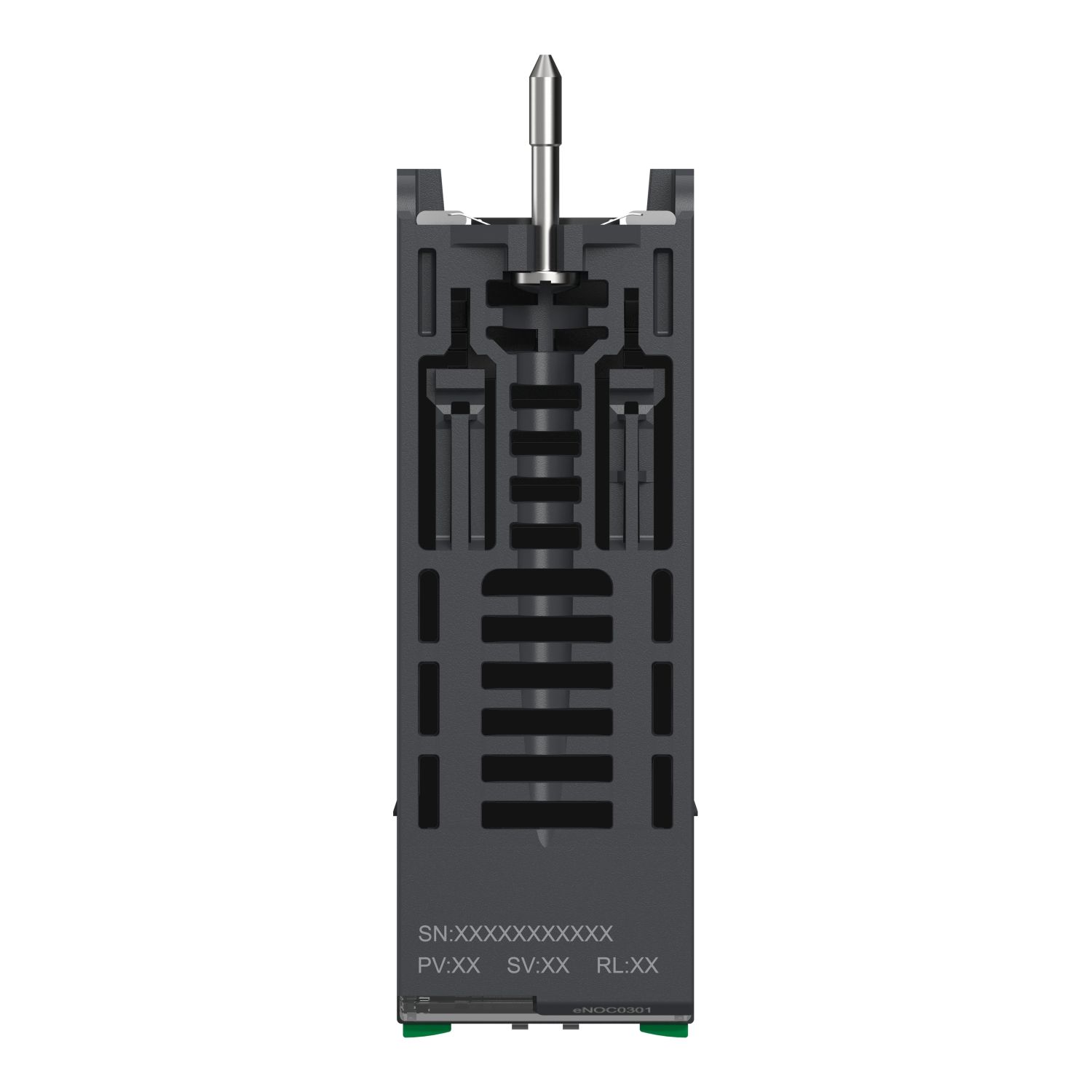

Picture of network module, Modicon M580, Ethernet IP/Modbus TCP

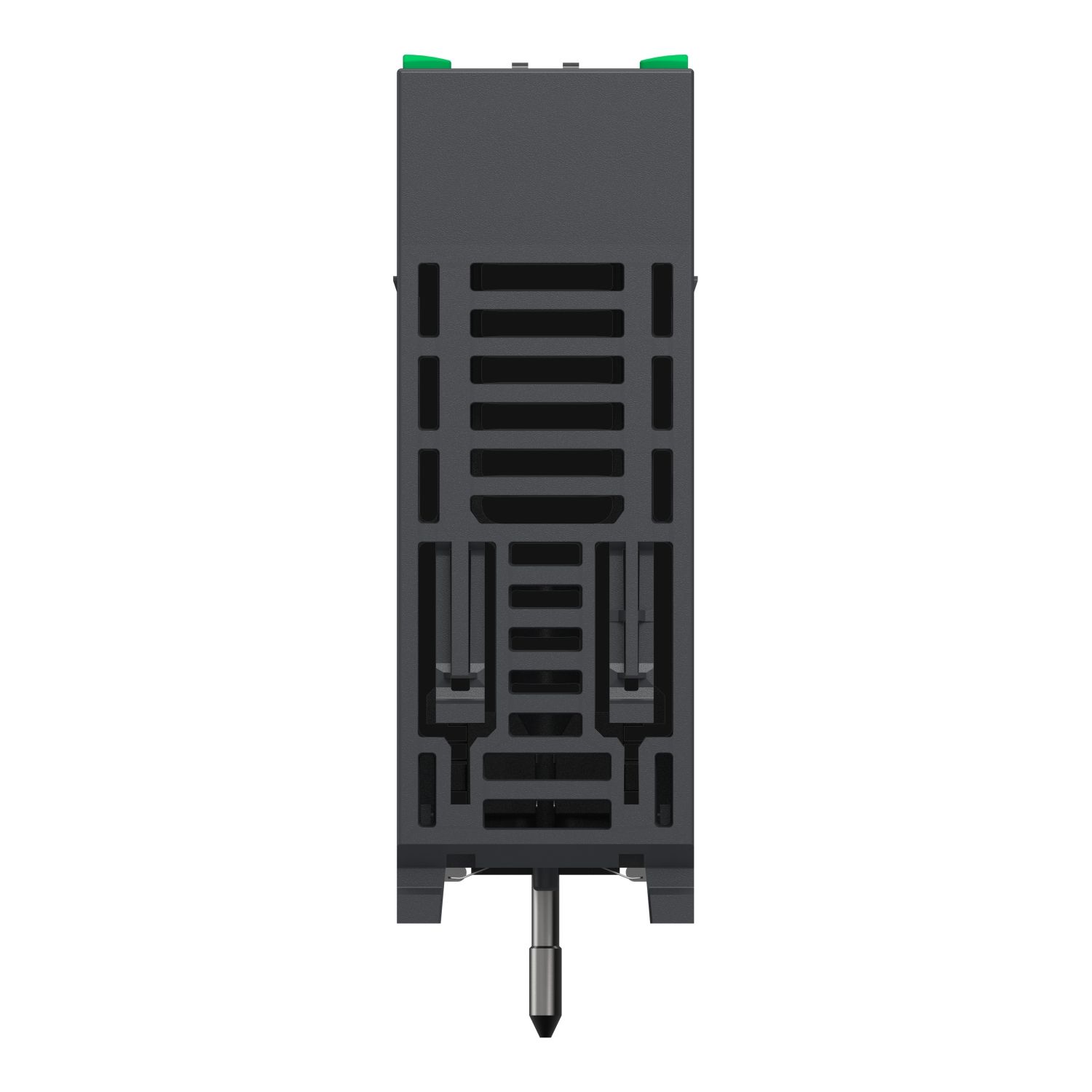

Picture of network module, Modicon M580, Ethernet IP/Modbus TCP
SKU:

BMENOC0301

network module, Modicon M580, Ethernet IP/Modbus TCP

$5,191.56 INC GST
Available for Shipping : 15-Dec-2025
Product Selector
network module, Modicon M580, Ethernet IP/Modbus TCP
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 15-Dec-2025
Catalog
Circularity Profile
Declaration of conformity
User guide
Environmental Disclosure
Product Page Link
Product Data Sheet
This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This communication module has 3 ports. It is integrated with 3 Ethernet RJ45 connectors. Communication services are bandwidth management, FDR server, Modbus TCP I/O scanner and messaging, EtherNet/IP I/O scanner and messaging, embedded 4-port switch, RSTP support, SNMP network administrator, embedded multiport switch etc. It is a communication module with a current consumption of 555mA, works with internal power supply. It is an IP20 rated product. It weighs 0.2kg. It is suitable for medium to large process applications. This product is certified by CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This connection sub-base is compatible with BMEXBPxxx - Ethernet + X-bus rack. The benefits of Modicon M580 are reduce time to market, improve reliability and sustainability, improve productivity with high performance and increase operating profitability due to improved access to data.

Products specifications

Attribute name Attribute value
Main
Concept Transparent Ready
Product compatibility BMEXBP... - Ethernet + X-bus rack
Range of product Modicon M580
Product or component type communication module
Complementary
Web server basic
Module format standard
Marking CE
Port Ethernet 10BASE-T/100BASE-TX
Integrated connection type 3 Ethernet, connector type: RJ45, transmission rate: 10/100 Mbit/s, transmission mode: double shielded twisted pair
Communication service embedded multiport switch, port mirroring, RSTP support, Ethernet/IP I/O Scanner and Messaging, Modbus TCP I/O Scanner and Messaging, SNMP network administrator, FDR server, bandwidth management
Net weight 0.2 kg
Transmission support medium Ethernet backplane
Current consumption 1800 mA at 3.3 V DC (for product version < 13), 900 mA at 3.3 V DC (for product version >= 13)
Supply internal power supply via rack
Environment
IP degree of protection IP20
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Ambient air temperature for operation 0-60 °C
Local signalling 1 LED (green/red) for Eth NS (Ethernet network status), 1 LED (green/red) for ETH MS (Ethernet port configuration status), 1 LED (red) for processor or system fault (ERR), 1 LED (green) for processor running (RUN)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 11.200 cm
Package 1 Length 12.000 cm
Package 1 Weight 254.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.136 kg
