SKU:

BMEAHI0812

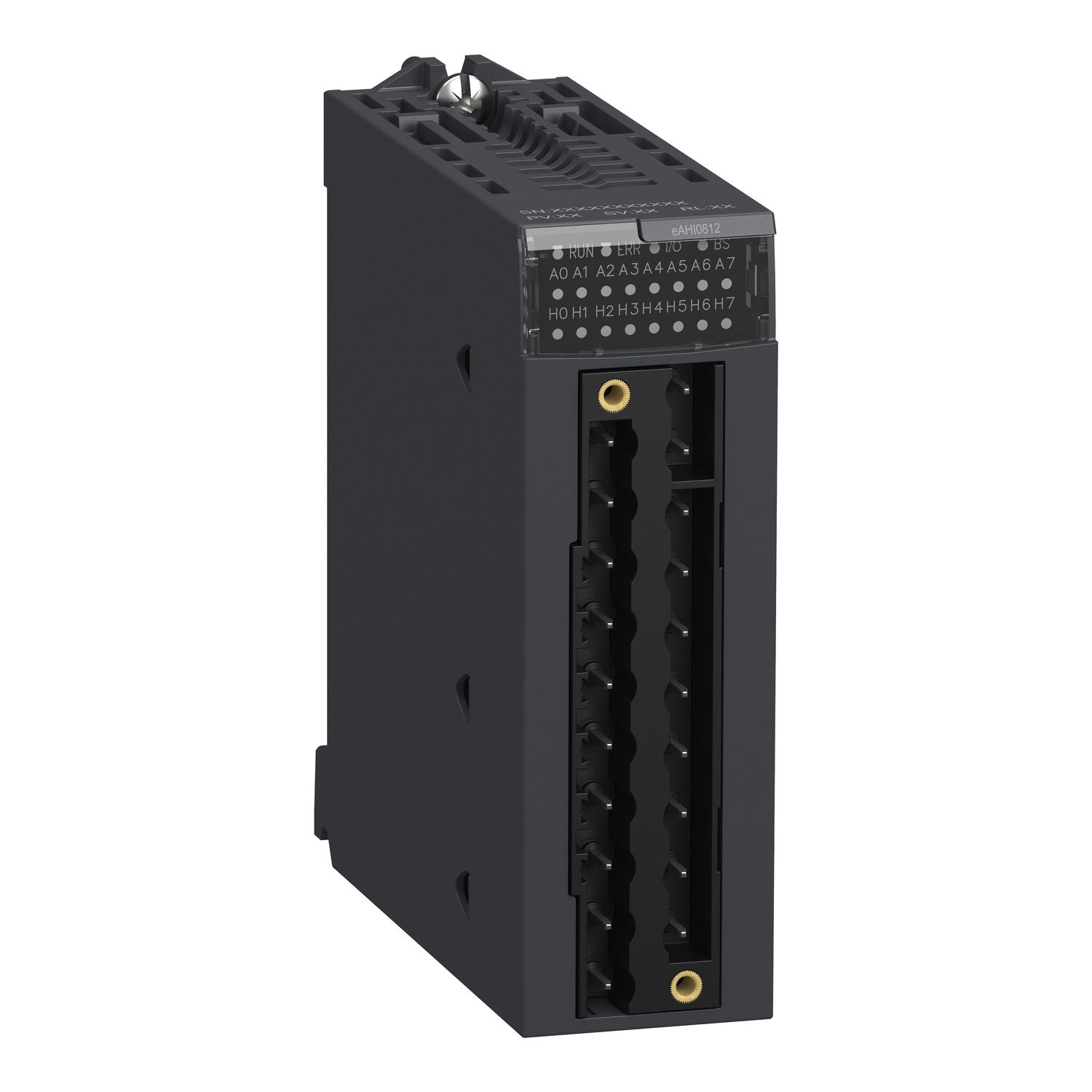

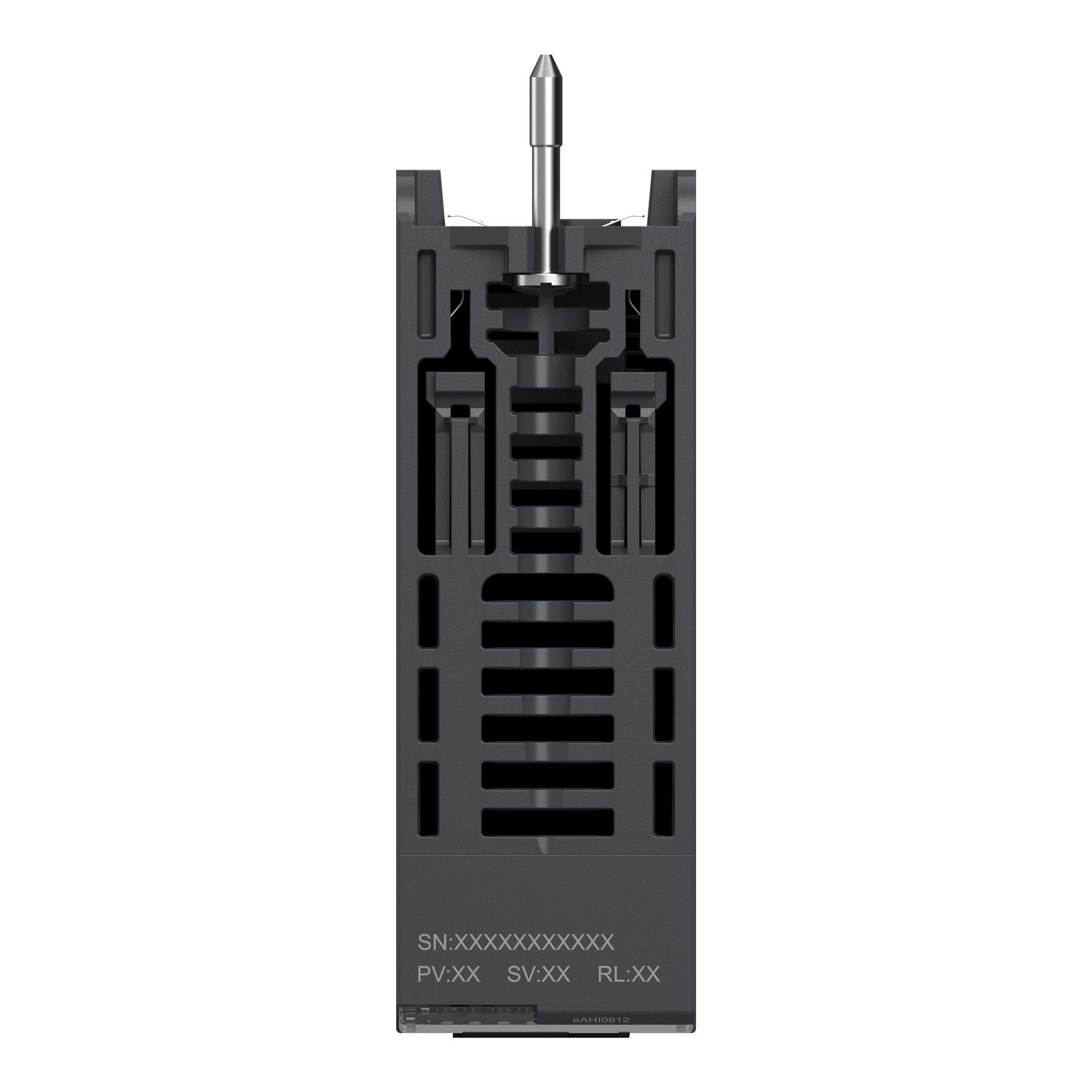

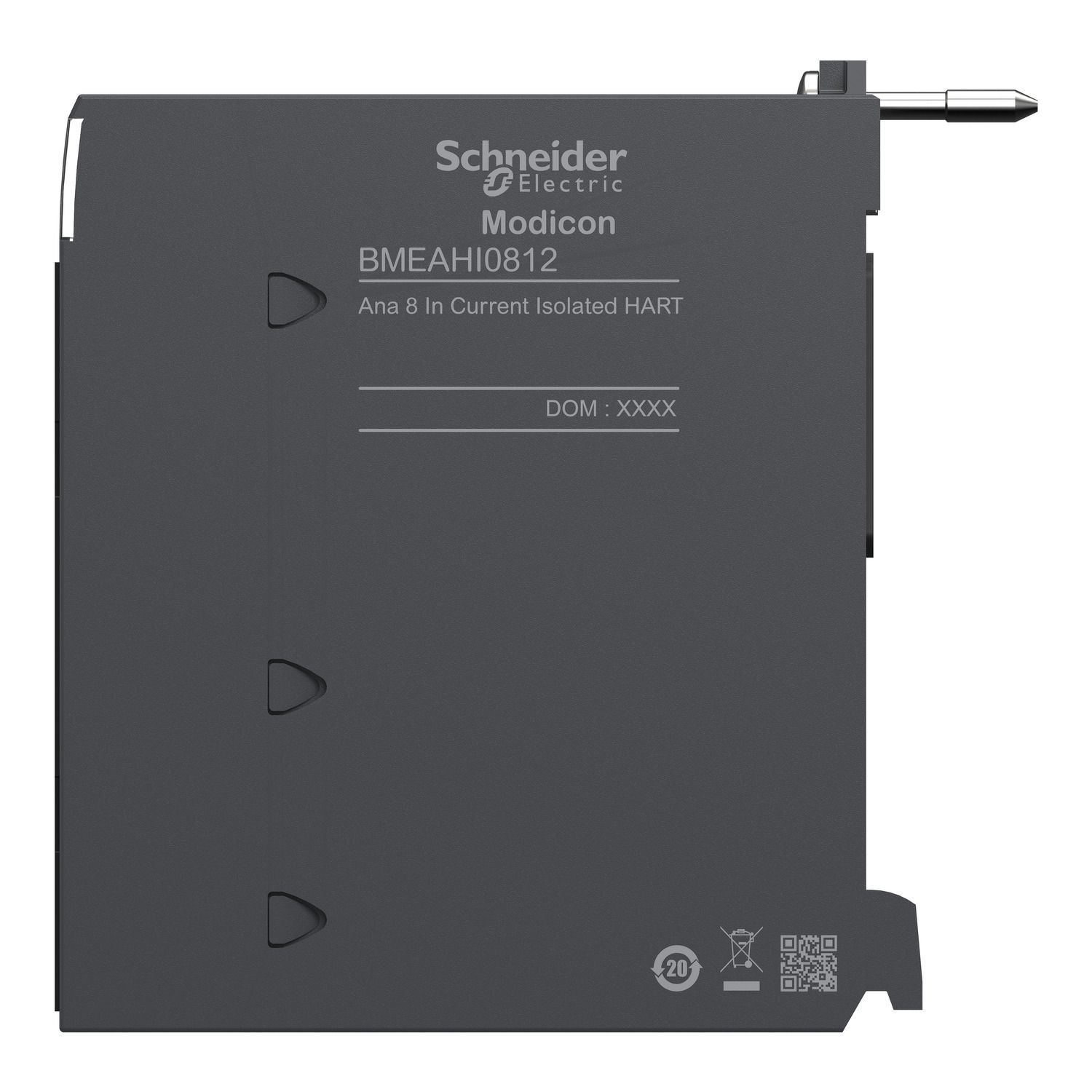

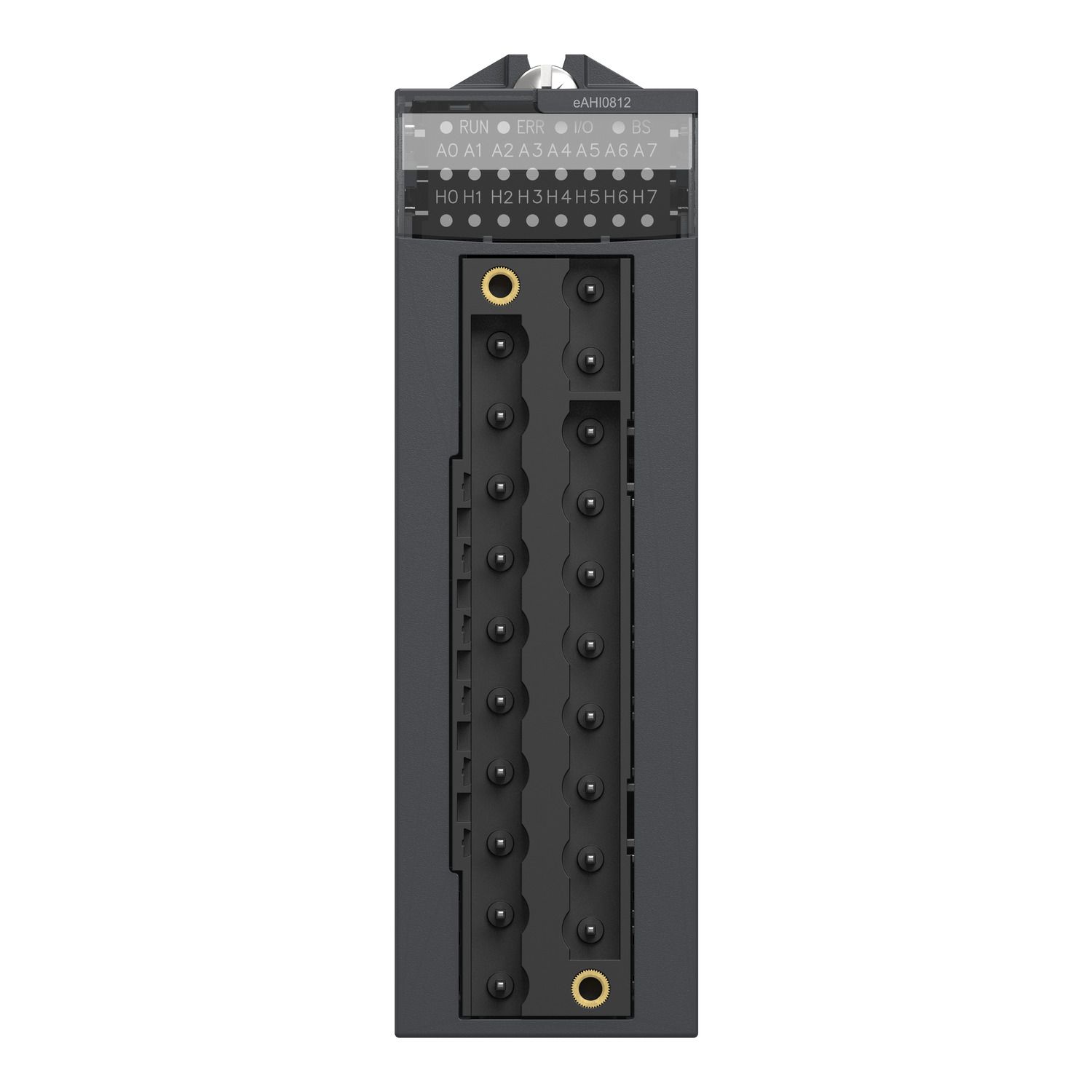

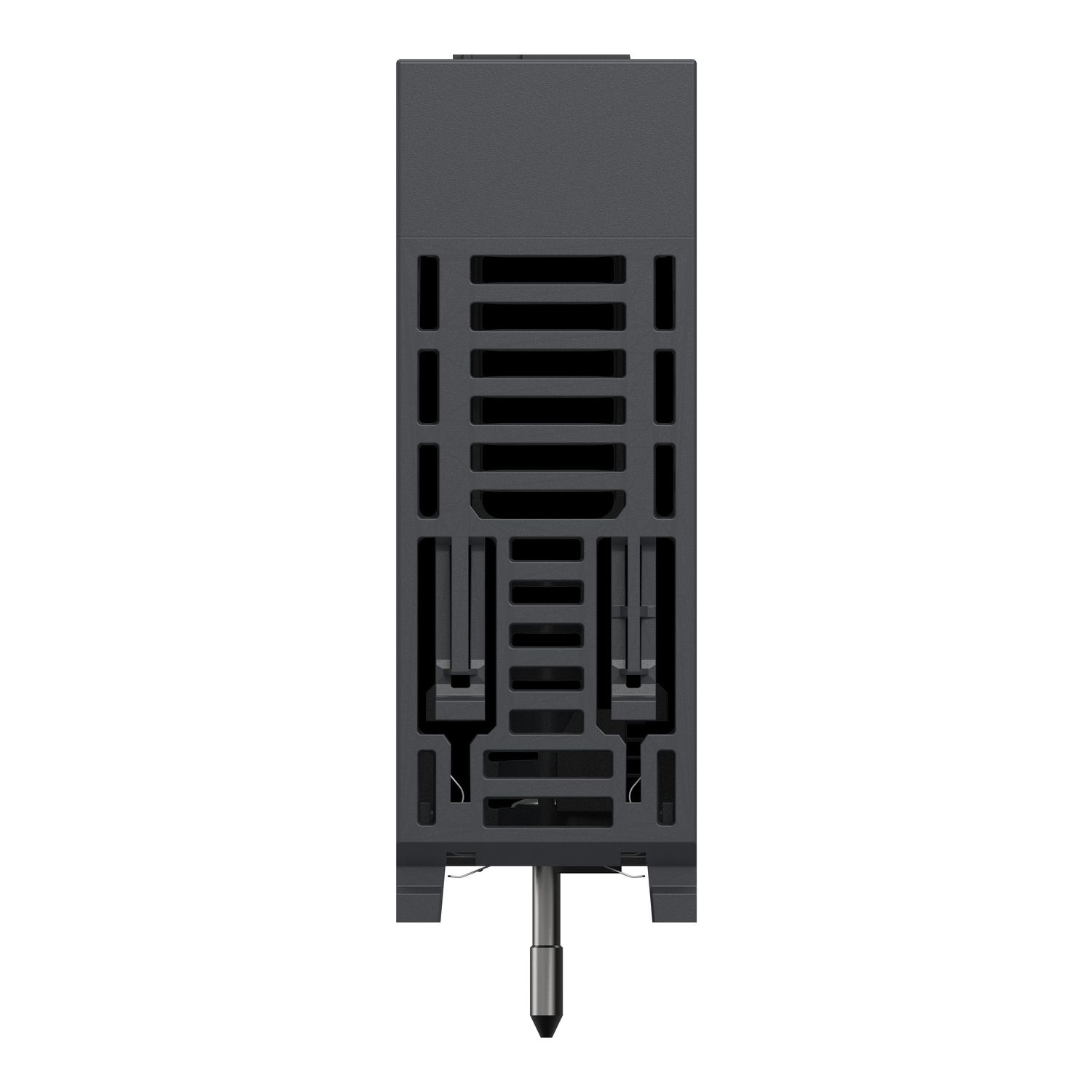

analog isolated high level input module, Modicon X80, 8 HART inputs, 4 to 20mA

$3,263.70 INC GST

Qty:

Available for Shipping : 06-Jan-2026

Product Selector

analog isolated high level input module, Modicon X80, 8 HART inputs, 4 to 20mA

Be the first to review this product

Manufacturer: Schneider Electric

Delivery date: 06-Jan-2026

Catalog

Declaration of conformity

User guide

Circularity Profile

Environmental Disclosure

Product Page Link

Product Data Sheet

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This analogue input module has 8 inputs with 15bit + sign input resolution. It is an input module with a current of 4mA to 20mA input type with I/O mapping function. This product is robust, high quality and based on the latest innovative technology. It is furnished with Telefast and 20-way terminal block for electrical connection. It weighs 0.233kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with BMEP58xxx processor, BMXFTB20xxx terminal block, ABE7CPA31, BMEXBPxxx backplane, ABE7CPA02, ABE7CPA03, BMECRA31210 head module. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name	Attribute value
Main
Product or component type	analog input module
Range of product	Modicon X80
Complementary
Checks	broken wire detection
Analogue input type	current 4...20 mA
Product compatibility	head module BMECRA31210, ABE7CPA03, ABE7CPA02, BMEXBP... backplane, ABE7CPA31, BMXFTB20... terminal block, BMEP58... processor
Application specific I/O	HART
Function available	I/O mapping
Isolation voltage	1400 V DC for 60 s between channels and bus, 1400 V DC for 60 s between channels and ground, 1000 V DC for 60 s between channels
Analogue input number	8
Input output isolation	isolated
Topology	point-to-point
Electrical connection	Telefast, 20 ways terminal block
Input impedance	250 Ohm internally protective resistor (3.6 to 50 Ohm)
Net weight	0.233 kg
Analogue input resolution	15 bits + sign
Temperature drift	50 ppm/°C
Measurement error	<= 0.3 % of full scale 0...60 °C, 0.15 % of full scale 25 °C
Environment
IP degree of protection	IP20
Directives	2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Product certifications	UL, Merchant Navy, EAC, CSA, RCM, CE
Standards	CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61131-2, EN/IEC 61010-2-201
Ambient air temperature for operation	0-60 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	5.700 cm
Package 1 Width	11.200 cm
Package 1 Length	12.000 cm
Package 1 Weight	229.000 g
Unit Type of Package 2	2
Number of Units in Package 2	15
Package 2 Height	15.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	3.770 kg
