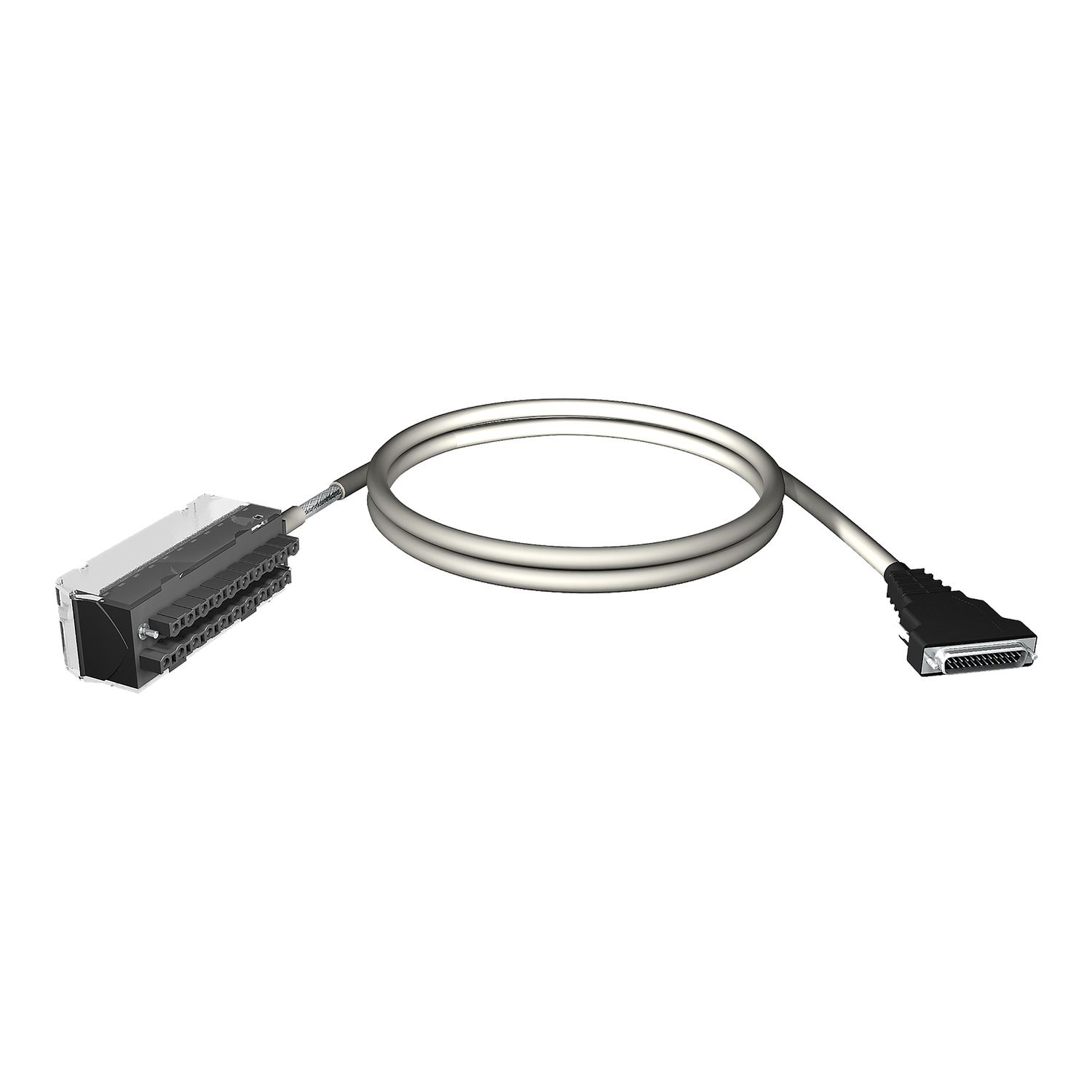

Picture of cord set, Modicon X80, 20 ways terminal, SUB-D25, 3m (9.84ft)
SKU:

BMXFTA3022

cord set, Modicon X80, 20 ways terminal, SUB-D25, 3m (9.84ft)

$245.69 INC GST
Available for Shipping : 12-Jan-2026
cord set, Modicon X80, 20 ways terminal, SUB-D25, 3m (9.84ft)
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
User guide
Product Page Link
Product Data Sheet
This cordset is part of the Modicon X80 range, an offer of common input/output for Modicon M340 and Modicon M580. This 20-pin connector module is connected to sensors, pre-actuators, or terminals using a cable designed to enable trouble-free direct wire to wire transition of the module’s I/O. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. The cordset has a weigh of 0.500kg and measures 3m. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC). Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part type preformed cordset
Product compatibility ABE7CPA31, ABE7CPA03, ABE7CPA02, BMXAHI0812
Cable length 3 m
Range of product Modicon X80
Electrical connection 1 removable terminal block, 20 ways for module side, 1 connector SUB-D 25 for sub-base side
Complementary
Net weight 0.5 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.200 cm
Package 1 Width 20.000 cm
Package 1 Length 27.000 cm
Package 1 Weight 523.000 g
Unit Type of Package 2 2
Number of Units in Package 2 7
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.898 kg
