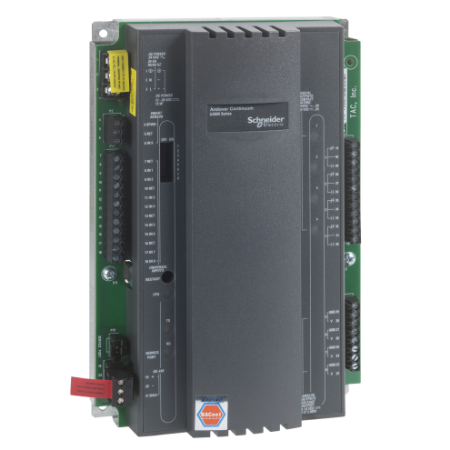

Picture of Andover Continuum b3804 Local Controller, BACnet, 8 Universal Inputs, 4 Digital Outputs, 4 Analog Outputs, 1 Smart Sensor Input
SKU:

B3804

Andover Continuum b3804 Local Controller, BACnet, 8 Universal Inputs, 4 Digital Outputs, 4 Analog Outputs, 1 Smart Sensor Input

Call for pricing
Availability: Please contact our sales team on 1300 724 622.
Andover Continuum b3804 Local Controller, BACnet, 8 Universal Inputs, 4 Digital Outputs, 4 Analog Outputs, 1 Smart Sensor Input
Be the first to review this product
Manufacturer: Schneider Electric
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
IP degree of protection IP10
Device short name b3804
Display type LED
Width 153 mm
Relative humidity 10-95 % non-condensing
Product specific application control of other mechanical plant equipment, control of air handling unit, control of roof top unit
Memory type 1 MB flash, 128 kB SRAM
Function available stand alone equipment control
Height 229 mm
Depth 54 mm
Number of inputs 1 smart temperature sensor, 8 universal
Product or component type local controller
Ambient air temperature for operation -23-60 °C
Number of outputs 4 analog output, 8 single pole single throw form C relays
Range of product BACnet
Communication port support RS485
[Us] rated supply voltage 24 V AC, 12...14 V DC
Product certifications UL/cUL 916, CE, FCC
Complementary
Measurement resolution 5 mV input resolution
Battery type lithium 5 years power failure backup of RAM memory
Product compatibility bCX network controller
Realtime clock with synchronized through MS/TP via BACnet
Bus length 1220 m BACnet
Display type LED
Processor name Motorola 32-bit coldfire
Input impedance 5 MOhm with pull-up resistor disabled, 10 kOhm 5.120 V
Local signalling LEDs
Accuracy +/- 15 mV DC +/- 0.56 °C from - 23...66 °C
Resolution 0.1 V 0...10 V
Software package Continuum CyberStation
Power consumption in VA 25 VA 24 V
Communication port protocol BACnet RS485 MS/TP network 76.8 kbauds (127 devices), BACnet RS485 MS/TP network 38.4 kbauds (127 devices), BACnet RS485 MS/TP network 19.2 kbauds (127 devices), BACnet RS485 MS/TP network 9600 bauds (127 devices)
Standards EN 55022, FCC CFR 47 part 15, AS/NZS 3548 class A, ICES-003
Mounting support panel
Programming language English
Electrical connection screw terminal
Output voltage 0...10 V DC,5 A for analog output, 0...10 V, 24 V DC, 24 V AC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.5 cm
Package 1 Width 27 cm
Package 1 Length 29.5 cm
Package 1 Weight 1 kg
Unit Type of Package 2 2
Number of Units in Package 2 1
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 1.675 kg
