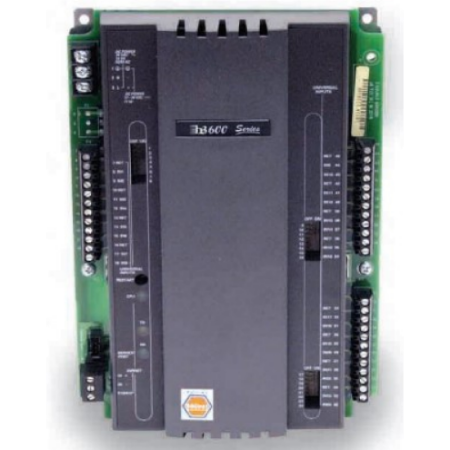

Picture of Andover Continuum b3624 Local Controller, BACnet, 24 Universal Inputs
SKU:

B3624

Andover Continuum b3624 Local Controller, BACnet, 24 Universal Inputs

Call for pricing
Availability: Please contact our sales team on 1300 724 622.
Andover Continuum b3624 Local Controller, BACnet, 24 Universal Inputs
Be the first to review this product
Manufacturer: Schneider Electric
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
IP degree of protection IP20
Device short name b3624
Display type LED
Relative humidity 10-95 % non-condensing
Function available configurable for supervised input monitoring
Height 229 mm
Ambient air temperature for operation 0-49 °C
Range of product BACnet
Communication port support RS485
[Us] rated supply voltage 24 V AC, 12...14 V DC
Width 153 mm
Product specific application glass break detection, motion detection, intrusion detection
Memory type 1 MB flash, 128 kB SRAM
Depth 54 mm
Number of inputs 24 universal
Product or component type local controller
Product certifications FCC, CE, UL/cUL 916
Complementary
Measurement resolution 5 mV input resolution
Product compatibility bCX network controller
Display type LED
Processor name Motorola 32-bit coldfire
Accuracy +/- 15 mV DC +/- 0.56 °C from - 23...66 °C
Communication port protocol BACnet RS485 MS/TP network 76.8 kbauds (127 devices), BACnet RS485 MS/TP network 38.4 kbauds (127 devices), BACnet RS485 MS/TP network 19.2 kbauds (127 devices), BACnet RS485 MS/TP network 9600 bauds (127 devices)
Standards EN 55022, FCC CFR 47 part 15, AS/NZS 3548 class A, ICES-003
Electrical connection screw terminal
Battery type lithium 5 years power failure backup of RAM memory
Realtime clock with synchronized through MS/TP via BACnet
Bus length 1220 m BACnet
Input impedance 5 MOhm with pull-up resistor disabled, 10 kOhm 5.120 V
Local signalling LEDs
Software package Continuum CyberStation
Power consumption in VA 25 VA 24 V
Mounting support panel
Programming language English
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 26.2 cm
Package 1 Width 19.2 cm
Package 1 Length 8.4 cm
Package 1 Weight 723.0 g
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 1.859 kg
