SKU:

B3608

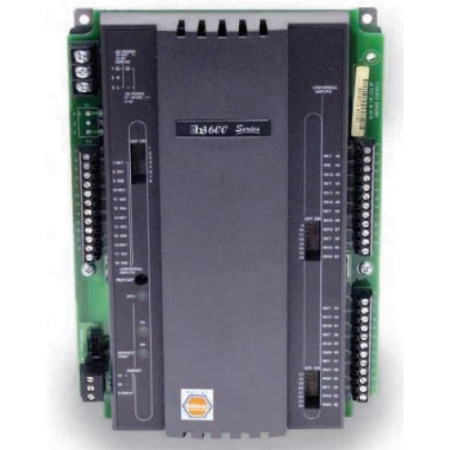

BACnet b3608 Local Controller, 8 universal inputs

Call for pricing

Availability: Please contact our sales team on 1300 724 622.

BACnet b3608 Local Controller, 8 universal inputs

Manufacturer: Schneider Electric

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
IP degree of protection	IP20
Device short name	b3608
Display type	LED
Width	153 mm
Product specific application	motion detection, glass break detection, intrusion detection
Memory type	1 MB flash, 128 kB SRAM
Function available	configurable for supervised input monitoring
Product or component type	local controller
Range of product	BACnet
Product certifications	FCC, UL/cUL 916, CE
Complementary
Measurement resolution	5 mV input resolution
Battery type	lithium 5 years power failure backup of RAM memory
Realtime clock	with synchronized through MS/TP via BACnet
Input impedance	5 MOhm with pull-up resistor disabled, 10 kOhm 5.120 V
Accuracy	+/- 15 mV DC +/- 0.56 °C from - 23...66 °C
Software package	Continuum CyberStation
Communication port protocol	BACnet RS485 MS/TP network 76.8 kbauds (127 devices), BACnet RS485 MS/TP network 38.4 kbauds (127 devices), BACnet RS485 MS/TP network 19.2 kbauds (127 devices), BACnet RS485 MS/TP network 9600 bauds (127 devices)
Programming language	English
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	11.3 cm
Package 1 Width	27.1 cm
Package 1 Length	29.9 cm
Package 1 Weight	1.36 kg
