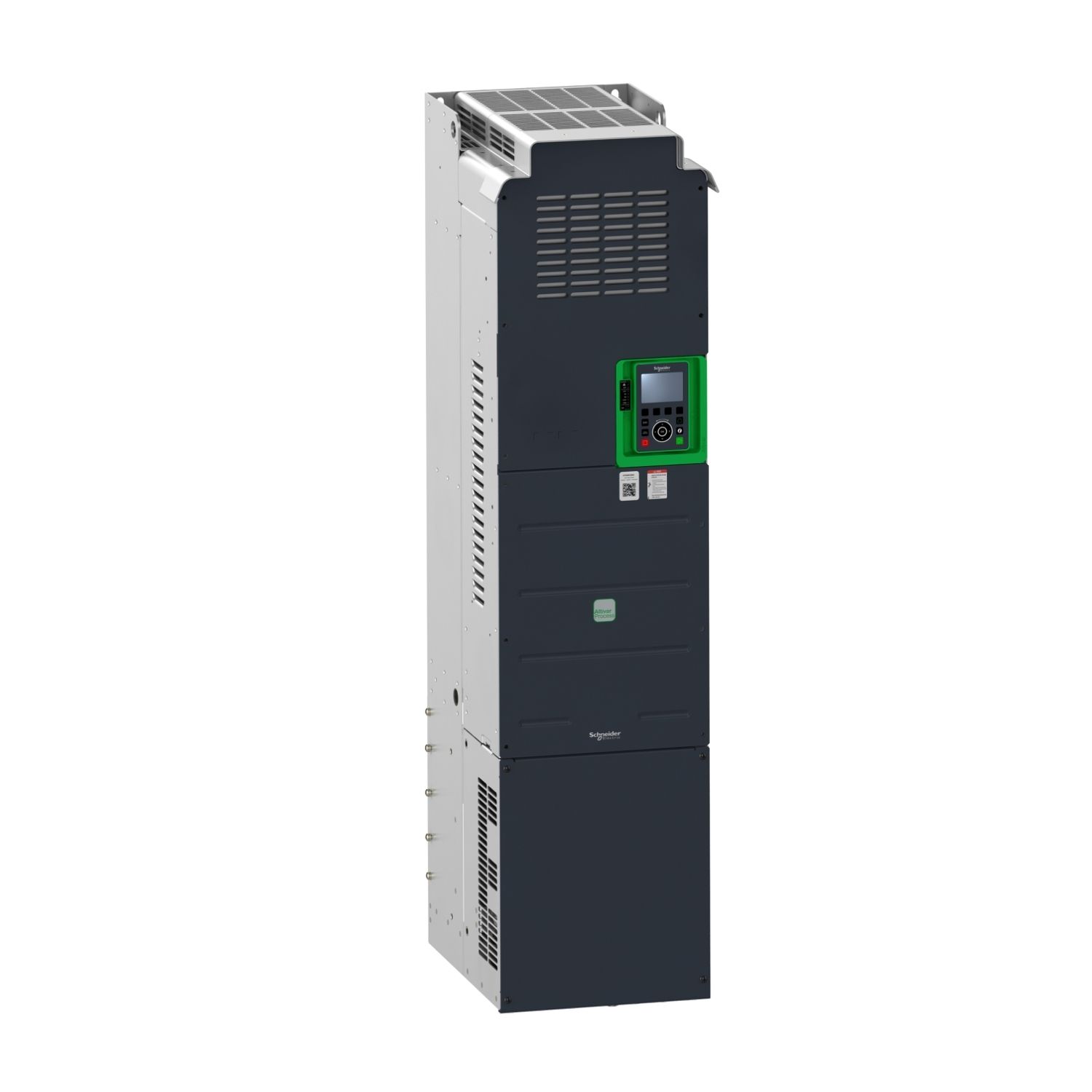

Picture of variable speed drive, Altivar Process ATV900, ATV930, 160kW, 380 to 480V, with braking unit, IP20
SKU:

ATV930C16N4

variable speed drive, Altivar Process ATV900, ATV930, 160kW, 380 to 480V, with braking unit, IP20

Old price: $38,522.00 INC GST
$29,469.33 INC GST
Available for Shipping : 04-May-2026
Product Selector
variable speed drive, Altivar Process ATV900, ATV930, 160kW, 380 to 480V, with braking unit, IP20
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 04-May-2026
Environmental Disclosure
User guide
Catalog
Circularity Profile
Declaration of conformity
Product Page Link
Product Data Sheet
This Altivar Process ATV900 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It is suitable for motors with power rating up to 160kW/250HP for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 132kW/200HP for applications requiring significant overload (up to 150%). It works at a rated supply voltage from 380Vac to 480Vac. This variable speed / frequency drive (VSD / VFD) is specifically designed for industrial processes. In the following market segments: oil and gas, mining, minerals and metals, food and beverage water and wastewater. It offers high motor performance on any motor and total control of any kind of coupling in master/slave applications. Network services help ensure operation continuity even in case of connection breakdown. Web server and data logging help reduce downtime through fast troubleshooting and preventive maintenance. Its advanced connectivity, including EtherNet/IP and Modbus TCP, allows deep integration into automation architectures.

Products specifications

Attribute name Attribute value
Main
Synchronous motor control profile synchronous reluctance motor, permanent magnet motor
Device application industrial application
Continuous output current 250 A at 4 kHz for heavy duty, 302 A at 4 kHz for normal duty
[Us] rated supply voltage 380...480 V - 15...10 %, 380...480 V
Degree of protection UL type 1
Number of output phases 3
Design of frequency changer U converter
Product specific application process for industrial
Nominal output current 302.0 A
Communication port protocol Modbus, Ethernet IP/Modbus TCP
Switching frequency 2.5...8 kHz with derating factor, 1...8 kHz adjustable
IP degree of protection IP21
Apparent power 161.4 kVA at 380...480 V (heavy duty), 201.3 kVA at 380...480 V (normal duty)
Variant with braking chopper, standard version
Asynchronous motor control profile optimized torque mode, variable torque standard, constant torque standard
Network number of phases single phase, 3 phases
Line current 213.0 A at 480 V (heavy duty), 262.0 A at 480 V (normal duty), 237.0 A at 380 V (heavy duty), 284.0 A at 380 V (normal duty)
Prospective line Isc 50 kA
EMC filter with EMC plate option, integrated
Nominal switching frequency 2.5 kHz
Mounting mode wall mount
Motor power kW 132.0 kW for heavy duty, 160.0 kW for normal duty
Range of product Altivar Process ATV900
Maximum output frequency 599 Hz
Option card slot B: resolver encoder interface module, slot B: analog encoder interface module, slot B: 5/12 V digital encoder interface module, slot A/slot B/slot C: output relay extension module, slot A/slot B/slot C: digital and analog I/O extension module, slot A: communication module for CANopen screw terminals, slot A: communication module for CANopen SUB-D 9, slot A: communication module for CANopen daisy chain RJ45, slot A: communication module for EtherCAT, slot A: communication module for DeviceNet, slot A: communication module for PROFINET, slot A: communication module for Profibus DP V1
Number of input phases 3
Maximum transient current 375 A during 60 s (heavy duty), 362 A during 60 s (normal duty)
Relative symmetric mains voltage tolerance 10 %
Product or component type variable speed drive
Product destination asynchronous motors, synchronous motors
Network frequency 50...60 Hz
Complementary
Braking to standstill by DC injection
Type of polarization no impedance for Modbus serial, no impedance
Supporting protocol for SUCONET False
Quantity per set 1
Brake chopper integrated True
Isolation between power and control terminals
Supporting protocol for DeviceNet False
Physical interface 2-wire RS 485, Ethernet
Operating element present True
Supporting protocol for PROFINET IO True
Supporting protocol for Data-Highway False
Connector type 1 RJ45, 2 RJ45
Number of HW interfaces serial RS232 0
Number of HW interfaces serial RS485 1
Supporting protocol for PROFIBUS True
Data format 8 bits, configurable odd, even or no parity, 8 bits, configurable odd, even or no parity for Modbus serial
With safety function Safe torque off (STO) True
With safety function Safe Speed Monitor (SSM) False
Supporting protocol for SafetyBUS P False
Supporting protocol for AS-Interface Safety at Work False
Encoder protocol TTL/HTL, SSI 5V, SSI 24V, RS 422, resolver, EnDat 2.2, 1 Vpp
Acceleration and deceleration ramps S, U or customized, linear adjustable separately from 0.01...9999 s
Height 1205 mm
Number of HW interfaces serial RS422 0
Optical interface present False
Supporting protocol for TCP/IP True
Supporting protocol for Foundation Fieldbus False
Supporting protocol for PROFIsafe False
With safety function Safe Stop 1 (SS1) True
With sft fct Safe Stop 2 (SS2) False
Housing material sheet steel
Supporting protocol for LON False
Supporting protocol for BACnet False
Discrete input number 10
Number of addresses 1-247, 1-247 for Modbus serial
With safety function Safe Operating Stop (SOS) False
Method of access slave Modbus TCP
With safety function Safely Limited Position (SLP) False
With safety function Safe Position (SP) False
Supporting protocol for DeviceNet Safety False
Supporting protocol for MODBUS True
With safety function Safe Direction (SDI) False
Net weight 104 kg
EMC limit value (complied) True
Relative symmetric network frequency tolerance 5 %
Supporting protocol for INTERBUS False
With safety function Safely Limited Speed (SLS) True
Number of HW interfaces other 0
Number of HW interfaces serial TTY 0
Protection type break on the control circuit: drive, overspeed: drive, line supply phase loss: drive, line supply undervoltage: drive, line supply overvoltage: drive, overvoltages on the DC bus: drive, motor phase break: drive, short-circuit protection: drive, overload of output voltage: drive, overcurrent between output phases and earth: drive, overheating: drive, safe torque off: drive, thermal protection: drive, motor phase break: motor, safe torque off: motor, thermal protection: motor
Power loss static current independent 67.0 W
With safety function Safe programmable logic False
Number of inputs, bidirectional, not potential-free 0
Number of inputs, potential-free 0
Supporting protocol for EtherNet/IP True
Supporting protocol for PROFINET CBA True
Base load current at low overload 302.0 A
Supporting protocol for ASI False
Number of HW interfaces USB 0
Supporting protocol for SERCOS False
Transmission frame RTU
Base load current at high overload 250.0 A
Maximum output voltage 480.0 V
With safety function Safe brake management (SBC/SBT) True
Electrical connection control: screw terminal 0.5...1.5 mm²/AWG 20...AWG 16, DC bus: screw terminal 0.5...1.5 mm²/AWG 20...AWG 16, line side: screw terminal 2 x 95...3 x 120 mm²/2 x AWG 3/0...2 x 300 kcmil
Supporting protocol for other bus systems False
Computer port True
Application in industrial area permitted True
Depth 393 mm
Supporting protocol for KNX False
Transmission rate 19200 bit/s, 9600 bit/s, 4.8 kbps, 10, 100 Mbits, 4.8, 9.6, 19.2, 38.4 kbit/s for Modbus serial, 10/100 Mbit/s for Ethernet IP/Modbus TCP
Width 320 mm
Number of HW interfaces parallel 0
Power loss per device current dependent 3812.0 W
Motor slip compensation not available in permanent magnet motor law, can be suppressed, automatic whatever the load, adjustable
Application in domestic and commercial area permitted False
Supporting protocol for CAN True
1 phase low current possible False
Relay output type configurable relay logic R3: sequence relay NO electrical durability 1000000 cycles, configurable relay logic R2: sequence relay NO electrical durability 1000000 cycles, configurable relay logic R1: fault relay NO/NC electrical durability 100000 cycles
Nominal output power 160.0 W
Supporting protocol for INTERBUS-Safety False
Local signalling 1 LED (red),  2 LEDs (dual colour),  5 LEDs (dual colour), local diagnostic: 3 LEDs (mono/dual colour)
4 quadrant operation possible True
Number of HW interfaces industrial Ethernet 2
Number of HW interfaces PROFINET 0
Environment
Maximum deflection under vibratory load (during storage) 1.5 mm at 2...13 Hz
Maximum THDI <48 % full load conforming to IEC 61000-3-12
Operating position vertical +/- 10 degree
Assembly style enclosed
Relative humidity 5-95 % without condensation conforming to IEC 60068-2-3
Ambient air temperature for storage -25-70 °C
Maximum acceleration under vibratory load (during storage) 10 m/s² at 13...200 Hz
Maximum acceleration under shock impact (during operation) 150 m/s² at 11 ms
Maximum acceleration under shock load (during transport) 150 m/s² at 11 ms
Maximum acceleration under vibratory load (during transport) 10 m/s² at 13...200 Hz
Environmental class (during storage) class 1S2 according to EN 60721-3-1, class 1C3 according to EN 60721-3-1
Overvoltage category III
Permitted relative humidity (during operation) class 3K5 according to EN 60721-3
Permitted relative humidity (during storage) class 1K5 according to EN 60721-3
Maximum deflection under vibratory load (during transport) 1.5 mm at 2...13 Hz
Maximum deflection under vibratory load (during operation) 1.5 mm at 2...13 Hz
Product certifications TÜV, CSA, UL
Ambient air transport temperature -25-70 °C
Maximum acceleration under shock load (during storage) 150 m/s² at 11 ms
Permitted relative humidity (during transport) class 2K5 according to EN 60721-3
Noise level 69.9 dB, 69.9 dB conforming to 86/188/EEC
Maximum acceleration under vibrational stress (during operation) 10 m/s² at 13...200 Hz
Marking CE
Environmental class (during transport) class 2S1 according to EN 60721-3-2, class 2C3 according to EN 60721-3-2
Ambient air temperature for operation 50-60 °C (with derating factor), -15-50 °C (without derating), -15-60 °C
Electromagnetic compatibility conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
Pollution degree 2
Environmental class (during operation) class 3S3 according to IEC 60721-3-3, class 3C3 according to IEC 60721-3-3
Regulation loop adjustable PID regulator
Vibration resistance 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6, 1.5 mm peak to peak (f= 2-13 Hz) conforming to IEC 60068-2-6
Environmental characteristic dust pollution resistance class 3S3 conforming to IEC 60721-3-3, chemical pollution resistance class 3C3 conforming to IEC 60721-3-3
Shock resistance 6 gn for 11 ms conforming to IEC 60068-2-27
Insulation resistance > 1 MOhm 500 V DC for 1 minute to earth
Standards IEC 13849-1, IEC 61508, IEC 60721-3, IEC 61000-3-12, IEC 61800-5-1, IEC 61800-3, UL 508C
Maximum input current 284.0 A
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 70.000 cm
Package 1 Width 49.000 cm
Package 1 Length 145.000 cm
Package 1 Weight 130.500 kg

Related products

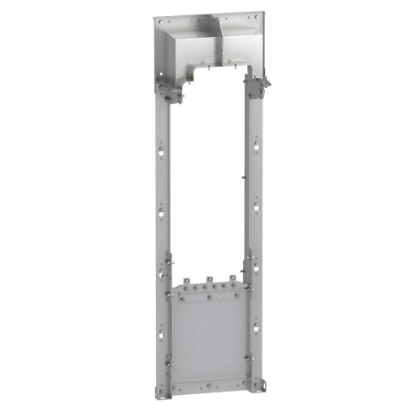

Picture of kit for flush-mounting, Altivar Process, in a dust and damp proof enclosure, size 6
