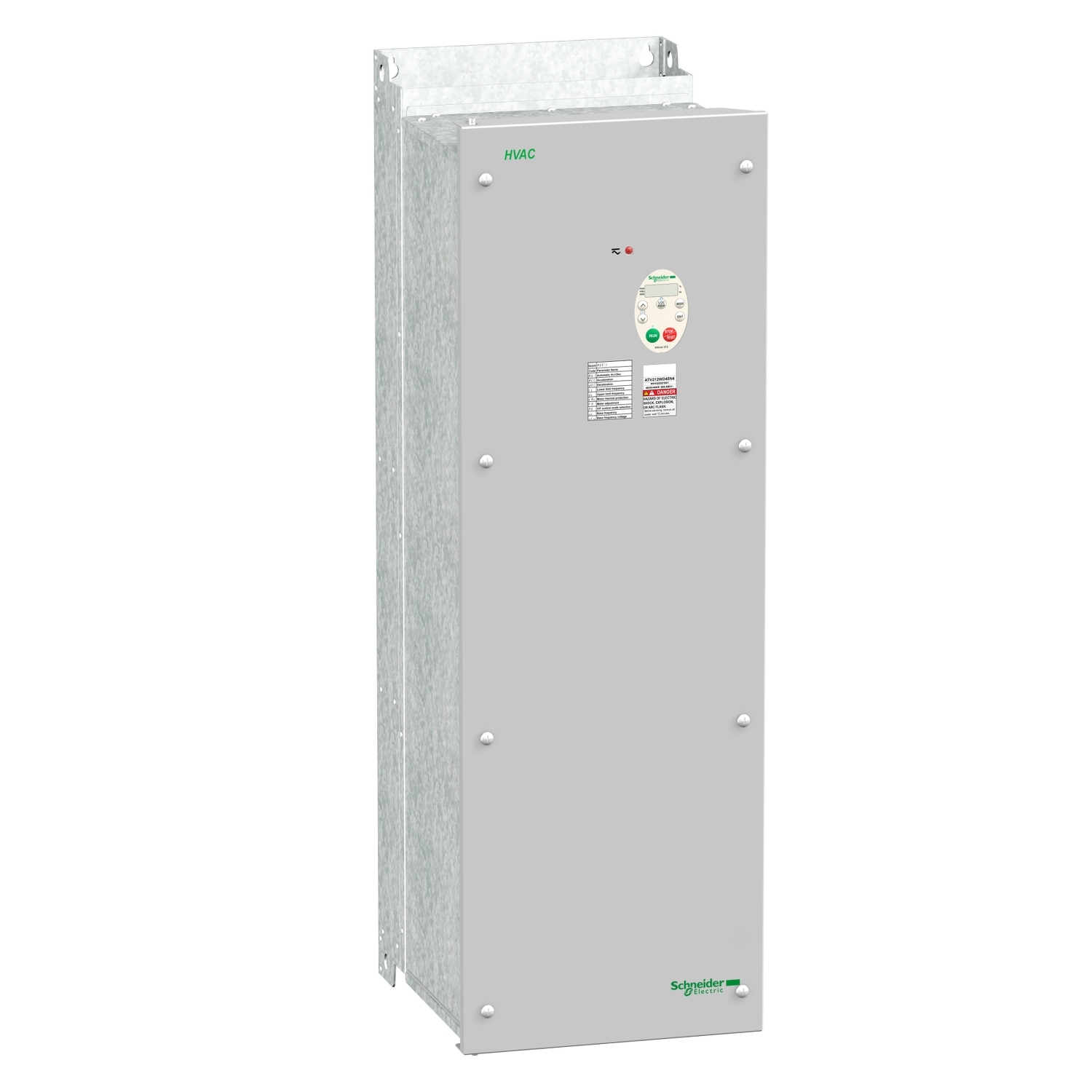

Picture of variable speed drive, Altivar 212, 45kW, 60hp, 480V, 3 phases, with EMC class C1, IP55
SKU:

ATV212WD45N4C

variable speed drive, Altivar 212, 45kW, 60hp, 480V, 3 phases, with EMC class C1, IP55

Old price: $11,768.90 INC GST
$9,003.21 INC GST
Available for Shipping : 05-Mar-2026
Product Selector
variable speed drive, Altivar 212, 45kW, 60hp, 480V, 3 phases, with EMC class C1, IP55
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 05-Mar-2026
Circularity Profile
Environmental Disclosure
Catalog
User guide
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name ATV212
EMC filter Class C1 EMC filter integrated
Supply voltage limits 323-528 V
[Us] rated supply voltage 380...480 V - 15...10 %
Line current 65.9 A at 480 V, 83.8 A at 380 V
Motor power kW 45 kW
Range of product Altivar 212
Supply frequency 50...60 Hz - 5...5 %
Motor power hp 60 hp
Product specific application pumps and fans in HVAC
Communication port protocol Modbus, METASYS N2, LonWorks, APOGEE FLN, BACnet
Network number of phases 3 phases
IP degree of protection IP55
Product or component type variable speed drive
Product destination asynchronous motors
Complementary
Speed accuracy +/- 10 % of nominal slip 0.2 Tn to Tn
Supply internal supply: 24 V DC (21-27 V), <200 A, protection type: overload and short-circuit protection, internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 A, protection type: overload and short-circuit protection
Protection type with PTC probes: motor, motor phase break: motor, thermal protection: motor, against input phase loss: drive, line supply undervoltage: drive, line supply overvoltage and undervoltage: drive, against exceeding limit speed: drive, break on the control circuit: drive, overvoltages on the DC bus: drive, overcurrent between output phases and earth: drive, input phase breaks: drive, short-circuit between motor phases: drive, thermal power stage: drive, overheating protection: drive
Braking to standstill by DC injection
Nominal switching frequency 8 kHz
Output voltage <= power supply voltage
Isolation electrical between power and control
Discrete input type RES programmable 24 V DC, with level 1 PLC, impedance: 4700 Ohm, R programmable 24 V DC, with level 1 PLC, impedance: 4700 Ohm, F programmable 24 V DC, with level 1 PLC, impedance: 4700 Ohm
Tightening torque 7 N.m, 62 lb.in (L1/R, L2/S, L3/T), 24 N.m, 212 lb.in (U/T1, V/T2, W/T3), 0.6 N.m (VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES)
Continuous output current 94 A at 460 V, 94 A at 380 V
Physical interface 2-wire RS 485
Minimum switching current 3 mA at 24 V DC for configurable relay logic
Analogue output number 1
Connector type 1 RJ45, 1 open style
Maximum transient current 103.4 A for 60 s
Accuracy +/- 1 % (FM) for a temperature variation 60 °C, +/- 0.6 % (VIB) for a temperature variation 60 °C, +/- 0.6 % (VIA) for a temperature variation 60 °C
Data format 8 bits, 1 stop, odd even or no configurable parity
Transient overtorque 120-120 % of nominal motor torque +/- 10 % for 60 s
Communication service read holding registers (03) 2 words maximum, read device identification (43), time out setting from 0.1 to 100 s, write multiple registers (16) 2 words maximum, write single register (06), monitoring inhibitable
Torque accuracy +/- 15 %
Transmission frame RTU
Speed drive output frequency 0.5-200 Hz
Acceleration and deceleration ramps linear adjustable separately from 0.01 to 3200 s, automatic based on the load
Height 880 mm
Electrical connection U/T1, V/T2, W/T3: terminal 50-50 mm² / AWG 1/0, L1/R, L2/S, L3/T: terminal 50-50 mm² / AWG 1/0, VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES: terminal 2.5-2.5 mm² / AWG 14
Option card communication card for LonWorks
Sampling duration 22 ms +/- 0.5 ms VIB analog, 3.5 ms +/- 0.5 ms VIA analog, 2 ms +/- 0.5 ms RES discrete, 2 ms +/- 0.5 ms R discrete, 2 ms +/- 0.5 ms F discrete
Analogue input type VIA switch-configurable current: 0...20 mA, impedance: 250 Ohm, resolution 10 bits, VIB configurable PTC probe: 0...6 probes, impedance: 1500 Ohm, VIB configurable voltage: 0...10 V DC 24 V max, impedance: 30000 Ohm, resolution 10 bits, VIA switch-configurable voltage: 0...10 V DC 24 V max, impedance: 30000 Ohm, resolution 10 bits
Depth 343 mm
Transmission rate 9600 bps or 19200 bps
Width 284 mm
Specific application HVAC
Linearity error FM: +/- 0.2 % for output, VIB: +/- 0.15 % of maximum value for input, VIA: +/- 0.15 % of maximum value for input
Local signalling 1 LED (red) for DC bus energized
Speed range 1/10/2024 12:00:00 AM
Number of addresses 1-247
Discrete output number 2
Motor slip compensation adjustable, not available in voltage/frequency ratio motor control, automatic whatever the load
Analogue input number 2
Switching frequency 8...16 kHz with derating factor, 6...16 kHz adjustable
Frequency resolution analog input: 0.024/50 Hz, display unit: 0.1 Hz
Type of polarization no impedance
Apparent power 61.9 kVA at 380 V
Dielectric strength 5092 V DC between control and power terminals, 3535 V DC between earth and power terminals
Response time RY, RC 7 ms, tolerance +/- 0.5 ms for discrete output(s), FLB, FLC 7 ms, tolerance +/- 0.5 ms for discrete output(s), FLA, FLC 7 ms, tolerance +/- 0.5 ms for discrete output(s), FM 2 ms, tolerance +/- 0.5 ms for analog output(s)
Insulation resistance >= 1 mOhm 500 V DC for 1 minute
Maximum switching current 2 A at 30 V DC on inductive load - cos phi = 0.4 - L/R = 7 ms (FL, R), 2 A at 250 V AC on inductive load - cos phi = 0.4 - L/R = 7 ms (FL, R), 5 A at 30 V DC on resistive load - cos phi = 1 - L/R = 0 ms (FL, R), 5 A at 250 V AC on resistive load - cos phi = 1 - L/R = 0 ms (FL, R)
Asynchronous motor control profile flux vector control without sensor, standard, voltage/frequency ratio - Energy Saving, quadratic U/f, voltage/frequency ratio, 5 points, voltage/frequency ratio, 2 points, voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo)
Discrete output type configurable relay logic: (RY, RC) NO - 100000 cycles, configurable relay logic: (FLB, FLC) NC - 100000 cycles, configurable relay logic: (FLA, FLC) NO - 100000 cycles
Analogue output type FM switch-configurable current 0...20 mA, impedance: 970 Ohm, resolution 10 bits, FM switch-configurable voltage 0...10 V DC, impedance: 7620 Ohm, resolution 10 bits
Type of cable with UL Type 1 kit: 3 wire(s)UL 508 cable at 40 °C, copper 75 °C / PVC, without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 70 °C / PVC, without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 90 °C / XLPE/EPR
Discrete input logic negative logic (sink) (F, R, RES), >= 16 V (state 0), <= 10 V (state 1), positive logic (source) (F, R, RES), <= 5 V (state 0), >= 11 V (state 1)
Network frequency 47.5...63 Hz
Prospective line Isc 22 kA
Environment
Operating position vertical +/- 10 degree
IP degree of protection IP55 conforming to IEC 60529, IP55 conforming to IEC 61800-5-1
Assembly style with heat sink
Relative humidity 5-95 % without dripping water conforming to IEC 60068-2-3, 5-95 % without condensation conforming to IEC 60068-2-3
Ambient air temperature for storage -25-70 °C
Pollution degree 3 conforming to IEC 61800-5-1
Marking CE
Ambient air temperature for operation 40-50 °C (with derating factor), -10-40 °C (without derating)
Electromagnetic compatibility voltage dips and interruptions immunity test conforming to IEC 61000-4-11, conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
Operating altitude <= 1000 m without derating, 1000...3000 m limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m
Regulation loop adjustable PI regulator
Noise level 64 dB conforming to 86/188/EEC
Vibration resistance 1 gn (f= 13-200 Hz) conforming to EN/IEC 60068-2-8, 1.5 mm (f= 3-13 Hz) conforming to IEC 60068-2-6
Environmental characteristic classes 3S2 conforming to IEC 60721-3-3, classes 3C1 conforming to IEC 60721-3-3
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Standards IEC 61800-5-1, IEC 61800-3 category C1, IEC 61800-3 environments 2 category C3, IEC 61800-3 environments 2 category C2, IEC 61800-3 environments 1 category C3, EN 61800-3 category C1, IEC 61800-3 environments 2 category C1, IEC 61800-3 environments 1 category C2, EN 55011 group 1 class B, IEC 61800-3 environments 1 category C1, IEC 61800-3
Product certifications CSA, NOM 117, UL, C-Tick
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 45.0 cm
Package 1 Width 44.0 cm
Package 1 Length 116.0 cm
Package 1 Weight 77.0 kg
