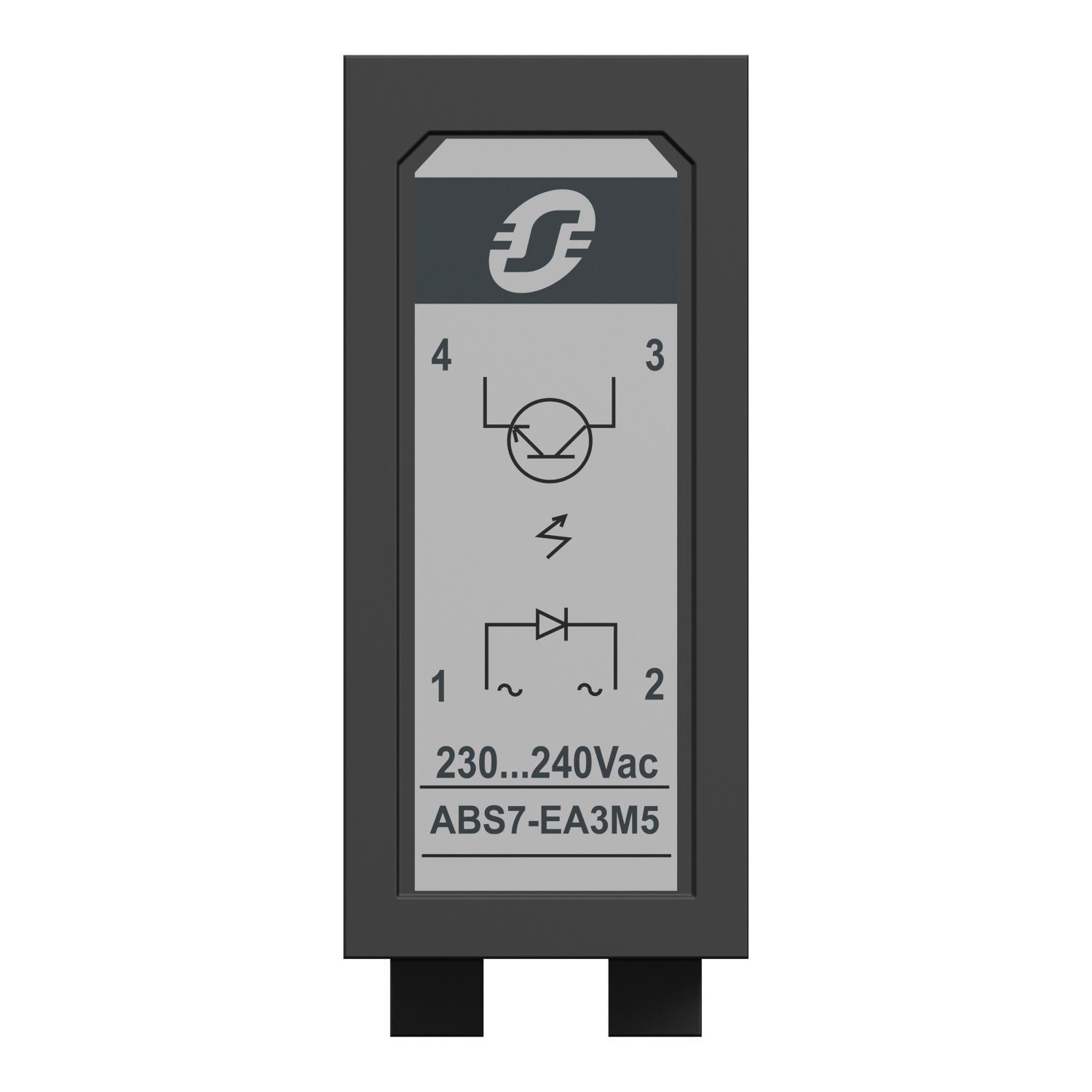

Picture of plug-in solid state relay- 12.5 mm - input - 230..240 V AC 50HZ

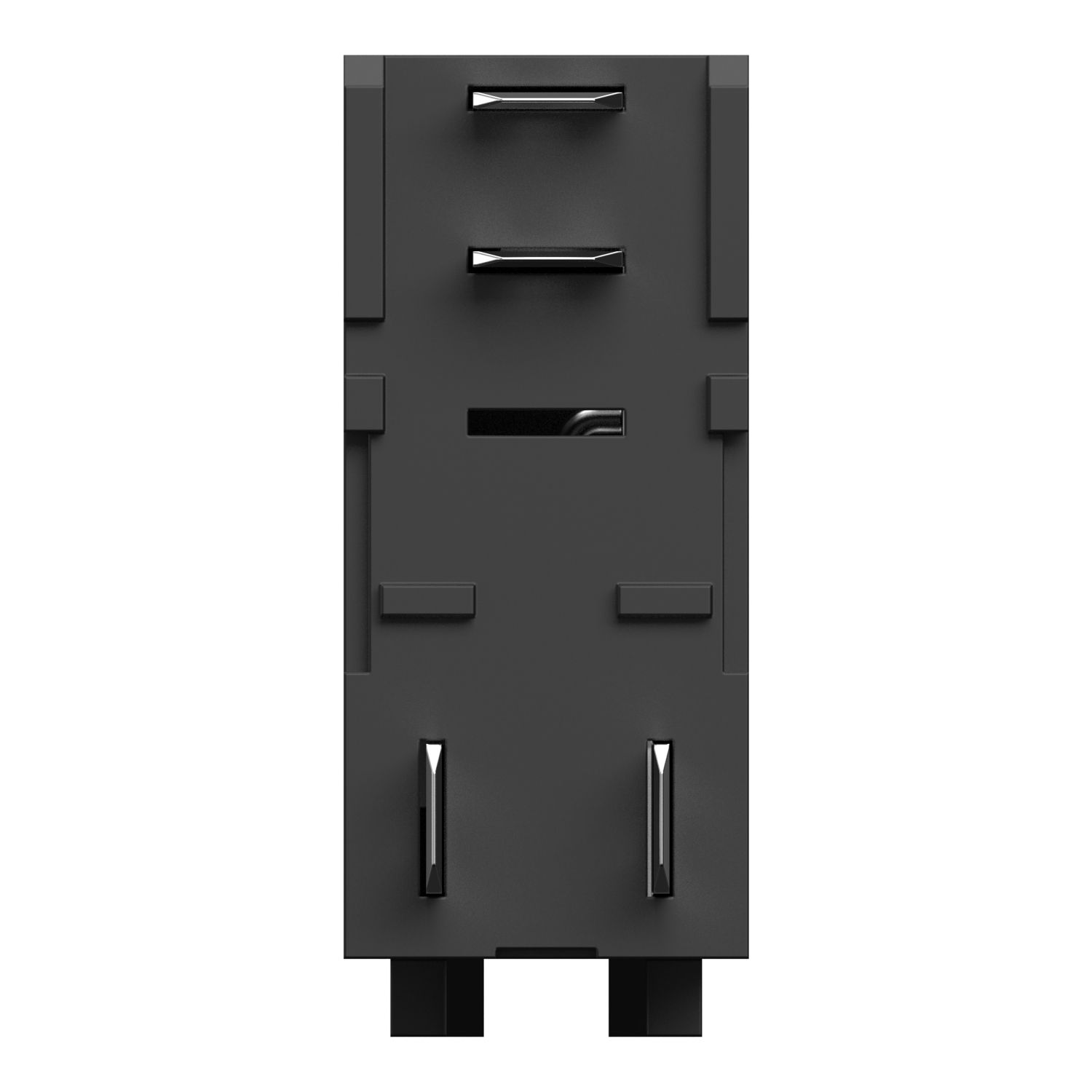

Picture of plug-in solid state relay- 12.5 mm - input - 230..240 V AC 50HZ

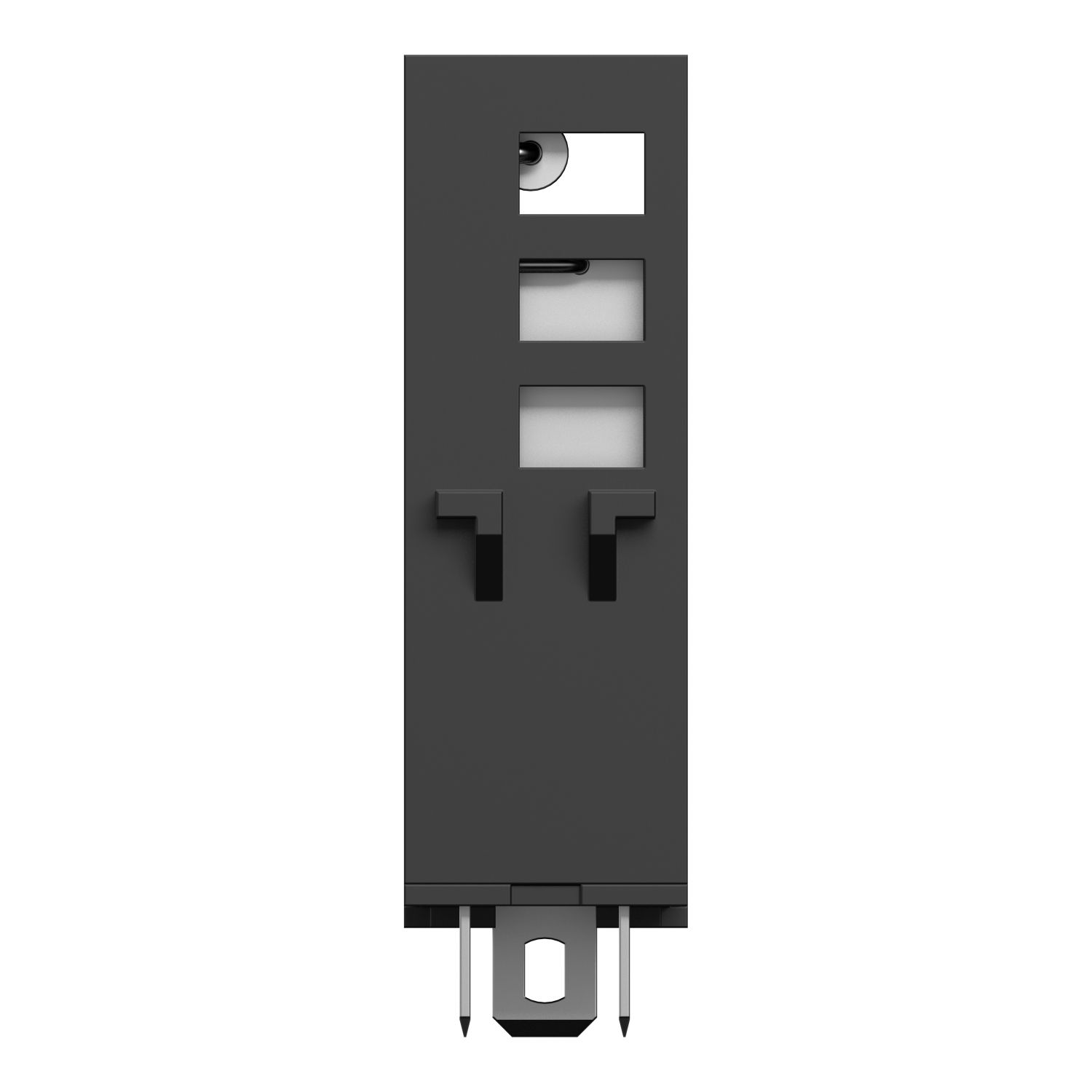

Picture of plug-in solid state relay- 12.5 mm - input - 230..240 V AC 50HZ

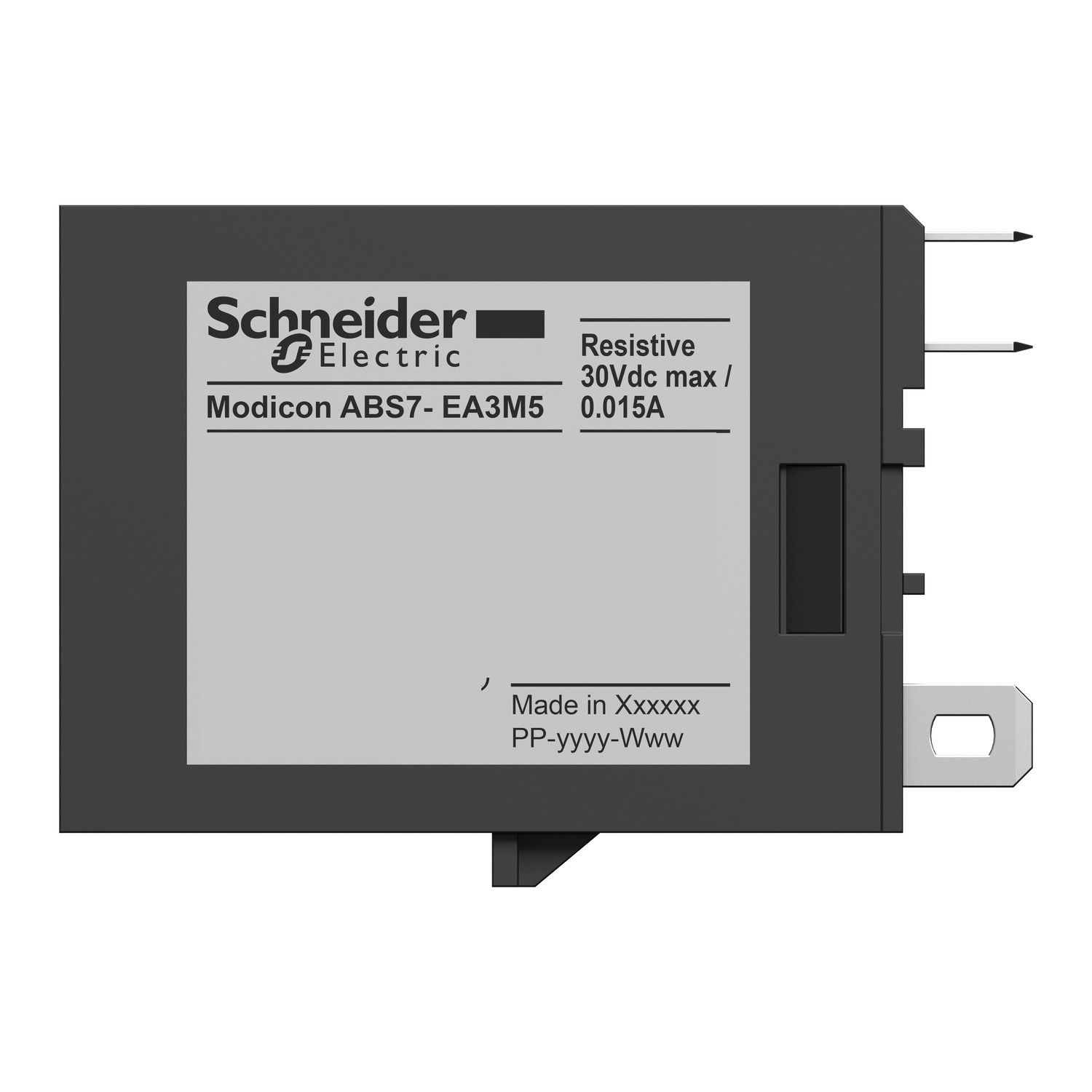

Picture of plug-in solid state relay- 12.5 mm - input - 230..240 V AC 50HZ

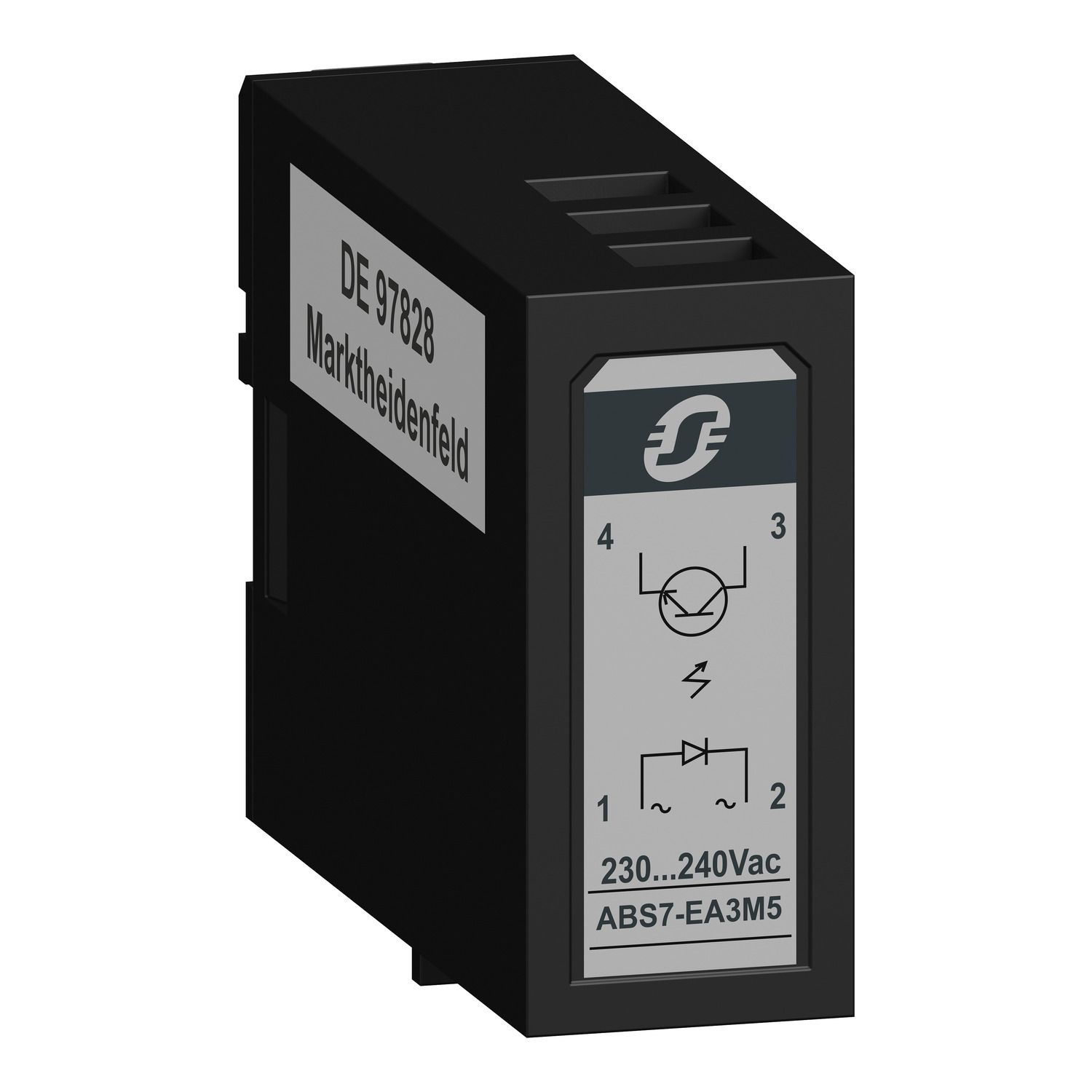

Picture of plug-in solid state relay- 12.5 mm - input - 230..240 V AC 50HZ

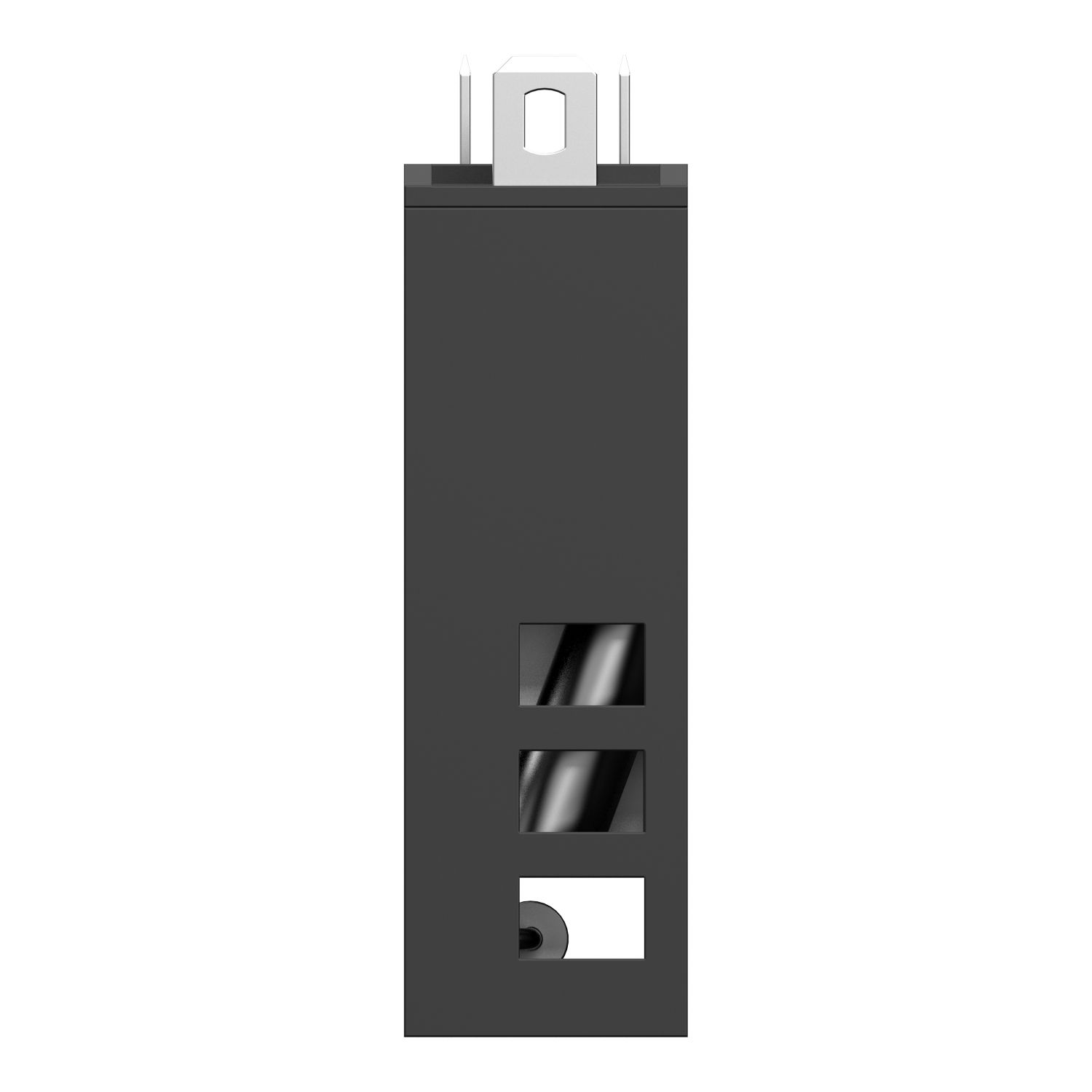

Picture of plug-in solid state relay- 12.5 mm - input - 230..240 V AC 50HZ

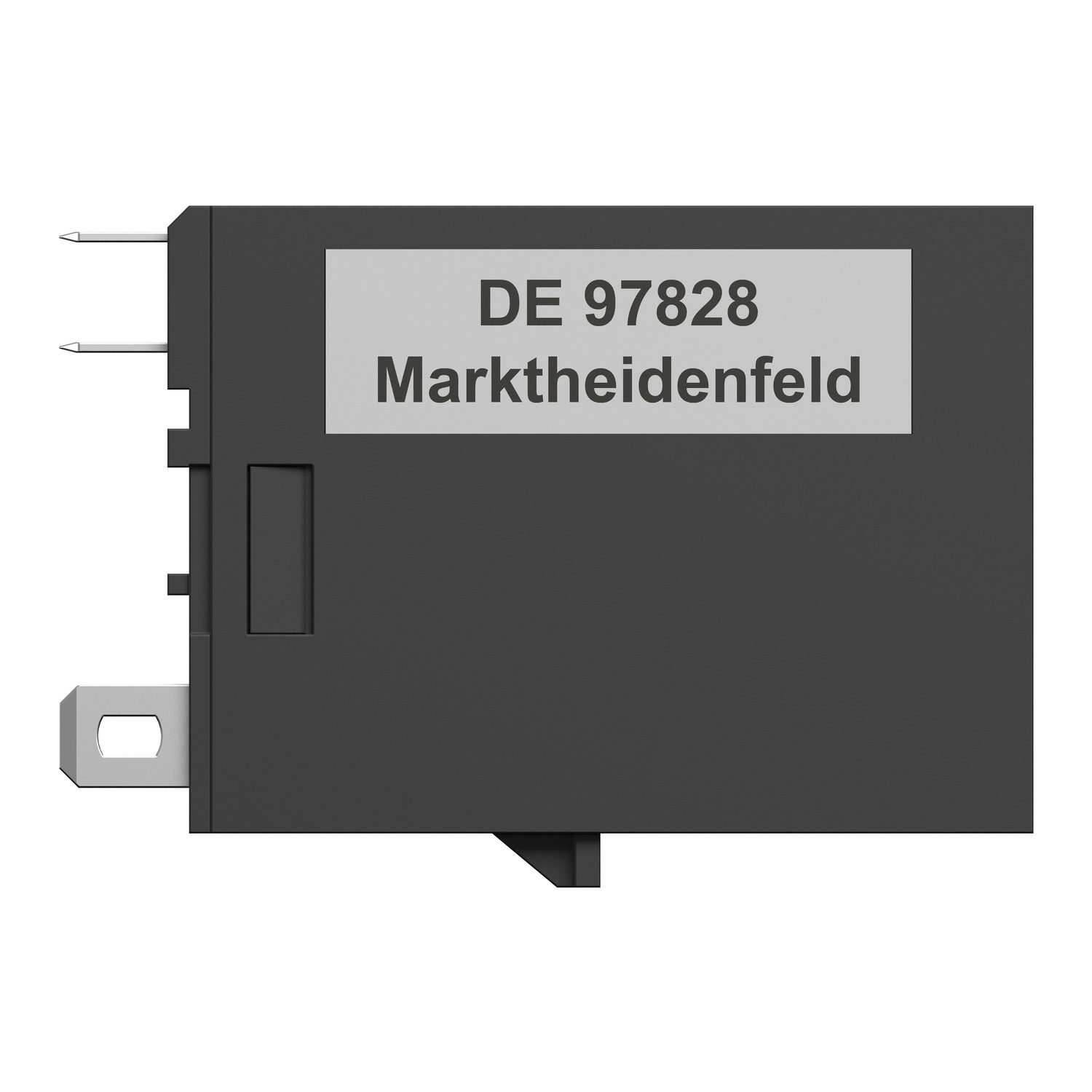

Picture of plug-in solid state relay- 12.5 mm - input - 230..240 V AC 50HZ
Picture of plug-in solid state relay- 12.5 mm - input - 230..240 V AC 50HZ
SKU:

ABS7EA3M5

plug-in solid state relay- 12.5 mm - input - 230..240 V AC 50HZ

$122.66 INC GST
Available for Shipping : 12-Jan-2026
plug-in solid state relay- 12.5 mm - input - 230..240 V AC 50HZ
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Environmental Disclosure
Declaration of conformity
Product Page Link
Product Data Sheet
This product is part of the Advantys Telefast ABE7, an offer of connection sub-bases for Telefast pre-wired system. This plug in solid state relay offers input relay with ≤20ms from state 0 to 1 and ≤20ms from state 1 to 0 response time. It is a sub-base with discrete input voltage ranges from 230V AC to 240V AC and discrete output voltage ranges from 5V DC to 24V DC. The width of this product is 12mm. It weighs 0.014kg. It is suitable for all types of industrial applications. It is compatible with Modicon ABE7P16F310, ABE7P16F310E and ABE7P16F312 sub-base. Modicon ABE7 means greater simplicity to rationalize wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

Products specifications

Attribute name Attribute value
Main
Quantity per set set of 4
Relay type input relay
Product or component type plug-in solid state relay
Range of product Advantys Telefast ABE7
Complementary
Product compatibility ABE7P16F310, ABE7P16F312, ABE7P16F310E
Discrete output voltage 5...24 V DC
Width pitch dimension 12 mm
Net weight 0.014 kg
Response time <= 20 ms from state 1 to 0, <= 20 ms from state 0 to 1
Discrete input voltage 230...240 V AC 50/60 Hz
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.0 cm
Package 1 Width 5.2 cm
Package 1 Length 6.5 cm
Package 1 Weight 13.0 g
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 5.0 cm
Package 2 Width 5.2 cm
Package 2 Length 6.5 cm
Package 2 Weight 52.0 g
Unit Type of Package 3 3
Number of Units in Package 3 64
Package 3 Height 15.0 cm
Package 3 Width 15.0 cm
Package 3 Length 40.0 cm
Package 3 Weight 1.045 kg
