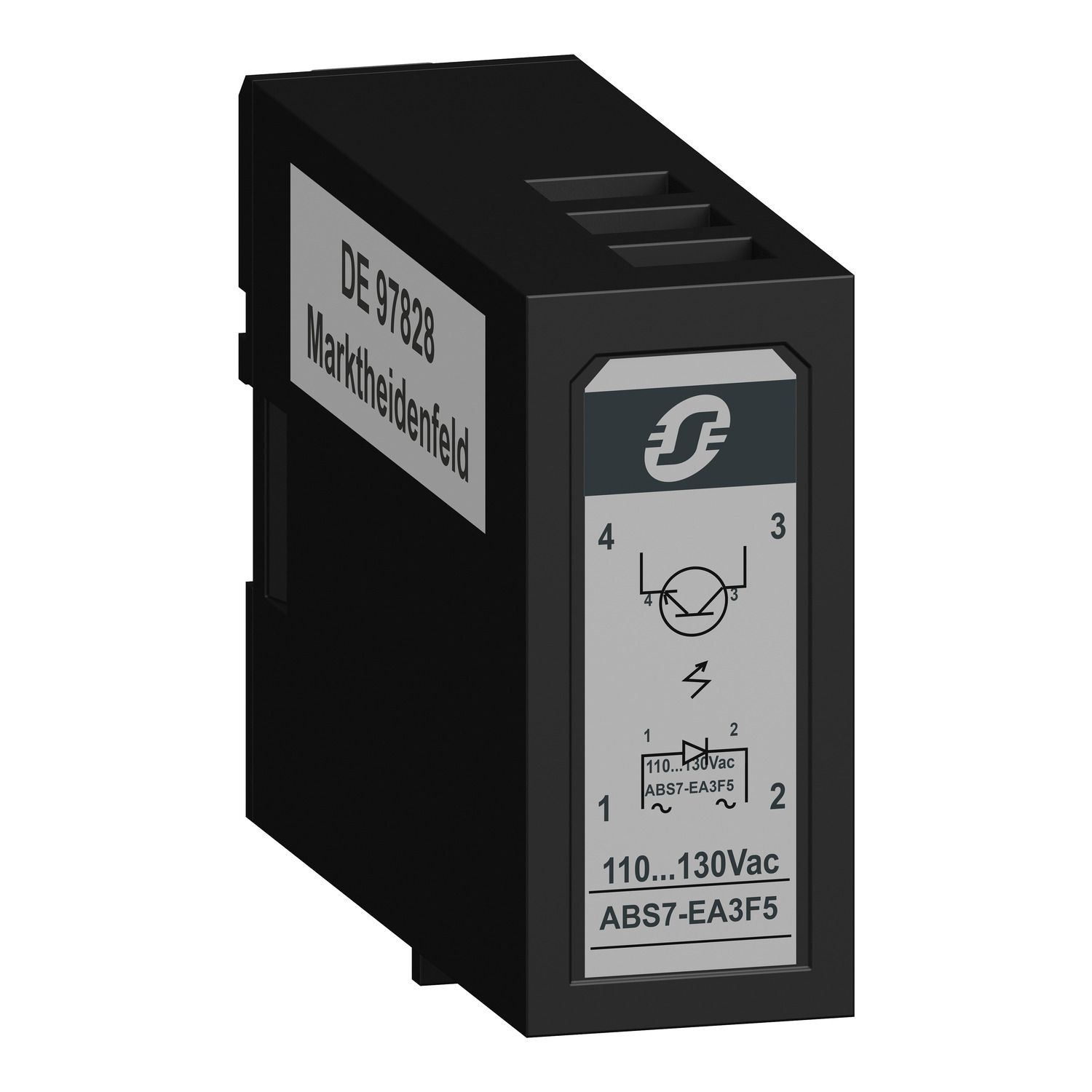

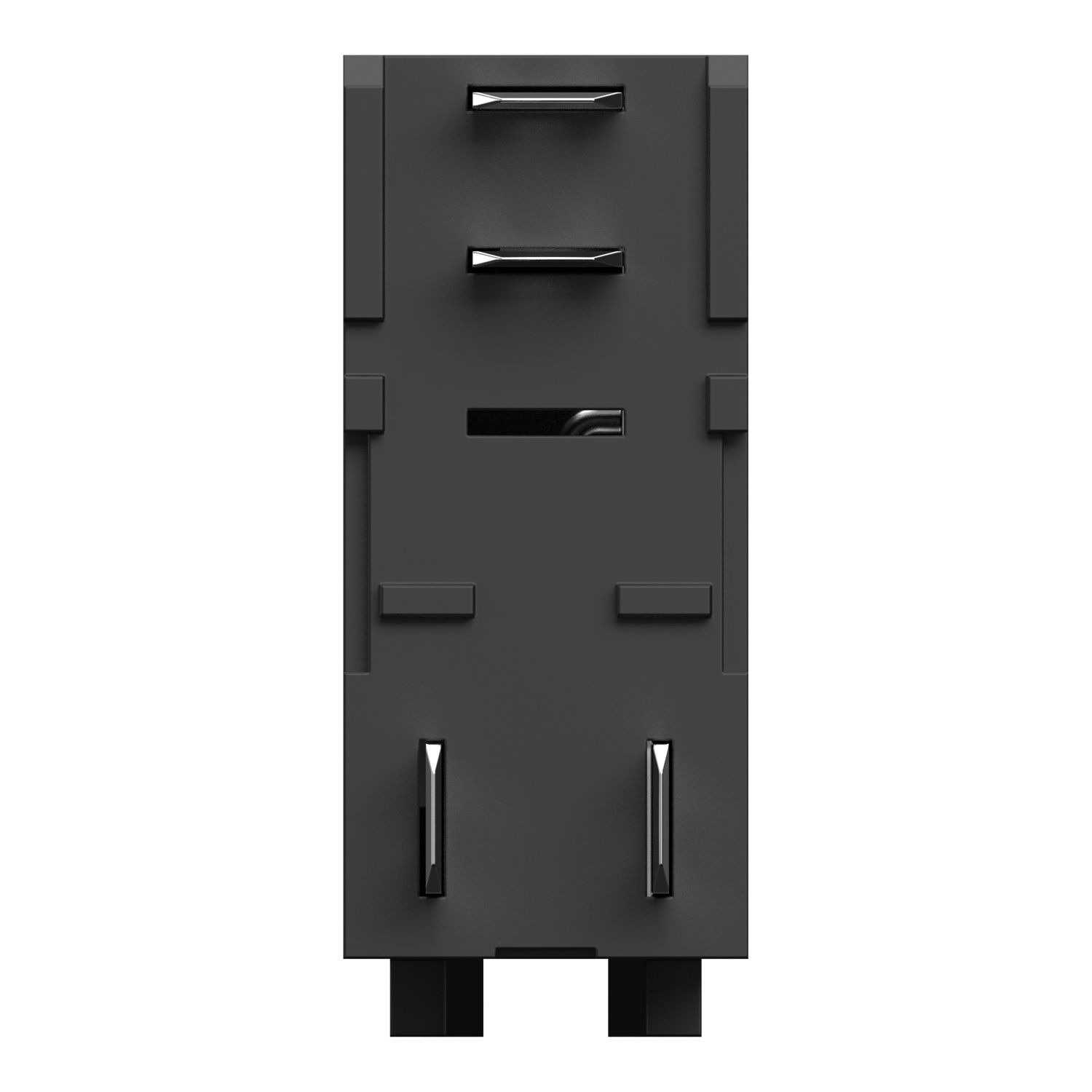

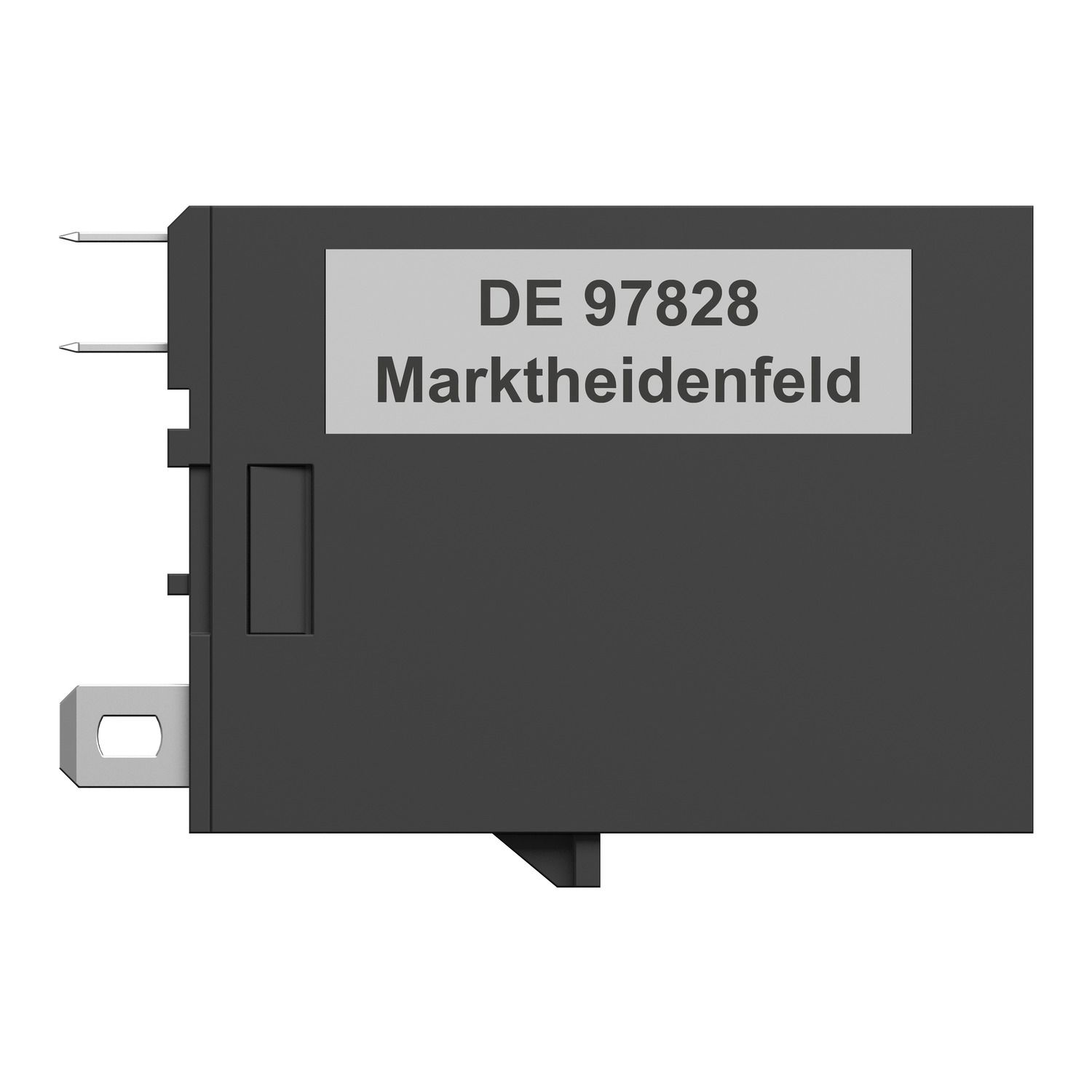

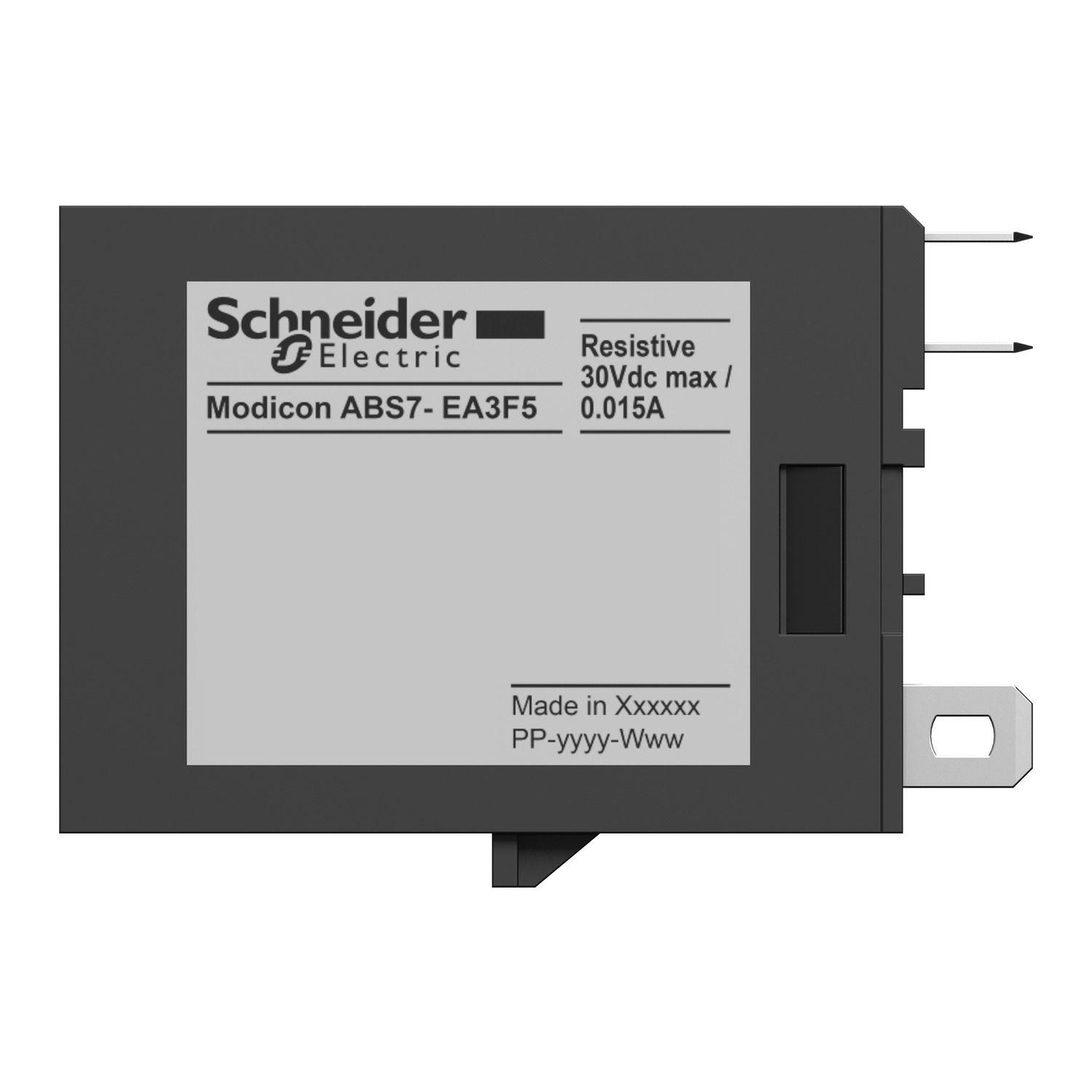

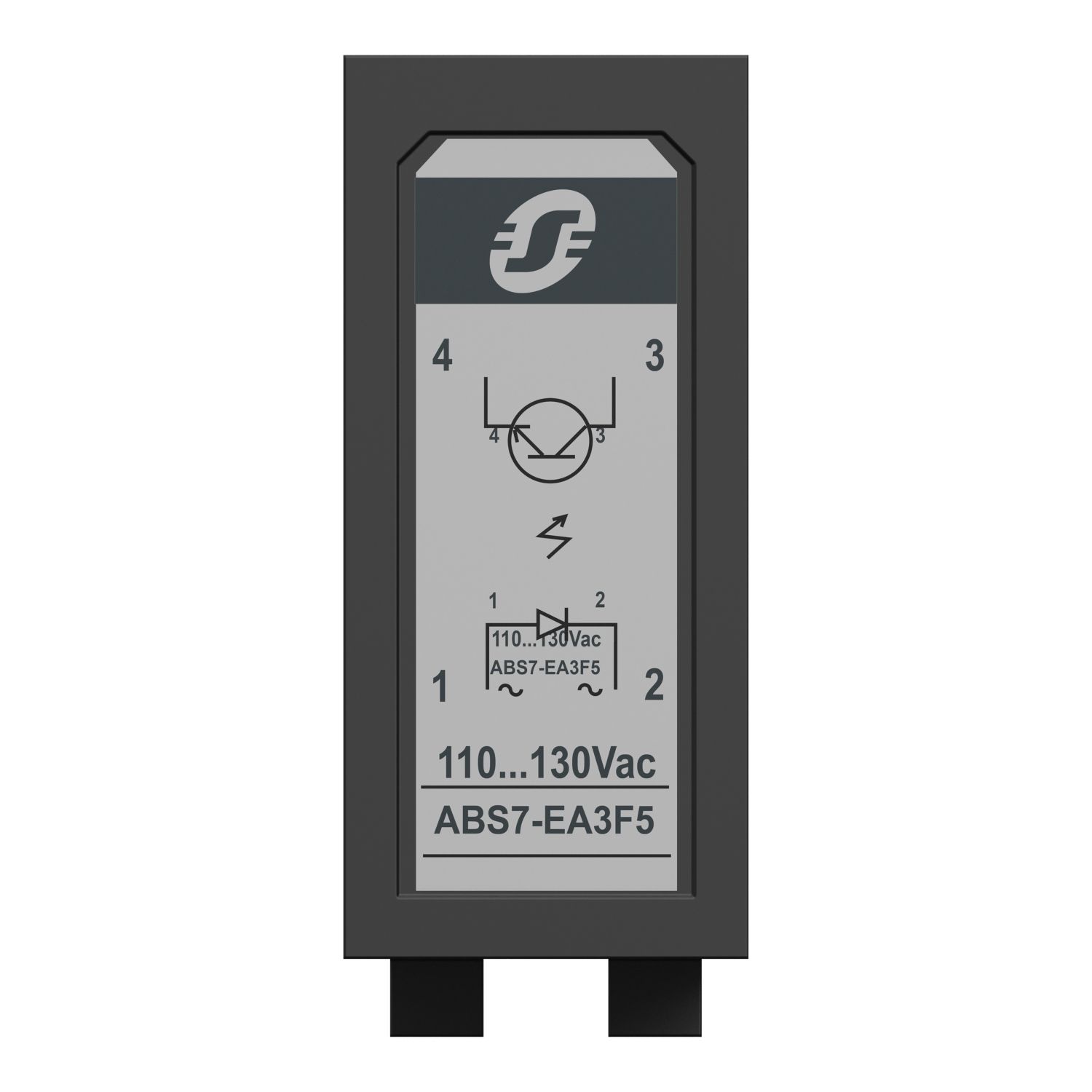

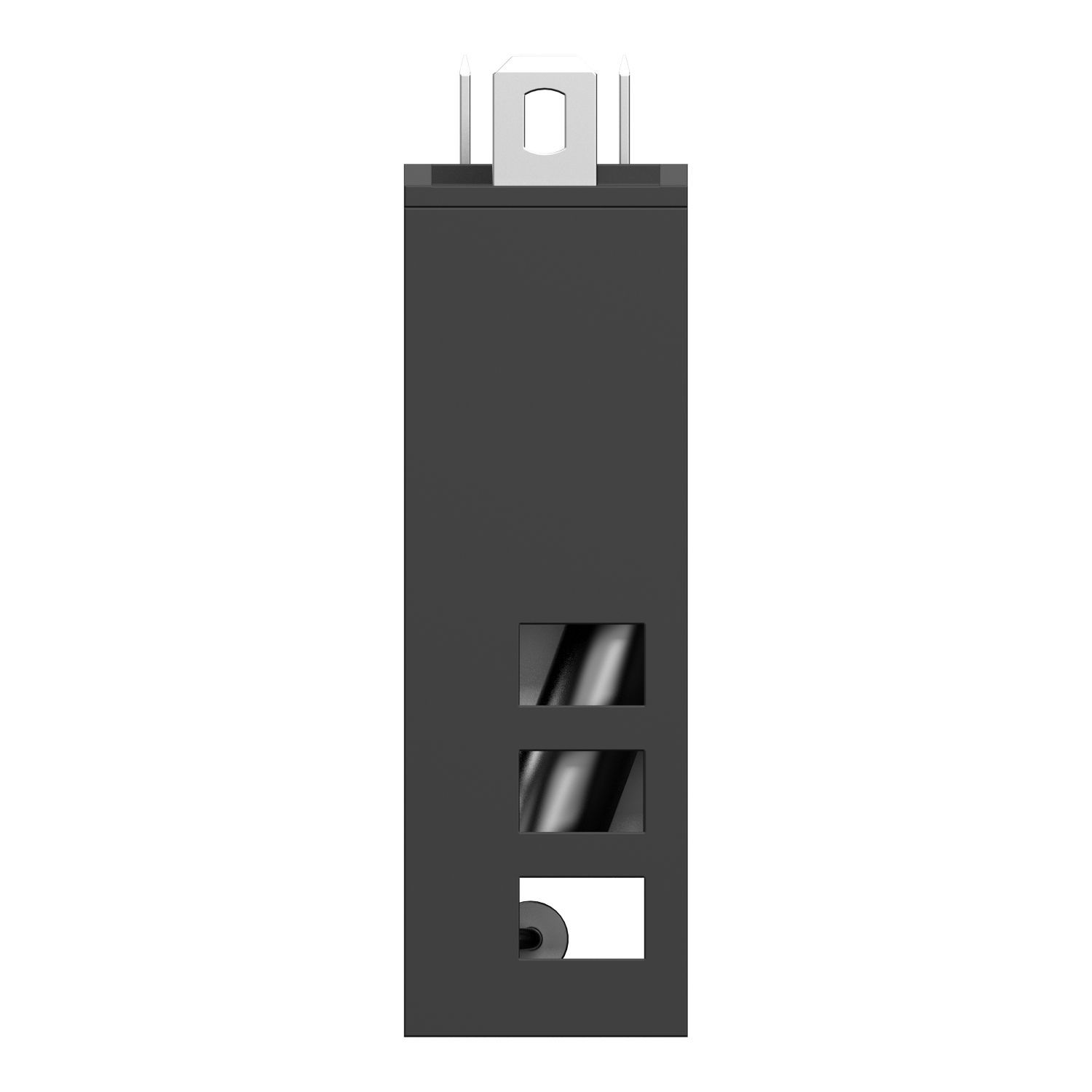

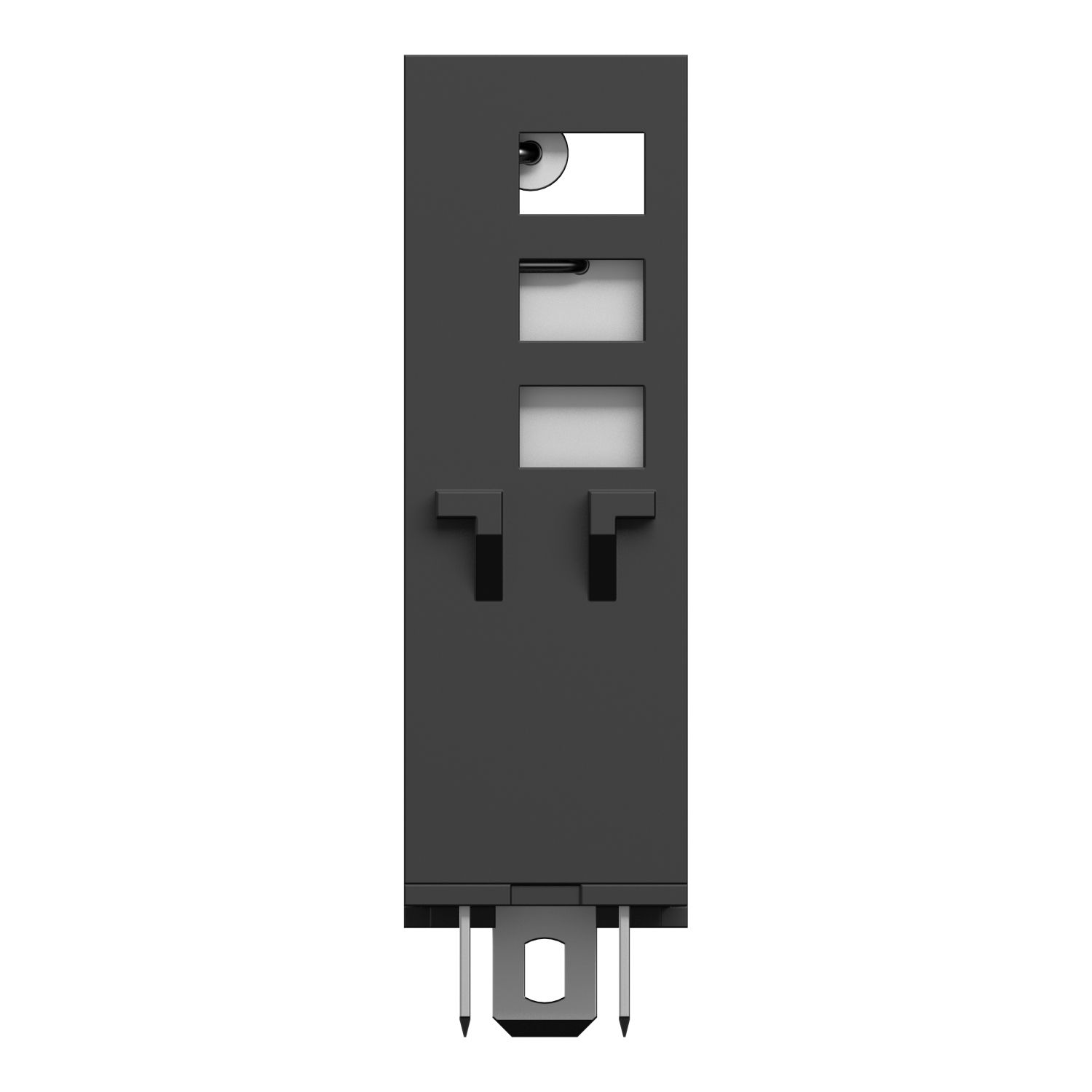

Picture of plug-in solid state relay- 12.5 mm - input - 110..130 V AC 60HZ
Picture of plug-in solid state relay- 12.5 mm - input - 110..130 V AC 60HZ
Picture of plug-in solid state relay- 12.5 mm - input - 110..130 V AC 60HZ
Picture of plug-in solid state relay- 12.5 mm - input - 110..130 V AC 60HZ
Picture of plug-in solid state relay- 12.5 mm - input - 110..130 V AC 60HZ
Picture of plug-in solid state relay- 12.5 mm - input - 110..130 V AC 60HZ
Picture of plug-in solid state relay- 12.5 mm - input - 110..130 V AC 60HZ
Picture of plug-in solid state relay- 12.5 mm - input - 110..130 V AC 60HZ
SKU:

ABS7EA3F5

plug-in solid state relay- 12.5 mm - input - 110..130 V AC 60HZ

$151.54 INC GST
Available for Shipping : 12-Jan-2026
plug-in solid state relay- 12.5 mm - input - 110..130 V AC 60HZ
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Environmental Disclosure
Declaration of conformity
Product Page Link
Product Data Sheet
This product is part of the Advantys Telefast ABE7 range, an offer of plug-in solid state relays. This plug-in solid state relay offers ≤20ms from state 0 to 1 and ≤20ms from state 1 to 0 response time. It is a sub base with discrete input voltage ranges from 115V to 127V AC and discrete output voltage ranges from 5V to 24V DC. The width of this product is 12.5mm. It weighs 0.014kg. It is suitable for all types of industrial applications. It is compatible with ABE7P16F310, ABE7P16F310E and ABE7P16F312. It is sold in a set of 4. The Modicon ABE7 means greater simplicity to rationalize wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

Products specifications

Attribute name Attribute value
Main
Quantity per set set of 4
Relay type input relay
Product or component type plug-in solid state relay
Range of product Advantys Telefast ABE7
Complementary
Product compatibility ABE7P16F312, ABE7P16F310E, ABE7P16F310
Width 12.5 mm
Discrete output voltage 5...24 V DC
Width pitch dimension 12 mm
Net weight 0.014 kg
Response time <= 20 ms from state 1 to 0, <= 20 ms from state 0 to 1
Discrete input voltage 115...127 V AC 50/60 Hz
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.400 cm
Package 1 Width 3.200 cm
Package 1 Length 4.500 cm
Package 1 Weight 11.000 g
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 5.000 cm
Package 2 Width 5.100 cm
Package 2 Length 6.500 cm
Package 2 Weight 53.000 g
Unit Type of Package 3 3
Number of Units in Package 3 128
Package 3 Height 15.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 2.040 kg

Related products

plug-in solid state relay- 12.5 mm - input - 230..240 V AC 50HZ

ABS7EA3M5
$122.66 INC GST
View Detail

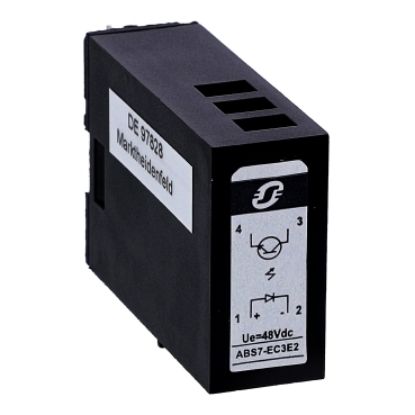

Picture of plug-in solid state relay- 12.5 mm - input - 48 V DC type 2
