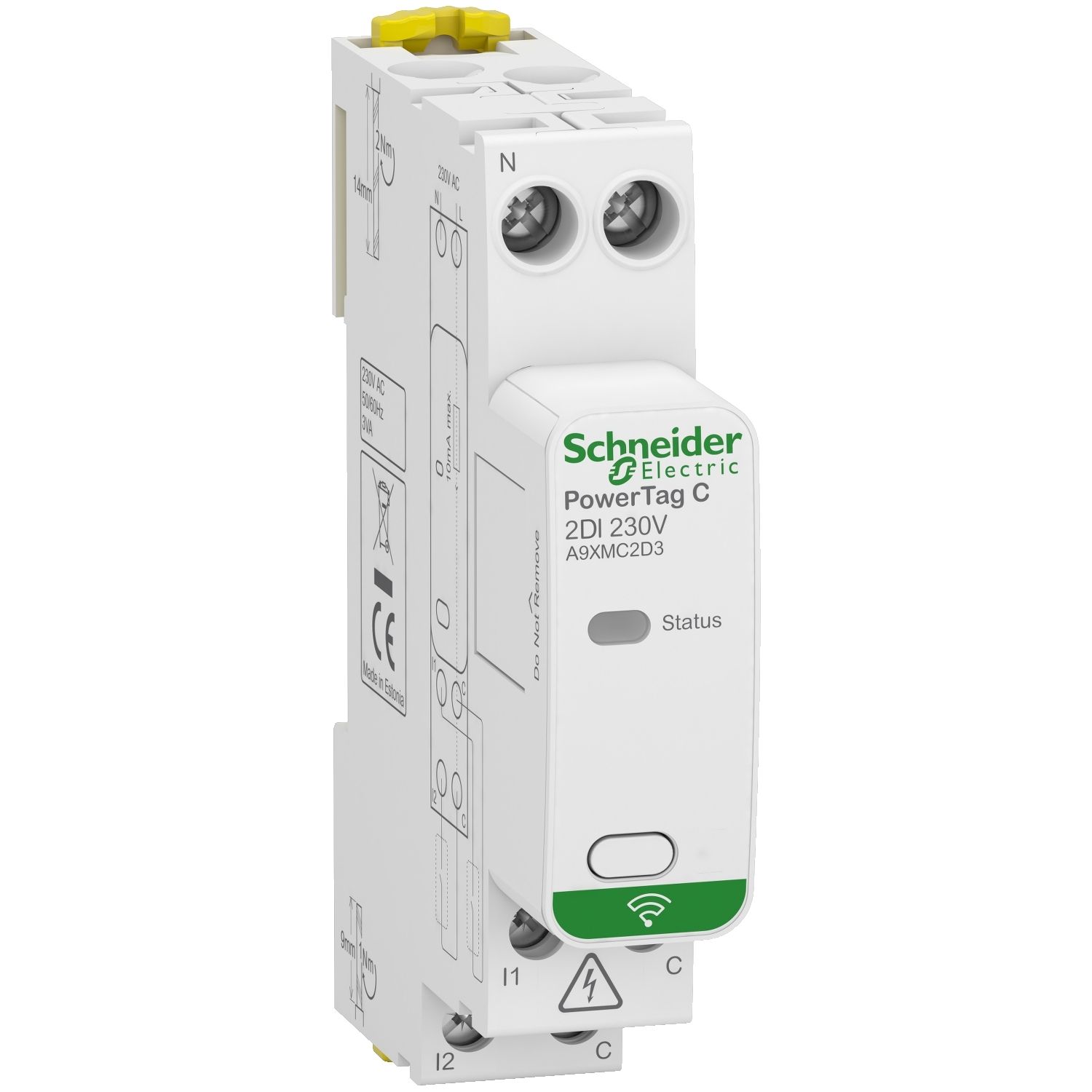

Picture of PowerTag C 2DI 230V digital input module
SKU:

A9XMC2D3

PowerTag C 2DI 230V digital input module

Old price: $241.89 INC GST
$205.61 INC GST
Available for Shipping : 28-Jan-2026
PowerTag C 2DI 230V digital input module
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 28-Jan-2026
Circularity Profile
Instruction sheet
Environmental Disclosure
Catalog
Declaration of conformity
User guide
Product Page Link
Product Data Sheet
This PowerTag Control 2DI 230V is a wireless-communication input module. It is designed specifically for monitoring applications. It is designed to monitor a circuit, notifying wireless to the concentrator the information status of a contract It has to be associated with a concentrator PowerTag Link. This product can be installed in new or existing panels with simple commissioning operation. It has a status LED who provides information about PowerTag Control status. It is mounted on DIN rail and is compatible with horizontal comb busbars 9 mm modules. The Un Rated voltage is Phase-to-neutral 230VAC +/- 20%. The maximum consumption is below or equal to 3VA. The degree of protection is IP20 for casing and IP40 for front face. The operating temperature is between -25°C to +60°C. The storage temperature is between 40°C to +85°C. The dimensions are (W) 18mm x (H) 85mm x (D) 62mm. This product complies with IEC 60529 standard

Products specifications

Attribute name Attribute value
Main
Device short name PowerTag C 2DI 230V
Concentrator compatibility Acti9 PowerTag Link HD, Acti9 PowerTag Link
Range PowerTag
Product name PowerTag Control
Product or component type input module
Range compatibility Acti9 OF and SD double OC or fault contact
Complementary
Tightening torque digital input: 1-1 N.m bottom, power supply: 2-2 N.m top
Colour white (RAL 9003)
Digital input number 2
Mounting mode clip-on
Current state 0 guaranteed <= 0.5 mA (digital input)
Power consumption in VA 3 VA
Wire stripping length 9 mm for bottom connection, 14 mm for top connection
Input type dry contact 230 V AC 2 mA
Voltage state 0 guaranteed <= 40 V for digital input
Standards EN/IEC 61010-2-201, EN/IEC 62479, EN/IEC 61010-1, ETSI EN 301 489-17, EN/IEC 61326-1, ETSI EN 301 489-1, ETSI EN 300 328
Height 85 mm
Switching frequency 10 Hz maximum
Depth 62 mm
Width 18 mm
Voltage state 1 guaranteed >= 164 V for digital input
Local signalling green, orange and red LED for product status
Connections - terminals tunnel type terminals (bottom) - 2 cable(s) 1.5-2.5 mm² (AWG 16...AWG 14) - flexible, tunnel type terminals (bottom) - 2 cable(s) 1.5-2.5 mm² (AWG 16...AWG 14) - rigid, tunnel type terminals (bottom) - 1 cable(s) 0.5-4 mm² (AWG 21...AWG 12) - flexible with ferrule, tunnel type terminals (bottom) - 1 cable(s) 0.5-4 mm² (AWG 21...AWG 12) - flexible, tunnel type terminals (bottom) - 1 cable(s) 1-6 mm² (AWG 18...AWG 10) - rigid, tunnel type terminals (top) - 1 cable(s) 0.5-10 mm² (AWG 21...AWG 8) - flexible, tunnel type terminals (top) - 1 cable(s) 1-16 mm² (AWG 18...AWG 16) - rigid
Net weight 75 g
Material PA6 GF30
Current state 1 guaranteed >= 2 mA (digital input)
9 mm pitches 2
Mounting support DIN rail
[Us] rated supply voltage 230 V AC (+/- 20 %)
Network frequency 50/60 Hz
Environment
Fire resistance 960 °C / 30 s conforming to UL 94 V0
IP degree of protection IP40 front face: conforming to IEC 60529, IP20 casing: conforming to IEC 60529
Relative humidity 0-93 % at 40-40 °C conforming to IEC 60068-2-78
Ambient air temperature for storage -40-85 °C
Pollution degree 3
Ambient air temperature for operation -25-60 °C
IK degree of protection IK05
Operating altitude 0...2000 m
Overvoltage category III conforming to IEC 61010-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.700 cm
Package 1 Width 8.000 cm
Package 1 Length 11.500 cm
Package 1 Weight 111.000 g
Unit Type of Package 2 2
Number of Units in Package 2 80
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 9.137 kg
