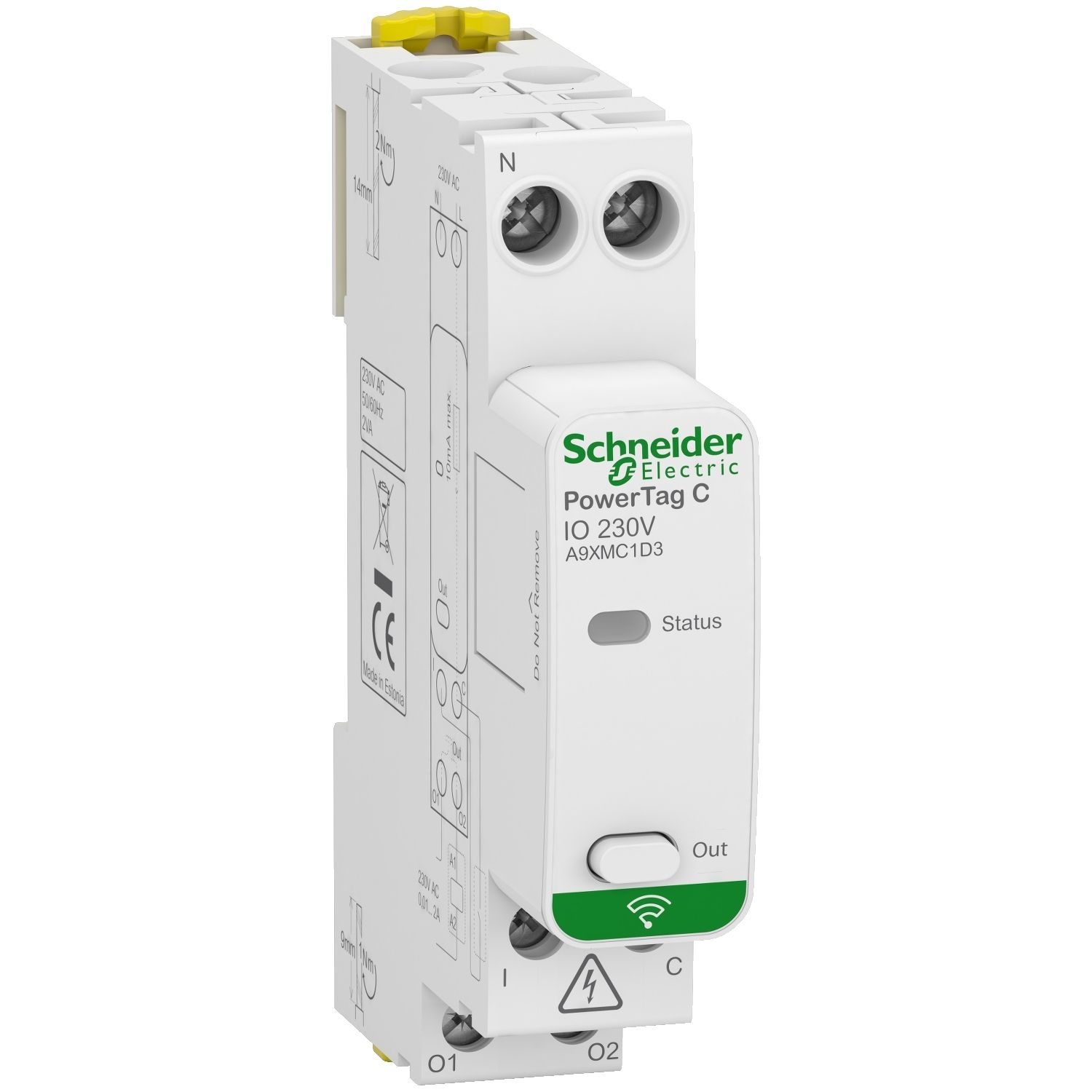

Picture of PowerTag, PowerTag C IO 230V digital input output module
SKU:

A9XMC1D3

PowerTag, PowerTag C IO 230V digital input output module

Old price: $205.92 INC GST
$175.03 INC GST
Available for Shipping : 15-Dec-2025
PowerTag, PowerTag C IO 230V digital input output module
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 15-Dec-2025
Declaration of conformity
Circularity Profile
Environmental Disclosure
User guide
Instruction sheet
Product Page Link
Product Data Sheet

This PowerTag Control IO 230V is a wireless-communication input and output module. It is designed specifically for Control and monitoring applications. It is designed to monitor a circuit, notifying wireless to the concentrator the information status of a contract It has to be associated with a concentrator PowerTag Link or a Wiser IP module. This product can be installed in new or existing panels with simple commissioning operation. It has a status LED who provides information about PowerTag Control status. It is mounted on DIN rail and is compatible with horizontal comb busbars 9 mm modules. The Un Rated voltage is Phase-to-neutral 230VAC +/- 20%. The maximum consumption is below or equal to 2VA. The degree of protection is IP20 for casing and IP40 for front face. The operating temperature is between -25°C to +60°C. The storage temperature is between 40°C to +85°C. The dimensions are (W) 18mm x (H) 85mm x (D) 62mm. This product complies with IEC 60529 standard

Products specifications

Attribute name Attribute value
Main
Device short name PowerTag C IO 230V
Concentrator compatibility Acti9 PowerTag Link HD, Acti9 PowerTag Link, Wiser IP module, Acti9 PowerTag Link C
Range PowerTag
Product name PowerTag Control
Product or component type input and ouput module
Range compatibility Acti9 iATLs remote indication auxiliary, Acti9 iACTs remote indication auxiliary, Acti9 contactor, Acti9 impulse relay
Complementary
Tightening torque digital input/output: 1-1 N.m bottom, power supply: 2-2 N.m top
Colour white (RAL 9003)
Digital input number 1
Mounting mode clip-on
Current state 0 guaranteed <= 0.5 mA (digital input)
Power consumption in VA 2 VA
Output function NO/NC programmable
Wire stripping length 9 mm for bottom connection, 14 mm for top connection
Input type dry contact 230 V AC 2 mA
Voltage state 0 guaranteed <= 40 V for digital input
Output type dry contact 230 V 0.01...2 A AC
Standards EN/IEC 61326-1, EN/IEC 61010-2-201, ETSI EN 301 489-1, ETSI EN 301 489-17, EN/IEC 62479, ETSI EN 300 328, EN/IEC 61010-1
Height 85 mm
Discrete output type configurable relay logic
Depth 62 mm
Width 18 mm
Impulse duration 300 ms by default - 0 ms, + 300 ms
Time between 2 impulse 100 ms minimum - tolerance: - 0 ms, + 300 ms
Mechanical durability 100000 cycles for output
Voltage state 1 guaranteed >= 164 V for digital input
Local signalling green, orange and red LED for product status
Connections - terminals tunnel type terminals (bottom) - 2 cable(s) 1.5-2.5 mm² (AWG 16...AWG 14) - flexible, tunnel type terminals (bottom) - 2 cable(s) 1.5-2.5 mm² (AWG 16...AWG 14) - rigid, tunnel type terminals (bottom) - 1 cable(s) 0.5-4 mm² (AWG 21...AWG 12) - flexible with ferrule, tunnel type terminals (bottom) - 1 cable(s) 0.5-4 mm² (AWG 21...AWG 12) - flexible, tunnel type terminals (bottom) - 1 cable(s) 1-6 mm² (AWG 18...AWG 10) - rigid, tunnel type terminals (top) - 1 cable(s) 0.5-10 mm² (AWG 21...AWG 8) - flexible, tunnel type terminals (top) - 1 cable(s) 1-16 mm² (AWG 18...AWG 16) - rigid
Net weight 80 g
Material PA6 GF30
Current state 1 guaranteed >= 2 mA (digital input)
9 mm pitches 2
Mounting support DIN rail
Digital output number 1
Total power losses 2 W
[Us] rated supply voltage 230 V AC (+/- 20 %)
Network frequency 50/60 Hz
Environment
Fire resistance 960 °C / 30 s conforming to UL 94 V0
IP degree of protection IP40 front face: conforming to IEC 60529, IP20 casing: conforming to IEC 60529
Relative humidity 0-93 % at 40-40 °C conforming to IEC 60068-2-78
Ambient air temperature for storage -40-85 °C
Pollution degree 3
Ambient air temperature for operation -25-60 °C
IK degree of protection IK05
Operating altitude 0...2000 m
Overvoltage category III conforming to IEC 61010-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.800 cm
Package 1 Width 8.000 cm
Package 1 Length 11.500 cm
Package 1 Weight 116.000 g
Unit Type of Package 2 2
Number of Units in Package 2 80
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 9.506 kg
