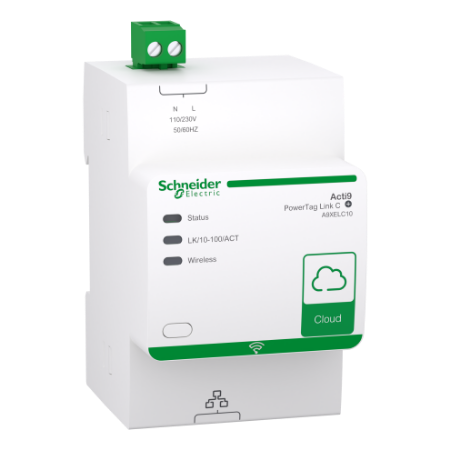

Picture of Acti9, PowerTag Link C - cloud connected communication module
SKU:

A9XELC10

Acti9, PowerTag Link C - cloud connected communication module

Call for pricing
Availability: Please contact our sales team on 1300 724 622.
Product Selector
Acti9, PowerTag Link C - cloud connected communication module
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Instruction sheet
User guide
End of life manual
Product environmental
Product Page Link
Product Data Sheet
This Acti9 PowerTag Link C is a smart communication module. It is designed for basic energy metering and laod alarming. Up to 20 wireless devoices can be connected on it.

Products specifications

Attribute name Attribute value
Main
Device short name PowerTag Link C
Device application load alarming, basic energy metering
Supply voltage limits 19.2-28.8 V
User interface smartphone app
Connectivity to devices wireless energy sensor
Transmission support medium radio frequency 2.4-2.4835 GHz PowerTag 20
Range Acti9
Connected auxiliaries up to 20 wireless devices
Upstream connectivity cloud
Communication service Ethernet
Product name Acti9 PowerTag Link
Product or component type smart communication module
[Us] rated supply voltage 110...230 V AC + 15 %
Complementary
Inrush current 3 A
Colour white (RAL 9003)
Compatibility code Acti9 PowerTag Link C
Commissioning interface mySchneider Electrician eSetup
Wire stripping length supply circuit: 7 mm
Protection type overvoltage at 0.5 kV for auxiliary supply, overvoltage at 1 kV for ETHERNET
Immunity to microbreaks 10 ms
Connections - terminals plug-in connector qty: 1 for supply circuit, RJ45 connector qty: 1 for ETHERNET, ordered separately
Height 85 mm
End user smartphone application EcoStruxure Facility Expert Small Business
9 mm pitches 6 useful
Depth 62 mm
Overvoltage category III
Width 54 mm
Location of connection upstream
Mounting position horizontal/vertical on DIN rail
Net weight 133 g
Commissioning protocol Bluetooth
Clamping connection capacity 0.2...1.5 mm², flexible with ferrule for supply circuit, 0.2...1.5 mm², flexible for supply circuit, 0.2...1.5 mm², rigid for supply circuit
Range compatibility ComPact PowerTag, Acti 9 PowerTag
Reset factory reset on front face
Environment
Fire resistance on connection terminals: 960 °C ( 30 s ) conforming to IEC 60695-2, other parts: 650 °C ( 30 s ) conforming to IEC 60695-2
Relative humidity 93-93 % at 40-40 °C
Ambient air temperature for storage -40-85 °C
Pollution degree 2
Electromagnetic compatibility conducted emission (0.15...30 MHz), class A, conforming to IEC 61131-2, radiated emission (30...1000 MHz), class A, conforming to IEC 61131-3 Ed.3, immunity to magnetic fields at network frequency (pulsed), 100 A/m, conforming to IEC 61000-4-8, immunity to magnetic fields at network frequency (continuous), 30 A/m, conforming to IEC 61000-4-8, conducted EMC (0.15...80 MHz), 10 V, conforming to IEC 61000-4-6, communication bus: resistance to fast transient (5...100 kHz), 1 kV, conforming to IEC 61000-4-4, power supply: resistance to fast transient (5...100 kHz), 2 kV, conforming to IEC 61000-4-4, resistance to radiated electromagnetic fields (80 MHz...3 GHz), 10 V/m, conforming to IEC 61000-4-3, resistance to electrostatic discharge (contact discharge), 4 kV, conforming to IEC 61000-4-2, resistance to electrostatic discharge (air discharge), 8 kV, conforming to IEC 61000-4-2
IP degree of protection IP40 (modular enclosure), IP20
Standards EN/IEC 60950-1, EN 301-489-17, EN 301-489-1, EN 300-328
Tropicalisation 2 conforming to IEC 60068-2
Ambient air temperature for operation -25-55 °C
Operating altitude 0...3000 m storage, 0...2000 m operating
Environmental characteristic salt mist 2 conforming to IEC 60068-2-52, corrosive 3C2 conforming to IEC 60721-3-3
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance 1 gn, amplitude = 3.5 mm (f = 5-300 Hz)10 cycles conforming to IEC 60068-2-6
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.200 cm
Package 1 Width 8.400 cm
Package 1 Length 11.000 cm
Package 1 Weight 168.000 g
Unit Type of Package 2 2
Number of Units in Package 2 36
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.480 kg
