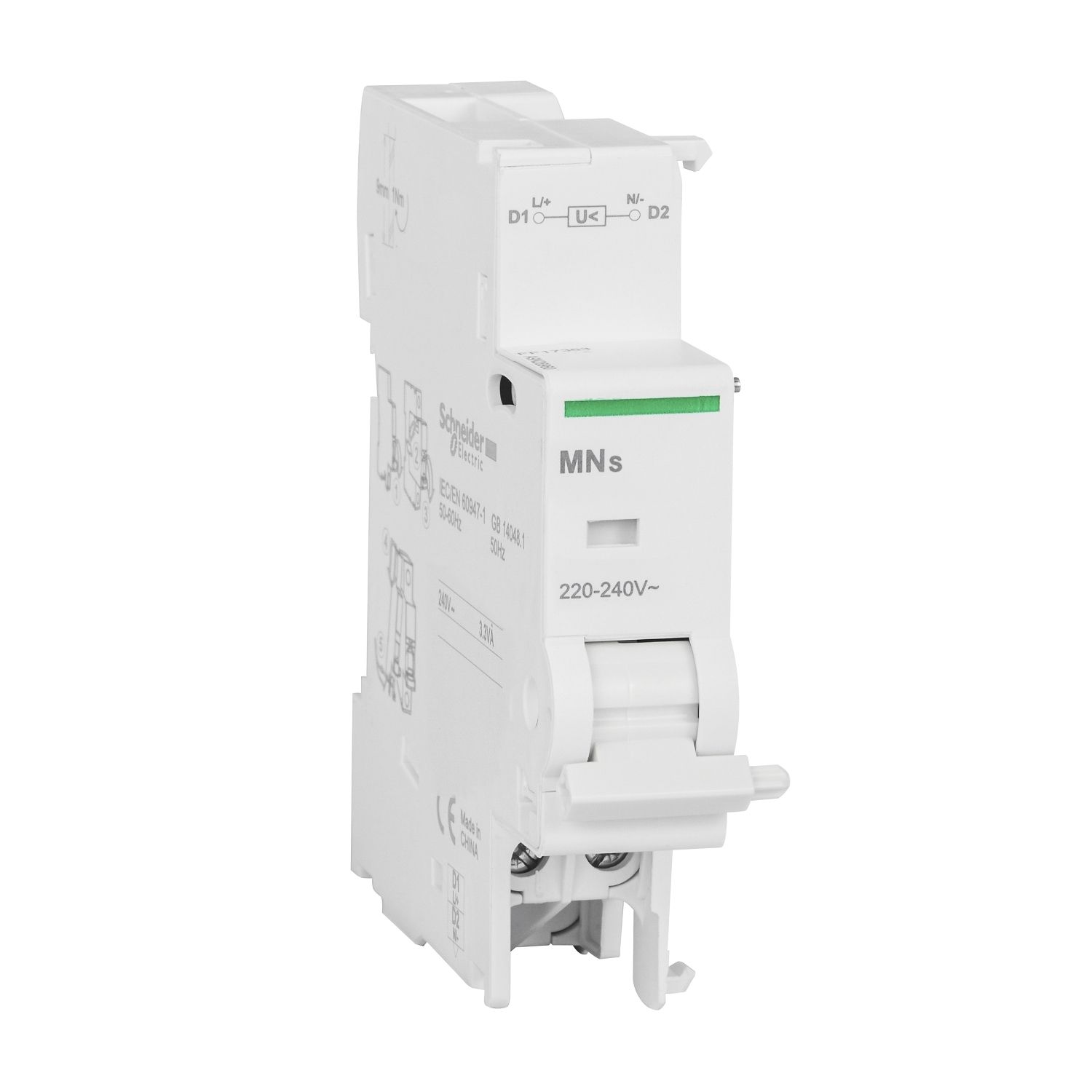

Picture of Acti9, Voltage release MN (S) 220-240Vac dc
SKU:

A9N26963

Acti9, Voltage release MN (S) 220-240Vac dc

Old price: $285.45 INC GST
$168.67 INC GST
Available for Shipping : 08-Jan-2026
Acti9, Voltage release MN (S) 220-240Vac dc
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Jan-2026
Declaration of conformity
Circularity Profile
Product Page Link
Product Data Sheet
This MNs product is an overvoltage release auxiliary. It is mounting on left side of circuit-breaker. The Uc control circuit voltage is 220VAC to 240VAC with a 50/60Hz frequency. The dimensions are (W) 18mm x (H) 82.5mm x (D) 73.5mm.

Products specifications

Attribute name Attribute value
Main
Device short name MNs
Product compatibility iDPN, C120, C40, IDc, ID C40, DT60, DT40, DPN Vigi, ITG40, C60
Control type delayed
Range Acti9
Product or component type undervoltage release
9 mm pitches 2
Range of product DPN Vigi, DPN, C120, C60, Clario, Librio, ProDis, ID
[Uc] control circuit voltage 220...240 V AC 50/60 Hz
Complementary
Tightening torque 1-1 N.m bottom
Depth 73.5 mm
Market segment residential, small commercial
Width 18 mm
Colour white
Local signalling action indicator
Compatibility code MNs
Mounting mode fixed
Connections - terminals screw clamp terminal (bottom) - 1 cable(s) 0.5-2.5 mm² - rigid, screw clamp terminal (bottom) - 2 cable(s) 1.5-1.5 mm² - flexible with ferrule, screw clamp terminal (bottom) - 2 cable(s) 1.5-1.5 mm² - flexible
Wire stripping length 9 mm for bottom connection
Net weight 66 g
Comb busbar and distribution block compatibility top: YES
Range compatibility Acti 9 Acti9 DPN, Acti 9 Acti9 ID, Acti 9 Acti9 ITG40, Acti 9 Acti9 IDc, Acti 9 Acti9 ID C40, Acti 9 Acti9 DT60, Acti 9 Acti9 DT40, Acti 9 Acti9 DPN Vigi, Acti 9 Acti9 C60PV-DC, Acti 9 Acti9 C60NA-DC, Acti 9 Acti9 C60H-DC, Acti 9 Acti9 C40, Acti 9 Acti9 C120, Acti 9 Acti9 iDPN
Mounting support 35 mm symmetrical DIN rail
Height 82.5 mm
Environment
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-85 °C
Tropicalisation 2 conforming to EN/IEC 60947-5-1
Standards EN/IEC 60947-5-1
Ambient air temperature for operation -25-50 °C
Product certifications ASEFA, KEMA, ASTA, LCIE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.900 cm
Package 1 Width 8.000 cm
Package 1 Length 9.400 cm
Package 1 Weight 76.000 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 9.000 cm
Package 2 Width 10.000 cm
Package 2 Length 26.700 cm
Package 2 Weight 662.000 g
Unit Type of Package 3 3
Number of Units in Package 3 72
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 6.442 kg
