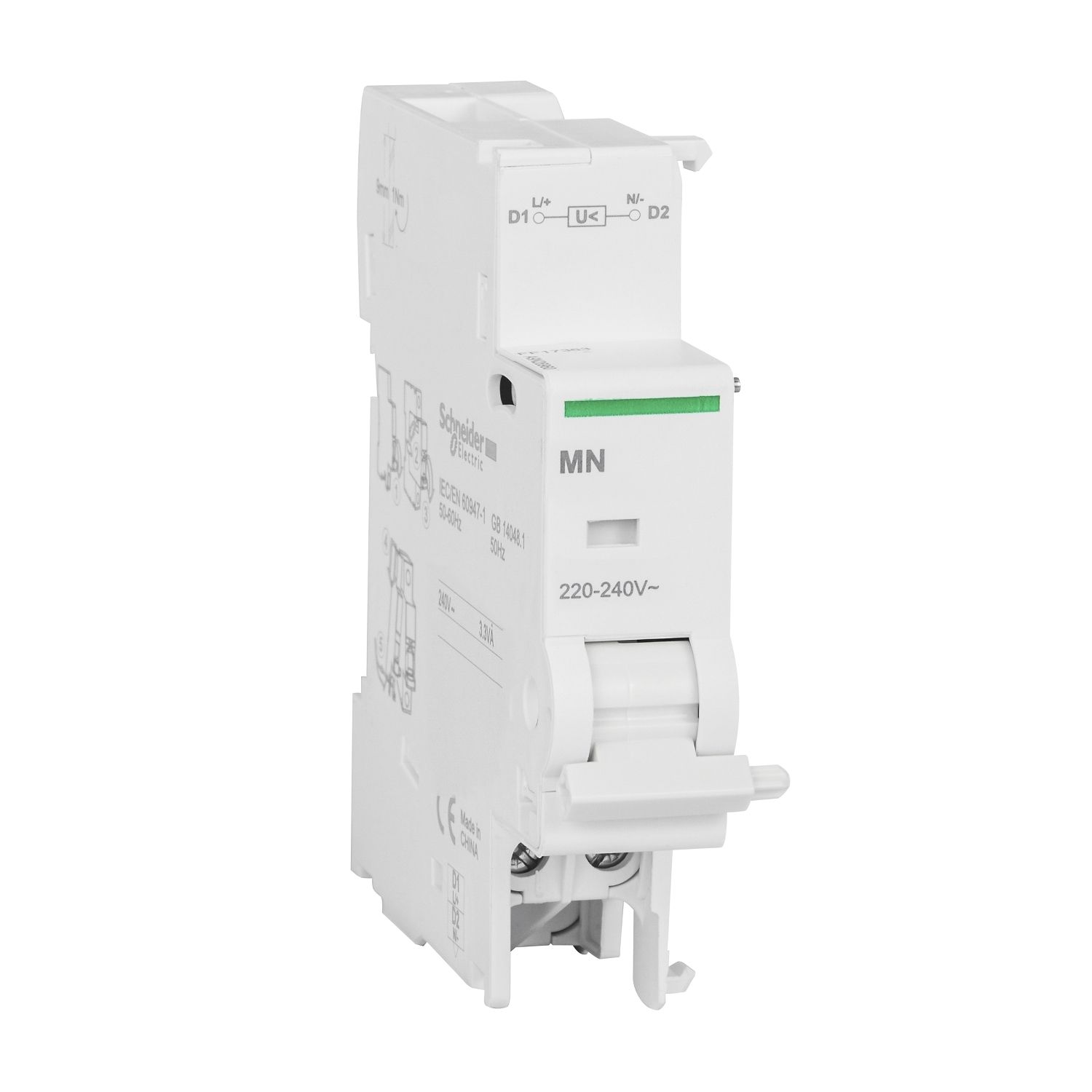

Picture of Acti9, Voltage release MN 220-240Vac dc
SKU:

A9N26960

Acti9, Voltage release MN 220-240Vac dc

Old price: $245.30 INC GST
$144.95 INC GST
Available for Shipping : 16-Dec-2025
Acti9, Voltage release MN 220-240Vac dc
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 16-Dec-2025
Declaration of conformity
Circularity Profile
Product Page Link
Product Data Sheet
This Acti9 MN electrical auxiliary for C60, C10, DPN, Vigi, ID, C60H-DC, SW60-DC, C60PV-DC, C60NA-DC, C120NA-DC is an instantaneous undervoltage release. It trips the device with which it is combined when its input voltage decreases (between 70% and 35% of Un). Emergency stoppage by normally open pushbutton. It ensures the safety of power supply circuits for several machines by preventing uncontrolled restarting. The width in 9mm pitches is 2. It prevents device closing again until its input voltage has been restored. The Ue rated operational voltage is 220VAC to 240VAC. The operating frequency is 50Hz or 60Hz. The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-1 and EN 60947-2 standards.

Products specifications

Attribute name Attribute value
Main
Device short name MN
Product compatibility C40, ID C40, DPN Vigi, iDPN, IDc, DT40, DT60, ITG40, C60, C120
Control type standard
Range Acti9
Product or component type undervoltage release
9 mm pitches 2
Range of product C120, C60, Clario, ProDis, Librio, DPN, DPN Vigi
[Uc] control circuit voltage 220...240 V AC 50/60 Hz
Complementary
Tightening torque 1-1 N.m
Depth 73.5 mm
Market segment small commercial, residential
Width 18 mm
Colour white
Local signalling action indicator
Compatibility code MN
Mounting mode fixed
Connections - terminals clamp terminal - 2 cable(s) 1.5-1.5 mm² - rigid, clamp terminal - 2 cable(s) 1.5-1.5 mm² - flexible, clamp terminal - 1 cable(s) 2.5-2.5 mm² - rigid, clamp terminal - 1 cable(s) 2.5-2.5 mm² - flexible
Wire stripping length 9 mm
Net weight 66 g
Comb busbar and distribution block compatibility top: YES
Range compatibility Acti 9 Acti9 DPN, Acti 9 Acti9 ID, Acti 9 Acti9 ITG40, Acti 9 Acti9 IDc, Acti 9 Acti9 ID C40, Acti 9 Acti9 DT60, Acti 9 Acti9 DT40, Acti 9 Acti9 DPN Vigi, Acti 9 Acti9 C60PV-DC, Acti 9 Acti9 C60NA-DC, Acti 9 Acti9 C60H-DC, Acti 9 Acti9 C40, Acti 9 Acti9 C120, Acti 9 Acti9 iDPN
Mounting support 35 mm symmetrical DIN rail
Height 82.5 mm
Environment
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-85 °C
Tropicalisation 2 conforming to EN/IEC 60947-5-1
Standards EN/IEC 60947-5-1
Ambient air temperature for operation -25-50 °C
Product certifications ASEFA, LCIE, ASTA, KEMA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.000 cm
Package 1 Width 7.500 cm
Package 1 Length 9.500 cm
Package 1 Weight 75.600 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 8.500 cm
Package 2 Width 10.000 cm
Package 2 Length 26.500 cm
Package 2 Weight 663.200 g
Unit Type of Package 3 3
Number of Units in Package 3 72
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 6.368 kg
Unit Type of Package 4 4
Number of Units in Package 4 576
Package 4 Height 45.000 cm
Package 4 Width 80.000 cm
Package 4 Length 120.000 cm
Package 4 Weight 62.946 kg
