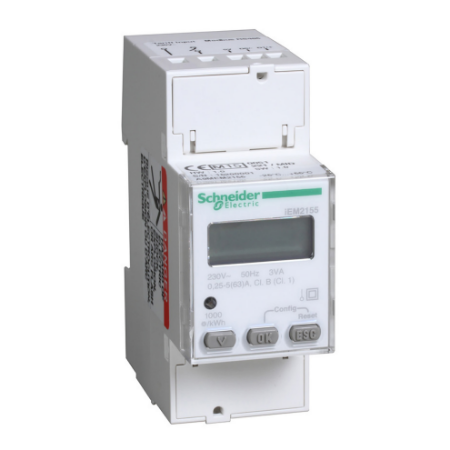

Picture of modular single phase power meter iEM2155 - 230V - 63A with communication Modbus - MID
SKU:

A9MEM2155

modular single phase power meter iEM2155 - 230V - 63A with communication Modbus - MID

Call for pricing
Availability: Please contact our sales team on 1300 724 622.
Product Selector
modular single phase power meter iEM2155 - 230V - 63A with communication Modbus - MID
  • Energy Meter for different applications
  • Compact size
  • Compact size 36mm width requires smaller foot print in panel
  • Modbus RS-485 communication port for remote monitoring
  • Identify energy savings opportunties with precision accuracy of Class 1.0
  • Collect and analyze energy consumption data
  • MID Class B for sub-billing
  • Direct connet upto of 63Amps single phase
  • Single phase DIN rail mount energy meter
  • Large LCD display for easy reading
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
User guide
Declaration of conformity
Product Page Link
Product Data Sheet
The Acti9 iEM2100 series energy meters offer is a single-phase DIN rail-mounted energy meters fitted for basic metering. This product family can be used to monitor power consumption for each sector, unit or workshop and manage electrical installation for building management. It feature a 8-character LCD display and red LED indicator to display measured electrical parameters. Providing Class 1 active energy accuracy per IEC 62053-21 standard, the meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. Suitable for a 230VAC network, with a supply voltage range of 96 to 276 VAC at 50Hz or 60Hz. Direct connect current measurement up to 63A with 32 samples per cycle only in a Single Phase and Neutral configuration. Communication protocol is M-Bus with 3 wire terminal support, no additional communication ports. You will have the possibility to switch between 2 tariffs thanks to a dedicated tariff switching input. Product dimensions are as follows: width 36 mm, depth 64 mm, height 90 mm and product weight 175 g. This version is compliant with the standard EN 50470-3 class B, Measuring Instruments Directive (MID). Compatible with power management software to take advantage of the IoT digital power installation.
