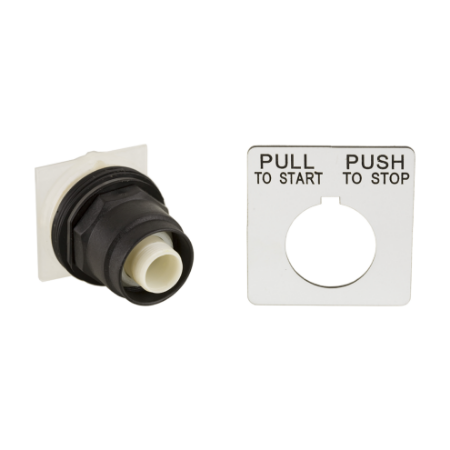

Picture of Push-button head, Harmony 9001SK, plastic, without mushroom, 30mm, 3 positions, return to center
SKU:

9001SKR8

Push-button head, Harmony 9001SK, plastic, without mushroom, 30mm, 3 positions, return to center

Call for pricing
Availability: Please contact our sales team on 1300 724 622.
Push-button head, Harmony 9001SK, plastic, without mushroom, 30mm, 3 positions, return to center
Be the first to review this product
Manufacturer: Schneider Electric
CAD
Product environmental
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
This octogonal shaped push-button is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP64, making it ideal for operation in harsh environments It is easily combined with Harmony range of contact blocks to perform a large variety of control functions High performance International standards & certifications (Marine ABS certification, IP64, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)

Products specifications

Attribute name Attribute value
Main
Device short name 9001SK
Product or component type head for push-button
Range of product Harmony 9001SK
Complementary
Type of operator pull : spring return, center : stay put, push : spring return
Operator position information 3 positions
NEMA degree of protection NEMA 1/2/3/3R/4/4X/6/12/13
Bezel material plastic
Light source without
Contacts type and composition without contact block
IP degree of protection IP64
Size 30 mm
Cap/operator or lens colour without mushroom
Shape of signaling unit head octagonal
Mounting diameter 30 mm
Light block supply without supply
Product certifications CSA LR24590 class 3211 03, CE, UL listed file E42259 CCN NKCR
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.826 cm
Package 1 Width 5.842 cm
Package 1 Length 11.43 cm
Package 1 Weight 63.503 g
