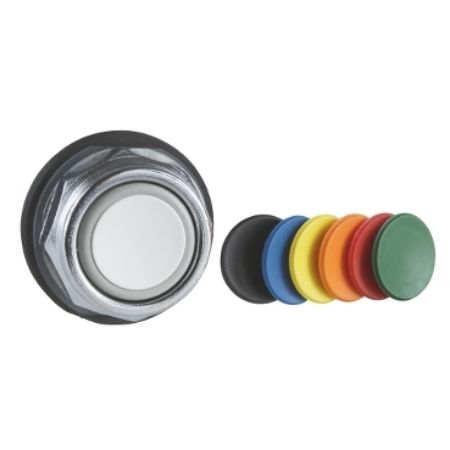

Picture of Delayed electrical closing push-button, Harmony 9001K, metal, flush, 7 colours choice, 30mm, spring return, 1 C/O
SKU:

9001KRD1UH1

Delayed electrical closing push-button, Harmony 9001K, metal, flush, 7 colours choice, 30mm, spring return, 1 C/O

Call for pricing
Availability: Please contact our sales team on 1300 724 622.
Delayed electrical closing push-button, Harmony 9001K, metal, flush, 7 colours choice, 30mm, spring return, 1 C/O
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
This push-button with set of 7 colors caps provides an ergonomic interface for controlling your machines Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits High performance International standards & certifications (Marine ABS certification, Type 1, 2, 3, 3R, 4, 6, 12 and 13)

Products specifications

Attribute name Attribute value
Main
Device short name K
Operator profile blue flush, orange flush, red flush, black flush, yellow flush, green flush, white flush
Product or component type delayed electrical closing push-button
Range of product Harmony 9001K
Operator additional information metal guard
Complementary
Type of operator spring return
Contact operation standard
[Ie] rated operational current 10 A, DC-13, 10 A, AC-15
Bezel material metal
Contacts type and composition 1 C/O
Device presentation complete product
Size 30 mm
Cap/operator or lens colour 7 colours choice
Operator profile flush
Mounting diameter 30 mm
Light block supply without supply
Light source without
Environment
NEMA degree of protection NEMA 1/2/3/3R/4/6/12/13
Product certifications CE, CSA LR 25490 class 3211 03, NEMA, UL listed file E42259 CCN NKCR
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.604 cm
Package 1 Width 7.874 cm
Package 1 Length 12.192 cm
Package 1 Weight 453.6 g
