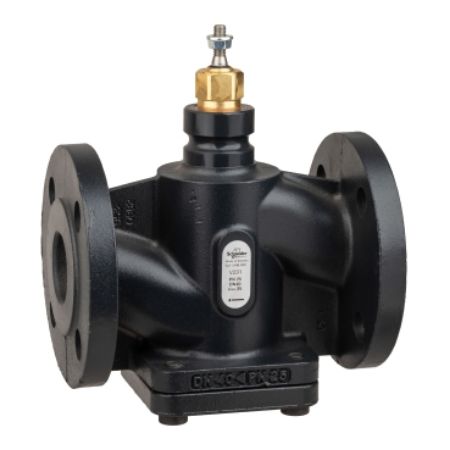

Picture of Venta V232 Globe Valve, 2-Way, PN25, Flanged, Balanced Plug, DN40, Kvs 25, Nodular Iron, Stainless Plug and Seat.
SKU:

7213246000

Venta V232 Globe Valve, 2-Way, PN25, Flanged, Balanced Plug, DN40, Kvs 25, Nodular Iron, Stainless Plug and Seat.

$1,776.06 INC GST
Available for Shipping : 01-Feb-2026
Venta V232 Globe Valve, 2-Way, PN25, Flanged, Balanced Plug, DN40, Kvs 25, Nodular Iron, Stainless Plug and Seat.
  • Balanced valves will allow higher close off performance than a non balanced valve of the same size
  • Allowing use on high pressure systems or for a lower cost /force actuators than a non balanced valve
  • Self cleaning crown plug design
  • Exceptional control of low flows
  • Replacement gland kit ensures a long operational life
  • U Bolt Actuator mounting accepts M400, M800, M1500, M700 SR and MG900 SR actuators
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 01-Feb-2026
Catalog
Product Page Link
Product Data Sheet
The V232 is a high pressure (PN25) 2-way balanced, flanged globe valve designed for a wide range of heating and cooling applications. The valve uses a crown plug for precise fluid control with a very high rangeability. Nodular iron construction provides a long life and high corrosion resistance. The crown plug provides precise fluid control with a rangeability of 5:1 and is of a self cleaning design for reliable operation. Valve size: DN40, Rp thread, Flow capacity, Kvs: 25 m³/h. Constructed and flanged to a PN25 pressure class. ΔPm of maximum 8 Kpa. EPDM seals provide a working temperature range of -2 °C to + 12 °C, the soft seat seal ensures a tight close off with no leakage. 2 mm stroke ensures high controllability, Equal percentage flow characteristic ensures high controllability at low opening degrees. Meets the 214/68/EE, article 4.3 of the PED (Pressure Equipment Directive). PN25 flanges.

Products specifications

Attribute name Attribute value
Main
Operating fluid temperature -20-150 °C
Body material nodular cast iron EN-JS 1025
Saturated steam temperature -20-150 °C
Seating seal material Port A:metal to metal
Seat leakage Port A: Less than 0.02 % of kvs
Product or component type valve
Targeted region Australia., Asia Pacific., Europe
Valve connection size DN40 (ISO 7005-2)
Seat material Port A: stainless steel AISI 303
Valve product range Venta
Medium compatibility Steam, Glycol 50 %, Glycol 30 %, Glycol 25 %, Water
Control valve rangeability greater than 200:1
Plug material stainless steel AISI 303
Valve product series V232
Flow coefficient 25 kvs, 28.91 cv
Stem flow action Stem up closed
Valve configuration 2-Way
Pressure fluid max delta P normal life 116 psi
Valve type globe
Valve model V232/40/25
Packing material EPDM (ethylene propylene diene monomer)
Valve connection type flanged
Stem seal material EPDM (ethylene propylene diene monomer)
Flow characteristic equal percentage
Trim material stainless steel
Stroke length 20 mm
Stem material stainless steel AISI 303
Pipe size 40 mm
Pressure class PN25
Body size 40 mm (1-1/2 in)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 20 cm
Package 1 Width 26.4 cm
Package 1 Length 15.1 cm
Package 1 Weight 9.18 kg

Related products

SpaceLogic M400-S2 Actuator, Non-Spring Return, 24Vac/dc, 400N, 2 x SPDT Aux Relay, IP54

8800231030
$1,100.42 INC GST
View Detail

SpaceLogic M800-S2 Actuator, Non-Spring Return, 24Vac/dc, 800N, 2 SPDT Aux Relay, IP54

8800311030
$1,264.37 INC GST
View Detail

SpaceLogic M1500-S2 Actuator for Globe Valves, Multi-Signal Control, 24Vac/dc, Terminal Block Electrical Connection, 1500N, IP54, 2 SPDT Aux Relay

8800451000
$1,664.74 INC GST
View Detail
Picture of Replacement Stuffing Box / Packing Gland Kit - (Type S) 20mm Venta Valves.

Replacement Stuffing Box / Packing Gland Kit - (Type S) 20mm Venta Valves.

100108000
$228.21 INC GST
View Detail
Picture of MV15B-230 Electric Globe Valve Actuator, 3-Wire Floating, 230Vac, 1500N, Linear, IP55

MV15B-230 Electric Globe Valve Actuator, 3-Wire Floating, 230Vac, 1500N, Linear, IP55

8800460000
$1,887.38 INC GST
View Detail
Picture of MV15B-24 Electric Actuator, 3 Position Floating, Non-Spring Return, 24Vac, Terminal Block Electrical Connection, 1500N, IP55

MV15B-24 Electric Actuator, 3 Position Floating, Non-Spring Return, 24Vac, Terminal Block Electrical Connection, 1500N, IP55

8800462000
$2,402.87 INC GST
View Detail

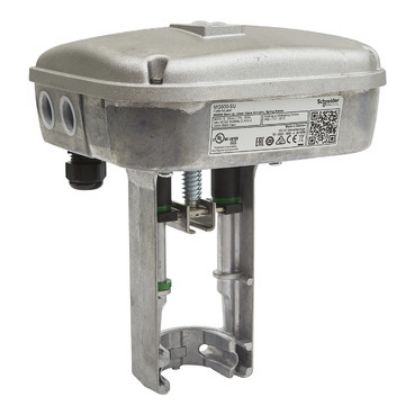

Picture of SpaceLogic MG900-SR Actuator for Globe Valves, Multi-Signal Control, Spring Return DOWN, 24Vac/dc, Terminal Block Connection, 900N, IP54
