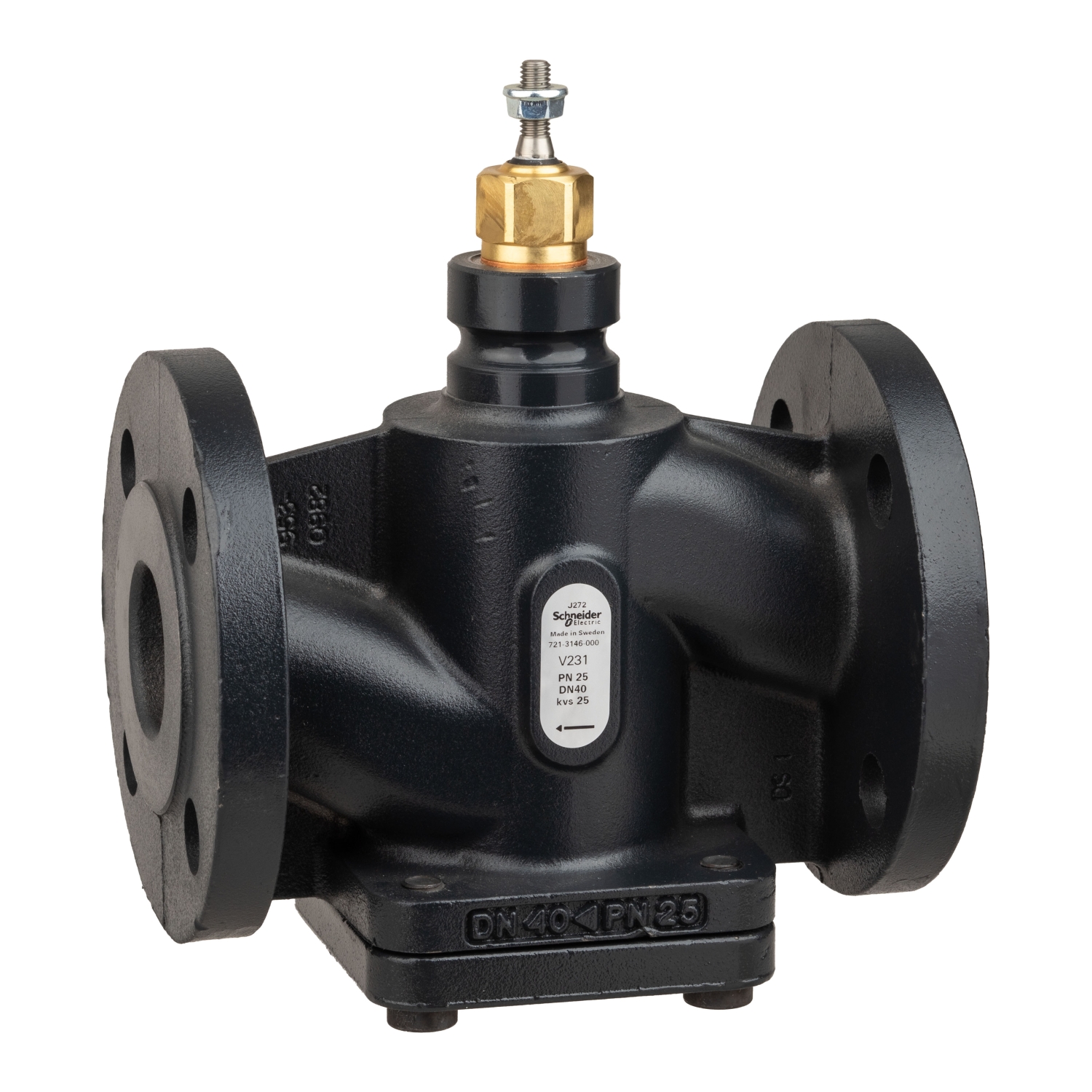

Picture of Venta V231 Globe Valve, 2-Way, PN25, Flanged, DN40, Kvs 25, Nodular Iron, Stainless Plug and Seat, Stem Up Closed.
SKU:

7213146000

Venta V231 Globe Valve, 2-Way, PN25, Flanged, DN40, Kvs 25, Nodular Iron, Stainless Plug and Seat, Stem Up Closed.

$1,495.23 INC GST
Available for Shipping : 02-Feb-2026
Venta V231 Globe Valve, 2-Way, PN25, Flanged, DN40, Kvs 25, Nodular Iron, Stainless Plug and Seat, Stem Up Closed.
  • Self cleaning crown plug design
  • Exceptional control of low flows with leading class rangeability control
  • Replacement gland kit ensures a long operational life
  • U Bolt Actuator mounting accepts M310, M400, M800, M1500, M700 SR and MG900 SR actuators
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 02-Feb-2026
Catalog
Product Page Link
Product Data Sheet
The V231 is a high pressure (PN25) 2-way flanged globe valve for a wide range of heating and cooling applications. The valve uses a crown plug for precise fluid control with a very high rangeability. Nodular iron construction provides a long life and high corrosion resistance. The crown plug provides precise fluid control with a rangeability of 5:1 and is of a self cleaning design for reliable operation. Valve size: DN40, Rp thread, Flow capacity, Kvs: 25 m³/h. Constructed and flanged to a PN25 pressure class. ΔPm of maximum 8 Kpa. EPDM seals provide a working temperature range of -2 °C to + 12 °C, the soft seat seal ensures a tight close off with no leakage. 2 mm stroke ensures high controllability, Equal percentage flow characteristic ensures high controllability at low opening degrees. Meets the 214/68/EE, article 4.3 of the PED (Pressure Equipment Directive). PN25 flanges.
