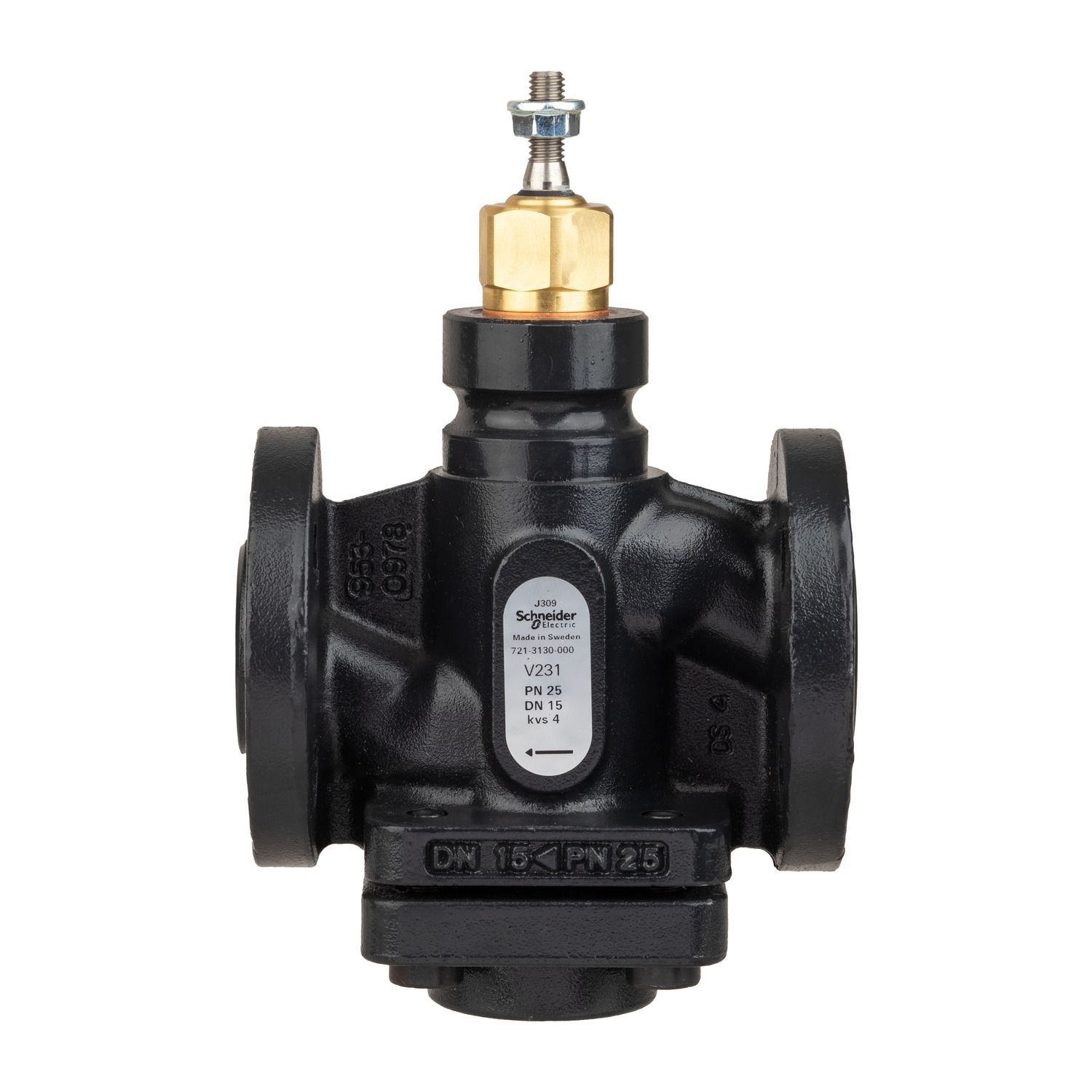

Picture of Venta V231 Globe Valve, 2-Way, PN25, Flanged, DN15, Kvs 4.0, Nodular Iron, Stainless Plug and Seat, Stem Up Closed.

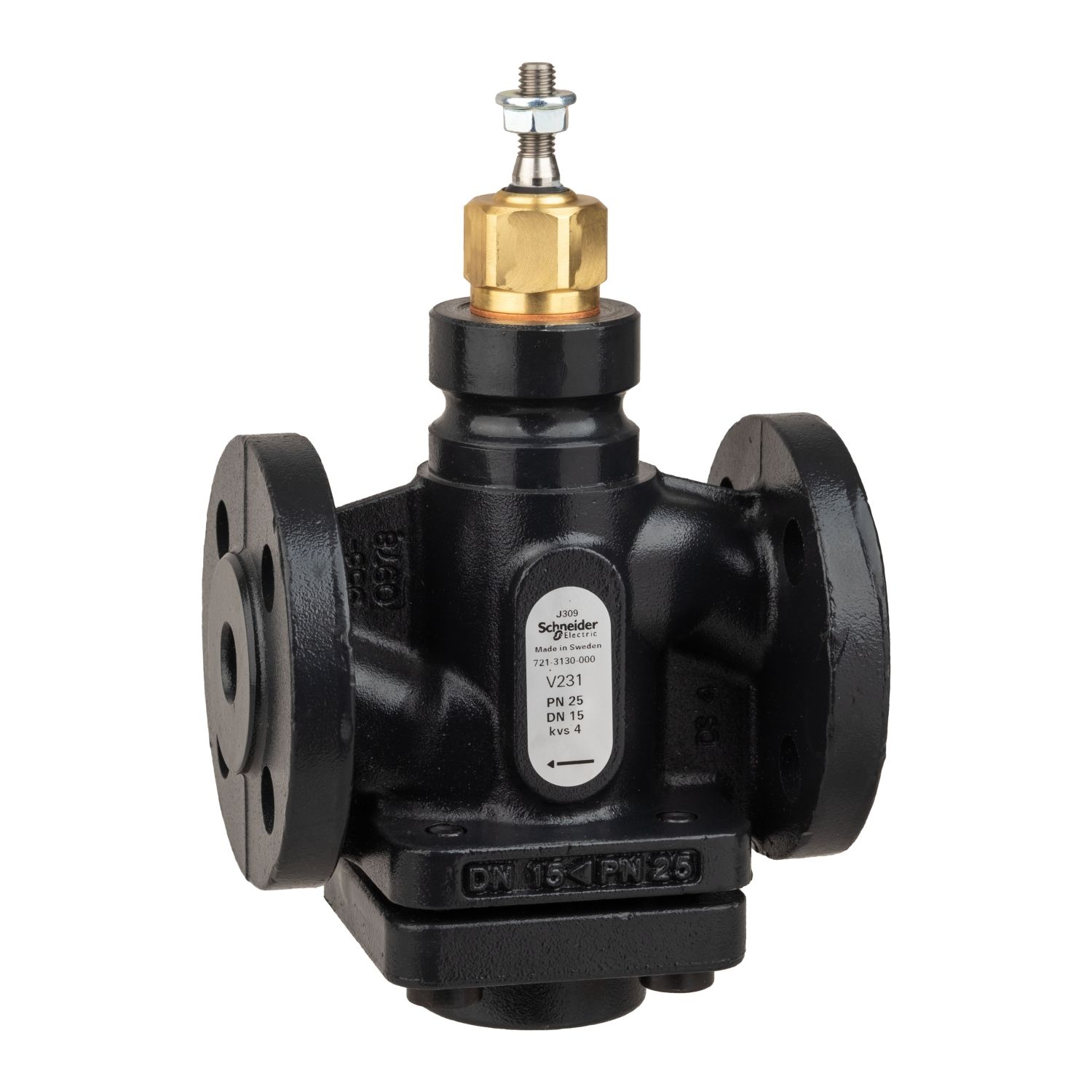

Picture of Venta V231 Globe Valve, 2-Way, PN25, Flanged, DN15, Kvs 4.0, Nodular Iron, Stainless Plug and Seat, Stem Up Closed.
Picture of Venta V231 Globe Valve, 2-Way, PN25, Flanged, DN15, Kvs 4.0, Nodular Iron, Stainless Plug and Seat, Stem Up Closed.
SKU:

7213130000

Venta V231 Globe Valve, 2-Way, PN25, Flanged, DN15, Kvs 4.0, Nodular Iron, Stainless Plug and Seat, Stem Up Closed.

$812.13 INC GST
Available for Shipping : 01-Feb-2026
Venta V231 Globe Valve, 2-Way, PN25, Flanged, DN15, Kvs 4.0, Nodular Iron, Stainless Plug and Seat, Stem Up Closed.
  • Self cleaning crown plug design
  • Exceptional control of low flows with leading class rangeability control
  • Replacement gland kit ensures a long operational life
  • U Bolt Actuator mounting accepts M310, M400, M800, M1500, M700 SR and MG900 SR actuators
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 01-Feb-2026
Catalog
Product Page Link
Product Data Sheet
The V231 is a high pressure (PN25) 2-way flanged globe valve for a wide range of heating and cooling applications. The valve uses a crown plug for precise fluid control with a very high rangeability. Nodular iron construction provides a long life and high corrosion resistance. The crown plug provides precise fluid control with a rangeability of 5:1 and is of a self cleaning design for reliable operation. Valve size: DN15, Rp thread, Flow capacity, Kvs: 4 m³/h. Constructed and flanged to a PN25 pressure class. ΔPm of maximum 8 Kpa. EPDM seals provide a working temperature range of -2 °C to + 12 °C, the soft seat seal ensures a tight close off with no leakage. 2 mm stroke ensures high controllability, Equal percentage flow characteristic ensures high controllability at low opening degrees. Meets the 214/68/EE, article 4.3 of the PED (Pressure Equipment Directive). PN25 flanges.

Products specifications

Attribute name Attribute value
Main
Operating fluid temperature -20-150 °C
Body material nodular cast iron EN-JS 1025
Saturated steam temperature -20-150 °C
Seating seal material Port A:metal to metal
Seat leakage Port A: Less than 0.02 % of kvs
Product or component type valve
Targeted region Australia., Asia Pacific., Europe
Valve connection size DN15 (ISO 7005-2)
Seat material Port A: stainless steel AISI 303
Valve product range Venta
Medium compatibility Glycol 50 %, Glycol 30 %, Glycol 25 %, Water, Steam
Control valve rangeability greater than 50:1
Plug material stainless steel AISI 303
Valve product series V231
Flow coefficient 4 kvs, 4.62 cv
Stem flow action Stem up closed
Valve configuration 2-Way
Pressure fluid max delta P normal life 116 psi
Valve type globe
Valve model V231/15/4.0
Packing material EPDM (ethylene propylene diene monomer)
Valve connection type flanged
Stem seal material EPDM (ethylene propylene diene monomer)
Flow characteristic equal percentage
Trim material stainless steel
Stroke length 20 mm
Stem material stainless steel AISI 303
Pipe size 15 mm
Pressure class PN25
Body size 15 mm (1/2 in)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13 cm
Package 1 Width 22.2 cm
Package 1 Length 9.7 cm
Package 1 Weight 3.58 kg
