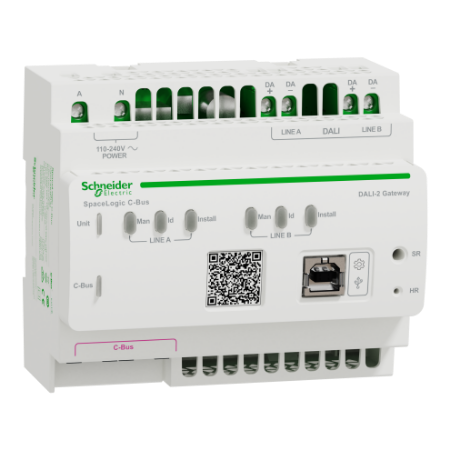

Picture of Clipsal C-Bus, DALI-2 Gateway, SpaceLogic C-Bus, 6DIN
SKU:

5502CDGP230

Clipsal C-Bus, DALI-2 Gateway, SpaceLogic C-Bus, 6DIN

$1,583.34 INC GST
Available for Shipping : 05-Jan-2026
Clipsal C-Bus, DALI-2 Gateway, SpaceLogic C-Bus, 6DIN
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 05-Jan-2026
Brochure
Circularity Profile
User guide
Declaration of conformity
Environmental Disclosure
Instruction sheet
Quick start guide
Product Page Link
Product Data Sheet
The SpaceLogic C-Bus DALI-2 Gateway is an interface that allows controlling, managing and monitoring of DALI Lighting and Emergency Lighting devices. It allows to configure and commission DALI Lighting and Emergency Lighting devices in conjunction with C-Bus units It is a DALI-2 certified multi-master application controller. Has dual isolated DALI lines with independent “integrated advanced bus power supplies”, that allows full DALI line supply current for 64 x 2 = 128 ECGs. Supports full functionality of DALI device types DT0, DT1, DT6. Enables comprehensive reporting on DALI devices and lines status and failures over C-Bus reporting feature. Has compact size 6M width on DIN rail. Allows seamless push-button dimming of DALI lighting from C-Bus (single button dimmer). C-Bus and DALI line status and fault indications with the buttons and indicators positioned in front of the gateway. Remote maintenance of DALI anytime from anywhere via accessing C-Bus system remotely. Warn before off functionality indicates the lights are about to turn off by visual warning. Allows daylight harvesting. Allows switching, dimming for individual devices, groups, and broadcast addressing modes and flexible scene triggering via DALI group and broadcast addressing. 16 scenes by DALI broadcast and 16 scenes by 16 groups via C-Bus. 16 Virtual groups along with the 16 native DALI groups. The 2-way mapping between DALI and C-Bus. Has guaranteed supply current 230 mA per line and maximum supply current 250 mA per line, no other power supplies allowed. Allows emergency lighting testing, scheduling of testing, reporting and automated emailing of the reports. Configurable C-Bus Remote Override operation.

Products specifications

Attribute name Attribute value
Main
Device application light control
Colour white
Range SpaceLogic C-Bus
Product name DALI-2 gateway
Product or component type gateway
Product brand Schneider Electric
Complementary
Depth 63 mm
Width 108 mm
Communication port protocol DALI-2, C-Bus

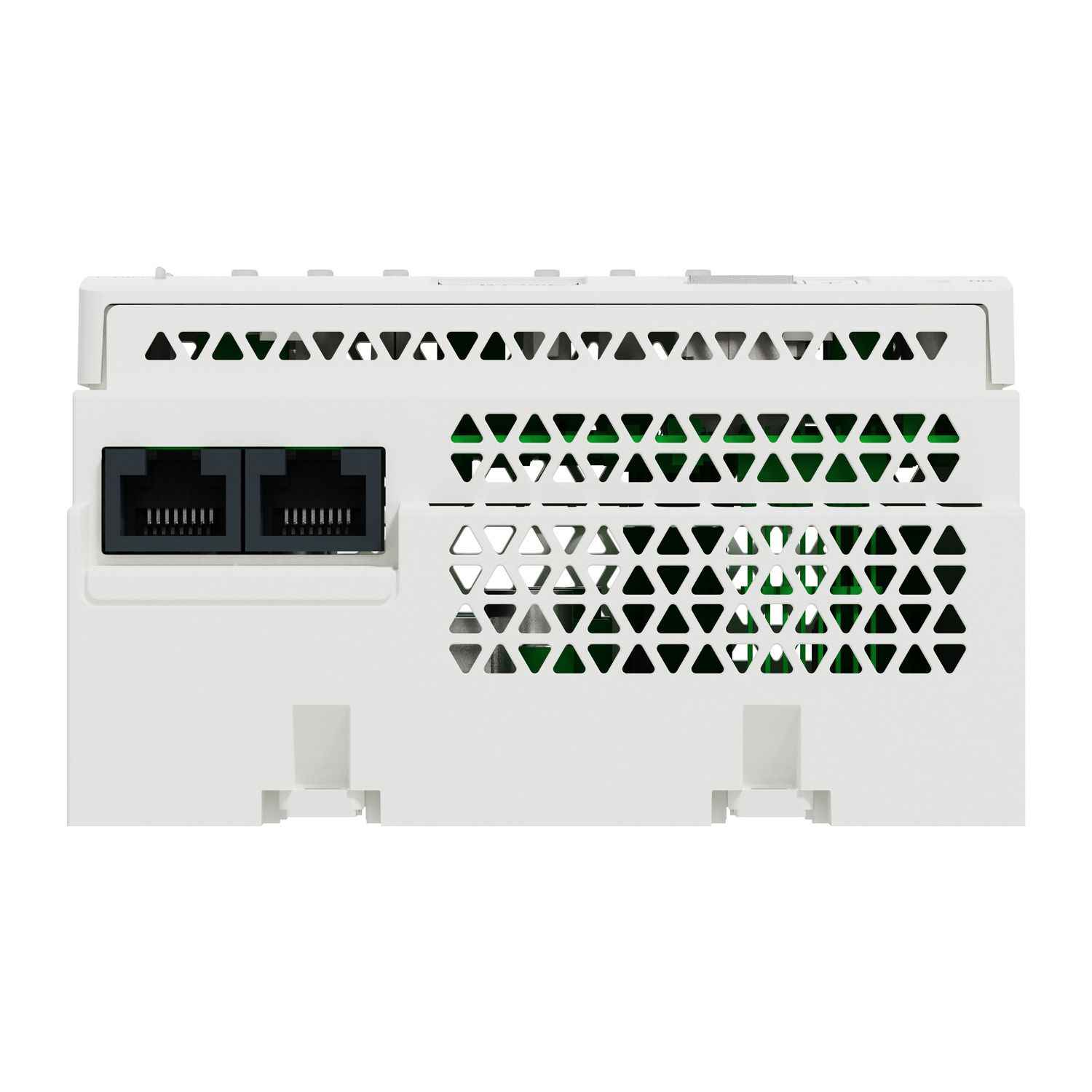

Connector type 2 RJ45
Software name SpaceLogic C-Bus Commission
Input voltage 110...240 V AC at 50/60 Hz
Input current 0.25 A
Supply maximum power 13 W
Total number of 18 mm modules 6
Mounting support DIN rail
Module configuration programmed with C-Bus software
[In] rated current 0.23 A
Height 93 mm
Connections - terminals screw terminals
Communication network type DALI, C-Bus
Environment
Ambient air temperature for storage -20-80 °C
Product certifications CE, RCM
Ambient air temperature for operation -5-45 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.8 cm
Package 1 Width 11.1 cm
Package 1 Length 15.6 cm
Package 1 Weight 0.359 kg
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 4.15 kg
