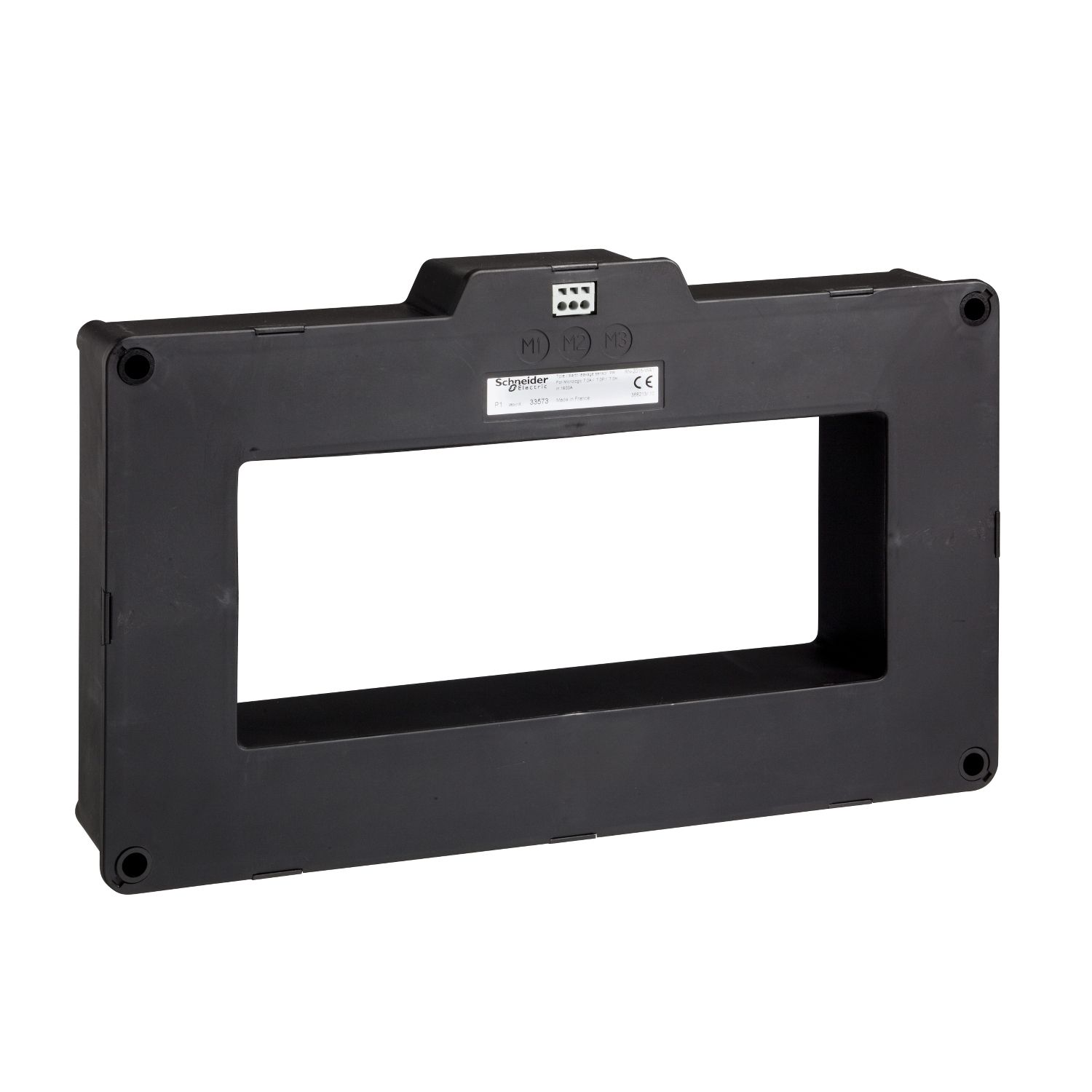

Picture of Rectangular sensor, MasterPact NW, ComPacT NS1600b/3200, earth leakage protection, 3200A, 470mm x 160mm, spare part
SKU:

33574

Rectangular sensor, MasterPact NW, ComPacT NS1600b/3200, earth leakage protection, 3200A, 470mm x 160mm, spare part

Old price: $9,239.45 INC GST
$7,576.35 INC GST
Available for Shipping : 12-Jan-2026
Rectangular sensor, MasterPact NW, ComPacT NS1600b/3200, earth leakage protection, 3200A, 470mm x 160mm, spare part
  • The solution covers ratings from 630 A to 6300 A
  • MicroLogic electronic control unit provides electrical measurement and analysis functions
  • MasterPact NT and ComPacT NS offers an optimized range of auxiliaries and accessories, field installable
  • Flexible installation in a switchboard or wall-mounted
  • Sustainability with Green packaging and Green partnerships
  • Linked to Smart Panels, improves uptime with complete monitoring solution
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
Declaration of conformity
User guide
Instruction sheet
Product Page Link
Product Data Sheet
This is a rectangular sensor for earth leakage protection for Compact NS 1600b to 3200 devices equipped with Micrologic 7 A/P trip unit. The sensor is installed around the busbars (phases + neutral) to detect the zero phase sequence current required for the earth-leakage protection. The operational current is up to 3200 A. The inside dimensions are 470mm (W) x 160mm (H) x 72mm (D). The external dimensions are 572mm (W) x 281mm (H) x 72mm (D). The weight is 18 Kg. The sensor is installed in the switchboard. The sensor is provided with a cable for the connection to Compact NS circuit breaker.

Products specifications

Attribute name Attribute value
Main
Device short name sensor + Vigi cable
Device application power supply
Range MasterPacT
Product or component type rectangular sensor
Range compatibility ComPact ComPact NS1600b...3200, Masterpact MasterPact NW
Range of product ComPact NS1600b...3200
Complementary
Current transformer type earth leakage protection
[In] rated current 3200 A, 2500 A, 2000 A, 1600 A, 1250 A, 1000 A, 800 A
Width outside: 572 mm, inside: 470 mm
Height outside: 281 mm, inside: 160 mm
Accessory / separate part category spare part for MasterPact NW, spare part for Compact NS1600b...3200
Depth 72 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 18.000 cm
Package 1 Width 65.000 cm
Package 1 Length 34.000 cm
Package 1 Weight 18.450 kg
Unit Type of Package 2 2
Number of Units in Package 2 9
Package 2 Height 67.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 180.675 kg
