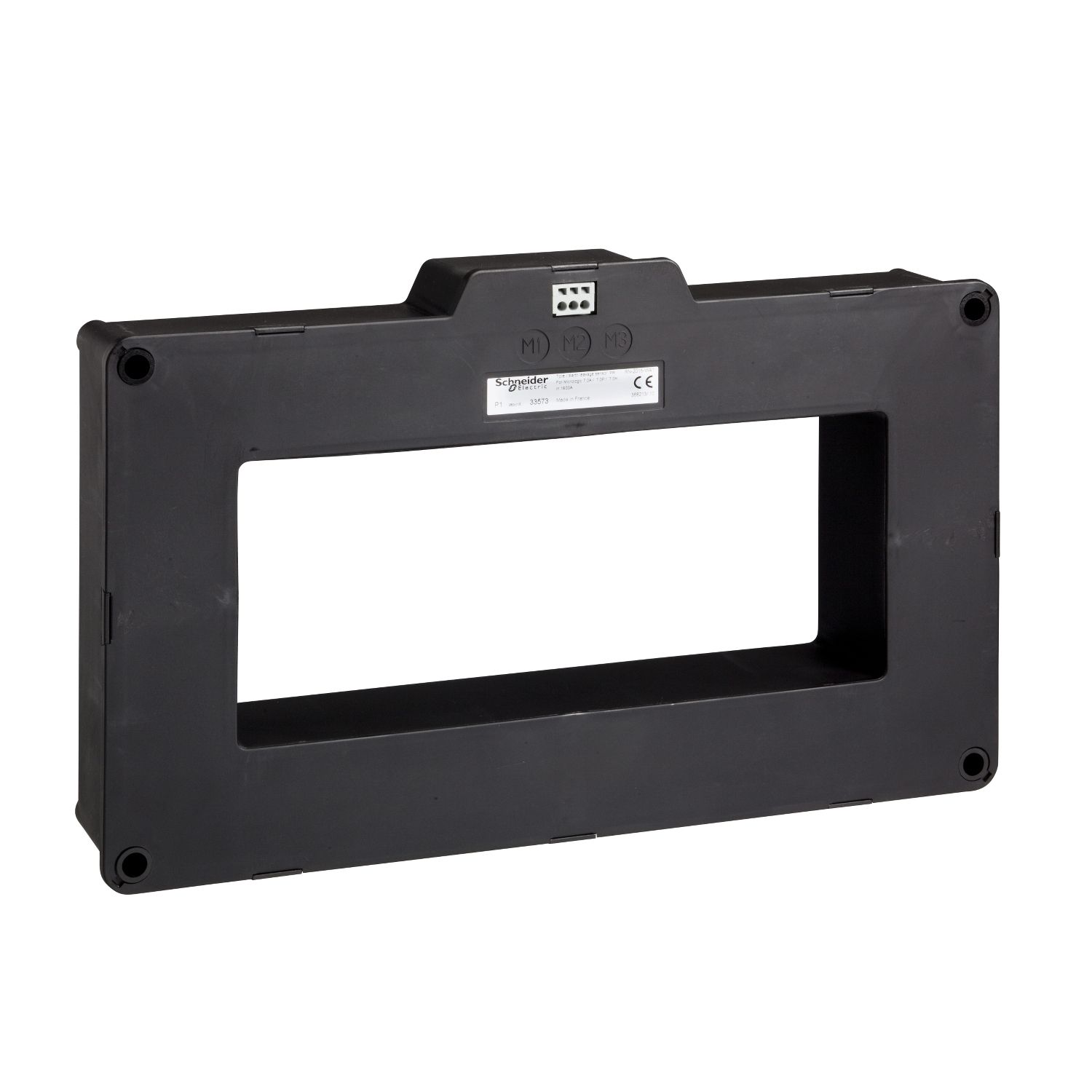

Picture of Rectangular sensor, MasterPact NT, ComPacT NS630b/1600, earth leakage protection, 1600A, 280mm x 115mm, spare part
SKU:

33573

Rectangular sensor, MasterPact NT, ComPacT NS630b/1600, earth leakage protection, 1600A, 280mm x 115mm, spare part

Old price: $6,946.50 INC GST
$5,696.13 INC GST
Available for Shipping : 18-Dec-2025
Rectangular sensor, MasterPact NT, ComPacT NS630b/1600, earth leakage protection, 1600A, 280mm x 115mm, spare part
  • The solution covers ratings from 630 A to 6300 A
  • MicroLogic electronic control unit provides electrical measurement and analysis functions
  • MasterPact NT and ComPacT NS offers an optimized range of auxiliaries and accessories, field installable
  • Flexible installation in a switchboard or wall-mounted
  • Sustainability with Green packaging and Green partnerships
  • Linked to Smart Panels, improves uptime with complete monitoring solution
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 18-Dec-2025
Catalog
User guide
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
This is a rectangular sensor for earth leakage protection for Compact NS 630b to 1600 devices equipped with Micrologic 7 A/P trip unit. The sensor is installed around the busbars (phases + neutral) to detect the zero phase sequence current required for the earth-leakage protection. The operational current is up to 1600 A. The inside dimensions are 280mm (W) x 115mm (H) x 71mm (D). The external dimensions are 381mm (W) x 233mm (H) x 71mm (D). The weight is 14 Kg. The sensor is installed in the switchboard. The sensor is provided with a cable for the connection to Compact NS circuit breaker.

Products specifications

Attribute name Attribute value
Main
Device short name sensor + Vigi cable
Device application power supply
Range MasterPacT
Product or component type rectangular sensor
Range compatibility ComPact ComPact NS630b...1600, Masterpact MasterPact NW, Masterpact MasterPact NT
Range of product ComPact NS630b...1600
Complementary
Current transformer type earth leakage protection
[In] rated current 1600 A, 1250 A, 1000 A, 800 A, 630 A
Width outside: 381 mm, inside: 280 mm
Height outside: 216 mm, inside: 115 mm
Accessory / separate part category spare part for Compact NS630b...1600, spare part for MasterPact NW, spare part for MasterPact NT
Depth 71 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 17.0 cm
Package 1 Width 30.0 cm
Package 1 Length 45.0 cm
Package 1 Weight 11.2 kg
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 30.0 cm
Package 2 Width 80.0 cm
Package 2 Length 120.0 cm
Package 2 Weight 195.36 kg
