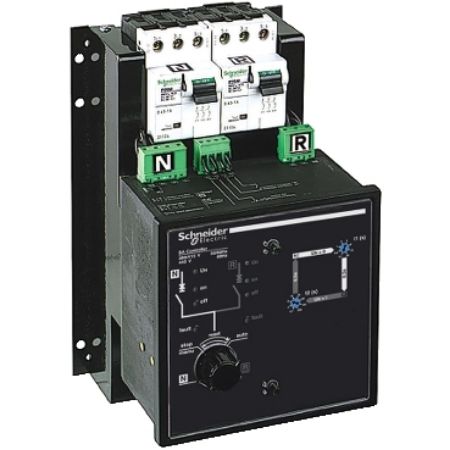

Picture of UA controller, TransferPacT source changeover, remote control system integrated, 380…415VAC at 50/60Hz, 440VAC at 60Hz
SKU:

29473

UA controller, TransferPacT source changeover, remote control system integrated, 380…415VAC at 50/60Hz, 440VAC at 60Hz

Old price: $4,010.60 INC GST
$3,280.67 INC GST
Available for Shipping : 13-Jan-2026
UA controller, TransferPacT source changeover, remote control system integrated, 380…415VAC at 50/60Hz, 440VAC at 60Hz
  • Control system plate.
  • Perform Electrical interlocking.
  • Customized running scenarios.
  • Compatible with manual source changeover in TransferPacT family.
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 13-Jan-2026
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
It is a remote controlled source changeover system for Compact NSX, Compact NS and Masterpact devices. It is composed of an ACP plate and of an automatic UA controller. This ACP provides in a single unit the protection of the controller, the control and the connection to the devices. The UA controller is used to create a source-changeover transfer from one source to another depending on the presence of voltage UN on the “Normal” source. UA controller integrates also the start-up of an engine generator set, the shedding and reconnection of non-priority circuits, the transfer to the “Replacement” source if one of the phases on the “Normal” source fails. The control voltage is from 380VAC to 415VAC 50/60Hz, or 440VAC 60Hz.

Products specifications

Attribute name Attribute value
Main
[Us] rated supply voltage 440 V AC at 60 Hz, 380...415 V AC at 50/60 Hz
Device short name ACP + UA
Product or component type interface and control unit
Accessory / separate part category interlocking accessory
Range compatibility Masterpact MasterPact NW circuit breaker, Masterpact MasterPact NT circuit breaker, ComPact ComPact NSX circuit breaker, ComPact ComPact NS circuit breaker
Range of product MasterPact NW, ComPact NS630b...1600, Compact NS100...630, MasterPact NT, NSX400...630, NSX100...250
Complementary
Product compatibility Compact NSX400...630, Compact NS630b...1600, Compact NSX100...250
Local signalling on, fault trip, off
Test function by pressing the test button on the front of the controller
Input type contacts customer voluntary order to transfer to source R
Compatibility code ACP+UA
[Ie] rated operational current DC-13: 2 A AC 24 V, DC-12: 8 A DC 24 V, DC-12: 2 A DC 48 V, DC-12: 0.6 A DC 110 V, DC-12: 0.4 A DC 250 V, AC-15: 5 A AC 48 V, AC-15: 5 A AC 24 V, AC-15: 4 A AC 110 V, AC-15: 3 A AC 220/240 V, AC-14: 5 A AC 48 V, AC-14: 5 A AC 24 V, AC-14: 4 A AC 220/240 V, AC-14: 4 A AC 110 V, AC-13: 7 A AC 48 V, AC-13: 7 A AC 24 V, AC-13: 6 A AC 220/240 V, AC-13: 6 A AC 110 V, AC-12: 8 A AC 48 V, AC-12: 8 A AC 24 V, AC-12: 8 A AC 220/240 V, AC-12: 8 A AC 110 V, AC-12: 5 A AC 380/415 V, AC-12: 4 A AC 440 V
Selection modes circuit breaker on N, circuit breaker on R
Output type contacts customer: indication of operation in automatic or stop mode
Operating mode forced operation on normal source, automatic operation, stop (both normal and replacement source off), forced operation on replacement source
Complementary function voluntary transfer to replacement source (e.g. energy management commands), selection of type of normal source (single-phase or three-phase), forced normal source if replacement source not operational during peak-tariff, setting of maximum startup time for the replacement source, additional contact: transfer to replacement source only if contact is closed
[Ith] conventional free air thermal current 8 A
Interlocked device Compact NS630b...1600, MasterPact NT, Compact NS100...630, NSX100...250, NSX400...630, MasterPact NW
Environment
IP degree of protection IP30 side: conforming to EN 60529, IP40 front: conforming to EN 60529, IP20 connectors: conforming to EN 60529
Standards IEC 947-5-1
IK degree of protection front: IK07 conforming to EN 50102
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 30.000 cm
Package 1 Width 30.000 cm
Package 1 Length 40.000 cm
Package 1 Weight 4.673 kg
Unit Type of Package 2 2
Number of Units in Package 2 16
Package 2 Height 90.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 81.488 kg
