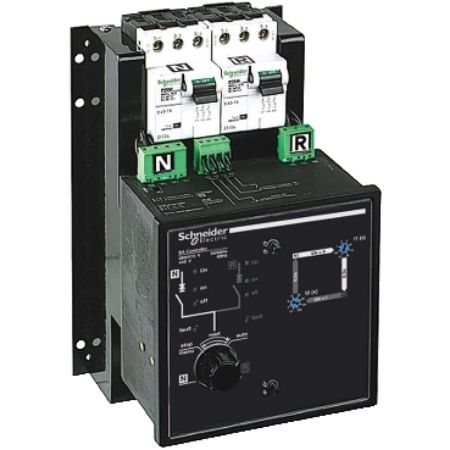

Picture of interface and automatic controller - ACP + UA - 110..127 V
SKU:

29448

interface and automatic controller - ACP + UA - 110..127 V

Old price: $4,010.60 INC GST
$3,280.67 INC GST
Available for Shipping : 14-Jan-2026
interface and automatic controller - ACP + UA - 110..127 V
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 14-Jan-2026
Instruction sheet
Catalog
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
[Us] rated supply voltage 110...127 V AC at 50/60 Hz
Device short name ACP + UA
Range ComPacT
Product or component type interface and control unit
Accessory / separate part category interlocking accessory
Range compatibility Masterpact MasterPact NW switch disconnector, Masterpact MasterPact NW circuit breaker, Masterpact MasterPact NT switch disconnector, Masterpact MasterPact NT circuit breaker, ComPact ComPact NSX circuit breaker, ComPact ComPact NS circuit breaker
Range of product Compact NS100...630, ComPact NS630b...1600, NSX400...630, MasterPact NT, MasterPact NW, NSX100...250
Complementary
Product compatibility Compact NSX400...630, Compact NSX100...250, Compact NS630b...1600
Local signalling on, fault trip, off
Test function by pressing the test button on the front of the controller
Input type contacts customer voluntary order to transfer to source R
[Ie] rated operational current DC-13: 2 A AC 24 V, DC-12: 8 A DC 24 V, DC-12: 2 A DC 48 V, DC-12: 0.6 A DC 110 V, DC-12: 0.4 A DC 250 V, AC-15: 5 A AC 48 V, AC-15: 5 A AC 24 V, AC-15: 4 A AC 110 V, AC-15: 3 A AC 220/240 V, AC-14: 5 A AC 48 V, AC-14: 5 A AC 24 V, AC-14: 4 A AC 220/240 V, AC-14: 4 A AC 110 V, AC-13: 7 A AC 48 V, AC-13: 7 A AC 24 V, AC-13: 6 A AC 220/240 V, AC-13: 6 A AC 110 V, AC-12: 8 A AC 48 V, AC-12: 8 A AC 24 V, AC-12: 8 A AC 220/240 V, AC-12: 8 A AC 110 V, AC-12: 5 A AC 380/415 V, AC-12: 4 A AC 440 V
Selection modes circuit breaker on R, circuit breaker on N
Output type contacts customer: indication of operation in automatic or stop mode
Operating mode automatic operation, forced operation on replacement source, forced operation on normal source, stop (both normal and replacement source off)
Complementary function voluntary transfer to replacement source (e.g. energy management commands), selection of type of normal source (single-phase or three-phase), forced normal source if replacement source not operational during peak-tariff, setting of maximum startup time for the replacement source, additional contact: transfer to replacement source only if contact is closed
[Ith] conventional free air thermal current 8 A
Interlocked device NSX100...250, Compact NS630b...1600, NSX400...630, MasterPact NW, Compact NS100...630, MasterPact NT
Environment
IP degree of protection IP30 side: conforming to EN 60529, IP40 front: conforming to EN 60529, IP20 connectors: conforming to EN 60529
Standards IEC 947-5-1
IK degree of protection front: IK07 conforming to EN 50102
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.0 cm
Package 1 Width 16.5 cm
Package 1 Length 29.0 cm
Package 1 Weight 4.348 kg
