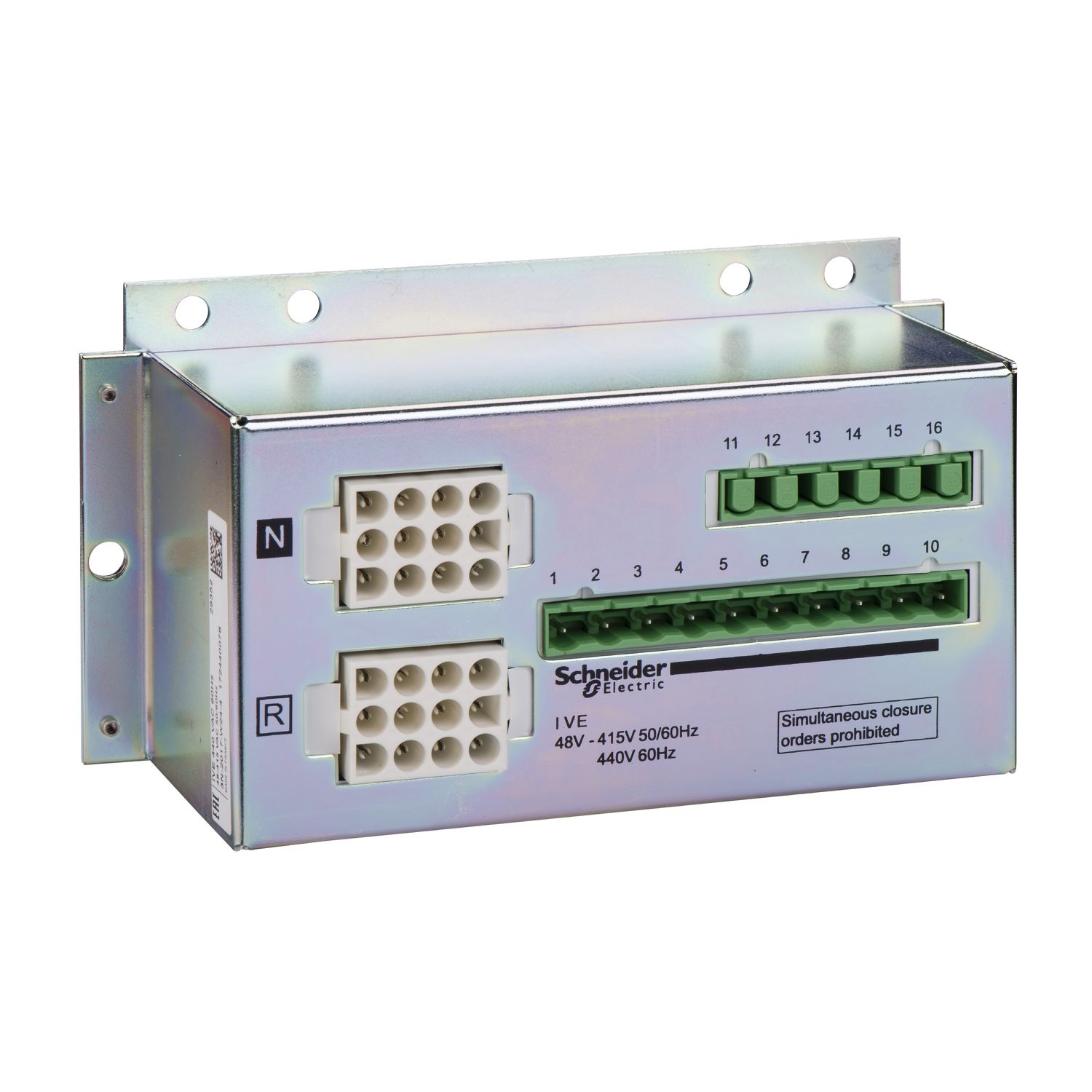

Picture of electrical interlocking, TransferPacT interlock accessory, IVE, 48…415VAC at 50/60Hz, 440VAC at 60Hz
SKU:

29352

electrical interlocking, TransferPacT interlock accessory, IVE, 48…415VAC at 50/60Hz, 440VAC at 60Hz

Old price: $1,346.40 INC GST
$1,101.36 INC GST
Available for Shipping : 16-Dec-2025
electrical interlocking, TransferPacT interlock accessory, IVE, 48…415VAC at 50/60Hz, 440VAC at 60Hz
  • Control unit accessory.
  • Component of control unit.
  • Free instrallation with the panel.
  • Compatible with manual source changeover in TransferPacT family.
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 16-Dec-2025
Catalog
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
It is an IVE integrated control circuit for the electrical interlocking of Compact NSX, Compact NS and Masterpact devices. The electrical interlocking is used with a mechanical interlocking system. The relays controlling the closing order to the “N” and “R” circuit breakers must be mechanically and/or electrically interlocked to prevent them from giving simultaneous closing commands. The control voltage is from 48VAC to 415VAC 50/60Hz, or 440VAC 60Hz.

Products specifications

Attribute name Attribute value
Main
[Us] rated supply voltage 48...415 V AC at 50/60 Hz, 440 V AC at 60 Hz
Device short name IVE
Device application interlocking
Range TransferPacT, ComPacT, MasterPacT
Product or component type electrical interlocking with plate
Accessory / separate part category interlocking accessory
Range compatibility Masterpact MasterPact NW circuit breaker, Masterpact MasterPact NT circuit breaker, ComPact ComPact NSX circuit breaker, ComPact ComPact NS circuit breaker
Range of product MasterPact NW, NS100...250, MasterPact NT, NS630b...1600, NSX100...250, NSX400...630
Complementary
Product compatibility Compact NS630b...1600, Compact NSX100...250, Compact NSX400...630
Range compatibility MasterPact NT, MasterPact NW, Compact NS, Compact NSX
Control type remote control
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.200 cm
Package 1 Width 12.600 cm
Package 1 Length 17.200 cm
Package 1 Weight 762.400 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 9.549 kg
