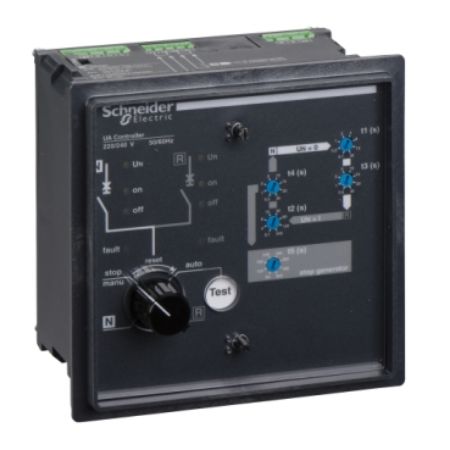

Picture of UA controller, TransferPacT source changeover, automatic control system integrated, 220…240VAC at 50/60Hz
SKU:

29378

UA controller, TransferPacT source changeover, automatic control system integrated, 220…240VAC at 50/60Hz

Old price: $2,710.40 INC GST
$2,217.11 INC GST
Available for Shipping : 04-Jan-2026
UA controller, TransferPacT source changeover, automatic control system integrated, 220…240VAC at 50/60Hz
  • Control system plate.
  • Perform Electrical interlocking.
  • Customized running scenarios.
  • Compatible with manual source changeover in TransferPacT family.
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 04-Jan-2026
Declaration of conformity
Instruction sheet
Catalog
Product Page Link
Product Data Sheet
It is an automatic UA controller of source changeover system for Compact NSX, Compact NS and Masterpact devices. It allows the transfer from one source to another one, the engine generator set start-up and the load shedding. It may be installed directly on the Transferpact ACP control plate or mounted on the front panel of the switchboard. The control voltage is from 220VAC to 240VAC 50/60Hz.

Products specifications

Attribute name Attribute value
Main
Device short name UA
Product name UA
Product or component type control unit
Range of product Compact NS100...630, MasterPact NW, MasterPact NT, ComPact NS630b...1600
Complementary
[Us] rated supply voltage 220...240 V AC at 50/60 Hz
Local signalling off, on, fault trip
Test function by pressing the test button on the front of the controller
Input type contacts customer voluntary order to transfer to source R
Compatibility code UA
[Ie] rated operational current DC-13: 2 A 24 V, AC-12: 5 A AC 380/415 V, AC-12: 4 A AC 440 V
Selection modes circuit breaker on N, circuit breaker on R
Output type contacts customer: indication of operation in automatic or stop mode
Genset exerciser adjustable delayed shutdown, startup control
Operating mode forced operation on normal source, automatic operation, stop (both normal and replacement source off), forced operation on replacement source
Complementary function additional contact: transfer to replacement source only if contact is closed, forced normal source if replacement source not operational during peak-tariff, voluntary transfer to replacement source (e.g. energy management commands), setting of maximum startup time for the replacement source, selection of type of normal source (single-phase or three-phase)
[Ith] conventional free air thermal current 8 A
Interlocked device MasterPact NT, Compact NS630b...1600, Compact NS100...630, MasterPact NW
Environment
IP degree of protection IP30 side: conforming to EN 60529, IP40 front: conforming to EN 60529, IP20 connectors: conforming to EN 60529
Standards IEC 947-5-1
IK degree of protection front: IK07 conforming to EN 50102
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 15.6 cm
Package 1 Width 15.6 cm
Package 1 Length 18.0 cm
Package 1 Weight 1.586 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.0 cm
Package 2 Width 40.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 10.282 kg
