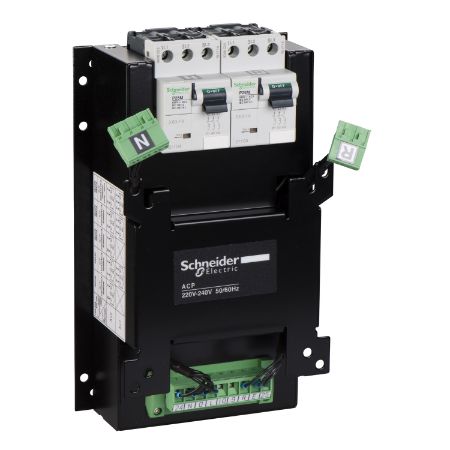

Picture of interface accessory, TransferPacT automatic control plate, 220…240VAC at 50/60Hz
SKU:

29363

interface accessory, TransferPacT automatic control plate, 220…240VAC at 50/60Hz

Old price: $1,386.00 INC GST
$1,133.75 INC GST
Availability: Please contact our sales team on 1300 724 622.
interface accessory, TransferPacT automatic control plate, 220…240VAC at 50/60Hz
  • Control system plate.
  • Perform Electrical interlocking.
  • Customized running scenarios.
  • Compatible with manual source changeover in TransferPacT family.
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Instruction sheet
Catalog
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
[Us] rated supply voltage 220...240 V AC at 50/60 Hz
Device short name ACP
Range ComPacT
Product or component type control plate
Accessory / separate part category interlocking accessory
Range compatibility Masterpact MasterPact NW switch disconnector, Masterpact MasterPact NW circuit breaker, Masterpact MasterPact NT switch disconnector, Masterpact MasterPact NT circuit breaker, ComPact ComPact NSX circuit breaker, ComPact ComPact NS circuit breaker
Range of product NSX400...630, NSX100...250, Compact NS100...630, MasterPact NT, MasterPact NW, ComPact NS630b...1600
Complementary
Product compatibility Compact NS630b...1600, Compact NSX400...630, Compact NSX100...250
Input type contacts customer voluntary order to transfer to source R
Selection modes circuit breaker on N, circuit breaker on R
Output type contacts customer: indication of operation in automatic or stop mode
Interlocked device NSX100...250, NSX400...630, Compact NS630b...1600, Compact NS100...630, MasterPact NT, MasterPact NW
Environment
IP degree of protection IP30 side: conforming to EN 60529, IP40 front: conforming to EN 60529, IP20 connectors: conforming to EN 60529
IK degree of protection front: IK07 conforming to EN 50102
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 12.400 cm
Package 1 Width 16.400 cm
Package 1 Length 27.500 cm
Package 1 Weight 2.121 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 13.426 kg
Unit Type of Package 3 3
Number of Units in Package 3 24
Package 3 Height 45.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 64.904 kg
