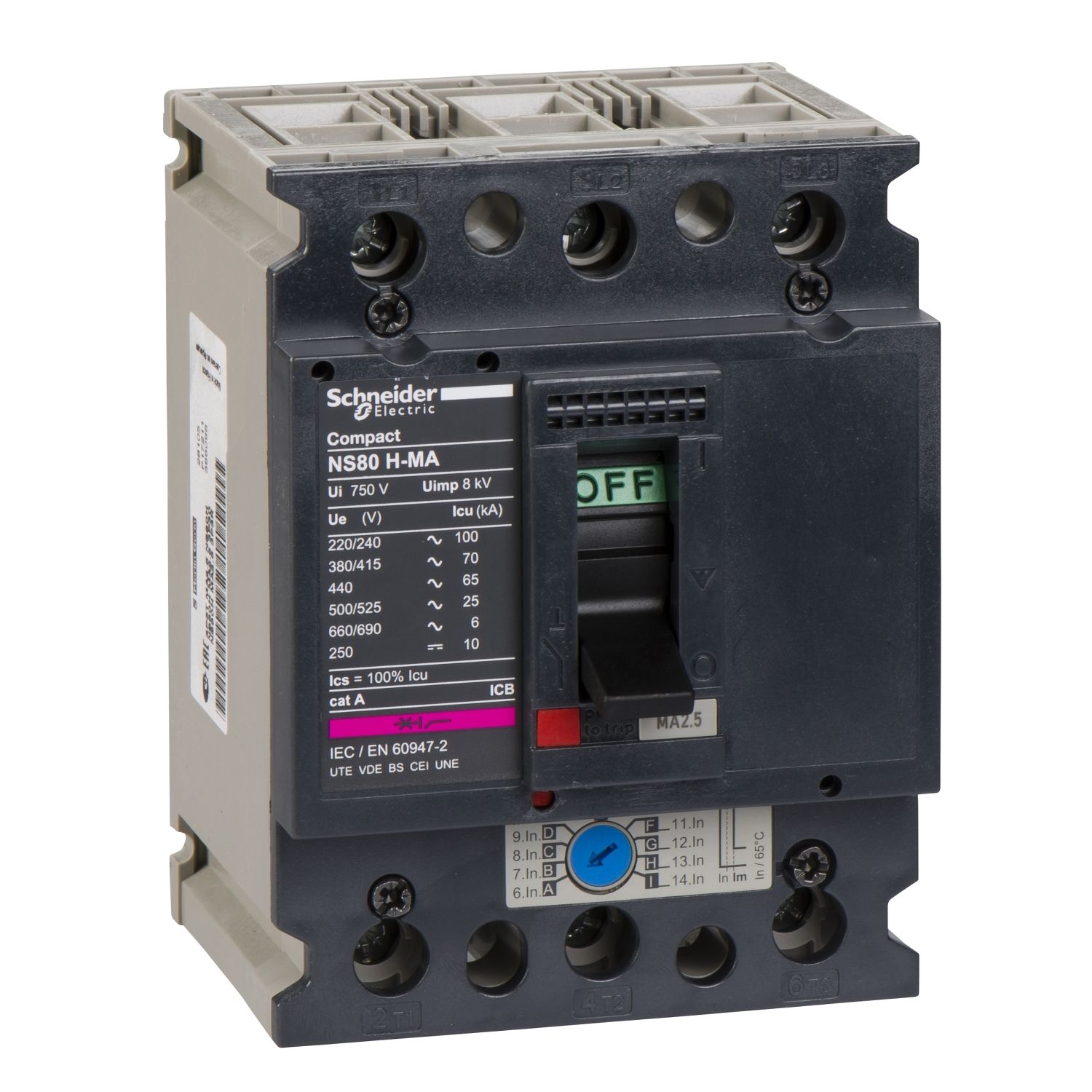

Circuit breaker, Compact NS80H, MA trip unit, 2.5A, 3P 3d

Old price: $894.30 INC GST
$731.54 INC GST
Availability: Please contact our sales team on 1300 724 622.
Circuit breaker, Compact NS80H, MA trip unit, 2.5A, 3P 3d
  • Compact NS80H MA molded case circuit breakers are pending obsolescence in 2018
  • It is replaced by TeSys GV4
  • TeSys GV4 is a compact, robust and innovative range of motor circuit breakers
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
User guide
Product Page Link
Product Data Sheet
This Compact NS80H is a complete 3 poles fixed circuit breaker for motor protection applications.. The breaking capacity (Icu) is 70kA rms at 415VAC 50/60Hz. This product embeds a magnetic MA trip unit, with 2.5A rating. Dimensions are 90mm (W) x 120mm (H) x 80mm (D).

Products specifications

Attribute name Attribute value
Main
Circuit breaker name Compact NS80H
Trip unit technology magnetic
Device short name Compact NS80H
Device application motor
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-2
Protection type short-circuit protection (magnetic)
Poles description 3P
Trip unit rating 2.5-2.5 A
Suitability for isolation yes conforming to IEC 60947-2
[Ui] rated insulation voltage 750 V AC 50/60 Hz conforming to IEC 60947-2
Breaking capacity 70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 6 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2, 25 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2, 25 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 65 kA at 480 V AC 50/60 Hz conforming to NEMA AB1, 100 kA at 240 V AC 50/60 Hz conforming to NEMA AB1, 10 kA at 600 V AC 50/60 Hz conforming to NEMA AB1
Pollution degree 3 conforming to IEC 60947
Utilisation category category A
Range ComPacT
Product or component type circuit breaker
Protected poles description 3t
Breaking capacity code H
Network type AC
[Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
Range of product NS80H-MA
Trip unit name MA
[In] rated current 80 A at 65 °C
[Ics] rated service breaking capacity 70 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 65 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2, 6 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2, 25 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2, 25 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
Network frequency 50/60 Hz
Complementary
Depth 80 mm
Width 90 mm
Local signalling positive contact indication
Compatibility code NS80
Mechanical durability 20000 cycles
Electrical durability 7000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-2, 10000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-2
Mounting mode fixed
Upside connection tunnel terminal
Control type toggle
Zone selective interlocking ZSI without
Instantaneous pick-up adjustment type Ii adjustable
Downside connection tunnel terminal
Instantaneous pick-up adjustment range 6...14 x In
Mounting support backplate
Earth-leakage protection without
Height 120 mm
Environment
Ambient air temperature for storage -50-85 °C
IP degree of protection IP40 conforming to IEC 60529
Standards IEC 60947-2
Ambient air temperature for operation -25-70 °C
IK degree of protection IK07 conforming to EN 50102
Product certifications ASTA, KEMA, ASEFA, LCIE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 15.5 cm
Package 1 Width 9.5 cm
Package 1 Length 12.5 cm
Package 1 Weight 1.049 kg
