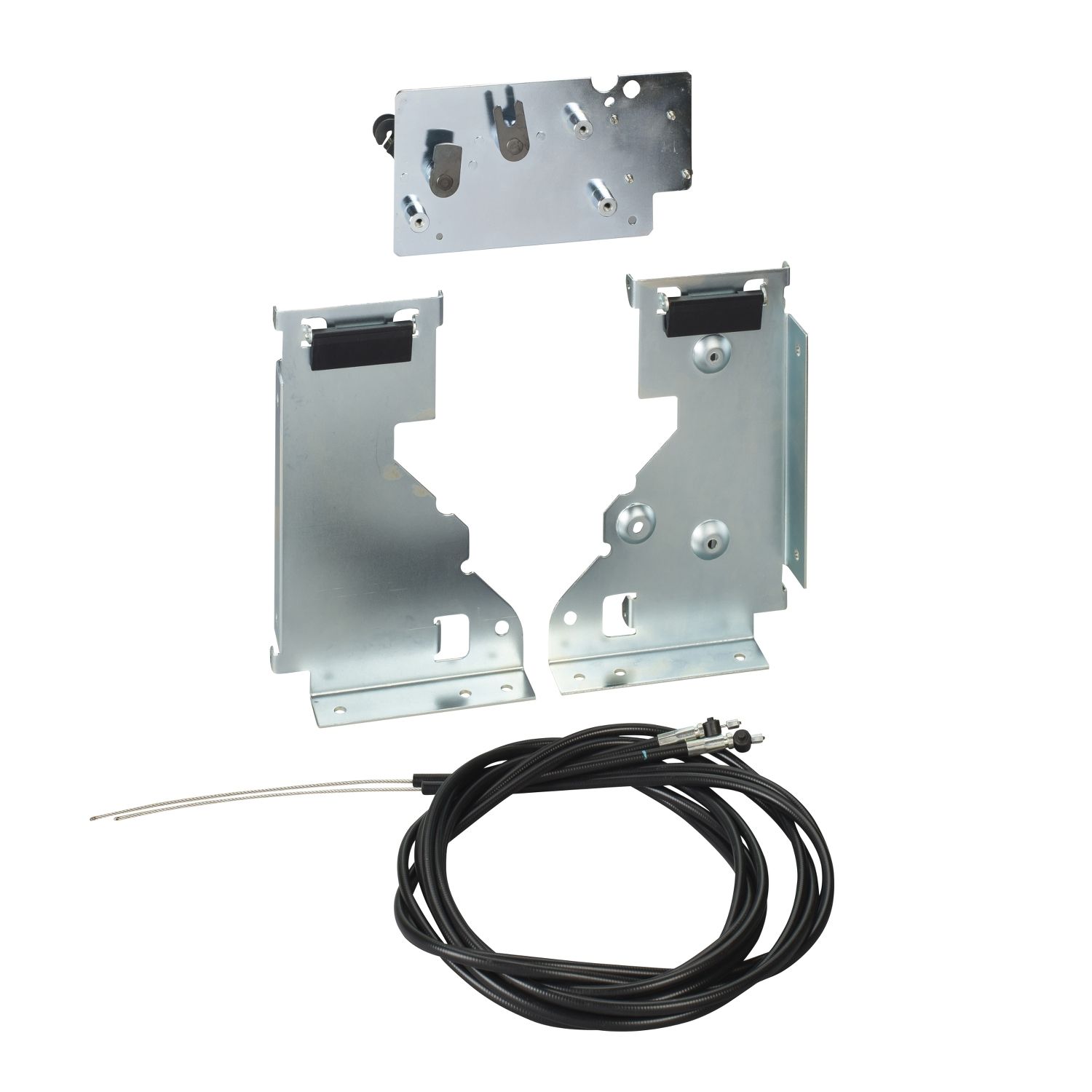

Picture of mechanical interlocking using cables, ComPact N630b to NS1600, source changeover for 2 fixed devices
SKU:

33911

mechanical interlocking using cables, ComPact N630b to NS1600, source changeover for 2 fixed devices

Old price: $3,324.20 INC GST
$2,659.36 INC GST
Available for Shipping : 13-Jan-2026
mechanical interlocking using cables, ComPact N630b to NS1600, source changeover for 2 fixed devices
  • ComPacT NS is a range of circuit breakers for built-in power & energy metering
  • The solution covers ratings from 630 A to 3200 A
  • MicroLogic electronic control unit provides electrical measurement and analysis functions
  • ComPacT NS offers an optimized range of auxiliaries and accessories, field installable
  • Flexible installation, in any position, in a switchboard or wall-mounted
  • New transparent front cover with visible auxiliaries
  • New toggle with ergonomic touch and optional LED blinking in trip position
  • Wireless auxiliary contact OF/SD in Zigbee
  • Sustainability with Green packaging and Green partnerships
  • Linked to Smart Panels, improves uptime with complete monitoring solution
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 13-Jan-2026
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
This is a complete assembly for cable interlocking of two Compact NS630b to 1600 electrically operated, in fixed version. For cable interlocking, the circuit breakers may be mounted one above the other or side-by-side. This assembly is made of 2 adaptation fixtures mounted on the right side of each device and a set of cables with no-slip adjustments. The interlocked devices may be 3 poles or 4 poles, and have different ratings and sizes.

Products specifications

Attribute name Attribute value
Main
Mounting mode fixed + fixed
Range ComPacT
Product or component type cable interlock
Accessory / separate part category interlocking accessory
Range compatibility ComPact ComPact NS630b...1600
Range of product ComPact NS630b...1600
Complementary
Accessory / separate part category spare part for Compact NS630b...1600
Control type remote control
Source-changeover interlock interlocking 2 sources
Interlocked device Compact NS630b...1600
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.000 cm
Package 1 Width 16.000 cm
Package 1 Length 21.000 cm
Package 1 Weight 1.522 kg
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.443 kg
Unit Type of Package 3 3
Number of Units in Package 3 16
Package 3 Height 45.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 39.544 kg
