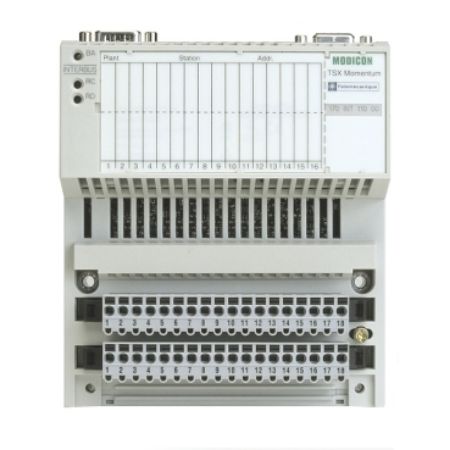

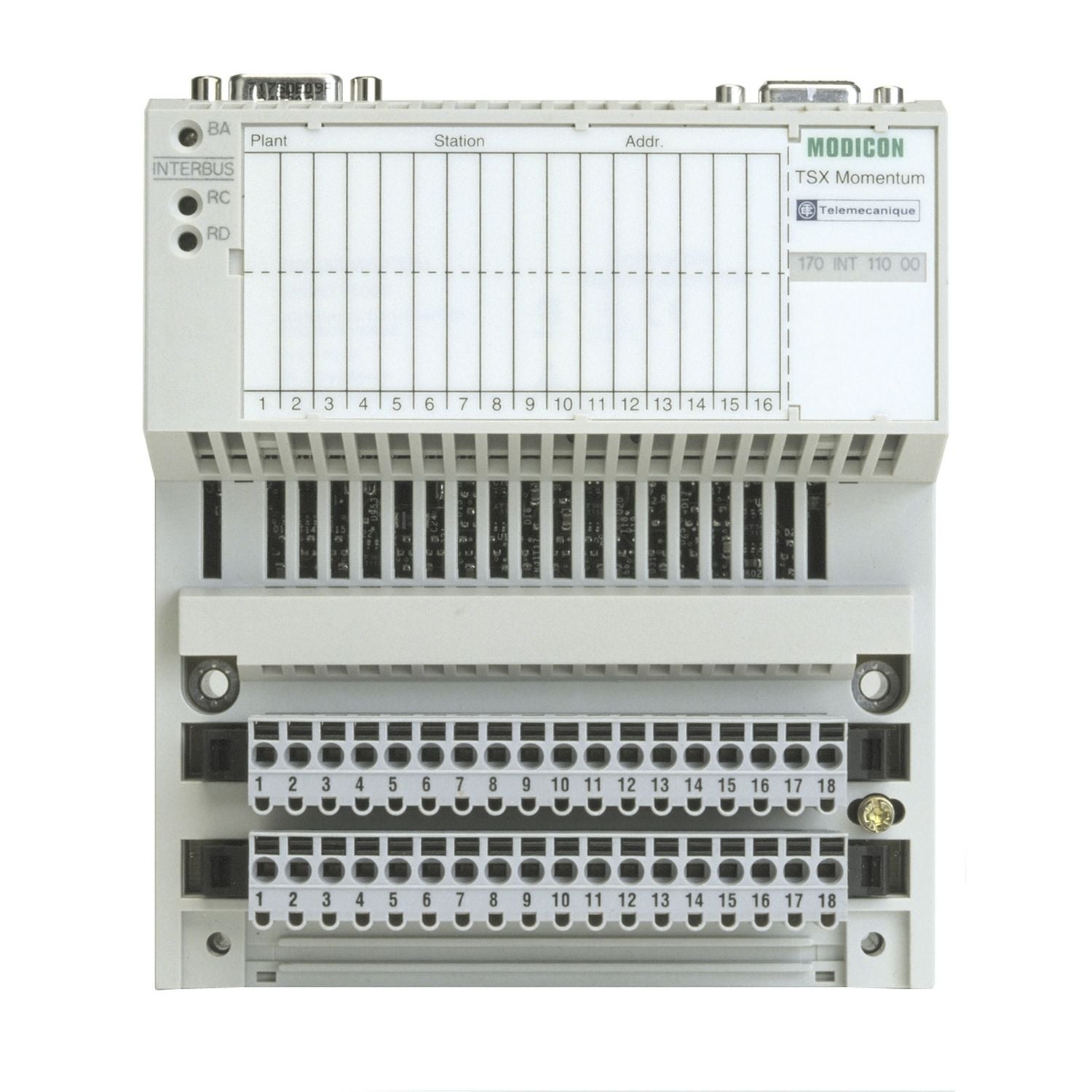

Picture of Modicon Momentum - Interbus communication adaptor - twisted pair
SKU:

170INT11000

Modicon Momentum - Interbus communication adaptor - twisted pair

$872.72 INC GST
Available for Shipping : 12-Jan-2026
Modicon Momentum - Interbus communication adaptor - twisted pair
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Instruction sheet
User guide
Declaration of conformity
Product Page Link
Product Data Sheet
This adaptor is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. The Interbus communication adaptor supports ring topology. It offers twisted pair cable transmission support medium and 500kbps data transmission rate. The adaptor is accessible through the continuous shift register and master/slave method. It is furnished with 2 D-sub (DE-09) connectors for connecting Interbus. It is an IP20 rated product. It weighs 0.07kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM Class 1 Division 2, CSA and UL. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.

Products specifications

Attribute name Attribute value
Main
Method of access master/slave, continuous shift register
Range of product Modicon Momentum automation platform
Transmission rate 500 kbit/s
Communication port protocol Interbus generation SUPI 2
Transmission support medium twisted pair
Product or component type Interbus communication adaptor
Complementary
Module format standard
Topology ring
Control parameter CRC-16
Marking CE
Number of devices per segment 0-254
Maximum cable distance between devices 400 m between two modules, 12800 m
Local signalling 1 LED (green) for remote bus disabled (RD), 1 LED (green) for remote bus check (RC), 1 LED (green) for bus enable (BA)
Net weight 0.07 kg
Fail state fail safe
Supply from I/O base
Electrical connection 2 connectors SUB-D 9 for connecting Interbus
Environment
IP degree of protection IP20
Protective treatment TC
Resistance to electrostatic discharge 8 kV on air conforming to IEC 801-2, 4 kV contact conforming to IEC 801-2
Relative humidity 95-95 % without condensation
Ambient air temperature for storage -40-85 °C
Resistance to electromagnetic fields 10 V/m 80...1000 MHz conforming to IEC 801-3
Ambient air temperature for operation 0-60 °C
Operating altitude <= 5000 m
Product certifications CSA, FM Class 1 Division 2, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.600 cm
Package 1 Width 17.800 cm
Package 1 Length 26.000 cm
Package 1 Weight 188.000 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.174 kg
