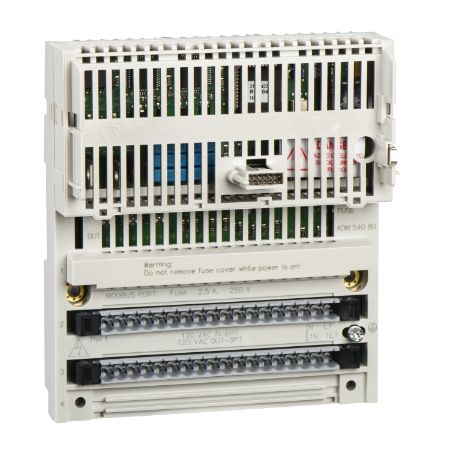

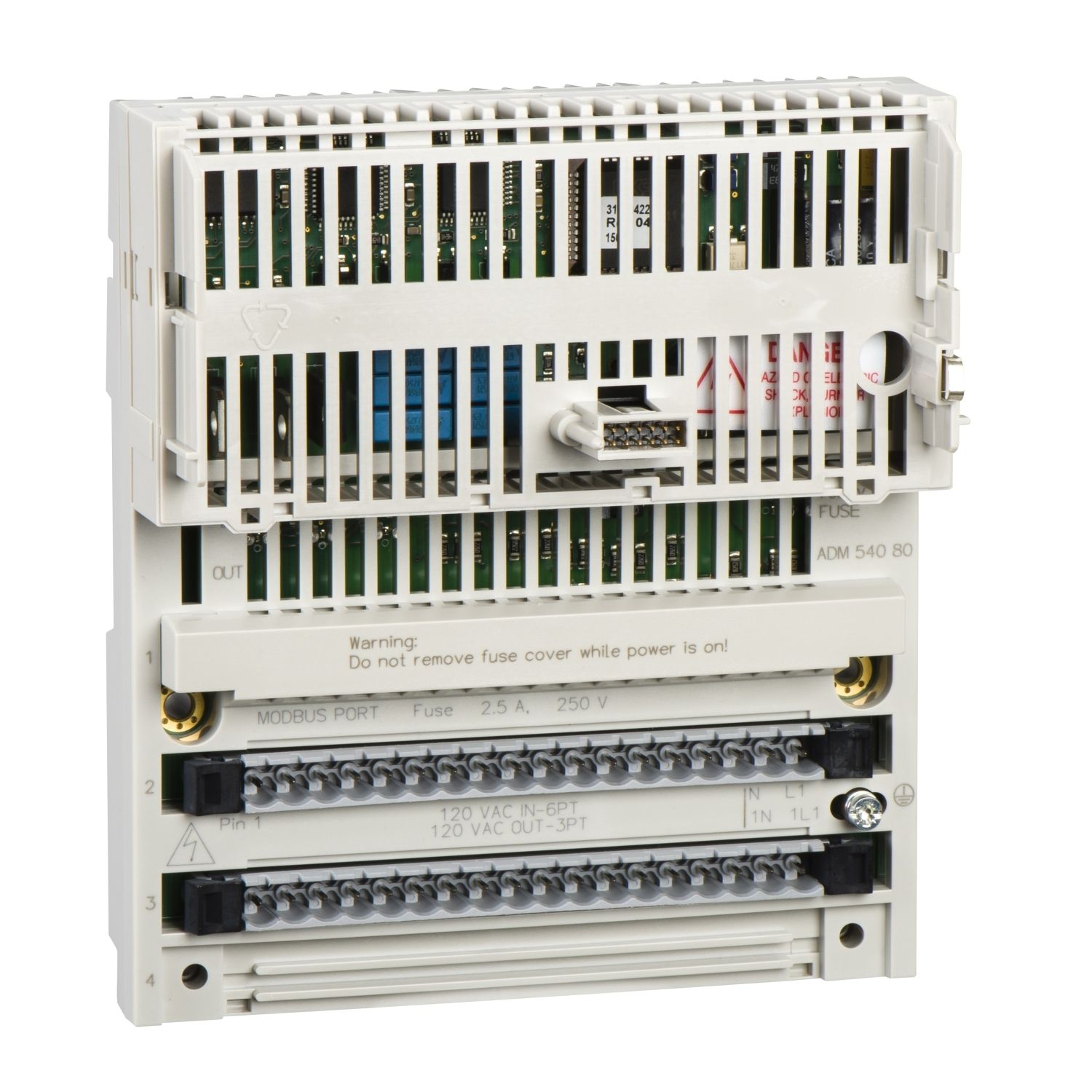

Picture of Modicon Momentum - Modbus I/O module base - 6 I / 3 O
SKU:

170ADM54080

Modicon Momentum - Modbus I/O module base - 6 I / 3 O

$3,878.49 INC GST
Availability: Please contact our sales team on 1300 724 622.
Modicon Momentum - Modbus I/O module base - 6 I / 3 O
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Circularity Profile
Declaration of conformity
User guide
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Number of port 1
Range of product Modicon Momentum automation platform
Group of channels 1 group of 3 discrete outputs, 1 group of 6 discrete inputs
Wiring mode 2 or 4 wires
Discrete input number 6
Communication port protocol Modbus
Discrete output number 3
Product or component type Modbus I/O module base
Complementary
Voltage state 1 guaranteed >= 79 V
Port timeout 150 ms
Input overvoltage protection 200-200 V
Discrete input logic positive
Current state 1 guaranteed >= 5.5 mA
Communication port support RS485
Discrete output voltage 120 V 47...63 Hz
Discrete output current 1.5 mA per module, 0.5 mA per point
Marking CE
Data format 7-bit ASCII, 8-bit RTU
Discrete input voltage 0...132 V AC, 120 V AC 47...63 Hz
Discrete output logic positive
Transmission rate 19200 bit/s, 9600 bit/s
Number of addresses 0-247
Maximum leakage current 1.9 mA AC 120 V
Voltage state 0 guaranteed <= 20 V
Net weight 0.24 kg
Response time < 12.5 ms 60 Hz from state 0 to state 1 output circuit, < 12.5 ms 60 Hz from state 0 to state 1 input circuit, < 12.3 ms 60 Hz from state 1 to state 0 output circuit, < 12.3 ms 60 Hz from state 1 to state 0 input circuit
Surge current 30 mA
Current state 0 guaranteed <= 1.9 mA
Current consumption 125 mA at 120 V
Maximum voltage drop <1.5 V 0.5 A at state on
Electrical connection 2 connectors for removable terminal blocks
Environment
Protective treatment TC
Resistance to electrostatic discharge 8 kV on air conforming to IEC 801-2, 4 kV contact conforming to IEC 801-2
Relative humidity 95-95 % without condensation
Ambient air temperature for storage -40-85 °C
Resistance to electromagnetic fields 10 V/m 80...1000 MHz conforming to IEC 801-3
Ambient air temperature for operation 0-60 °C
Operating altitude <= 5000 m
Product certifications UL, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.700 cm
Package 1 Width 17.000 cm
Package 1 Length 21.000 cm
Package 1 Weight 456.000 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.514 kg
