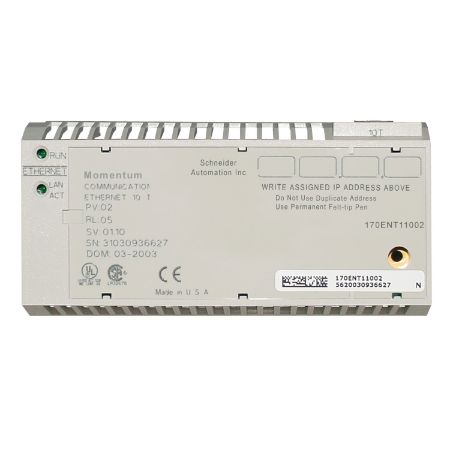

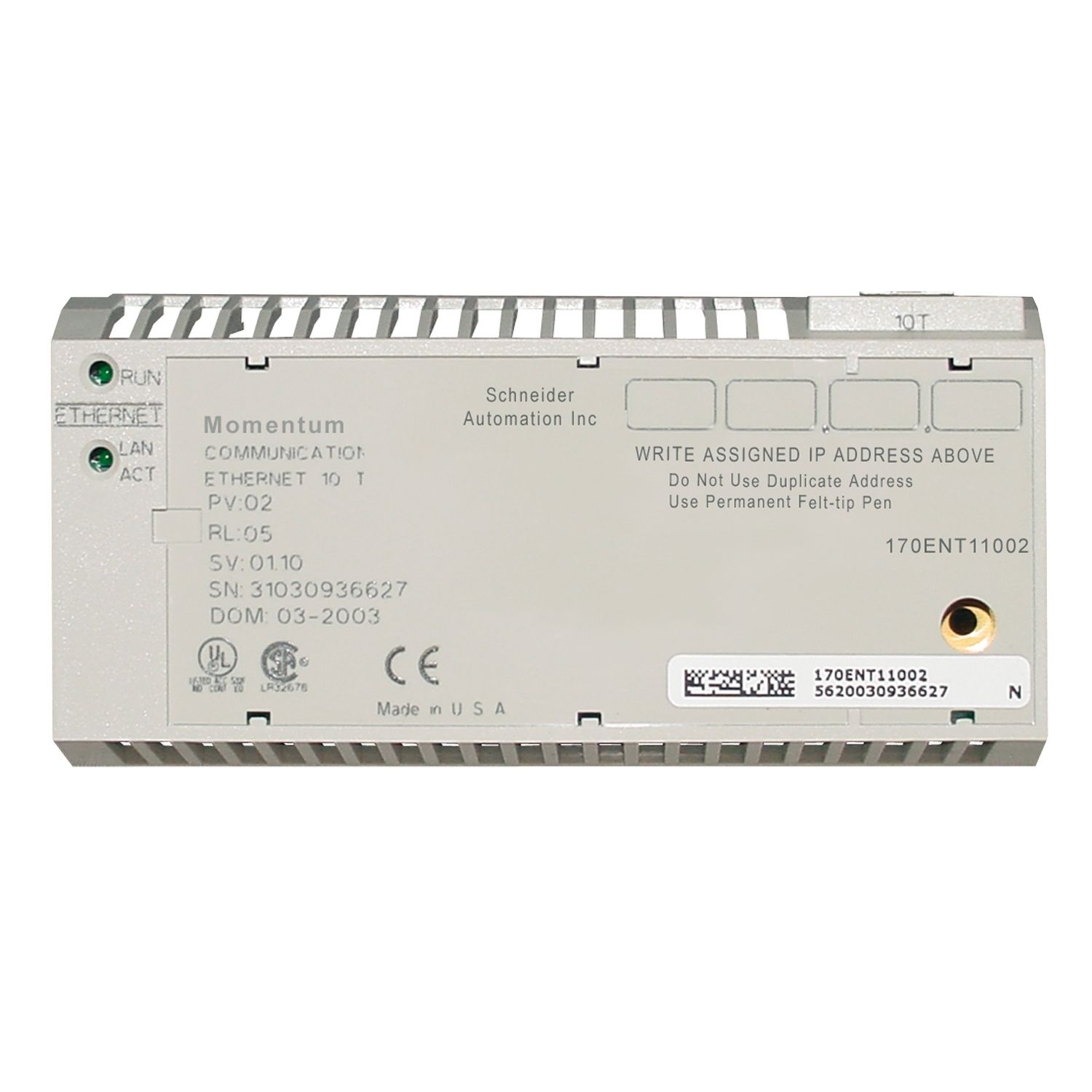

Picture of Modicon Momentum - Ethernet communication adaptor - 10 Mbit/s
SKU:

170ENT11002

Modicon Momentum - Ethernet communication adaptor - 10 Mbit/s

$1,497.76 INC GST
Available for Shipping : 12-Jan-2026
Modicon Momentum - Ethernet communication adaptor - 10 Mbit/s
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Instruction sheet
User guide
Declaration of conformity
Product Page Link
Product Data Sheet
This Ethernet communication adaptor is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This adaptor provides a direct connection to Ethernet based networks. It can be plugged to any Momentum I/O module base. The adaptor provides the processor with additional networking capabilities, a time-of-day clock, and a battery back-up. This adaptor replaces existing 170ENT11000 adaptor, including an enhanced grounding system and a relocated communication connector. This adaptor is configured through the Modbus TCP/IP protocol. It weighs 0.07kg. It allows the I/O module to communicate on the Ethernet network. This module meets Interbus standards for electrical noise immunity. The adaptor is locked in place by clips. Modicon Momentum is a flexible, modular family of fundamental components. Modicon Momentum products are specially designed for material handling, simple machine control, and building automation applications.

Products specifications

Attribute name Attribute value
Main
Method of access master/slave, peer to peer
Range of product Modicon Momentum automation platform
Transmission rate 10 Mbit/s
Communication port protocol Ethernet TCP/IP
Transmission support medium shielded twisted pairs cable
Product or component type Ethernet TCP/IP communication adaptor
Complementary
Topology multidrop, star network
Control parameter CRC-32
Marking CE
Module configuration BOOTP server to assign IP parameters
Number of devices per segment 0-32
Addressing IP address user assigned, unique IEEE global address
Maximum cable distance between devices 1000 m without repeater
Port Ethernet 10BASE-T
Local signalling 1 LED (green) for module active (RUN), 1 LED (green) for Ethernet network state (LAN)
Net weight 0.07 kg
Fail state fail safe
Supply from I/O base
Electrical connection 1 connector RJ45 for 10BASE-TX
Environment
IP degree of protection IP20
Protective treatment TC
Resistance to electrostatic discharge 8 kV on air conforming to IEC 801-2, 4 kV contact conforming to IEC 801-2
Relative humidity 95-95 % without condensation
Ambient air temperature for storage -40-85 °C
Resistance to electromagnetic fields 10 V/m 80...1000 MHz conforming to IEC 801-3
Ambient air temperature for operation 0-60 °C
Operating altitude <= 5000 m
Standards FM Class 1 Division 2, CSA
Product certifications CSA, FM Class 1 Division 2, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.800 cm
Package 1 Width 17.800 cm
Package 1 Length 26.000 cm
Package 1 Weight 219.000 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.200 kg
