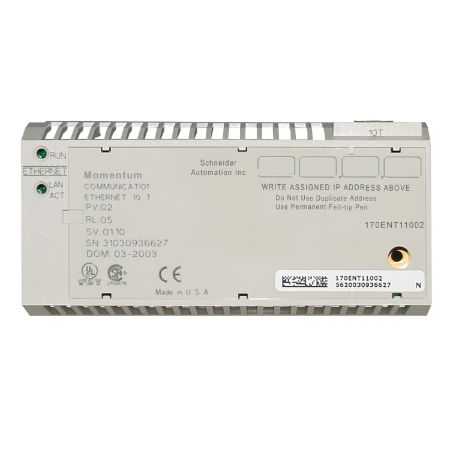

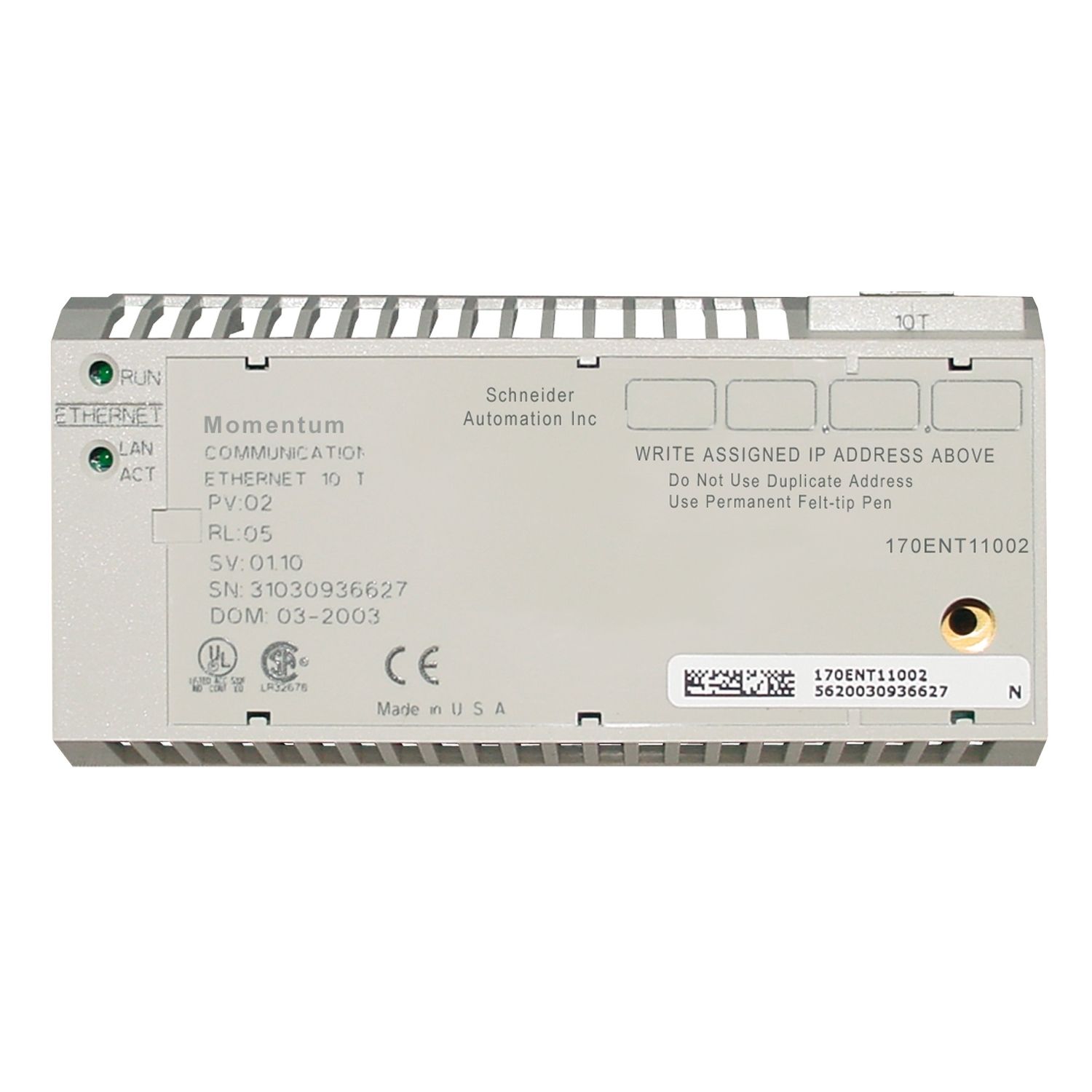

Picture of Modicon Momentum - Ethernet communication adaptor - 10/100 Mbit/s
SKU:

170ENT11001

Modicon Momentum - Ethernet communication adaptor - 10/100 Mbit/s

$1,998.70 INC GST
Available for Shipping : 12-Jan-2026
Modicon Momentum - Ethernet communication adaptor - 10/100 Mbit/s
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Instruction sheet
User guide
Declaration of conformity
Product Page Link
Product Data Sheet
This adaptor is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. The ethernet TCP/IP communication adaptor supports multidrop and star network topology. It offers shielded twisted pair cable transmission support medium and 10/100Mbps data transmission rate. The adaptor is accessible through the peer to peer and master/slave method. It is furnished with 1 RJ45 connector for 100BASE-TX. It is an IP20 rated product. It weighs 0.07kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, CSA and UL. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.

Products specifications

Attribute name Attribute value
Main
Method of access master/slave, peer to peer
Range of product Modicon Momentum automation platform
Transmission rate 10/100 Mbit/s
Communication port protocol Ethernet TCP/IP
Transmission support medium shielded twisted pairs cable
Product or component type Ethernet TCP/IP communication adaptor
Complementary
Topology multidrop, star network
Control parameter CRC-32
Marking CE
Module configuration BOOTP server to assign IP parameters
Number of devices per segment 0-32
Addressing IP address user assigned, unique IEEE global address
Maximum cable distance between devices 1000 m without repeater
Port Ethernet 100BASE-TX
Local signalling 1 LED (yellow) for Ethernet network 10 Mbits/s (100T), 1 LED (green) for module active (RUN), 1 LED (green) for Ethernet network state (ST), 1 LED (green) for Ethernet network 10 Mbits/s (10T)
Net weight 0.07 kg
Fail state fail safe
Supply from I/O base
Electrical connection 1 connector RJ45 for 100BASE-TX
Environment
IP degree of protection IP20
Protective treatment TC
Resistance to electrostatic discharge 8 kV on air conforming to IEC 801-2, 4 kV contact conforming to IEC 801-2
Relative humidity 95-95 % without condensation
Ambient air temperature for storage -40-85 °C
Resistance to electromagnetic fields 10 V/m 80...1000 MHz conforming to IEC 801-3
Ambient air temperature for operation 0-60 °C
Operating altitude <= 5000 m
Standards CSA
Product certifications UL, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.000 cm
Package 1 Width 18.300 cm
Package 1 Length 26.100 cm
Package 1 Weight 233.000 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.300 kg
