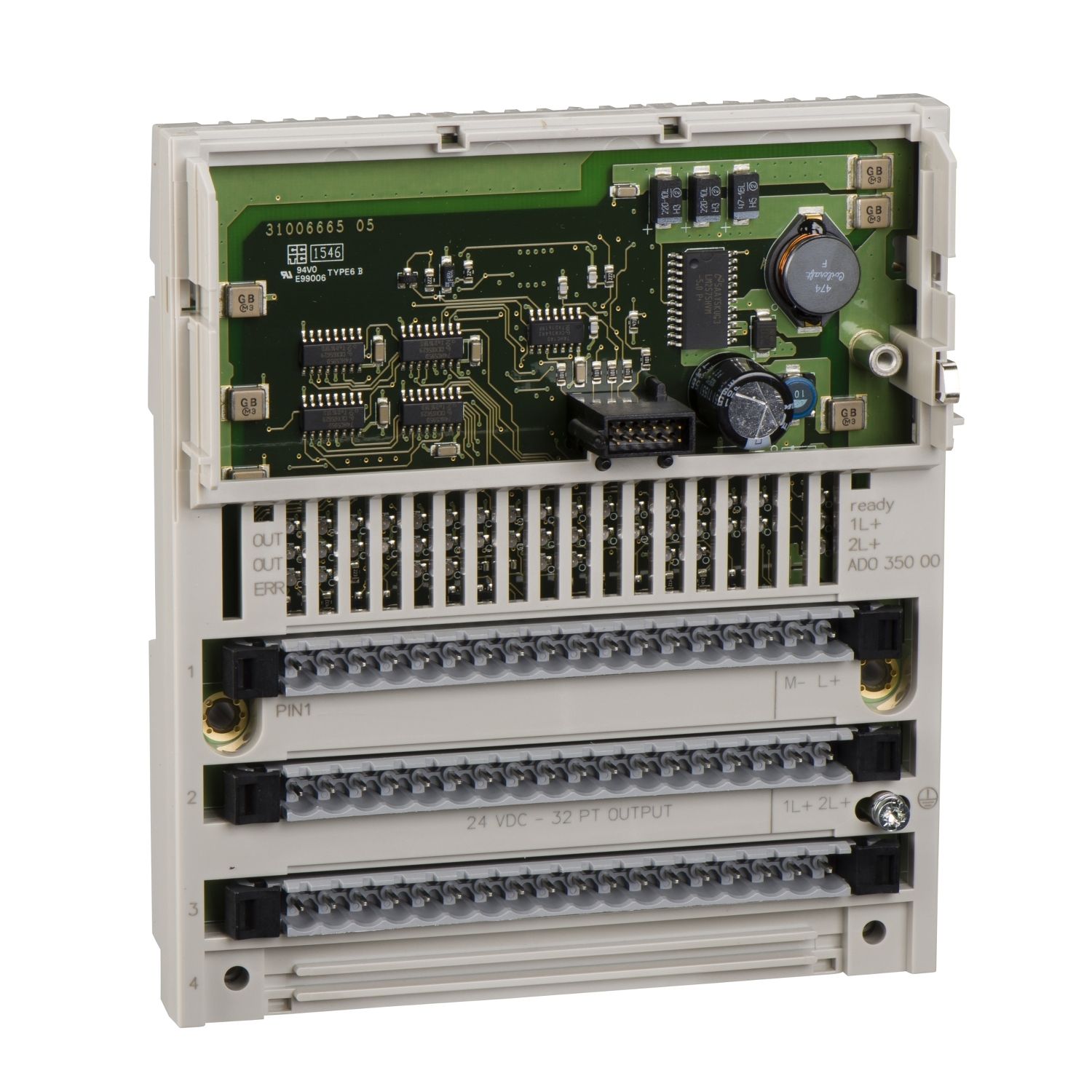

Picture of discrete output module Modicon Momentum - 32 O solid state
SKU:

170ADO35000

discrete output module Modicon Momentum - 32 O solid state

$2,555.30 INC GST
Available for Shipping : 15-Dec-2025
discrete output module Modicon Momentum - 32 O solid state
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 15-Dec-2025
Circularity Profile
User guide
Environmental Disclosure
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
This I/O module is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. It is a discrete solid state I/O base for DC. This output base supports two groups of 16 outputs. It is electronically safeguarded against short circuit and overload. The internal communications connector provides automatic communication to any adapter mounted on the base. It is a CSA and UL certified product. It weighs 0.21kg. The I/O base provides the foundation for the rest of the Momentum control system. The 16 inputs are IEC 1131-2 Type 3 conformant. Momentum I/O base has mounting holes for a panel mount and a locking tab for a DIN rail mount. Momentum I/O bases offer simple plug-in terminal strips. Modicon Momentum is a flexible, modular family of fundamental components. Modicon Momentum products are specially designed for material handling, simple machine control, and building automation applications.

Products specifications

Attribute name Attribute value
Main
Protective treatment TC
Short-circuit protection outputs electronically protected
Discrete output voltage 24 V DC
Current per channel 0.5 A
Range of product Modicon Momentum automation platform
Group of channels 2 groups of 16 outputs
Discrete output type solid state switch
Discrete output number 32
Product or component type discrete output base DC
Complementary
Output overload protection outputs electronically protected
Discrete output current 8 A per group, 16 A per module
Marking CE
Response time 0.1 ms from state 1 to state 0, 0.1 ms from state 0 to state 1
Height 141.5 mm
Isolation between channels and bus 500 V AC
Depth 47.5 mm
Width 125 mm
Local signalling 32 LEDs for channel status
Maximum leakage current 1 mA 24 V DC
Net weight 0.21 kg
Surge current 5 A during 1 ms
Current consumption 250 mA at 24 V DC
Maximum voltage drop <0.5 V 0.5 A at state 1
Terminals description PLC n°1 (6)OUT_DIS#6, (4)OUT_DIS#4, (3)OUT_DIS#3, (13)OUT_DIS#13, (10)OUT_DIS#10, (5)OUT_DIS#5, (1)OUT_DIS#1, (14)OUT_DIS#14, (11)OUT_DIS#11, (9)OUT_DIS#9, (12)OUT_DIS#12, (M-)PW_NEG, (7)OUT_DIS#7, (16)OUT_DIS#16, (L+)PW_POS, (8)OUT_DIS#8, (2)OUT_DIS#2, TB, (15)OUT_DIS#15
Terminals description PLC n°2 (1L+)PW_POS, (1)OUT_DIS#17, (9)OUT_DIS#25, (5)OUT_DIS#21, (15)OUT_DIS#31, (14)OUT_DIS#30, (11)OUT_DIS#27, (16)IN_DIS#32, (13)OUT_DIS#29, (2)OUT_DIS#18, (12)OUT_DIS#28, (10)OUT_DIS#26, (8)OUT_DIS#24, TB_1, (3)OUT_DIS#19, (2L+)PW_POS, (7)OUT_DIS#23, (4)OUT_DIS#20, (6)OUT_DIS#22
[Ue] rated operational voltage 24 V DC
Power dissipation 7.5 W maximum, 6 W typical
Environment
Resistance to electrostatic discharge 8 kV on air conforming to IEC 801-2, 4 kV contact conforming to IEC 801-2
Relative humidity 95-95 % without condensation
Ambient air temperature for storage -40-85 °C
Resistance to electromagnetic fields 10 V/m 80...1000 MHz conforming to IEC 801-3
Ambient air temperature for operation 0-60 °C
Operating altitude <= 5000 m
Product certifications UL, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.5 cm
Package 1 Width 18.0 cm
Package 1 Length 26.0 cm
Package 1 Weight 403.0 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 4.545 kg
Unit Type of Package 3 3
Number of Units in Package 3 80
Package 3 Height 75.0 cm
Package 3 Width 40.0 cm
Package 3 Length 80.0 cm
Package 3 Weight 47 kg
