140ERT85420

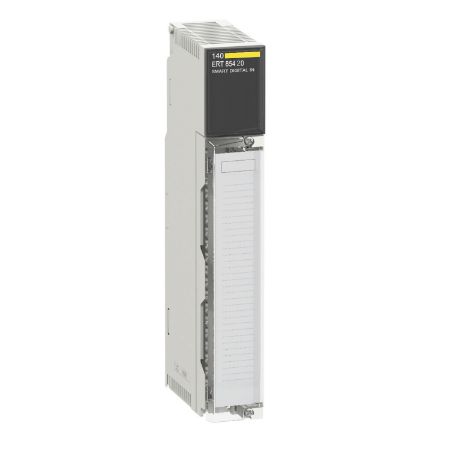

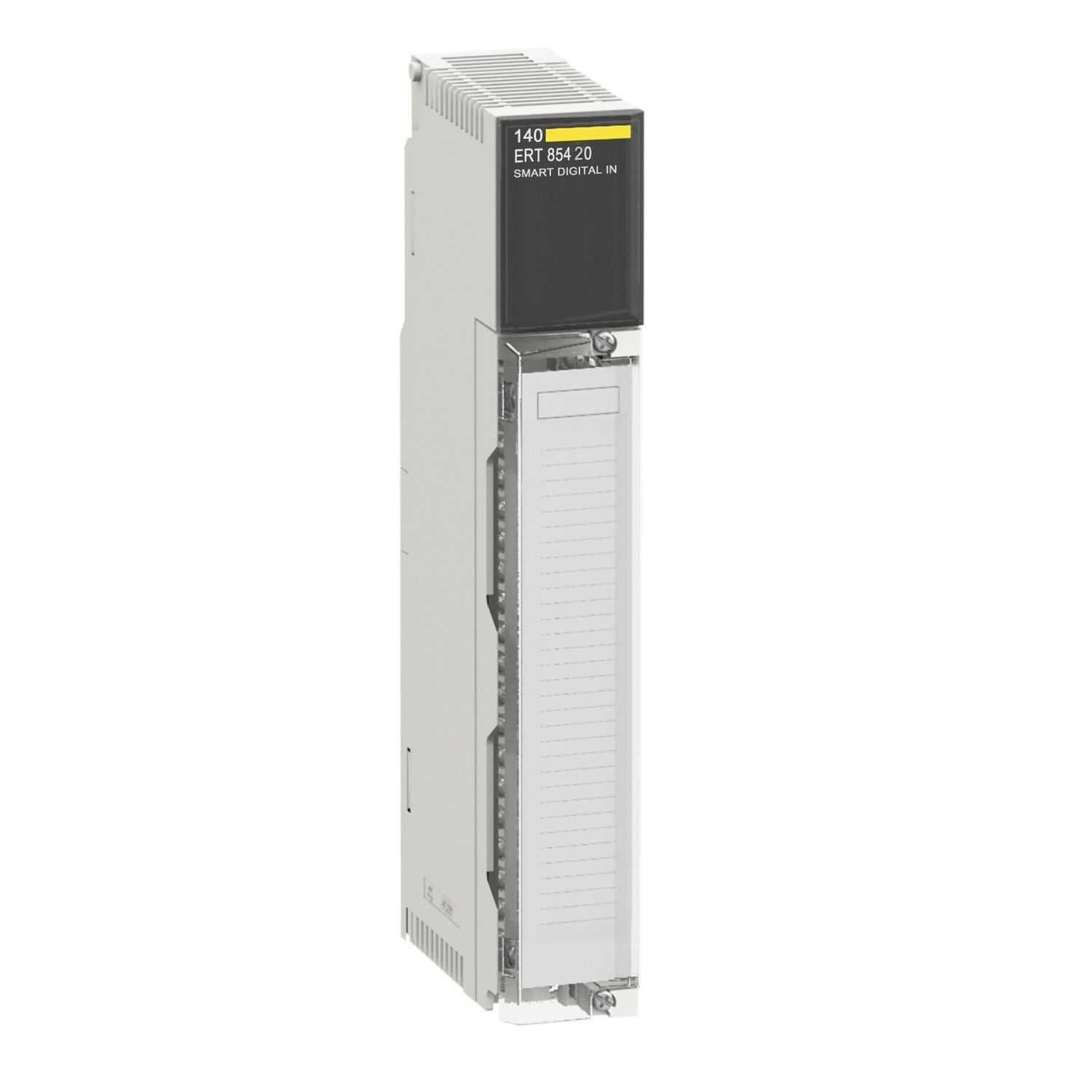

multifunction input module Modicon Quantum - 32 I - IRIG-B - DCF77

$7,570.20 INC GST
Availability: Please contact our sales team on 1300 724 622.
multifunction input module Modicon Quantum - 32 I - IRIG-B - DCF77
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
User guide
Declaration of conformity
Catalog
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Product or component type multifunction input module
Range of product Modicon Quantum automation platform
Number of terminals 40
Complementary
Insulation by optocoupler for clock signal input
Discrete input number 32 discrete input(s) at 24...125 V for process input, 1 discrete input(s) at 24 V for clock signal input
Maximum power consumption in W 7.5 W for process input
Function of module time and date stamped event logging, status monitoring on discrete inputs, status logging counting 500 Hz
Switching voltage 60 V at 2.5 mA for process input, 48 V at 2.5 mA for process input, 24 V at 6 mA for process input, 125 V at 1 mA for process input
Module format standard
Local signalling 32 LEDs for status of inputs (1 to 32), 1 LED (red) for fault (F), 1 LED (green) for self test OK, module ready (R), 1 LED (green) for communication on the bus (Active)
Product compatibility Unity Pro V7.0, Unity Pro V6.0 - without IRIG-B or TXSNTP100 function, Unity Pro V5.0 - without IRIG-B or TXSNTP100 function, Unity Pro V4.1 - without IRIG-B or TXSNTP100 function
Time synchronisation protocol IRIG-B, DCF77
Insulation between group of channels by optocoupler
Anti bounce filtering configurable from 0 to 255 ms
Electrical connection cable - unshielded cable <400 m for process input, cable - shielded cable <600 m for process input
Net weight 0.45 kg
Input current 5 mA for clock signal input
Current consumption 20 mA at 24...125 V DC external power supply per group of channel, 300 mA at 5 V DC bus
Acquisition time 1 ms for clock signal input
Group of channels 2 groups of 16 inputs for process input
Input state inversion configurable
Connections - terminals screw terminal block
Environment
Operating altitude <= 5000 m
Protective treatment TC
Resistance to electrostatic discharge 8 kV on air conforming to IEC 801-2, 4 kV contact conforming to IEC 801-2
Relative humidity 95-95 % without condensation
Ambient air temperature for storage -40-85 °C
Standards UL 508, HazLoc
Resistance to electromagnetic fields 10 V/m 80...2000 MHz conforming to IEC 801-3
Ambient air temperature for operation 0-60 °C
Product certifications Merchant Navy, GOST, LR, CSA Class 1 Division 2, C-Tick, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.0 cm
Package 1 Width 16.5 cm
Package 1 Length 31.5 cm
Package 1 Weight 425.0 g
