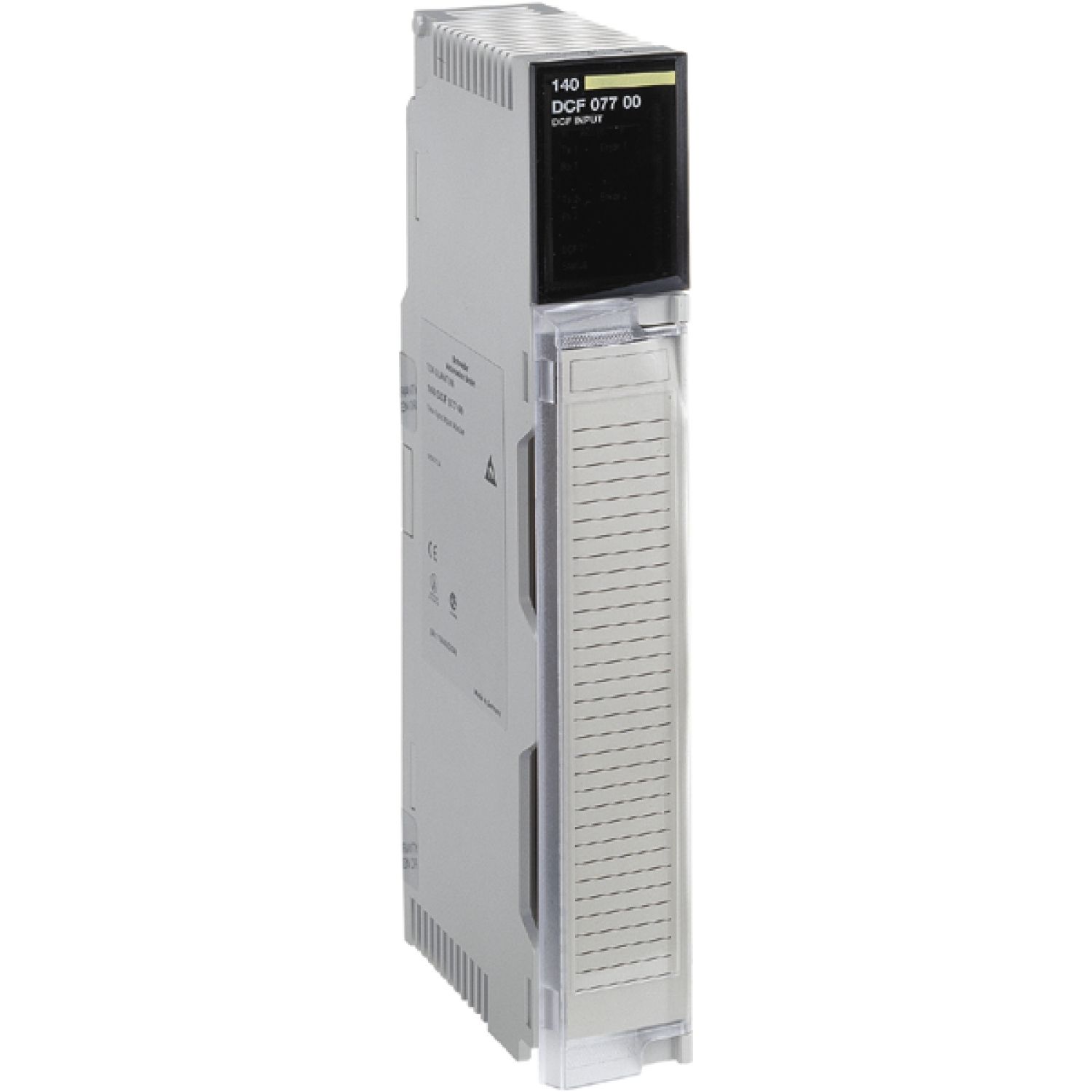

Picture of PLC clock synchronization module -1 discrete input - DCF signal
SKU:

140DCF07700

PLC clock synchronization module -1 discrete input - DCF signal

$11,662.20 INC GST
Available for Shipping : 02-Feb-2026
PLC clock synchronization module -1 discrete input - DCF signal
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 02-Feb-2026
Circularity Profile
User guide
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Product or component type PLC clock synchronization module
Range of product Modicon Quantum automation platform
Processor name 80C32-25
Complementary
Clock frequency 221184 MHz
Net weight 0.45 kg
Function of module periodic time and date stamping of process values, time based tables, time and date stamping of events
Current consumption 300 mA at 5 V DC internal via the system bus, 30 mA at 24 V DC
Local signalling 1 LED (yellow) for synchronization with time receiver signal (STATUS), 1 LED (red) for no synchronization with time receiver signal since 60 minutes (ERROR 1), 1 LED (red) for no synchronization with time receiver signal (ERROR 2), 1 LED (green) for reception of date/time, flashes in time with the input signal (DCF77), 1 LED (green) for module running (R), 1 LED (red) for fault (F), 1 LED (green) for communication on the bus (Active)
Discrete input number 1
Electrical connection 1 connector plug-in 6 screw terminals
Insulation optocoupler
Discrete input type DCF signal
Memory type RAM 256 kB for data and the program, RAM 2 kB for the DPM, flash 128 kB for the program and the firmware
Input voltage 24 V DC
Environment
Operating altitude <= 5000 m
Resistance to electrostatic discharge 8 kV on air conforming to IEC 801-2, 4 kV contact conforming to IEC 801-2
Relative humidity 95-95 % without condensation
Standards HazLoc, UL 508
Ambient air temperature for storage -40-85 °C
Resistance to electromagnetic fields 10 V/m 80-2000 MHz conforming to IEC 801-3
Ambient air temperature for operation 0-60 °C
Product certifications ABS, RINA, LR, DNV, GOST, GL, UL, CSA Class 1 Division 2, C-Tick, RRS
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.0 cm
Package 1 Width 15.8 cm
Package 1 Length 30.5 cm
Package 1 Weight 496.0 g
