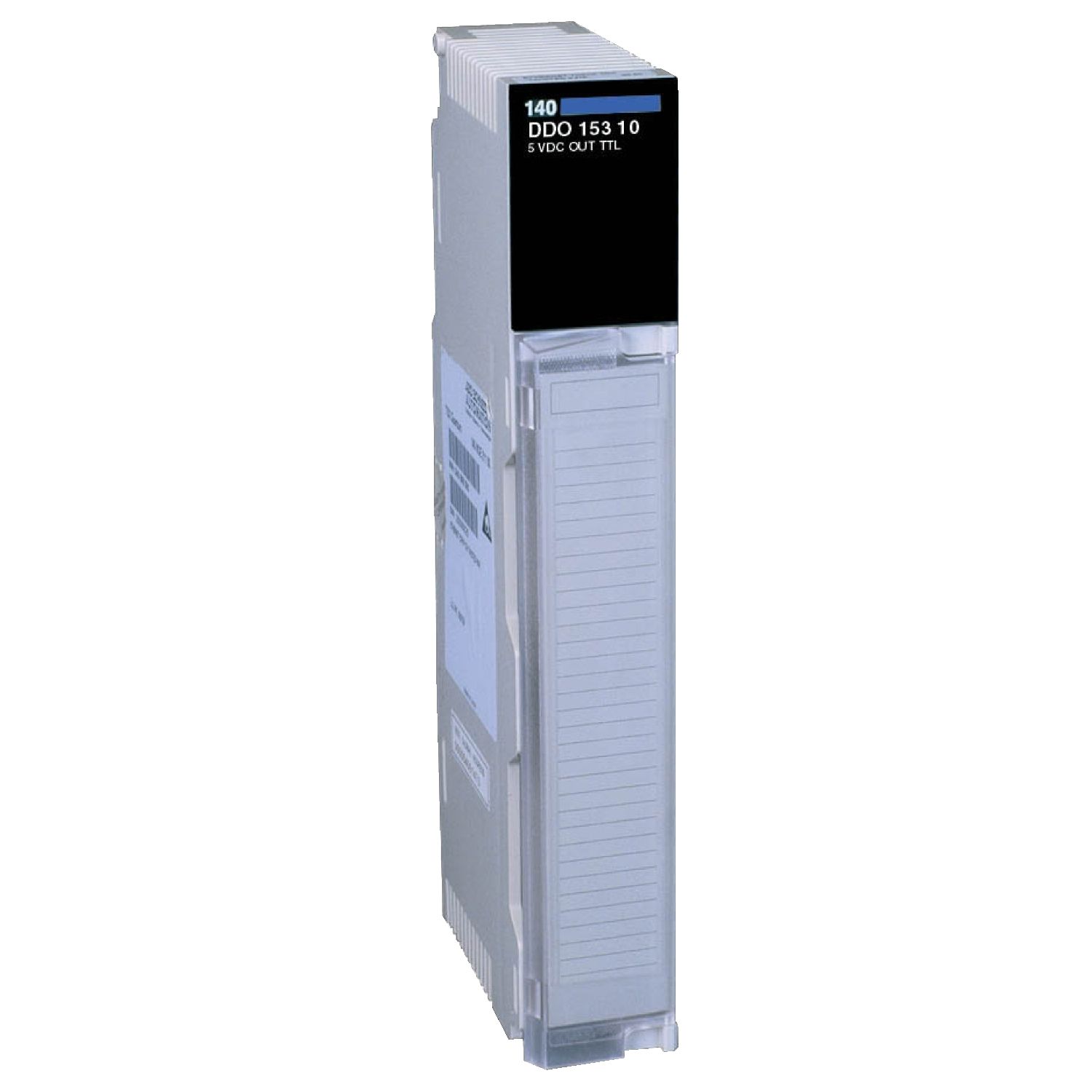

Picture of discrete output module Modicon Quantum - 32 O solid state
SKU:

140DDO35300

discrete output module Modicon Quantum - 32 O solid state

$4,203.52 INC GST
Availability: Please contact our sales team on 1300 724 622.
discrete output module Modicon Quantum - 32 O solid state
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Instruction sheet
Declaration of conformity
Catalog
CAD
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Discrete output number 32
Product or component type dc discrete output module
Range of product Modicon Quantum automation platform
Complementary
Isolation between channels and bus 1780 Vrms DC for 1 minute
Module format standard
Protection type internal output protection by 5 A fuse per group
Local signalling 32 LEDs (green) for input status, 1 LED (red) for external fault detected (F), 1 LED (green) for bus communication is present (Active)
Fault indication loss of field power, blown fuse
Addressing requirement 2 output words
Output voltage limits 19.2...30 V
Absolute maximum output 56 V for 1.3 s decaying pulse
Load inductance inductance(H) = 0.5/((current(A))² x (switching frequency(Hz))) 50 Hz
Maximum leakage current 0.4 mA 30 V
Net weight 0.45 kg
Associated fuse rating 5 A per group, 3 A each point
Surge current 5 A for 0.0005 s
Marking CE
Discrete output voltage 24 V DC
Isolation between group 500 Vrms DC for 1 minute
Maximum voltage drop <0.4 V 0.5 A
Response time <= 1 ms at state 1 to state 0, <= 1 ms at state 0 to state 1
Bus current requirement 330 mA
Discrete output logic positive logic (source)
Group of channels 4 groups of 8
Maximum load current 4 A per group, 16 A per module
Power dissipation 1.75 W + (0.4 V x total module load current)
Environment
Operating altitude <= 5000 m
Resistance to electrostatic discharge 8 kV on air conforming to IEC 801-2, 4 kV contact conforming to IEC 801-2
Relative humidity 95-95 % without condensation
Ambient air temperature for storage -40-85 °C
Standards CSA C22.2 No 142, UL 508
Resistance to electromagnetic fields 10 V/m 80-2000 MHz conforming to IEC 801-3
Ambient air temperature for operation 0-60 °C
Product certifications safety certification non interfering, FM Class 1 Division 2, C-Tick, RINA, GL, DNV, ABS, RMRS, BV, GOST
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.59 cm
Package 1 Width 16.44 cm
Package 1 Length 31.09 cm
Package 1 Weight 434.9 g
