Picture of discrete I/O module Modicon Quantum - 16 I - 24 V DC - 8 O solid state
SKU:

140DDM39000

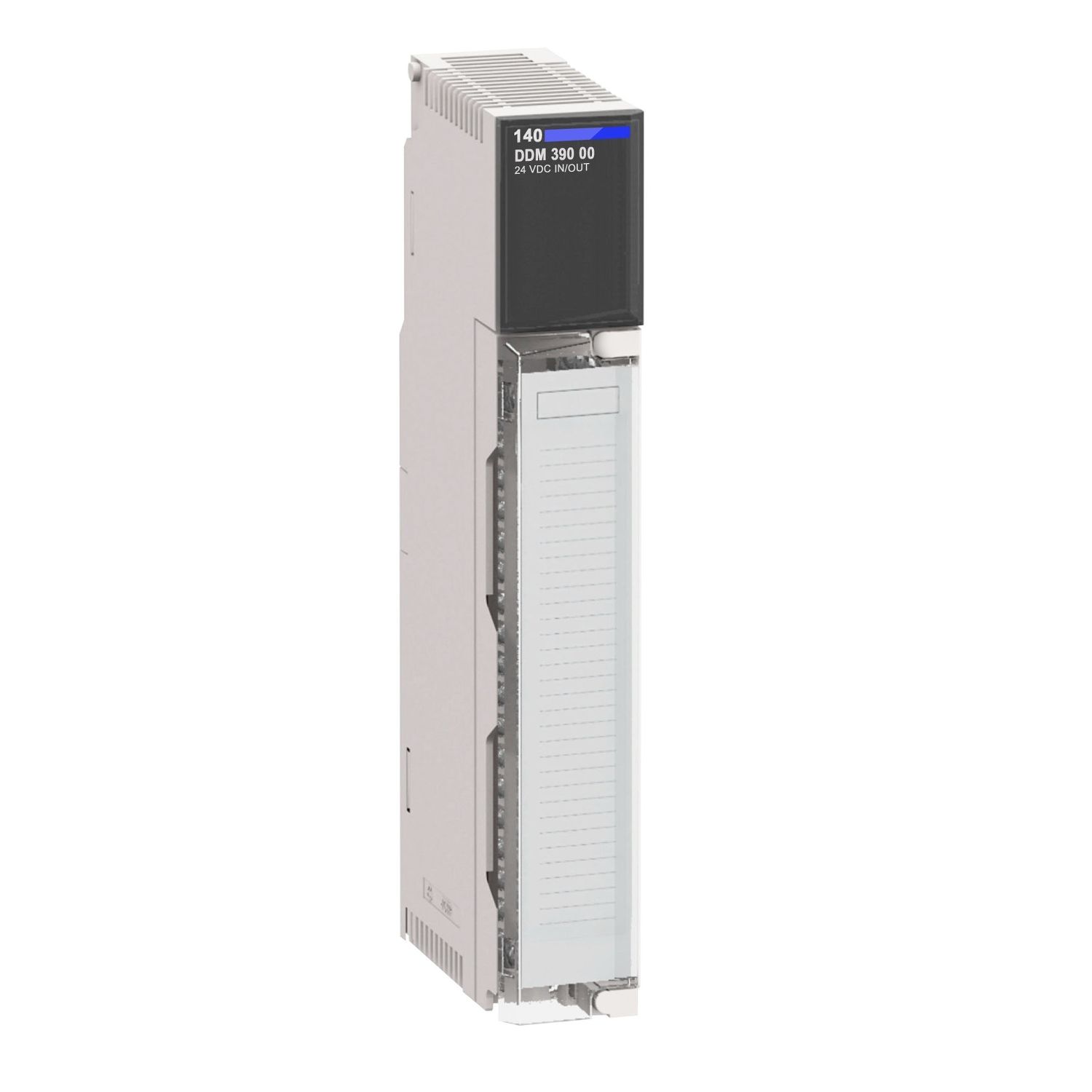

discrete I/O module Modicon Quantum - 16 I - 24 V DC - 8 O solid state

$2,685.19 INC GST
Availability: Please contact our sales team on 1300 724 622.
discrete I/O module Modicon Quantum - 16 I - 24 V DC - 8 O solid state
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Catalog
User guide
CAD
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Discrete I/O number 24
Product or component type mixed discrete I/O module
Range of product Modicon Quantum automation platform
Complementary
Response time on output <= 1 ms at state 1 to state 0, <= 1 ms at state 0 to state 1
Input impedance 2500 Ohm
Discrete input number 16 2 groups of 8
Protection type internal output protection by 5 A fuse per group, on input by resistor limited, on output by transient voltage suppression
Local signalling 2 LEDs (red) for fault detected on the output point, 2 LEDs (red) for fault detected on the input point, 2 LEDs (green) for output is turned on, 1 LED (red) for no voltage in output and input (F), 1 LED (green) for bus communication is present (Active)
Fault indication loss of field power on output, blown fuse on output
Addressing requirement 0.5 output word, 1 input word
Bus current requirement 330 mA
Discrete input logic sink
Absolute maximum output 5 A during 500 µs per point
Discrete output voltage 24 V
Voltage state 1 guaranteed 15...30 V
Output voltage limits 56 V DC during 1.3 ms, 19.2...30 V DC typical
Maximum leakage current 0.4 mA 30 V DC
Voltage state 0 guaranteed -3...5 V
Net weight 0.3 kg
Isolation between group 500 Vrms for 1 minute
Associated fuse rating 5 A per group
Input voltage limits <= 1 V during 10 s, 56 V during 1.3 ms, <= 1 V during one cycle, 30 V
Current state 0 guaranteed <= 0.5 mA
Marking CE
Current state 1 guaranteed >= 2 mA
Network frequency limits 47-63 Hz
Maximum load capacitance 50 µF
Discrete output number 8 2 groups of 4
Isolation between group and bus 1780 Vrms for 1 minute
Maximum voltage drop <0.4 V 0.5 A
Maximum load inductance 500 mH at 4 Hz
Discrete input voltage 24 V DC
Discrete output logic sink
Maximum load current <= 4 A per module, <= 2 A per group, <= 0.5 A per point
Discrete output type solid state
Power dissipation 1.75 W + (0.36 x input point on) + (1.1 total output load current)
Environment
Operating altitude <= 5000 m
Resistance to electrostatic discharge 8 kV on air conforming to IEC 801-2, 4 kV contact conforming to IEC 801-2
Relative humidity 95-95 % without condensation
Ambient air temperature for storage -40-85 °C
Standards FM Class 1 Division 2, UL 508, CSA C22.2 No 142
Resistance to electromagnetic fields 10 V/m 80-1000 MHz conforming to IEC 801-3
Ambient air temperature for operation 0-60 °C
Product certifications cUL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 16.3 cm
Package 1 Width 4.5 cm
Package 1 Length 31.2 cm
Package 1 Weight 426.0 g
Unit Type of Package 2 2
Number of Units in Package 2 7
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.039 kg
